EN 301 001-2 V1.2.2 (1998-08)European Standard (Telecommunications series)Integrated Services Digital Network (ISDN);Outgoing Call Barring (OCB) supplementary services;Digital Subscriber Signalling System No. one (DSS1) protocol;Part 2: Protocol Implementation ConformanceStatement (PICS) proforma specificationSIST EN 301 001-2:2000

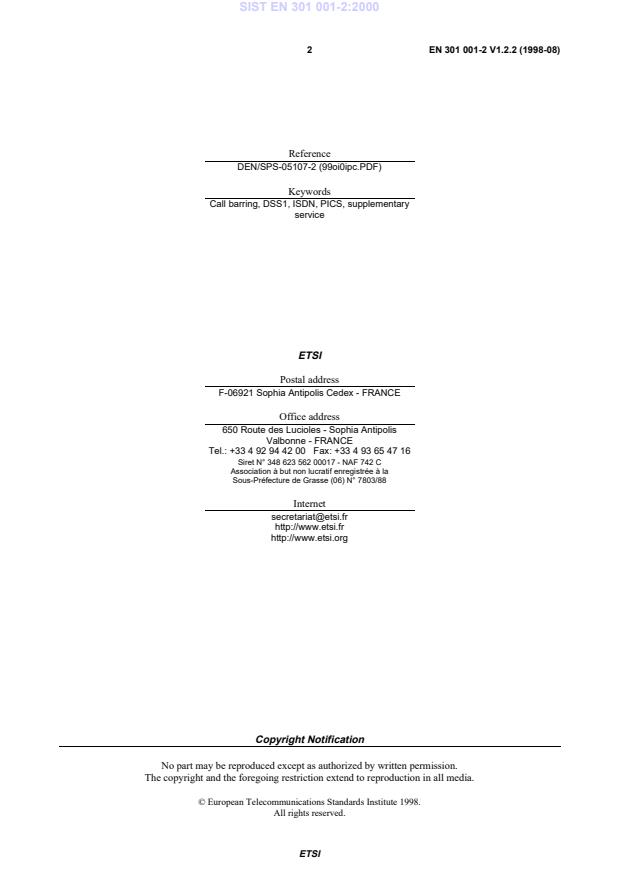

ETSIEN 301 001-2 V1.2.2 (1998-08)2ReferenceDEN/SPS-05107-2 (99oi0ipc.PDF)KeywordsCall barring, DSS1, ISDN, PICS, supplementaryserviceETSIPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16Siret N° 348 623 562 00017 - NAF 742 CAssociation à but non lucratif enregistrée à laSous-Préfecture de Grasse (06) N° 7803/88Internetsecretariat@etsi.frhttp://www.etsi.frhttp://www.etsi.orgCopyright NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1998.All rights reserved.SIST EN 301 001-2:2000

ETSIEN 301 001-2 V1.2.2 (1998-08)3ContentsIntellectual Property Rights.5Foreword.51Scope.62References.62.1Normative references.62.2Informative references.73Definitions, symbols and abbreviations.73.1Definitions.73.2Symbols.73.3Abbreviations.84Conformance.8Annex A (normative):PICS proforma for EN 301 001-1.9A.1Instructions for completing the PICS proforma.9A.1.1Identification of the implementation.9A.1.2Global statement of conformance.9A.1.3Explanation of PICS proforma subclauses.9A.1.4Symbols, abbreviations and terms.10A.2Identification of the implementation.10A.2.1Implementation Under Test (IUT) identification.10A.2.2System Under Test (SUT) identification.10A.2.3Product supplier.11A.2.4Client.11A.2.5PICS contact person.12A.3Protocol Implementation Conformance Statement (PICS)/System Conformance Statement (SCS)relationship.12A.4Identification of the protocol.12A.5Global statement of conformance.13A.6Rs.13A.7User.14A.7.1MC.14A.7.2SC.14A.7.3Protocol data units.14A.7.4Protocol data unit P.15A.7.5TM.16A.7.6Call states.16A.8Network.17A.8.1MC.17A.8.2SC.17A.8.3Protocol data units.17A.8.4Protocol data unit P.18A.8.5TM.18A.8.6Call states.18Annex B (normative):Requirements list.19B.1User.19B.1.1Requirements on items used in the basic call PICS.19B.1.2Requirements on items used in the generic functional protocol PICS.19SIST EN 301 001-2:2000

ETSIEN 301 001-2 V1.2.2 (1998-08)4B.1.3Requirements on items used in the supplementary service interactions PICS.20B.2Network.21B.2.1Requirements on items used in the basic call PICS.21B.2.2Requirements on items used in the generic functional protocol PICS.21B.2.3Requirements on items used in the supplementary services interactions PICS.22History.23SIST EN 301 001-2:2000

ETSIEN 301 001-2 V1.2.2 (1998-08)5Intellectual Property RightsIPRs essential or potentially essential to the present document may have been declared to ETSI. The informationpertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be foundin SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respectof ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on theETSI Web server (http://www.etsi.fr/ipr or http://www.etsi.org/ipr).Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guaranteecan be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)which are, or may be, or may become, essential to the present document.ForewordThis European Standard (Telecommunications series) has been produced by ETSI Technical Committee SignallingProtocols and Switching (SPS).The present document is part 2 of a multi-part standard covering the Digital Subscriber Signalling System No. one(DSS1) protocol specification for the Integrated Services Digital Network (ISDN) Outgoing Call Barring (OCB)supplementary services, as described below:Part 1:"Protocol specification";Part 2:"Protocol Implementation Conformance Statement (PICS) proforma specification";Part 3:"Test Suite Structure and Test Purposes (TSS&TP) specification for the user";Part 4:"Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT)proforma specification for the user";Part 5:"Test Suite Structure & Test Purposes (TSS&TP) specification for the network";Part 6:"Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT)proforma specification for the network".To evaluate conformance of a particular implementation, it is necessary to have a statement of which capabilities andoptions have been implemented for a given Open Systems Interconnection (OSI) protocol. Such a statement is called aProtocol Implementation Conformance Statement (PICS).National transposition datesDate of adoption of this EN:7 August 1998Date of latest announcement of this EN (doa):30 November 1998Date of latest publication of new National Standardor endorsement of this EN (dop/e):31 May 1999Date of withdrawal of any conflicting National Standard (dow):31 May 1999SIST EN 301 001-2:2000

ETSIEN 301 001-2 V1.2.2 (1998-08)61ScopeThis second part of EN 301 001 is applicable to the stage three of the Outgoing Call Barring (OCB) supplementaryservices for the pan-European Integrated Services Digital Network (ISDN) as provided by European publictelecommunications operators at the T reference point or coincident S and T reference point (as defined inITU-T Recommendation I.411 [9]) by means of the Digital Subscriber Signalling System No. one (DSS1) protocol.Stage three identifies the protocol procedures and switching functions needed to support a telecommunication service(see CCITT Recommendation I.130 [6]).The present document provides the Protocol Implementation Conformance Statement (PICS) proforma for the ISDNDSS1 supplementary service interactions protocol as specified in EN 301 001-1 [5] in compliance with the relevantrequirements and in accordance with the relevant guidance given in ISO/IEC 9646-7 [8].The supplier of a protocol implementation which is claimed to conform to EN 301 001-1 [5] is required to complete acopy of the PICS proforma provided in annex A of the present document and is required to provide the informationnecessary to identify both the supplier and the implementation.2ReferencesReferences may be made to:a)specific versions of publications (identified by date of publication, edition number, version number, etc.), inwhich case, subsequent revisions to the referenced document do not apply; orb)all versions up to and including the identified version (identified by "up to and including" before the versionidentity); orc)all versions subsequent to and including the identified version (identified by "onwards" following the versionidentity); ord)publications without mention of a specific version, in which case the latest version applies.A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the samenumber.2.1Normative references[1]EN 300 195-1: "Integrated Services Digital Network (ISDN); Supplementary service interactions;Digital Subscriber Signalling System No. one (DSS1) protocol; Part 1: Protocol specification".[2]EN 300 195-2: "Integrated Services Digital Network (ISDN); Supplementary service interactions;Digital Subscriber Signalling System No. one (DSS1) protocol; Part 2: Protocol ImplementationConformance Statement (PICS) proforma specification".[3]EN 300 196-1: "Integrated Services Digital Network (ISDN); Generic functional protocol for thesupport of supplementary services; Digital Subscriber Signalling System No. one (DSS1) protocol;Part 1: Protocol specification".[4]ETS 300 196-2: "Integrated Services Digital Network (ISDN); Generic functional protocol for thesupport of supplementary services; Digital Subscriber Signalling System No. one (DSS1) protocol;Part 2: Protocol Implementation Conformance Statement (PICS) proforma specification".[5]EN 301 001-1 (V1.1): "Integrated Services Digital Network (ISDN); Outgoing Call Barring (OCB)supplementary services; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 1:Protocol specification".SIST EN 301 001-2:2000

ETSIEN 301 001-2 V1.2.2 (1998-08)72.2Informative references[6]CCITT Recommendation I.130 (1988): "Method for the characterization of telecommunicationservices supported by an ISDN and network capabilities of an ISDN".[7]ISO/IEC 9646-1: "Information technology - Open Systems Interconnection - Conformance testingmethodology and framework - Part 1: General concepts".[8]ISO/IEC 9646-7: "Information technology - Open Systems Interconnection - Conformance testingmethodology and framework - Part 7: Implementation Conformance Statements".[9]ITU-T Recommendation I.411 (1993): "ISDN user-network interfaces - reference configurations".3Definitions, symbols and abbreviations3.1DefinitionsFor the purposes of the present document, the following definitions apply, in addition to those given inEN 301 001-1 [5]:Protocol Implementation Conformance Statement (PICS): A statement made by the supplier of an Open SystemsInterconnection (OSI) implementation or system, stating which capabilities have been implemented for a given OSIprotocol (see ISO/IEC 9646-1 [7]).PICS proforma: A document, in the form of a questionnaire, designed by the protocol specifier or conformance testsuite specifier, which, when completed for an OSI implementation or system becomes the PICS (seeISO/IEC 9646-1 [7]).static conformance review: A review of the extent to which the static conformance requirements are met by the IUT,accomplished by comparing the PICS with the static conformance requirements expressed in the relevant standard(s)(see ISO/IEC 9646-1 [7]).3.2SymbolsFor the purposes of the present document, the following symbols apply:ANDBoolean "and"CConditional requirement (to be observed if the relevant conditions apply)MMandatory requirement (to be observed in all cases)N/ANot applicable, not supported or the conditions for status are not meetNonot supportedNOTBoolean "not"OOption (may be selected to suit the implementation, provided that any requirements applicable tothe option are observed)O.nOptions, but support required for either at least one or only one of the options in the group labelledwith the same numeral "n"ORBoolean "or"YessupportedSIST EN 301 001-2:2000

ETSIEN 301 001-2 V1.2.2 (1998-08)83.3AbbreviationsFor the purposes of the present document, the following abbreviations apply:DSS1Digital Subscriber Signalling System No. oneISDNIntegrated Services Digital NetworkIUTImplementation Under TestMCMajor CapabilitiesMRMessages ReceivedMTMessages TransmittedOCBOutgoing Call BarringOCB-FOutgoing Call Barring-FixedOCB-UCOutgoing Call Barring: User ControlledOSIOpen Systems InterconnectionPParametersPICSProtocol Implementation Conformance StatementRRoleSCSubsidiary CapabilitiesSCSSystem Conformance StatementSUTSystem Under TestTMTimers4ConformanceA Protocol Implementation Conformance Statement (PICS) proforma which conforms to this PICS proformaspecification shall be technically equivalent to annex A, and shall preserve the numbering and ordering of the items inannex A.A PICS which conforms to this PICS proforma specification shall:a)describe an implementation which claims to conform to EN 301 001-1 [5];b)be a conforming ICS proforma which has been completed in accordance with the instructions for completiongiven in clause A.1;c)include the information necessary to uniquely identify both the supplier and the implementation.SIST EN 301 001-2:2000

ETSIEN 301 001-2 V1.2.2 (1998-08)9Annex A (normative):PICS proforma for EN 301 001-1Notwithstanding the provisions of the copyright clause related to the text of the present document, ETSI grants that usersof the present document may freely reproduce the PICS proforma in this annex so that it can be used for its intendedpurposes and may further publish the completed PICS.A.1Instructions for completing the PICS proformaA.1.1Identification of the implementationIdentification of the Implementation Under Test (IUT) and the system in which it resides (the System Under Test(SUT)) should be filled in so as to provide as much detail as possible regarding version numbers and configurationoptions.The product supplier information and client information should both be filled in if they are different.A person who can answer queries regarding information supplied in the PICS should be named as the contact person.The System Conformance Statement (SCS) as defined in ISO/IEC 9646-1 [7] is a document supplied by the client orproduct supplier that summarizes which OSI standards are implemented and to which conformance is claimed. ThePICS/SCS clause should describe the relationship of the PICS to the SCS.A.1.2Global statement of conformanceIf the answer to the statement in this subclause is "Yes", all subsequent subclauses should be completed to facilitateselection of test cases for optional functions.If the answer to the statement in this subclause is "No", all subsequent subclauses should be completed, and all non-supported mandatory capabilities should be identified and explained. Explanations may be entered in the comments fieldat the bottom of each table or on attached pages.A.1.3Explanation of PICS proforma subclausesThe PICS proforma contains a Roles (Rs) clause and thereafter is presented in two parts (for user and network) with thefollowing subclauses, as required:-Major Capabilities (MC);-Subsidiary Capabilities (SC);-protocol data unit support;-protocol data unit Parameters (P);-Timers (TM);-call states.The User clause shall only be completed for user implementations (including private network implementations) whilethe Network clause shall only be completed for network implementations. The Rs clause shall be completed for allimplementations.The relationship between this PICS proforma and other related PICS proforma (e.g. the basic call PICS proforma) isexpressed in the requirements list contained in annex B. This provides the additional restrictions placed on the relatedproforma (different conditions, different status, etc.).SIST EN 301 001-2:2000

ETSIEN 301 001-2 V1.2.2 (1998-08)10A.1.4Symbols, abbreviations and termsThe PICS proforma contained in this annex is comprised of information in tabular form in accordance with theguidelines presented in ISO/IEC 9646-7 [8].The reference column contained in the tables gives reference to the appropriate part(s) of EN 301 001-1 [5] (unlessanother numbered reference is explicitly indicated) describing the particular item. Note, however, that a referencemerely indicates the place where the core of a description of an item can be found. Any additional information containedin EN 301 001-1 [5] (or any other possibly used reference) has to be taken into account when making a statement aboutthe conformance of that particular item.The following common notations, defined in ISO/IEC 9646-7 [8], are used for the status column:MmandatoryOoptionalN/Anot applicableO.for mutually exclusive or selectable options from a setThe following common notations, defined in ISO/IEC 9646-7 [8], are used for the support column:Yesfor supported/implementedNofor not supported/not implementedN/Afor not applicableA.2Identification of the implementationA.2.1Implementation Under Test (IUT) identificationIUT name:.IUT version:.A.2.2System Under Test (SUT) identificationSUT name:.
...
