SIST EN 300 698-2:2001
(Main)Electromagnetic compatibility and Radio Spectrum Matters (ERM); Radio telephone transmitters and receivers for the maritime mobile service operating in the VHF bands used on inland waterways; Part 2: Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive
General Information
- Abstract
Develop a Harmonised Standard under the R&TTE Directive identifying essential requirements in ETS 300 698.
- Status
- Published
- Publication Date
- 31-Aug-2001
- Technical Committee
- RES - Radio equipment and systems
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Sep-2001
- Due Date
- 01-Sep-2001
- Completion Date
- 01-Sep-2001
- Mandate
- M/284
Overview
SIST EN 300 698-2:2001 is a harmonized European standard developed by the Slovenski inštitut za standardizacijo (SIST) for electromagnetic compatibility (EMC) and radio spectrum matters (ERM) concerning radio telephone transmitters and receivers used in the maritime mobile service on inland waterways within the VHF bands (156-174 MHz). This standard specifically addresses the essential requirements outlined in Article 3.2 of the R&TTE Directive (1999/5/EC), ensuring that radio equipment efficiently uses the allocated spectrum and mitigates the risk of harmful interference.
Designed as part of a modular structure of standards, SIST EN 300 698-2:2001 is crucial for manufacturers, suppliers, and maritime authorities to ensure that VHF radio equipment complies with European regulatory requirements and technical specifications for maritime safety and effective communication.
Key Topics
- Electromagnetic Compatibility (EMC): The standard defines requirements for limiting electromagnetic disturbances generated by radio telephone equipment, ensuring they do not interfere with other electronic devices and communication systems.
- Radio Spectrum Efficiency: It sets conformance conditions to ensure efficient and responsible usage of the VHF radio spectrum in inland waterways, preventing resource misuse and minimizing unintentional interference.
- Transmitter and Receiver Performance: Technical specifications and compliance criteria are provided for aspects such as:
- Frequency accuracy and stability
- Carrier power and frequency deviation
- Adjacent channel power and spurious emissions
- Transient frequency behavior
- Testing and Measurement: Outlines test conditions, procedures, and measurement uncertainties for equipment assessment. This includes the use of recognized test suites for both transmitters and receivers.
- Regulatory Alignment: The standard supports compliance with the R&TTE Directive, facilitating CE marking and the mutual recognition of conformity across European Union member states.
Applications
SIST EN 300 698-2:2001 applies to:
- Maritime VHF Equipment: Specifically, radio telephone transmitters and receivers used in inland waterway navigation and control communications by maritime mobile services.
- Manufacturers and Suppliers: Organizations producing or supplying radio VHF transceivers for inland waterways must ensure their equipment meets these standardized EMC and spectrum requirements before market placement.
- Compliance Bodies and Test Laboratories: The standard guides conformity assessment, testing protocols, and certification for devices operating in the critical VHF marine bands.
- Regulatory and Maritime Authorities: Essential for verifying that onboard communication systems in vessels are safe, reliable, and legally compliant.
Ensuring equipment meets SIST EN 300 698-2:2001 is vital for operational safety, uninterrupted communications, and effective use of VHF frequencies on Europe’s inland waterways.
Related Standards
- EN 300 698-1: Technical characteristics and methods of measurement for maritime mobile service radio telephone transmitters and receivers.
- R&TTE Directive 1999/5/EC: European framework for radio equipment and telecommunications terminal equipment compliance.
- EMC Directive 89/336/EEC: General electromagnetic compatibility requirements.
- Low Voltage Directive 73/23/EEC: Safety requirements for electrical equipment.
- ETSI Technical Reports: For detailed measurement uncertainty and additional EMC/radio spectrum matters.
Keywords: electromagnetic compatibility, VHF band, radio spectrum, maritime mobile service, inland waterways, transmitter, receiver, R&TTE Directive, harmonized standard, EMC compliance, marine communications.
Get Certified
Connect with accredited certification bodies for this standard
DNV
DNV is an independent assurance and risk management provider.
Lloyd's Register
Lloyd's Register is a global professional services organisation specialising in engineering and technology.
FSC International
Forest Stewardship Council certification.
Sponsored listings
Frequently Asked Questions
SIST EN 300 698-2:2001 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Electromagnetic compatibility and Radio Spectrum Matters (ERM); Radio telephone transmitters and receivers for the maritime mobile service operating in the VHF bands used on inland waterways; Part 2: Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive". This standard covers: Develop a Harmonised Standard under the R&TTE Directive identifying essential requirements in ETS 300 698.
Develop a Harmonised Standard under the R&TTE Directive identifying essential requirements in ETS 300 698.
SIST EN 300 698-2:2001 is classified under the following ICS (International Classification for Standards) categories: 33.060.20 - Receiving and transmitting equipment; 33.100.01 - Electromagnetic compatibility in general; 47.020.70 - Navigation and control equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 300 698-2:2001 is associated with the following European legislation: EU Directives/Regulations: 1999/5/EC; Standardization Mandates: M/284. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
SIST EN 300 698-2:2001 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Electromagnetic compatibility and Radio Spectrum Matters (ERM); Radio telephone transmitters and receivers for the maritime mobile service operating in the VHF bands used on inland waterways; Part 2: Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive47.020.70Navigacijska in krmilna opremaNavigation and control equipment33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.060.20Sprejemna in oddajna opremaReceiving and transmitting equipmentICS:Ta slovenski standard je istoveten z:EN 300 698-2 Version 1.1.1SIST EN 300 698-2:2001en01-september-2001SIST EN 300 698-2:2001SLOVENSKI
STANDARD
ETSIEN300698-2V1.1.1(2000-08)CandidateHarmonizedEuropeanStandard(Telecommunicationsseries)ElectromagneticcompatibilityandRadioSpectrumMatters(ERM);RadiotelephonetransmittersandreceiversforthemaritimemobileserviceoperatingintheVHFbandsusedoninlandwaterways;Part2:HarmonizedENunderarticle3.2oftheR&TTEDirectiveSIST EN 300 698-2:2001

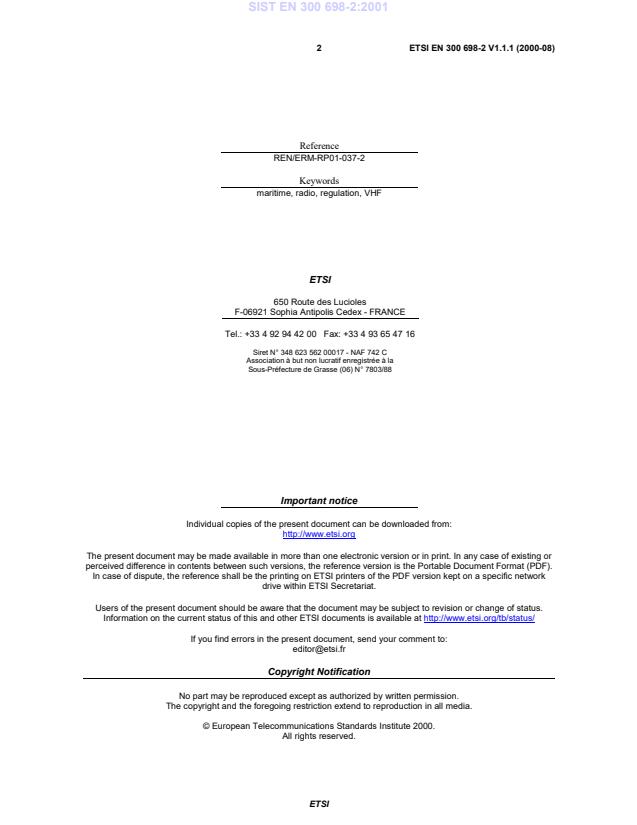

ETSIETSIEN300698-2V1.1.1(2000-08)2ReferenceREN/ERM-RP01-037-2Keywordsmaritime,radio,regulation,VHFETSI650RoutedesLuciolesF-06921SophiaAntipolisCedex-FRANCETel.:+33492944200Fax:+33493654716SiretN°34862356200017-NAF742CAssociationàbutnonlucratifenregistréeàlaSous-PréfecturedeGrasse(06)N°7803/88ImportantnoticeIndividualcopiesofthepresentdocumentcanbedownloadedfrom:http://www.etsi.orgThepresentdocumentmaybemadeavailableinmorethanoneelectronicversionorinprint.Inanycaseofexistingorperceiveddifferenceincontentsbetweensuchversions,thereferenceversionisthePortableDocumentFormat(PDF).Incaseofdispute,thereferenceshallbetheprintingonETSIprintersofthePDFversionkeptonaspecificnetworkdrivewithinETSISecretariat.Usersofthepresentdocumentshouldbeawarethatthedocumentmaybesubjecttorevisionorchangeofstatus.InformationonthecurrentstatusofthisandotherETSIdocumentsisavailableathttp://www.etsi.org/tb/status/Ifyoufinderrorsinthepresentdocument,sendyourcommentto:editor@etsi.frCopyrightNotificationNopartmaybereproducedexceptasauthorizedbywrittenpermission.Thecopyrightandtheforegoingrestrictionextendtoreproductioninallmedia.©EuropeanTelecommunicationsStandardsInstitute2000.Allrightsreserved.SIST EN 300 698-2:2001
ETSIETSIEN300698-2V1.1.1(2000-08)3ContentsIntellectualPropertyRights.6Foreword.6Introduction.71Scope.92References.93Definitionsandabbreviations.103.1Definitions.103.2Abbreviations.104Technicalrequirementsspecifications.104.1Environmentalprofile.104.2Conformancerequirements.104.2.1Transmitterfrequencyerror.104.2.1.1Definition.104.2.1.2Limit.104.2.1.3Conformance.104.2.2Transmittercarrierpower.114.2.2.1Definition.114.2.2.2Limit.114.2.2.3Conformance.114.2.3Transmitterfrequencydeviation.114.2.3.1Definition.114.2.3.2Limit.114.2.3.3Conformance.114.2.4Transmitteradjacentchannelpower.114.2.4.1Definition.114.2.4.2Limit.114.2.4.3Conformance.114.2.5Transmitterconductedspuriousemissionsconveyedtotheantenna.114.2.5.1Definition.114.2.5.2Limit.114.2.5.3Conformance.124.2.6Transientfrequencybehaviourofthetransmitter.124.2.6.1Definition.124.2.6.2Limit.124.2.6.3Conformance.124.2.7Transmittercabinetradiationandconductedspuriousemissionsotherthanthoseconveyedtotheantenna.124.2.7.1Definition.124.2.7.2Limit.124.2.7.3Conformance.124.2.8ATISencoderfrequencyerror(demodulatedsignal).124.2.8.1Definition.124.2.8.2Limit.124.2.8.3Conformance.124.2.9ATISencodermodulationindex.124.2.9.1Definition.124.2.9.2Limit.134.2.9.3Conformance.134.2.10ATISencodermodulationrate.134.2.10.1Definition.134.2.10.2Limit.134.2.10.3Conformance.13SIST EN 300 698-2:2001
ETSIETSIEN300698-2V1.1.1(2000-08)44.2.11Receivermaximumusablesensitivity.134.2.11.1Definition.134.2.11.2Limit.134.2.11.3Conformance.134.2.12Receiverco-channelrejection.134.2.12.1Definition.134.2.12.2Limit.134.2.12.3Conformance.134.2.13Receiveradjacentchannelselectivity.134.2.13.1Definition.134.2.13.2Limit.144.2.13.3Conformance.144.2.14Receiverspuriousresponserejection.144.2.14.1Definition.144.2.14.2Limit.144.2.14.3Conformance.144.2.15Receiverintermodulationresponse.144.2.15.1Definition.144.2.15.2Limit.144.2.15.3Conformance.144.2.16Receiverblockingordesensitization.144.2.16.1Definition.144.2.16.2Limit.144.2.16.3Conformance.144.2.17Receiverconductedspuriousemissionsconveyedtotheantenna.154.2.17.1Definition.154.2.17.2Limit.154.2.17.3Conformance.154.2.18Receiverradiatedspuriousemissions.154.2.18.1Definition.154.2.18.2Limit.154.2.18.3Conformance.155Testingforcompliancewithtechnicalrequirements.155.1Testconditions,powersupplyandambienttemperatures.155.2Interpretationofthemeasurementresults.155.3Essentialradiotestsuites.165.3.1Transmitterfrequencyerror.165.3.2Transmittercarrierpower.165.3.3Transmitterfrequencydeviation.165.3.4Transmitteradjacentchannelpower.165.3.5Transmitterconductedspuriousemissionsconveyedtotheantenna.165.3.6Transientfrequencybehaviourofthetransmitter.165.3.7Transmittercabinetradiationandconductedspuriousemissionsotherthanthoseconveyedtotheantenna.175.3.8ATISencoderfrequencyerror(demodulatedsignal).175.3.9ATISencodermodulationindex.175.3.10ATISencodermodulationrate.175.4Othertestspecifications.175.4.1General.175.4.2Receivermaximumusablesensitivity.175.4.3Receiverco-channelrejection.175.4.4Receiveradjacentchannelselectivity.175.4.5Receiverspuriousresponserejection.175.4.6Receiverintermodulationresponse.175.4.7Receiverblockingordesensitization.185.4.8Receiverconductedspuriousemissionsconveyedtotheantenna.185.4.9Receiverradiatedspuriousemissions.18SIST EN 300 698-2:2001
ETSIETSIEN300698-2V1.1.1(2000-08)5AnnexA(normative):TheENRequirementsTable(EN-RT).19Bibliography.21History.22SIST EN 300 698-2:2001
ETSIETSIEN300698-2V1.1.1(2000-08)6IntellectualPropertyRightsIPRsessentialorpotentiallyessentialtothepresentdocumentmayhavebeendeclaredtoETSI.TheinformationpertainingtotheseessentialIPRs,ifany,ispubliclyavailableforETSImembersandnon-members,andcanbefoundinETSISR000314:"IntellectualPropertyRights(IPRs);Essential,orpotentiallyEssential,IPRsnotifiedtoETSIinrespectofETSIstandards",whichisavailablefromtheETSISecretariat.LatestupdatesareavailableontheETSIWebserver(http://www.etsi.org/ipr).PursuanttotheETSIIPRPolicy,noinvestigation,includingIPRsearches,hasbeencarriedoutbyETSI.NoguaranteecanbegivenastotheexistenceofotherIPRsnotreferencedinETSISR000314(ortheupdatesontheETSIWebserver)whichare,ormaybe,ormaybecome,essentialtothepresentdocument.ForewordThisCandidateHarmonizedEuropeanStandard(Telecommunicationsseries)hasbeenproducedbyETSITechnicalCommitteeElectromagneticcompatibilityandRadiospectrumMatters(ERM).Thepresentdocumentispart2ofamulti-partdeliverablecoveringtheElectromagneticcompatibilityandRadioSpectrumMatters(ERM);RadiotelephonetransmittersandreceiversforthemaritimemobileserviceoperatingintheVHFbandsusedoninlandwaterways,asidentifiedbelow:Part1:"Technicalcharacteristicsandmethodsofmeasurement";Part2:"HarmonizedENunderarticle3.2oftheR&TTEDirective";Part3:"HarmonizedENunderarticle3.3(e)oftheR&TTEDirective".ThepresentdocumenthasbeenproducedbyETSIinresponsetoamandatefromtheEuropeanCommissionissuedunderCouncilDirective98/34/EC[6]layingdownaprocedurefortheprovisionofinformationinthefieldoftechnicalstandardsandregulations.ThepresentdocumentisintendedtobecomeaHarmonizedStandard,thereferenceofwhichwillbepublishedintheOfficialJournaloftheEuropeanCommunitiesreferencingtheDirective1999/5/EC[1]oftheEuropeanParliamentandoftheCouncilof9March1999onradioequipmentandtelecommunicationsterminalequipmentandthemutualrecognitionoftheirconformity("theR&TTEDirective").NationaltranspositiondatesDateofadoptionofthisEN:21July2000DateoflatestannouncementofthisEN(doa):31October2000DateoflatestpublicationofnewNationalStandardorendorsementofthisEN(dop/e):30April2001Dateofwithdrawalofanyco
...
