SIST-TS TS 101 324 V2.1.1:2004

SLOVENSKI STANDARD
01-april-2004
+DUPRQL]DFLMDWHOHNRPXQLNDFLMLQLQWHUQHWQHJDSURWRNRODSUHNRPUHåLM7,3+21
âWHYLOþHQMH6FHQDULMLLQ
Telecommunications and Internet Protocol Harmonization Over Networks (TIPHON);
Numbering; Scenarios 1, 2, 3 and 4
Ta slovenski standard je istoveten z: TS 101 324 Version 2.1.1
ICS:
33.020 Telekomunikacije na splošno Telecommunications in
general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

Technical Specification
Telecommunications and Internet Protocol
Harmonization Over Networks (TIPHON);
Numbering;
Scenarios 1, 2, 3 and 4

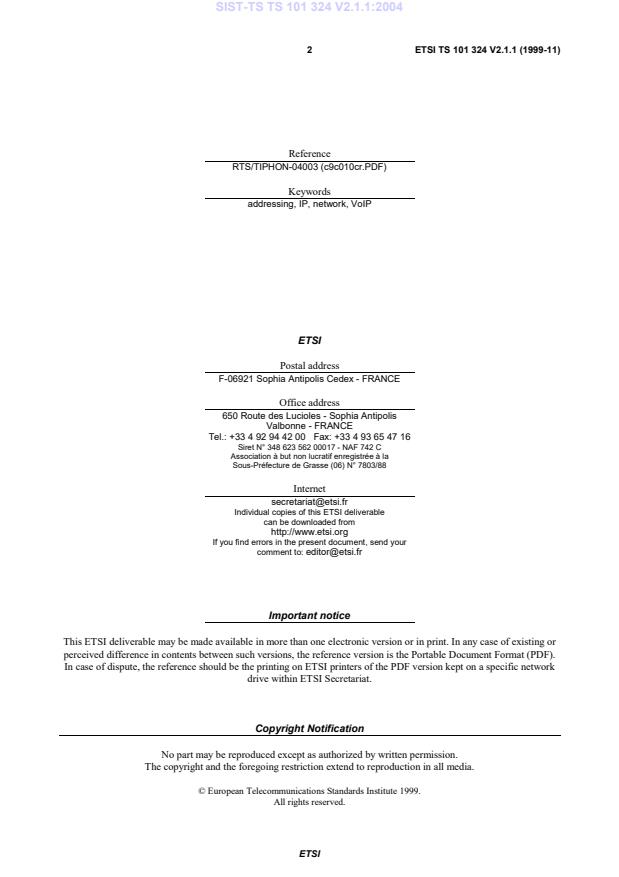

2 ETSI TS 101 324 V2.1.1 (1999-11)
Reference
RTS/TIPHON-04003 (c9c010cr.PDF)
Keywords
addressing, IP, network, VoIP
ETSI
Postal address
F-06921 Sophia Antipolis Cedex - FRANCE
Office address
650 Route des Lucioles - Sophia Antipolis
Valbonne - FRANCE
Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Internet
secretariat@etsi.fr
Individual copies of this ETSI deliverable
can be downloaded from
http://www.etsi.org
If you find errors in the present document, send your
comment to: editor@etsi.fr
Important notice
This ETSI deliverable may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference should be the printing on ETSI printers of the PDF version kept on a specific network
drive within ETSI Secretariat.
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1999.
All rights reserved.
ETSI
3 ETSI TS 101 324 V2.1.1 (1999-11)
Contents
Intellectual Property Rights.4
Foreword .4
1 Scope.5
2 References.5
3 Definitions and abbreviations .6
3.1 Definitions.6
3.2 Abbreviations .7
4 Naming scheme for identification of users and terminals within TIPHON compliant networks .7
4.1 Requirements for the naming scheme used within the network .7
4.2 Requirements for the naming scheme supported at the interface to SCNs .8
4.2.1 Public TIPHON compliant networks .8
4.2.2 Private TIPHON compliant networks .8
5 Functionality required within the TIPHON compliant network .8
5.1 General requirements.8
5.2 Requirements for Scenario 1 (IP to SCN) .9
5.3 Requirements for Scenario 2 (SCN to IP) .9
5.4 Requirements for Scenario 3 (SCN to IP to SCN).9
5.5 Requirements for Scenario 4 (IP to SCN to IP).9
Bibliography.10
History.11
ETSI
4 ETSI TS 101 324 V2.1.1 (1999-11)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect
of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server
(http://www.etsi.org/ipr).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)
which are, or may be, or may become, essential to the present document.
Foreword
This Technical Specification (TS) has been produced by ETSI Project Telecommunications and Internet Protocol
Harmonization Over Networks (TIPHON).
ETSI
5 ETSI TS 101 324 V2.1.1 (1999-11)
1 Scope
The present document specifies the naming, numbering, and addressing scheme and related functionality required within
TIPHON compliant networks for calls:
- from Internet Protocol (IP) based terminals to terminals in a Switched Circuit Network (SCN) (TIPHON
scenario 1);
- from terminals in an SCN to IP based terminals (TIPHON scenario 2);
- from a terminal in an SCN through an IP based network and back to a terminal in an SCN (TIPHON scenario 3);
and
- from a terminal in an IP based network through an SCN and back to a terminal in an IP based network (TIPHON
scenario 4).
The objective of the present document is to ensure satisfactory interworking between TIPHON compliant networks and
SCNs. An SCN may be a public network or a private network.
These requirements affect terminal equipment and equipment that performs the roles of gatekeeper and gateway, and the
calling procedure for the end user.
Where the text indicates the status of a requirement (i.e. as strict command or prohibition, as authorization leaving
freedom, or as a capability or possibility), this may modify the nature of a requirement within a referenced standard used
to provide the capability.
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
• References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
•
For a specific reference, subsequent revisions do not apply.
• For a non-specific reference, the latest version applies.
• A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the same
number.
[1] ITU-T Recommendation E.164 (1997): "The international public telecommunication numbering
plan".
[2] ITU-T Recommendation H.323 (1998): "Packet based multimedia communications systems".
[3] ETS 300 189: "Private Telecommunication Network (PTN); Addressing".
[4] ISO/IEC 11571: "Information technology - Telecommunications and information exchange
between systems - Private Integrated Services Networks - Addressing".
[5] TR 101 300 (V1.1): "Telecommunications and Internet Protocol Harmonization Over Networks
(TIPHON); Description of Technical Issues".
[6] TR 101 306 (V1.2): "Telecommunications and Internet Protocol Harmonization Over Networks
(TIPHON); Requirements for service interoperability; Scenario 1".
[7] TR 101 307 (V2.2): "Telecommunications and Internet Protocol Harmonization Over Networks
(TIPHON); Requirements for service interoperability; Phase 2".
ETSI
6 ETSI TS 101 324 V2.1.1 (1999-11)
[8] TR 101 308: "Telecommunications and Internet Protocol Harmonization Over Networks
(TIPHON); Requirements for service interoperability; Scenario 3"
[9] TR 101 338: "Telecommunications and Internet Protocol Harmonization Over Network
(TIPHON); Analysis of existing roaming techniques applicable to TIPHON mobility services".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
address: string or combination of decimal digits, symbols, and additional information which identifies the specific
termination point(s) of a connection in a public network(s) or, where applicable, in interconnected private network(s).
(e.g. ITU-T Recommendation E.164 [1]).
carrier: provider of a transit network or services.
country code for geographic areas: combination of one, two or three digits identifying a specific country, countries in
an integrated numbering plan, or a specific geographic area. (e.g. ITU-T Recommendation E.164 [1]).
dialling plan: string or combination of decimal digits, symbols, and additional information that defines the method by
which the numberi
...
