SIST ETS 300 328:1998/A1:1998

SLOVENSKI STANDARD
01-december-1998
5DGLMVNDRSUHPDLQVLVWHPL5(67HKQLþQHNDUDNWHULVWLNHLQSUHVNXVQLSRJRML
RSUHPH]DSUHQRVSRGDWNRYY*+],60IUHNYHQþQHPSDVXNLXSRUDEOMD
PRGXODFLMVNRWHKQLNR]UD]SUãHQLPVSHNWURP
Radio Equipment and Systems (RES); Wideband transmission systems; Technical
characteristics and test conditions for data transmission equipment operating in the 2,4
GHz ISM band and using spread spectrum modulation techniques
Ta slovenski standard je istoveten z: ETS 300 328/A1 Edition 2
ICS:
33.060.99 Druga oprema za radijske Other equipment for
komunikacije radiocommunications
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

ETS 300 328
AMENDMENT A1
July 1997
Second Edition
Source: ETSI TC-RES Reference: RE/RES-10-13
ICS: 33.020
Key words: Data, emission, mobile, radio, spread spectrum, testing, transmission
This amendment A1 modifies
the European Telecommunication Standard ETS 300 328 (1996)
Radio Equipment and Systems (RES);
Wideband transmission systems;
Technical characteristics and test conditions for
data transmission equipment operating in the 2,4 GHz ISM band
and using spread spectrum modulation techniques
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: secretariat@etsi.fr
Tel.: +33 4 92 94 42 00 - Fax: +33 4 93 65 47 16
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1997. All rights reserved.

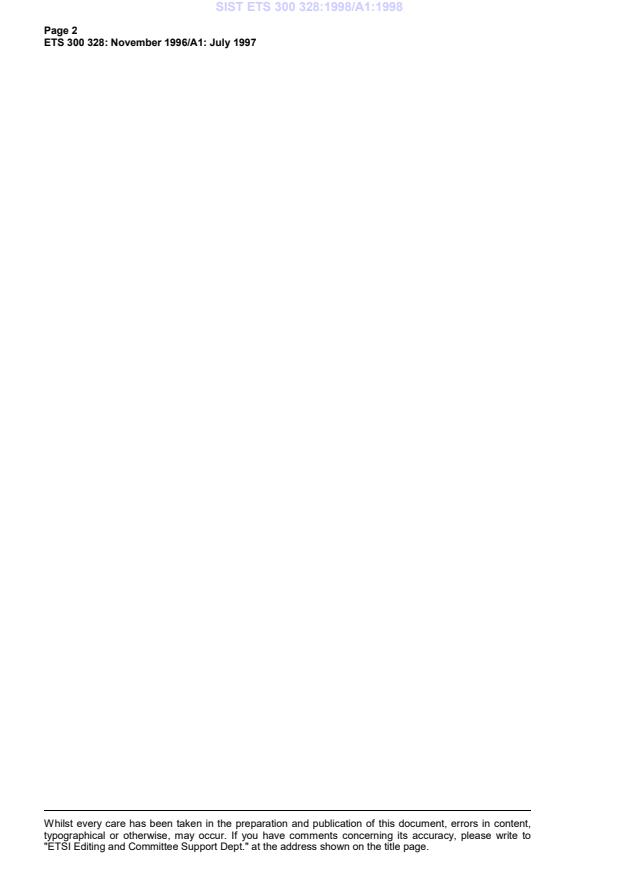

Page 2
ETS 300 328: November 1996/A1: July 1997
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 328: November 1996/A1: July 1997
Foreword
This amendment to ETS 300 328 (1996) has been produced by the Radio Equipment and Systems (RES)
Technical Committee of the European Telecommunications Standards Institute (ETSI).
ETS 300 328, as amended by this amendment, together with ETS 300 826 is intended to become a
Harmonized Standard, the reference of which is intended to be published in the Official Journal of the
European Communities, referencing Council Directive 89/336/EEC (EMC Directive).
Annex E contains the ERC Decision which references the technical specifications in this ETS for inclusion
in national type approval regulations. This ERC Decision has been adopted following public consultation.
The final ERC Decision will be included in this amendment when it has been published by the ERC.
Transposition dates
Date of adoption of this amendment: 6 June 1997
Date of latest announcement of this amendment (doa): 31 October 1997
Date of latest publication or endorsement of this amendment (dop/e): 30 April 1998
Date of withdrawal of any conflicting National Standard (dow): 30 April 1998

Page 4
ETS 300 328: November 1996/A1: July 1997
Amendments
Page 5, Foreword
Replace the first paragraph with the following:
This European Telecommunication Standard (ETS) has been prepared by the Radio Equipment and
Systems (RES) Technical Committee of the European Telecommunications Standards Institute (ETSI).
This ETS, together with ETS 300 826 is intended to become a Harmonized Standard, the reference of
which is intended to be published in the Official Journal of the European Communities, referencing
Council Directive 89/336/EEC (EMC Directive).
Insert the following after the last paragraph:
The technical specifications relevant to the EMC Directive are listed in annex D.
Annex E contains the ERC Decision which references the technical specifications in this ETS for inclusion
in national type approval regulations.
Page 18, subclause 7.2.1
Modify step 1, first bullet item to read:
".coupled to a matched diode detector"
Page 19, subclause 7.2.1
In step 2, second bullet item, first indented bullet item, add
"dBm"
after the formula.
Page 23, subclause 7.2.5
Replace paragraph beginning "For measuring emissions that exceed the level of 6 dB below the
applicable limit" with:
For further analysis of spurious emissions that exceed the level of 6 dB below the applicable limit, video
averaging shall be turned on, the resolution bandwidth shall be switched to 30 kHz and the span shall be
adjusted accordingly. If the level does not change by more than 2 dB, it is a narrowband emission; the
observed value shall be recorded in the test report. If the level changes by more than 2 dB, the emission is
a wideband emission and its level shall be measured and recorded in the test report.
It is stressed that the analyser settings given above are not suited for the measurement of wideband
emissions in dBm/Hz according to table 2. The method of measurement (in case of using a spectrum
analyser: the model and the settings) for the measurement for these emissions shall be documented in
the test report.
Replace the text in subclause 7.3.2 on page 24, starting with "Where these Measurements…." and until
the last sentence before clause 8, by
"For finding spurious emissions, the spectrum analyser shall be set as follows:
(table as given on page 24)
For further analysis of spurious emissions that exceed the level of 6 dB below the applicable limit, video
averaging shall be turned on, the resolution bandwidth shall be switched to 30 kHz and the span shall be
adjusted accordingly. If the level does not change by more than 2 dB, it is a narrowband emission; the
observed value shall be recorded in the test report. If the level changes by more than 2 dB, the emission is
a wideband emission and its level shall be measured and recorded in the test report.

Page 5
ETS 300 328: November 1996/A1: July 1997
It is stressed that the analyser settings given above are not suited for the measurement of the power
density of spurious emissions in dBm/Hz. The method of measurement (in case of using a spectrum
analyser: the model and the settings) for the measurement for these emissions, shall be documented in
the test report".
Page 33
Insert before History:
Annex D (normative): ETS 300 328: "Radio Equipment and Systems (RES).
Wideband data transmission systems. Technical
characteristics and test conditions for data
transmission equipment operating in the 2,4 GHz band
and using spread spectrum modulation techniques".
Table D.1: Clauses and/or subclauses of this ETS relevant for compliance with essential
requirements of the EC Council Directives
Clause/subclause number and title Corresponding article of Qualifying
Council Directive remarks
89/336/EEC
5.2 Transmitter parameters
5.2.4 Spurious emissions 4(a)
5.3 Receiver parameters
5.3.2 Spurious emissions 4(a)
Page 6
ETS 300 328: November 1996/A1: July 1997
Annex E (normative): ERC Decision on the adoption of approval regulations
for on the adoption of approval regulations for radio
equipment to be used for wide band data transmission
operating in the frequency range 2,4 GHz to 2,4835 GHz
based on the
...
