SIST ETS 300 262 E1:2003

SLOVENSKI STANDARD
01-december-2003
'LJLWDOQRRPUHåMH]LQWHJULUDQLPLVWRULWYDPL,6'1±1DVNODGQMLWHPHOMHþD
GDOMLQVNDVWRULWHY9LGHRWH[±2SLVVWRULWYH
Integrated Services Digital Network (ISDN); Syntax-based Videotex teleservice; Service
description
Ta slovenski standard je istoveten z: ETS 300 262 Edition 1
ICS:
33.080 Digitalno omrežje z Integrated Services Digital
integriranimi storitvami Network (ISDN)
(ISDN)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN ETS 300 262
TELECOMMUNICATION August 1993
STANDARD
Source: ETSI TC-NA Reference: DE/NA-012239
ICS: 33.080
ISDN, Videotex
Key words:
Integrated Services Digital Network (ISDN);
Syntax-based Videotex teleservice
Service description
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - secretariat@etsi.fr
X.400: Internet:
Tel.: +33 92 94 42 00 - Fax: +33 93 65 47 16
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1993. All rights reserved.
New presentation - see History box

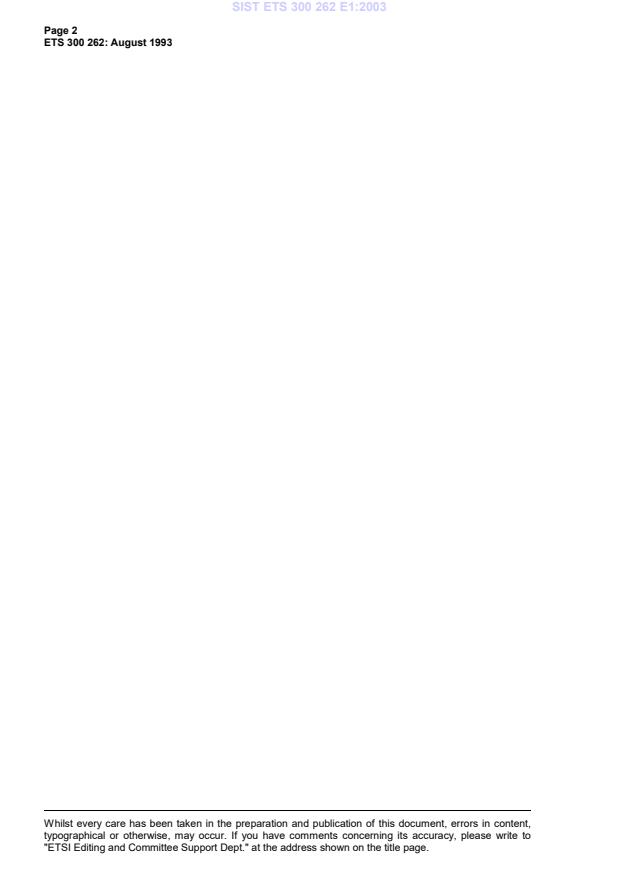

Page 2
ETS 300 262: August 1993
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 262: August 1993
Contents
Foreword .5
1 Scope .7
2 Normative references.7
3 Definitions.8
4 Abbreviations.8
5 Description .9
6 Procedures.9
6.1 Provision and withdrawal .9
6.2 Normal procedures .10
6.2.1 Originating the call (call establishment).10
6.2.2 Indications during call establishment.10
6.2.3 Terminating the call.10
6.2.4 Videotex procedures .10
6.3 Exceptional procedures .10
6.3.1 Situations detected at the calling side .10
6.3.2 Situations detected at the called side.11
6.3.3 Situations due to network conditions.11
6.3.4 Videotex procedures .11
7 Intercommunication considerations.11
7.1 Interworking with non-ISDNs .11
7.2 Interworking with private ISDNs.11
7.3 GSM interworking .11
8 Interaction with supplementary services .11
9 Static description of the service using attributes .12
9.1 Low layer attributes.12
9.1.1 Information transfer attributes .12
9.1.2 Access attributes.13
9.2 High layer attributes .13
9.3 General attributes .13
10 Dynamic description.13
History.14

Page 4
ETS 300 262: August 1993
Blank page
Page 5
ETS 300 262: August 1993
Foreword
This European Telecommunication Standard (ETS) has been produced by the Terminal Equipment (TE)
Technical Committee of the European Telecommunications Standards Institute (ETSI). This ETS has
been approved by the Network Aspects (NA) Technical Committee of ETSI.
This ETS defines the stage one of the syntax-based Videotex teleservice for the pan-European Integrated
Services Digital Network (ISDN) as provided by European public telecommunications operators. A
Videotex teleservice is an interactive teleservice which provides, through appropriate access by
standardised procedures, users of Videotex terminals the ability to communicate with databases and other
computer based applications via telecommunications networks.

Page 6
ETS 300 262: August 1993
Blank page
Page 7
ETS 300 262: August 1993
1 Scope
This standard defines the stage one of the syntax-based Videotex teleservice for the pan-European
Integrated Services Digital Network (ISDN) as provided by European public telecommunications
operators. Stage one is an overall service description from the user's point of view (see CCITT
Recommendation I.130 [1]), but does not deal with the details of the human interface itself.
This standard defines the interworking requirements of private ISDNs with the public ISDN.
In addition this standard specifies the base functionality where the service is provided to the user via a
private ISDN.
This standard does not specify the additional requirements where the service is provided to the user via a
telecommunications network that is not an ISDN but does include interworking requirements of other
networks with the public ISDN.
Charging principles are outside the scope of this standard.
The values of the general attributes are outside the scope of this standard.
A Videotex teleservice is an interactive teleservice which provides, through appropriate access by
standardised procedures, users of Videotex terminals the ability to communicate with databases and other
computer based applications via telecommunications networks.
This standard is applicable to the stage three standards for the syntax-based Videotex teleservice. The
term "stage three" is also defined in CCITT Recommendation I.130 [1]. Where the text indicates the status
of a requirement, i.e. as strict command or prohibition, as authorisation leaving freedom, as a capability or
possibility, this shall be reflected in the text of the relevant stage three standard.
Furthermore, conformance to this standard is met by conforming to the stage three standards with the
field of application appropriate to the equipment being implemented. Therefore no method of testing is
provided for this standard.
2 Normative references
This standard incorporates by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to, or revisions of any of these publications
apply to this standard only when incorporated in it by amendment or revision. For undated references the
latest edition of the publication referred to applies.
[1] CCITT Recommendation I.130 (1988): "Method for the characterisation of
telecommunication services supported by an ISDN and network capabilities of
an ISDN".
[2] CCITT Recommendation I.112 (1988): "Vocabulary of terms for ISDNs".
[3] CCITT Recommendation I.140 (1988): "Attribute technique for the
characterization of telecommunication services supported by an ISDN and
network capabilities of an ISDN".
[4] CCITT Recommendation I.210 (1988): "Principles of telecommunication
services supported by an ISDN and the means to describe them".
[5] CCITT Recommendation F.300 (1988): "Videotex service".
[6] ETS 300 007: "Integrated Services Digital Network (ISDN); Support of
packet-mode terminal equipment by an ISDN".
[7] ETS 300 079: "Integrated Services Digital Network (ISDN); Syntax-based
videotex End-to-end protocols, circuit mode DTE-DTE".

Page 8
ETS 300 262: August 1993
[8] ETS 300 080: "Integrated Services Digital Network (ISDN); ISDN lower layer
protocols for telematic terminals".
[9] ETS 300 102: "Integrated Services Digital Network (ISDN); User-network
interface layer 3 Specifications for basic call control".
[10] ETS 300 125: "Integrated Services Digital Network (ISDN); User-network
interface data link layer specification Application of CCITT Recommendations
Q.920/I.440 and Q.921/I.441".
[11] ETS 300 218: "Integrated Services Digital Network (ISDN); Syntax-based
videotex lower layer protocols for ISDN packet mode (X.31 Case A and
Case B)".
[12] ETS 300 223: "Integrated Services Digital Network (ISDN); Syntax-based
Videotex Common end-to-end protocols".
[13] ETSI-GSM Technical Specification GSM 03.43: "European digital cellular
telecommunication system (phase 1); Technical Realization of Videotex".
3 Definitions
For the purposes of this standard, the following definitions apply.
Integrated Services Digital Network (ISDN): see CCITT Recommendation I.112 [2], § 2.3, definition
308.
Service; telecommunications service: see CCITT Recommendation I.112 [2], § 2.2, definition 201.
Teleservice: see CCITT Recommendation I.112 [2], § 2.2, definition 203.
Supplementary service: see CCI
...
