SIST EN 300 130-1 V1.2.4:2005 defines the protocol specification for the Malicious Call Identification (MCID) supplementary service within the Integrated Services Digital Network (ISDN), specifically utilizing the Digital Subscriber Signalling System No. One (DSS1) protocol. This standard provides the stage 3 (protocol and switching functions) required for MCID support at designated ISDN interface points as offered by European public telecommunications operators. The main purpose is to ensure consistent implementation for equipment and networks supporting the MCID supplementary service, facilitating the identification and registration of incoming malicious calls across ISDN.
Key elements include updates to the normative references, ensuring alignment with the latest ISDN call control specifications (notably referencing EN 300 403 instead of older documents), and providing protocol requirements for interworking between public and private ISDN networks.
Key Topics
Malicious Call Identification (MCID) Service
Enables ISDN users to request identification and network registration of the source of incoming circuit-switched calls, improving protection against malicious or nuisance callers.DSS1 Protocol Specification
Outlines the requirements and procedures for MCID support over the Digital Subscriber Signalling System No. one (DSS1), the standard for digital signalling at the ISDN user-network interface.Operational and Coding Requirements
Defines how the MCID service can be invoked, normal and exceptional procedures, use of ASN.1 encoding for service messages, error handling (such as invalid call state or service interaction restrictions), and use of the FACILITY message within DSS1.Interworking and Service Interactions
Includes guidance on MCID service behavior in environments with private ISDNs and its interaction with other ISDN supplementary services.Normative Reference Updates
Brings referenced core ISDN specifications (from ETS 300 102-1 and associated I-ETSs) in line with the more current EN 300 403 series, supporting modern network deployments.
Applications
The MCID supplementary service as specified in SIST EN 300 130-1 V1.2.4:2005 is valuable for:
Public Telecommunication Operators
Ensuring a standardized approach to MCID enables operators to offer customers reliable protection against malicious calls and compliance with regulatory requirements.ISDN Equipment Manufacturers
Device and system vendors can implement interoperable MCID features, supporting deployment in public and private ISDN networks.Enterprise Communication Networks
Businesses using ISDN services can benefit from consistent MCID support, enhancing security across their digital voice networks.Network Interoperability
The standardized signaling and error handling ensures MCID works seamlessly across interconnected ISDN networks, both public and private.Regulatory Compliance
Implementation following this standard underpins adherence to regulations related to nuisance call management and caller identification obligations.
Related Standards
- EN 300 403-1: ISDN DSS1 protocol, signalling network layer for circuit-mode basic call control.
- EN 300 196-1: Generic functional protocol for support of ISDN supplementary services.
- EN 300 195-1: ISDN supplementary service interactions DSS1 protocol specification.
- ETS 300 128 & ETS 300 129: Stage 1 (service description) and Stage 2 (functional capabilities) for the MCID service.
- CCITT Recommendations:
- I.411 (ISDN reference configurations)
- I.130 (characterization of ISDN services)
- X.208 (ASN.1 syntax), X.219 (Remote Operations), Z.100 (SDL diagrams).
Adopting SIST EN 300 130-1 V1.2.4:2005 ensures compatibility, efficiency, and regulatory alignment in the deployment of MCID supplementary services for ISDN-based digital communications. This supports seamless interworking across European telecommunication networks and promotes confidence in ISDN security features.
Get Certified
Connect with accredited certification bodies for this standard
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
LNE (Laboratoire National de Métrologie et d'Essais)
French national laboratory for metrology and testing.
Sponsored listings
Frequently Asked Questions
SIST EN 300 130-1 V1.2.4:2005 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Integrated Services Digital Network (ISDN); Malicious Call Identification (MCID) supplementary service; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 1: Protocol specification". This standard covers: Update references from ETS 300 102-1 and associated I-ETSs to ETS 300 403.
Update references from ETS 300 102-1 and associated I-ETSs to ETS 300 403.
SIST EN 300 130-1 V1.2.4:2005 is classified under the following ICS (International Classification for Standards) categories: 33.080 - Integrated Services Digital Network (ISDN). The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 300 130-1 V1.2.4:2005 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-april-2005
'LJLWDOQRRPUHåMH]LQWHJULUDQLPLVWRULWYDPL ,6'1 'RSROQLOQDVWRULWHY
LGHQWLILNDFLMD]ORQDPHUQHJDNOLFD 0&,' 3URWRNROGLJLWDOQHQDURþQLãNH
VLJQDOL]DFLMHãW '66 GHO 6SHFLILNDFLMDSURWRNROD
Integrated Services Digital Network (ISDN); Malicious Call Identification (MCID)
supplementary service; Digital Subscriber Signalling System No. one (DSS1) protocol;
Part 1: Protocol specification
Ta slovenski standard je istoveten z: EN 300 130-1 Version 1.2.4
ICS:
33.080 Digitalno omrežje z Integrated Services Digital
integriranimi storitvami Network (ISDN)
(ISDN)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 300 130-1 V1.2.4 (1998-06)
European Standard (Telecommunications series)
Integrated Services Digital Network (ISDN);
Malicious Call Identification (MCID) supplementary service;
Digital Subscriber Signalling System No. one (DSS1) protocol;
Part 1: Protocol specification

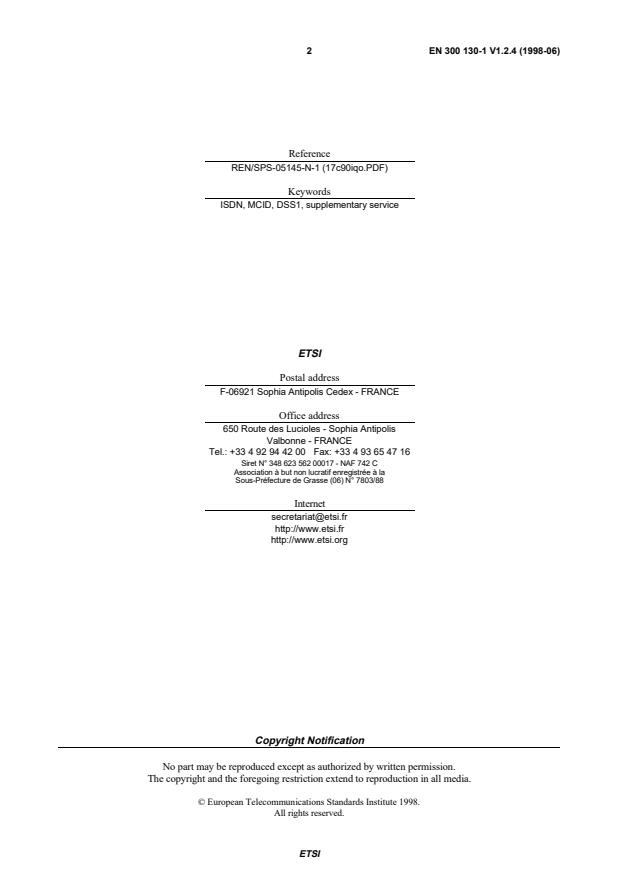

2 EN 300 130-1 V1.2.4 (1998-06)
Reference
REN/SPS-05145-N-1 (17c90iqo.PDF)
Keywords
ISDN, MCID, DSS1, supplementary service
ETSI
Postal address
F-06921 Sophia Antipolis Cedex - FRANCE
Office address
650 Route des Lucioles - Sophia Antipolis
Valbonne - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Internet
secretariat@etsi.fr
http://www.etsi.fr
http://www.etsi.org
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1998.
All rights reserved.
ETSI
3 EN 300 130-1 V1.2.4 (1998-06)
Contents
Intellectual Property Rights. 4
Foreword. 4
1 Scope . 6
2 Normative references. 6
3 Definitions. 7
4 Abbreviations.7
5 Description . 7
6 Operational requirements . 7
6.1 Provision and withdrawal.7
6.2 Requirements on the originating network side.7
6.3 Requirements on the destination network side .8
7 Coding requirements. 8
8 State definitions. 8
9 Signalling procedures at the coincident S and T reference point . 8
9.1 Activation, deactivation and registration .8
9.2 Invocation procedures.9
9.2.1 Normal operation .9
9.2.2 Exceptional procedures.9
10 Procedures for interworking with private ISDNs . 9
11 Interactions with other networks. 9
12 Interactions with other supplementary services. 10
13 Parameter values (timers). 10
14 Dynamic description (SDL diagrams). 11
Annex A (informative): Signalling flows . 12
Annex B (informative): mCIDRequest components. 13
Annex C (informative): Changes with respect to the previous ETS 300 130-1. 15
History. 16
ETSI
4 EN 300 130-1 V1.2.4 (1998-06)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in
SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect
of ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (http://www.etsi.fr/ipr or http://www.etsi.org/ipr).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can
be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server) which
are, or may be, or may become, essential to the present document.
Foreword
This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Signalling
Protocols and Switching (SPS).
The present document is part 1 of a multi-part standard covering the Digital Subscriber Signalling System No. one (DSS1)
protocol specification for the Integrated Services Digital Network (ISDN) Malicious Call Identification (MCID)
supplementary service, as described below:
Part 1: "Protocol specification";
Part 2: "Protocol Implementation Conformance Statement (PICS) proforma specification";
Part 3: "Test Suite Structure and Test Purposes (TSS&TP) specification for the user";
Part 4: "Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT)
proforma specification for the user";
Part 5: "Test Suite Structure and Test Purposes (TSS&TP) specification for the network";
Part 6: "Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT)
proforma specification for the network".
In accordance with CCITT Recommendation I.130, the following three level structure is used to describe the
supplementary telecommunication services as provided by European public telecommunications operators under the pan-
European Integrated Services Digital Network (ISDN):
- Stage 1: is an overall service description, from the user's stand-point;
- Stage 2: identifies the functional capabilities and information flows needed to support the service described in
stage 1; and
- Stage 3: defines the signalling system protocols and switching functions needed to implement the service described
in stage 1.
The present document details the stage 3 aspects (signalling system protocols and switching functions) needed to support
the Malicious Call Identification (MCID) supplementary service. The stage 1 and stage 2 aspects are detailed in
ETS 300 128 and ETS 300 129, respectively.
The present version updates the references to the basic call specifications.
ETSI
5 EN 300 130-1 V1.2.4 (1998-06)
National transposition dates
Date of adoption of this EN: 19 June 1998
Date of latest announcement of this EN (doa): 30 September 1998
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 March 1999
Date of withdrawal of any conflicting National Standard (dow): 31 March 1999
ETSI
6 EN 300 130-1 V1.2.4 (1998-06)
1 Scope
This first part of EN 300 130 specifies the stage three of the Malicious Call Identification (MCID) supplementary service
for the pan-European Integrated Services Digital Network (ISDN) as provided by European public telecommunications
operators at the T reference point or coincident S and T reference point (as defined in CCITT Recommendation I.411 [1])
by means of the Digital Subscriber Signalling System No. one (DSS1) protocol. Stage three identifies the protocol
procedures and switching functions needed to support a telecommunication service (see CCITT Recommendation
I.130 [2]).
In addition the present document specifies the protocol requirements at the T reference point where the service is
provided to the user via a private ISDN.
The present document does not specify the additional protocol requirements where the service is provided to the user via
a telecommunications network that is not an ISDN.
The MCID supplementary service enables a user to request that the source of an incoming call is identified and registered
in the network.
The MCID supplementary service is applicable to all circuit-switched telecommunication services.
Further parts of the present document specify the method of testing required to identify conformance to the present
document.
The present document is applicable to equipment supporting the MCID supplementary service, to be attached at either
side of a T reference point or coincident S and T reference point when used as an access to the public ISDN.
2 Normative references
References may be made to:
a) specific versions of publications (identified by date of publication, edition number, version number, etc.), in which
case, subsequent revisions to the referenced document do not apply; or
b) all versions up to and including the identified version (identified by "up to and including" before the version
identity); or
c) all versions subsequent to and including the identified version (identified by "onwards" following the version
identity); or
d) publications without mention of a specific version, in which case the latest version applies.
A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the same
number.
[1] CCITT Recommendation I.411 (1988): "ISDN user-network interfaces - Reference configurations".
[2] CCITT Recommendation I.130 (1988): "Method for the characterisation of telecommunication
services supported by an ISDN and network capabilities of an ISDN".
[3] EN 300 195-1: "Integrated Services Digital Network (ISDN); Supplementary service interactions;
Digital Subscriber Signalling System No. one (DSS1) protocol; Part 1: Protocol specification".
[4] CCITT Recommendation Z.100 (1988): "Functional Specification and Description Language
(SDL)".
[5] EN 300 403-1: "Integrated Services Digital Network (ISDN); Digital Subscriber Signalling System
No. one (DSS1) protocol; Signalling network layer for circuit-mode basic call control; Part 1:
Protocol specification [ITU-T Recommendation Q.931 (1993), modified]".
[6] EN 300 196-1: "Integrated Services Digital Network (ISDN); Generic functional protocol for the
support of supplementary services; Digital Subscriber Signalling System No. one (DSS1) protocol;
Part 1: Protocol specification".
ETSI
7 EN 300 130-1 V1.2.4 (1998-06)
[7] CCITT Recommendation I.210: "Principles of telecommunication services supported by an ISDN
and the means to describe them".
[8] CCITT Recommendation I.112: "Vocabulary of terms for ISDN".
[9] CCITT Recommendation X.208 (1988): "Specification of Abstract Syntax Notation One (ASN.1)".
[10] CCITT Recommendation I.330 (1988): "ISDN Numbering and Addressing Principles".
[11] CCITT Recommendation X.219 (1988): "Remote Operations: Model, Notation and Service
Definition".
3 Definitions
For the purposes of the present document, the following definitions apply:
call information: Call information consists of the called party number, the calling party number, the time and date of the
request, and, as a network option, the calling party subaddress, if provided by the calling user.
Integrated Services Digital Network (ISDN): See CCITT Recommendation I.112 [8], § 2.3, definition 308.
network: The DSS1 protocol entity at the network side of the user-network interface.
service; telecommunication service: See CCITT Recommendation I.112 [8], § 2.2, definition 201.
subaddr
...
