SIST EN 301 062-1 V1.2.3:2005

SLOVENSKI STANDARD
01-januar-2005
'LJLWDOQRRPUHåMH]LQWHJULUDQLPLVWRULWYDPL,6'1±6LJQDOL]DFLMDãW±3RGSRUD
DSOLNDFLMQDYLGH]QHJD]DVHEQHJDRPUHåMD931]LQIRUPDFLMVNLPLWRNRYL
VLJQDOL]DFLMVNHJDVLVWHPD336YUHIHUHQþQLWRþNL4]DVHEQHJDRPUHåMD±
GHO6SHFLILNDFLMDSURWRNROD>SULSRURþLOL,7874LQ4VSUHPHQMHQL@
Integrated Services Digital Network (ISDN); Signalling System No.7; Support of Virtual
Private Network (VPN) applications with Private network Q reference point Signalling
System number 1 (PSS1) information flows; Part 1: Protocol specification [ITU-T
Recommendations Q.765.1 and Q.699.1, modified]
Ta slovenski standard je istoveten z: EN 301 062-1 Version 1.2.3
ICS:
33.080 Digitalno omrežje z Integrated Services Digital
integriranimi storitvami Network (ISDN)
(ISDN)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

European Standard (Telecommunications series)
Integrated Services Digital Network (ISDN);
Signalling System No.7;
Support of Virtual Private Network (VPN) applications
with Private network Q reference point
Signalling System number 1 (PSS1) information flows;
Part 1: Protocol specification
[ITU-T Recommendations Q.765.1 and Q.699.1, modified]

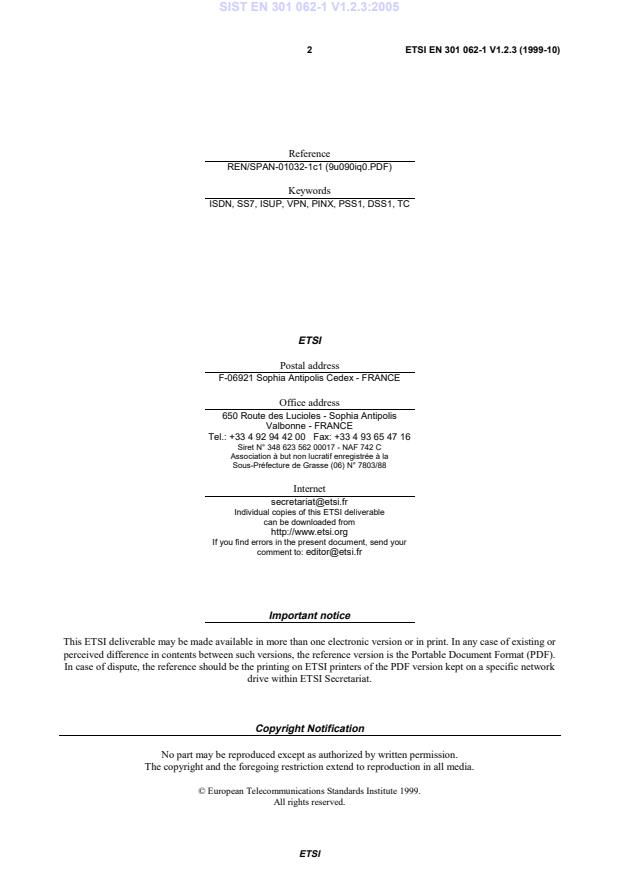

2 ETSI EN 301 062-1 V1.2.3 (1999-10)
Reference
REN/SPAN-01032-1c1 (9u090iq0.PDF)
Keywords
ISDN, SS7, ISUP, VPN, PINX, PSS1, DSS1, TC
ETSI
Postal address
F-06921 Sophia Antipolis Cedex - FRANCE
Office address
650 Route des Lucioles - Sophia Antipolis
Valbonne - FRANCE
Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Internet
secretariat@etsi.fr
Individual copies of this ETSI deliverable
can be downloaded from
http://www.etsi.org
If you find errors in the present document, send your
comment to: editor@etsi.fr
Important notice
This ETSI deliverable may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference should be the printing on ETSI printers of the PDF version kept on a specific network
drive within ETSI Secretariat.
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1999.
All rights reserved.
ETSI
3 ETSI EN 301 062-1 V1.2.3 (1999-10)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect
of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server
(http://www.etsi.org/ipr).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)
which are, or may be, or may become, essential to the present document.
Foreword
This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Services and
Protocols for Advanced Networks (SPAN).
The present document is part 1 of a multi-part EN covering Integrated Services Digital Network (ISDN); Signalling
System No.7; Support of Virtual Private Network (VPN) applications with Private network Q reference point Signalling
System number 1 (PSS1) information flows, as identified below:
Part 1: Protocol specification;
Part 2: Protocol Implementation Conformance Statement (PICS) proforma specification;
Part 3: Test Suite Structure and Test Purposes (TSS&TP) specification;
Part 4: Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT)
specification.
National transposition dates
Date of latest announcement of this EN (doa): 31 January 2000
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 July 2000
Date of withdrawal of any conflicting National Standard (dow): 31 July 2000
Endorsement notice
The text of draft ITU-T Recommendations Q.765.1 and Q.699.1 was approved by ETSI as an EN with agreed
modifications as given below.
ETSI
4 ETSI EN 301 062-1 V1.2.3 (1999-10)
Scope and References clauses
Delete the clauses "Scope", "References" from ITU-T Recommendations Q.765.1 (1998-05) and Q.699.1 (1990-05) and
replace with the following two clauses (Scope and Normative references):
Scope
The present document describes the extensions required for the support of Virtual Private Network (VPN) applications
over the public Network Node Interface (NNI). This application makes use of the Application Transport Mechanism
(APM) described in EN 301 069-1 for bearer related signalling, and the Transaction Capability (TC) for signalling
involving no bearer. The present document specifies the respective users (i.e. APM-user, TC-user) to support the PSS1
information flows continuity in VPN applications (Transparent transfer of PSS1 information flows between PINX
entities). The public NNI provides transparency to the services of the private network.
The private network functionality is defined by ISO in its series of standards for Private Integrated Services Network
(PISN). In addition, the concept of a "Relay node" is introduced by the present document.
The present document provides for a number of network options. These are summarized in table 1.
Table 1: Network options
Option Values Remarks
Support of GFP functionality at transit Full support
PINX nodes
(subclause 6.2.5) Partial support Not applicable in the international
network (note 1)
Support of GFP functionality at gateway Full support
PINX nodes
(subclause 6.2.6) No support (note 1)
Continuation of calls with no application Supported (note 2)
association
(subclause 6.2.6) Not supported (note 3)
Relocation of gateway function Supported
(subclause 6.2.6) Not supported
NOTE 1:  Use of these options might result in certain private network supplementary services behaving
in an unexpected manner or not working at all.
NOTE 2:  In this case VPN calls has to be routed using a mechanism which can correctly route the call to
the terminating access without use of the VPN procedures specified in the present document.
NOTE 3:  In this case, it is requ
...
