SIST ETS 300 287:1997
(Main)Integrated Services Digital Network (ISDN); Signalling System No.7; Transaction Capabilities Application Part (TCAP) version 2
General Information
- Abstract
To specify the CCITT No. 7 Transaction Capabilities to be used in and between national networks
- Status
- Published
- Publication Date
- 28-Feb-1997
- Withdrawal Date
- 28-Feb-1997
- Technical Committee
- SPS - Signalling protocols and switching
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Mar-1997
- Due Date
- 01-Mar-1997
- Completion Date
- 01-Mar-1997
Buy Documents
Overview
SIST ETS 300 287:1997 specifies the requirements for the Transaction Capabilities Application Part (TCAP) version 2, part of the Signalling System No.7 (SS7) suite used within the Integrated Services Digital Network (ISDN). The standard adopts and clarifies ITU-T Recommendations Q.771 to Q.775, detailing how TCAP should be implemented for non-circuit related services in and between national telecommunications networks. This ensures interoperability and reliable communication for services that depend on advanced network signalling, such as mobile and intelligent network services.
Key Topics
- Integrated Services Digital Network (ISDN): The framework in which SS7 and TCAP operate, enabling the integration of multiple services, including voice and data, over digital networks.
- Signalling System No.7 (SS7): A suite of protocols underpinning essential telecommunication signalling for establishing and managing calls and data sessions.
- Transaction Capabilities Application Part (TCAP): The protocol layer within SS7 that supports exchange of non-circuit related information, enabling application-level communication such as database queries and advanced call features.
- ITU-T Recommendations Q.771-Q.775: These international standards form the basis for TCAP functions, service assumptions, and encoding requirements, with SIST ETS 300 287:1997 detailing specific exceptions and clarifications for national implementations.
- Error Handling and Parameter Constraints: Guidelines for managing mistyped parameters and constraints on message structures ensure correct protocol operation and network robustness.
Applications
The practical value of SIST ETS 300 287:1997 is evident across a range of telecommunications scenarios:
- Mobile Communications: TCAP is essential for protocols in GSM and other mobile networks, supporting functions like mobile roaming, short message service (SMS), and authentication.
- Intelligent Network Services (IN): Enables features such as toll-free calling, prepaid services, and number portability by facilitating complex network transactions and queries.
- Inter-Network Dialogues: Ensures seamless communication between different national telecommunications networks, supporting services that require exchanges of management or user data without the need for an active voice or data circuit.
- Database Access: TCAP allows networks to access centralized databases for tasks such as number translation, subscriber information, and service logic processing.
- Support for Value-Added Services: By standardizing non-circuit related information exchange, the protocol underpinning services like call forwarding, call screening, and directory assistance is reliable and interoperable.
Related Standards
SIST ETS 300 287:1997 builds upon and is closely aligned with several key international standards, ensuring global compatibility and best practices in telecommunications signalling:
- ITU-T Q.771: Functional description of transaction capabilities in SS7.
- ITU-T Q.772: Definitions for transaction capabilities information elements.
- ITU-T Q.773: Specifications on transaction capabilities formats and encoding.
- ITU-T Q.774: Procedures for utilizing transaction capabilities.
- ITU-T Q.775: Implementation guidelines for transaction capabilities.
- ETSI EN 300 287: The corresponding European adoption, harmonized with the above ITU-T recommendations.
- SIST standards for ISDN and digital networks: Further supporting the integrated implementation within Slovenian and European networks.
By conforming to SIST ETS 300 287:1997, operators and manufacturers ensure interoperability, regulatory compliance, and robust performance of advanced telecommunication services in both national and international contexts.
Buy Documents
Get Certified
Connect with accredited certification bodies for this standard
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
LNE (Laboratoire National de Métrologie et d'Essais)
French national laboratory for metrology and testing.
Sponsored listings
Frequently Asked Questions
SIST ETS 300 287:1997 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Integrated Services Digital Network (ISDN); Signalling System No.7; Transaction Capabilities Application Part (TCAP) version 2". This standard covers: To specify the CCITT No. 7 Transaction Capabilities to be used in and between national networks
To specify the CCITT No. 7 Transaction Capabilities to be used in and between national networks
SIST ETS 300 287:1997 is classified under the following ICS (International Classification for Standards) categories: 33.080 - Integrated Services Digital Network (ISDN). The ICS classification helps identify the subject area and facilitates finding related standards.
SIST ETS 300 287:1997 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.&$3Integrated Services Digital Network (ISDN); Signalling System No.7; Transaction Capabilities Application Part (TCAP) version 233.080Digitalno omrežje z integriranimi storitvami (ISDN)Integrated Services Digital Network (ISDN)ICS:Ta slovenski standard je istoveten z:ETS 300 287 E1PSIST ETS 300 287:1996en01-november-1996PSIST ETS 300 287:1996SLOVENSKI
STANDARD
PSIST ETS 300 287:1996
EUROPEANETS 300 287TELECOMMUNICATIONOctober 1993STANDARDSource: ETSI TC-SPSReference: DE/SPS-02005ICS:33.080Key words:ISDN, Signalling System No.7, TCAPIntegrated Services Digital Network (ISDN);CCITT Signalling System No.7Transaction Capabilities Application Part (TCAP) version 2ETSIEuropean Telecommunications Standards InstituteETSI SecretariatPostal address: F-06921 Sophia Antipolis CEDEX - FRANCEOffice address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCEX.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: secretariat@etsi.frTel.: +33 92 94 42 00 - Fax: +33 93 65 47 16Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and theforegoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1993. All rights reserved.PSIST ETS 300 287:1996New presentation - see History box
Page 2ETS 300 287: October 1993Whilst every care has been taken in the preparation and publication of this document, errors in content,typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to"ETSI Editing and Committee Support Dept." at the address shown on the title page.PSIST ETS 300 287:1996
Page 3ETS 300 287: October 1993ContentsForeword.51Scope.72Normative references.73General exceptions and clarifications to ITU-T Recommendations Q.771 to Q.775.73.1Support of TC by terminal equipment.73.2Services assumed from a connectionless network layer.74Specific exceptions and clarifications to ITU-T Recommendation Q.771.75Specific exceptions and clarifications to ITU-T Recommendation Q.772.85.1Mistyped parameters - Q.772, §§ 3.7.2.3, 3.7.3.3 and 3.7.4.5.86Specific exceptions and clarifications to ITU-T Recommendation Q.773.86.1Corrections to the Abstract Syntax Notation (ASN) - Q.773, § 3.86.1.1TC-Messages - Q.773, § 3.1.86.1.2Dialogue Portion - Q.773, § 3.2.87Specific exceptions and clarifications to ITU-T Recommendation Q.774.88Specific exceptions and clarifications to ITU-T Recommendation Q.775.9History.10PSIST ETS 300 287:1996
Page 4ETS 300 287: October 1993Blank pagePSIST ETS 300 287:1996
Page 5ETS 300 287: October 1993ForewordThis European Telecommunication Standard (ETS) has been produced by the Signalling Protocols andSwitching (SPS) Technical Committee of the European Telecommunications Standards Institute (ETSI).This ETS details exceptions and clarifications to ITU-T Recommendations Q.771 to Q.775 (1993) definingthe Transaction Capabilities (TC) of the Transaction Capabilities Application Part (TCAP) for inter-networkdialogues on services such as the: European Digital Cellular Telecommunications System, Global Systemfor Mobile communications (GSM); Integrated Services Digital Network (ISDN); and Intelligent Network(IN).NOTE:The referenced ITU-T Recommendations were adopted in March 1993 but have notbeen published prior to the publication of this ETS (the publication by ITU-T isscheduled for December 1993). The relevant Study Group XI reports (COM XI-R 198to COM XI-R 200) of the March 1992 meeting, which contain the final drafts of thereferenced material, can be obtained from:International Telecommunication UnionGeneral SecretariatPlace des NationsCH-1211 Geneva 20SwitzerlandTel:+41 22 730 - 0PSIST ETS 300 287:1996
Page 6ETS 300 287: October 1993Blank pagePSIST ETS 300 287:1996
Pag
...
SLOVENSKI STANDARD
SIST ETS 300 287:199
01-PDUHF199
'LJLWDOQRRPUHåMH]LQWHJULUDQLPLVWRULWYDPL ,6'1 6LJQDOL]DFLMD&&,77ãW
'UXJDUD]OLþLFDDSOLNDFLMVNHJDGHOD]DWUDQVDNFLMVNH]PRåQRVWL 7&$3
Integrated Services Digital Network (ISDN); Signalling System No.7; Transaction
Capabilities Application Part (TCAP) version 2
Ta slovenski standard je istoveten z: ETS 300 287 E1
ICS:
33.080 Digitalno omrežje z Integrated Services Digital
integriranimi storitvami Network (ISDN)
(ISDN)
SIST ETS 300 287:199 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
PSIST ETS 300 287:1996
PSIST ETS 300 287:1996
EUROPEAN ETS 300 287
TELECOMMUNICATION October 1993
STANDARD
Source: ETSI TC-SPS Reference: DE/SPS-02005
ICS: 33.080
ISDN, Signalling System No.7, TCAP
Key words:
Integrated Services Digital Network (ISDN);
CCITT Signalling System No.7
Transaction Capabilities Application Part (TCAP) version 2
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - secretariat@etsi.fr
X.400: Internet:
Tel.: +33 92 94 42 00 - Fax: +33 93 65 47 16
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1993. All rights reserved.
New presentation - see History box
PSIST ETS 300 287:1996

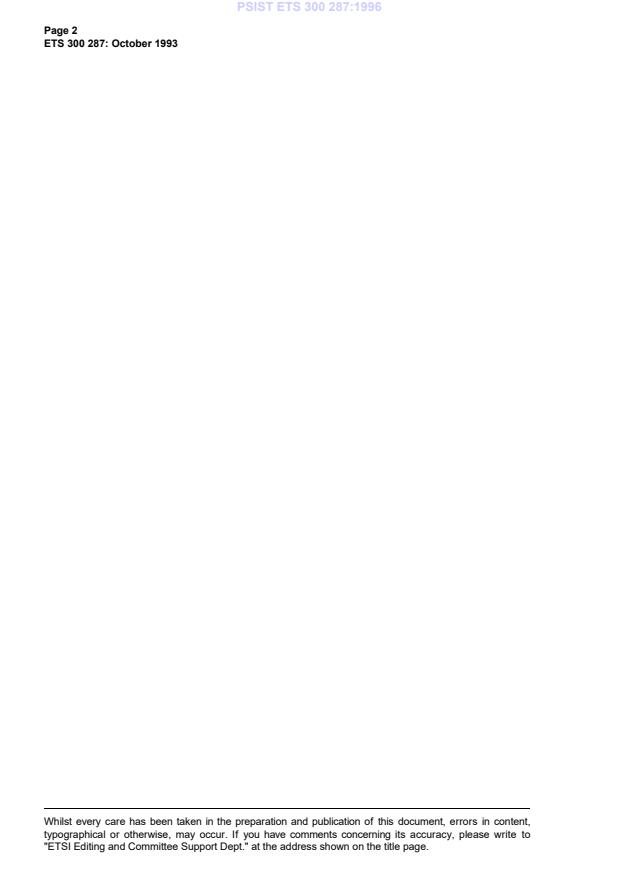

Page 2
ETS 300 287: October 1993
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.
PSIST ETS 300 287:1996
Page 3
ETS 300 287: October 1993
Contents
Foreword.5
1 Scope .7
2 Normative references .7
3 General exceptions and clarifications to ITU-T Recommendations Q.771 to Q.775.7
3.1 Support of TC by terminal equipment.7
3.2 Services assumed from a connectionless network layer .7
4 Specific exceptions and clarifications to ITU-T Recommendation Q.771.7
5 Specific exceptions and clarifications to ITU-T Recommendation Q.772.8
5.1 Mistyped parameters - Q.772, §§ 3.7.2.3, 3.7.3.3 and 3.7.4.5 .8
6 Specific exceptions and clarifications to ITU-T Recommendation Q.773.8
6.1 Corrections to the Abstract Syntax Notation (ASN) - Q.773, § 3 .8
6.1.1 TC-Messages - Q.773, § 3.1 .8
6.1.2 Dialogue Portion - Q.773, § 3.2. 8
7 Specific exceptions and clarifications to ITU-T Recommendation Q.774.8
8 Specific exceptions and clarifications to ITU-T Recommendation Q.775.9
History. 10
PSIST ETS 300 287:1996
Page 4
ETS 300 287: October 1993
Blank page
PSIST ETS 300 287:1996
Page 5
ETS 300 287: October 1993
Foreword
This European Telecommunication Standard (ETS) has been produced by the Signalling Protocols and
Switching (SPS) Technical Committee of the European Telecommunications Standards Institute (ETSI).
This ETS details exceptions and clarifications to ITU-T Recommendations Q.771 to Q.775 (1993) defining
the Transaction Capabilities (TC) of the Transaction Capabilities Application Part (TCAP) for inter-network
dialogues on services such as the: European Digital Cellular Telecommunications System, Global System
for Mobile communications (GSM); Integrated Services Digital Network (ISDN); and Intelligent Network
(IN).
NOTE: The referenced ITU-T Recommendations were adopted in March 1993 but have not
been published prior to the publication of this ETS (the publication by ITU-T is
scheduled for December 1993). The relevant Study Group XI reports (COM XI-R 198
to COM XI-R 200) of the March 1992 meeting, which contain the final drafts of the
referenced material, can be obtained from:
International Telecommunication Union
General Secretariat
Place des Nations
CH-1211 Geneva 20
Switzerland
Tel: +41 22 730 - 0
...
