SIST ETS 300 694 E1:2003
(Main)Private Integrated Services Network (PISN); Cordless Terminal Mobility (CTM); Call handling additional network features; Service description
General Information
- Abstract
To produce a draft ETS stage 1 description for the processing of PISN calls to and from the CTM user
- Status
- Published
- Publication Date
- 30-Nov-2003
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Dec-2003
- Due Date
- 01-Dec-2003
- Completion Date
- 01-Dec-2003
Overview
SIST ETS 300 694 E1:2003 defines the stage 1 service description for Cordless Terminal Mobility (CTM) call handling additional network features within a Private Integrated Services Network (PISN). Prepared by the Slovenski inštitut za standardizacijo (SIST), this standard provides the specifications necessary for supporting incoming and outgoing call handling for users with cordless terminal mobility in private telecommunication environments.
The document outlines two key Additional Network Features (ANFs) for CTM:
- ANF-CTMI: Incoming CTM Call Handling
- ANF-CTMO: Outgoing CTM Call Handling
The main objective is to provide seamless call management and mobility within enterprise or organizational PISNs by ensuring calls can be handled regardless of a CTM user's physical location within the network, provided proper registration and profile information is maintained.
Key Topics
Cordless Terminal Mobility (CTM):
- Refers to the ability of users to access and use network services while moving within the PISN radio coverage.
- The PISN is responsible for tracking the location of cordless terminals.
Call Handling Additional Network Features (ANFs):
- ANF-CTMI: Enables routing of incoming calls to CTM users based on their current registered location within the PISN.
- ANF-CTMO: Facilitates the initiation of outgoing calls and supplementary service requests by CTM users, verifying their registration and providing the relevant service profile.
Operational Procedures:
- Both ANFs are permanently activated and do not require manual activation or registration.
- The network maintains user location information and applies standard failure and call completion procedures if calls cannot be established.
Interactions with Supplementary Services:
- Specifies interactions and precedence among services such as call forwarding, call transfer, number and name identification, do-not-disturb, and location registration.
- Emphasizes non-interference with most services while respecting active call forwarding and proper location registration.
Applications
SIST ETS 300 694 E1:2003 is critical for:
Enterprise Telecommunication Systems:
- Enables organizations to offer advanced mobility features, allowing users to move freely within the premises while maintaining full access to private network telephony services.
- Ensures reliable call routing and access control for mobile telephony devices integrated into PISNs.
System Integration and Vendor Implementations:
- Provides a clear framework for vendors developing PISN solutions to support cordless terminal devices, ensuring compatibility and consistent behavior across implementations.
Network Management and User Mobility:
- Supports efficient user tracking and call management, essential in modern office environments where flexible workspace and remote access are standard.
Keywords: Private Integrated Services Network, PISN, Cordless Terminal Mobility, CTM, call handling, additional network features, ANF-CTMI, ANF-CTMO, enterprise telephony, supplementary services, user mobility, network standards.
Related Standards
- ETS 300 171: Defines control aspects of circuit mode basic services within PTNs.
- ETS 300 415: Establishes terms and definitions for Private Telecommunication Networks.
- ISO/IEC 11579-1: Describes reference configurations for PISN exchanges.
- ETS 300 387: Specifies the method for developing basic and supplementary services in PTN.
- CCITT Recommendation I.130 / ITU-T I.130: Details the method for characterizing telecommunication services supported by ISDN.
- ITU-T Recommendation Z.100: Provides guidelines on Specification and Description Language (SDL) for modeling network behaviors.
Adhering to these references ensures that solutions implementing SIST ETS 300 694 E1:2003 achieve interoperability, reliability, and full support for cordless terminal mobility within advanced private networks.
Get Certified
Connect with accredited certification bodies for this standard
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
LNE (Laboratoire National de Métrologie et d'Essais)
French national laboratory for metrology and testing.
Sponsored listings
Frequently Asked Questions
SIST ETS 300 694 E1:2003 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Private Integrated Services Network (PISN); Cordless Terminal Mobility (CTM); Call handling additional network features; Service description". This standard covers: To produce a draft ETS stage 1 description for the processing of PISN calls to and from the CTM user
To produce a draft ETS stage 1 description for the processing of PISN calls to and from the CTM user
SIST ETS 300 694 E1:2003 is classified under the following ICS (International Classification for Standards) categories: 33.040.35 - Telephone networks. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST ETS 300 694 E1:2003 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-december-2003
=DVHEQRRPUHåMH]LQWHJULUDQLPLVWRULWYDPL 3,61 0RELOQRVWEUH]YUYLþQHJD
WHUPLQDOD &70 'RGDWQHRPUHåQHIXQNFLMH UDYQDQMHVNOLFHP2SLVVWRULWYH
Private Integrated Services Network (PISN); Cordless Terminal Mobility (CTM); Call
handling additional network features; Service description
Ta slovenski standard je istoveten z: ETS 300 694 Edition 1
ICS:
33.040.35 Telefonska omrežja Telephone networks
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN ETS 300 694
TELECOMMUNICATION March 1996
STANDARD
Source: ETSI TC-BTC Reference: DE/BTC-01035
ICS: 35.120
Key words: PISN, CTM, mobility, ANF, stage 1, PTN
Private Integrated Services Network (PISN);
Cordless Terminal Mobility (CTM);
Call handling additional network features;
Service description
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: secretariat@etsi.fr
Tel.: +33 92 94 42 00 - Fax: +33 93 65 47 16
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1996. All rights reserved.

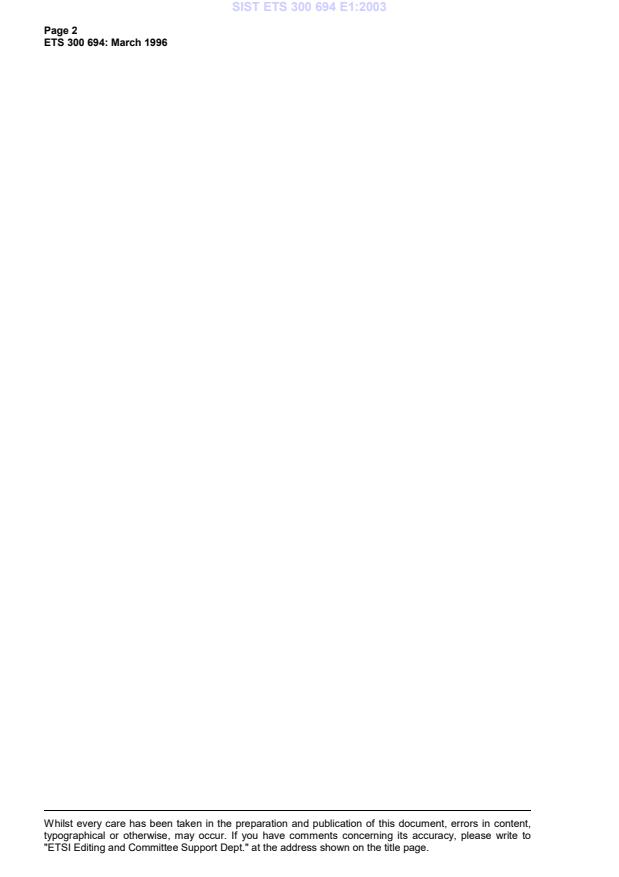

Page 2
ETS 300 694: March 1996
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.
Page 3
ETS 300 694: March 1996
Contents
Foreword .5
1 Scope .7
2 Normative references.7
3 Definitions and abbreviations .8
3.1 Definitions .8
3.2 Abbreviations .8
4 ANF-CTMI .9
4.1 Description.9
4.1.1 General description .9
4.1.2 Qualifications on applicability to telecommunication services.9
4.2 Procedures.9
4.2.1 Provision and withdrawal.9
4.2.2 Normal procedures.9
4.2.2.1 Activation, deactivation, registration and interrogation .9
4.2.2.2 Invocation and operation .9
4.2.3 Exceptional procedures.9
4.2.3.1 Activation, deactivation, registration and interrogation .9
4.2.3.2 Invocation and operation .9
4.3 Interactions with other supplementary services and ANFs.10
4.3.1 Number identification services (SS-CLIP, SS-COLP, SS-CLIR).10
4.3.2 Name identification services (SS-CNIP, SS-CONP, SS-CNIR) .10
4.3.3 Call diversion services.10
4.3.3.1 Call Forwarding Unconditional (SS-CFU).10
4.3.3.2 Call Forwarding Busy (SS-CFB) .10
4.3.3.3 Call Forwarding on No Reply (SS-CFNR) .10
4.3.4 Call Transfer (SS-CT) .10
4.3.5 Path Replacement (ANF-PR).10
4.3.6 Call completion services (SS-CCBS, SS-CCNR).10
4.3.7 Do not disturb services (SS-DND, SS-DNDO).10
4.3.8 Call Offer (SS-CO) .10
4.3.9 Call Intrusion (SS-CI) .10
4.3.10 Incoming CTM Call Handling (ANF-CTMI).10
4.3.11 Outgoing CTM Call Handling (ANF-CTMO) .11
4.3.12 CTM location handling.11
4.3.12.1 Cordless Terminal Location Registration (SS-CTLR).11
4.3.12.2 Transfer of Service Profile (ANF-CTSP) .11
4.4 Interworking considerations .11
4.5 Overall SDL diagram.11
5 ANF-CTMO .11
5.1 Description.11
5.1.1 General description .11
5.1.2 Qualifications on applicability to telecommunication services.11
5.2 Procedures.12
5.2.1 Provision and withdrawal.12
5.2.2 Normal procedures.12
5.2.2.1 Activation, deactivation, registration and interrogation .12
5.2.2.2 Invocation and operation .12
5.2.3 Exceptional procedures.12
5.2.3.1 Activation, deactivation, registration and interrogation .12
5.2.3.2 Invocation and operation .12
5.3 Interactions with other supplementary services and ANFs.12
5.3.1 Number identification services ( SS-CLIP, SS-COLP, SS-CLIR).12
Page 4
ETS 300 694: March 1996
5.3.2 Name identification services (SS-CNIP, SS-CONP, SS-CNIR). 13
5.3.3 Call diversion services . 13
5.3.3.1 Call Forwarding Unconditional (SS-CFU) . 13
5.3.3.2 Call Forwarding Busy (SS-CFB) . 13
5.3.3.3 Call Forwarding on No Reply (SS-CFNR). 13
5.3.4 Call Transfer (SS-CT). 13
5.3.5 Path Replacement (ANF-PR) . 13
5.3.6 Call completion services (SS-CCBS, SS-CCNR) . 13
5.3.7 Do not disturb services (SS-DND, SS-DNDO) . 13
5.3.8 Call Offer (SS-CO). 13
5.3.9 Call Intrusion (SS-CI). 13
5.3.10 Incoming CTM Call Handling (ANF-CTMI) . 13
5.3.11 Outgoing CTM Call Handling (ANF-CTMO) . 13
5.3.12 CTM location handling . 13
5.3.12.1 Cordless Terminal Location Registration (SS-CTLR) . 13
5.3.12.2 Transfer of Service Profile (ANF-CTSP). 13
5.4 Interworking considerations . 14
5.5 Overall SDL diagram. 14
Annex A (informative): Failure indications of ANF-CTMI. 15
Annex B (informative): Bibliography . 16
History. 17
Page 5
ETS 300 694: March 1996
Foreword
This European Telecommunication Standard (ETS) has been produced by the Business
TeleCommunications (BTC) Technical Committee of the European Telecommunications Standards
Institute (ETSI).
Transposition dates
Date of adoption of this ETS: 15 March 1996
Date of latest announcement of this ETS (doa): 30 June 1996
Date of latest publication of new National Standard
or endorsement of this ETS (dop/e): 31 December 1996
Date of withdrawal of any conflicting National Standard (dow): 31 December 1996
Page 6
ETS 300 694: March 1996
Blank page
Page 7
ETS 300 694: March 1996
1 Scope
This European Telecommunication Standard (ETS) describes the stage 1 of the Cordless Terminal
Mobility (CTM) call handling Additional Network Features (ANF) for Private Integrated Services Networks
(PISNs). It comprises two related but distinct service descriptions, Incoming CTM Call Handling Additional
Network Feature (ANF-CTMI) and Outgoing CTM Call Handling Additional Network Feature (ANF-CTMO).
Stage one is an overall service description from the user's point of view, but does not deal with the details
of the human interface itself, see CCITT Recommendation I.130 [5].
ANF-CTMI directs incoming calls to a CTM user within a PISN regardless of the CTM user's geographical
location within the PISN, provided the CTM user's location is known.
ANF-CTMO detects an outgoing call or request for a supplementary service from a CTM user and
establishes it as a basic call or signalling connection, respectively, regardless of the user's geographical
location within the PISN. It also provides the CTM user's service profile for use by outgoing call control, or
alternatively passes the call to the CTM user's home location for processing.
This ETS contains the stage 1 specification of the CTM call handling ANFs. ANF specifications are
produced in three stages according to the method described in ETS 300 387 [4].
The purpose of the stage 1 specification is to guide and constrain the work at stage 2 and stage 3. Where
the text indicates the status of a requirement (i.e. as strict command or prohibition or as authorisation
leaving freedom as a capability or possibility) this is reflected in the text of the relevant stage 2 and stage 3
standards.
Conformance to this ETS is met by conforming to the stage three standards with the field of application
appropriate to the equipment being implemented. Therefore, no method of testing is provided for this ETS.
2 Normative references
This ETS incorporates by dated and undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this ETS only when incorporated in it by amendment or revision. For undated references the latest
edition of the publication referred to applies.
[1] ETS 300 171 (1992): "Private Telecommunication Network (PTN); Specification,
functional models and information flows; Control aspects of circuit mode basic
services".
[2] ETS 300 415 (1995): "Private Telecommunication Network (PTN); Terms and
definitions".
[3] ISO/IEC 11579-1 (1994): "Information Technology - Telecommunications and
inform
...
