SIST ETS 300 186 E1:2003

SLOVENSKI STANDARD
01-december-2003
Digitalno omrežje z integriranimi storitvami (ISDN) – Dopolnilna storitev:
konferenca treh (3PTY) – Opis storitve
Integrated Services Digital Network (ISDN); Three-Party (3PTY) supplementary service;
Service description
Ta slovenski standard je istoveten z: ETS 300 186 Edition 1
ICS:
33.080 Digitalno omrežje z Integrated Services Digital
integriranimi storitvami Network (ISDN)
(ISDN)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN ETS 300 186
TELECOMMUNICATION July 1993
STANDARD
Source: ETSI TC-NA Reference: T/NA1(89)28
ICS: 33.080
ISDN, supplementary service
Key words:
Integrated Services Digital Network (ISDN);
Three-Party (3PTY) supplementary service
Service description
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - secretariat@etsi.fr
X.400: Internet:
Tel.: +33 92 94 42 00 - Fax: +33 93 65 47 16
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1993. All rights reserved.
New presentation - see History box

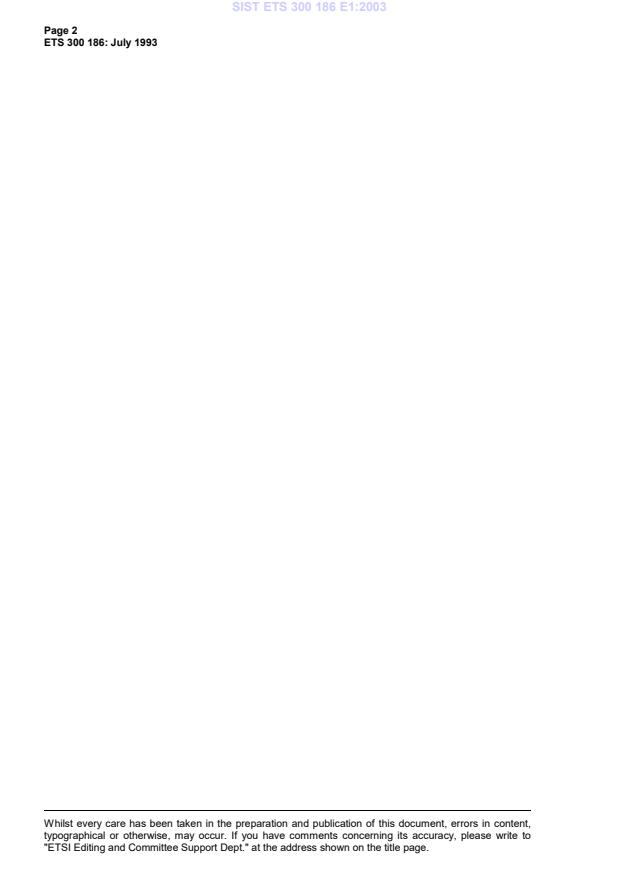

Page 2
ETS 300 186: July 1993
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 186: July 1993
Contents
Foreword .5
1 Scope .7
2 Normative references.7
3 Definitions.8
4 Symbols and abbreviations .8
5 Description .8
6 Procedures.9
6.1 Provision and withdrawal .9
6.2 Normal procedures .9
6.2.1 Activation, deactivation and registration.9
6.2.2 Erasure.9
6.2.3 Invocation and operation .9
6.2.3.1 Beginning the 3PTY supplementary service.9
6.2.3.2 Managing the three-way conversation.9
6.2.3.3 Actions available to the remote parties.9
6.2.3.4 Information provided to participants .10
6.2.4 Interrogation .10
6.3 Exceptional procedures .10
6.3.1 Activation, deactivation and registration.10
6.3.2 Erasure.10
6.3.3 Invocation and operation .10
6.3.4 Interrogation .10
7 Intercommunication considerations.10
7.1 Interworking with non-ISDNs .10
7.2 Interworking with private ISDNs.11
8 Interaction with other supplementary services .11
8.1 Advice of charge services.11
8.1.1 Charging information at call set-up time.11
8.1.2 Charging information during the call.11
8.1.3 Charging information at the end of the call.11
8.2 Call waiting.12
8.3 Call hold .12
8.4 Explicit call transfer.12
8.5 Number identification services.12
8.5.1 Calling line identification presentation .12
8.5.2 Calling line identification restriction .12
8.5.3 Connected line identification presentation.12
8.5.4 Connected line identification restriction.12
8.6 Closed user group.12
8.7 Completion of calls to busy subscriber .12
8.8 Conference services .13
8.8.1 Conference call, add-on .13
8.8.2 Meet-me conference .13
8.9 Direct dialling in.13
8.10 Diversion services.13
8.10.1 Call forwarding unconditional .13
8.10.2 Call forwarding busy.13
8.10.3 Call forwarding no reply.13

Page 4
ETS 300 186: July 1993
8.10.4 Call deflection . 13
8.11 Freephone. 13
8.12 Malicious call identification. 14
8.13 Multiple subscriber number . 14
8.14 Subaddressing . 14
8.15 Terminal portability. 14
8.16 Three-party. 14
8.17 User-to-user signalling . 14
Annex A (informative): Management of active and held calls . 15
A.1 Introduction. 15
A.2 Functionality available to the served user controlling more than one call. 15
History. 16

Page 5
ETS 300 186: July 1993
Foreword
This European Telecommunication Standard (ETS) has been produced by the Network Aspects (NA)
Technical Committee of the European Telecommunications Standards Institute (ETSI).
In accordance with CCITT Recommendation I.130 [1], the following three level structure is used to
describe the supplementary telecommunications services as provided by European public
telecommunications operators under the pan-European Integrated Services Digital Network (ISDN):
- Stage 1: is an overall service description, from the user's standpoint;
- Stage 2: identifies the functional capabilities and information flows needed to support the
service described in stage 1; and
- Stage 3: defines the signalling system protocols and switching functions needed to implement
the service described in stage 1.
This ETS details the stage 1 aspects (overall service description) for the Three-Party (3PTY)
supplementary service. Stage 2 and stage 3 aspects are detailed in ETS 300 187 (1993) and
ETS 300 188 (1993) respectively.

Page 6
ETS 300 186: July 1993
Blank page
Page 7
ETS 300 186: July 1993
1 Scope
This standard defines the stage one of the Three-Party (3PTY) supplementary service for the
pan-European Integrated Services Digital Network (ISDN) as provided by European public
telecommunications operators. Stage one is an overall service description from the user's point of view
(see CCITT Recommendation I.130 [1]), but does not deal with the details of the human interface itself.
This standard defines the interworking requirements of private ISDNs with the public ISDN.
In addition, this standard specifies the base functionality where the service is provided to the user via a
private ISDN.
This standard does not specify the additional requirements where the service is provided to the user via a
telecommunications network that is not an ISDN but does include interworking requirements of other
networks with the public ISDN.
Interaction with supplementary services not listed in Clause 8 are outside the scope of this standard.
Charging principles are outside the scope of this standard.
The 3PTY supplementary service enables a user to establish, participate in and control, a three-way
conversation, i.e. a simultaneous communication involving the served user and two remote parties.
The 3PTY supplementary service is applicable to all circuit-switched telecommunications services carrying
speech.
This standard is applicable to the stage two and the stage three standards for the ISDN 3PTY
supplementary service. The terms "stage two" and "stage three" are also defined in CCITT
Recommendation I.130 [1]. Where the text indicates the status of a requirement (i.e. as strict command or
prohibition, as authorisation leaving freedom, or as a capability or possibility), this shall be reflected in the
text of the relevant stage two and stage three standards.
Furthermore, conformance to this standard is met by conforming to the stage three standard with the field
of application appropriate to the equipment being implemented. Therefore, no method of testing is
provided for this standard.
2 Normative references
This standard incorporates, by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this standard only when incorporated in it by amendment or revision. For undated references the
latest edition of the publication referred to applies.
[1] CCITT Recommendation I.130 (1988): "Method for the characterisation of the
telecommunication services supported by an ISDN and network capabilities of
an ISDN".
[2] CCITT Recommendation I.112 (1988): "Vocabulary of terms for ISDNs".
[3] CCITT Recommendation I.210 (1988): "Principles of telecommunication
services supported by an ISDN and the means to describe them".
[4] CCITT Recommendation Q.9 (1988): "Vocabulary of switching and signalling
terms".
Page 8
ETS 300 186: July 1993
3 Definitions
For the purpose of this standard, the following definitions apply:
Integrated Services Digital Network (ISDN): see CCITT Recommendation I.112 [2], § 2.3, definition
308.
Service; telecommunications service: see CCITT Recommendation I.112 [2], § 2.2, definition 201.
Supplementary service: see CCITT Recommendation I.210 [3], § 2.4.
Served user: the user to whom the 3PTY supplementary service is provided and who invokes the 3PTY
supplementary service.
Remote party: a user involved in a call, other than the served user.
NOTE: Whilst two calls are connected in a three-way conversation, there are two remote
parties involved.
Basic access: see CCITT Recommendation Q.9 [4], § 1, definition 1551.
Primary rate access: see CCITT Recommendation Q.9 [4], § 1, definition 1552.
Three-way conversation: communication between all three users, i.e. the served user and both remote
parties.
Private communication: communication between the served user and one remote party. This excludes
communication with the other remote party.
4 Symbols and abbreviations
3PTY Three-Party
ISDN Integrated Services Digital Network
5 Description
The 3PTY supplementary service shall be available to users who are connected to the network via a basic
access or a primary rate access.
The 3PTY supplementary service enables a user to establish, participate in and control, a three-way
conversation.
The 3PTY supplementary ser
...
