SIST EN 302 092-2 V1.2.2:2005
(Main)Broadband Integrated Services Digital Network (B-ISDN) and Broadband Private Integrated Services Network (B-PISN); Digital Subscriber Signalling System No. two (DSS2), Broadband Inter-Exchange Signalling (B-QSIG), and Signalling System No. 7 (SS7); Call control in a separated call and bearer control environment; Part 2: Protocol Implementation Conformance Statement (PICS) proforma specification
General Information
- Abstract
DSS2 & B-QSIG, separated call/bearer PICS to part 1
- Status
- Published
- Publication Date
- 31-Dec-2004
- Technical Committee
- SPN - Services and Protocols for Networks
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Jan-2005
- Due Date
- 01-Jan-2005
- Completion Date
- 01-Jan-2005
Overview
The SIST EN 302 092-2 V1.2.2:2005 standard specifies the Protocol Implementation Conformance Statement (PICS) proforma for Broadband Integrated Services Digital Network (B-ISDN) and Broadband Private Integrated Services Network (B-PISN) environments utilizing Digital Subscriber Signalling System No. 2 (DSS2), Broadband Inter-Exchange Signalling (B-QSIG), and Signalling System No. 7 (SS7). This part of the standard supports call control in environments where call and bearer control are separated, providing a standardized framework for declaring protocol conformance for B-ISDN and B-PISN call control as defined in EN 302 092-1.
Designed by the Slovenian Institute for Standardization (SIST) based on European (ETSI) requirements, this standard is essential for vendors, service providers, and systems integrators who need to demonstrate protocol conformance in broadband telecommunication networks.
Key Topics
- Protocol Implementation Conformance Statement (PICS):
- A formalized questionnaire provided to vendors and suppliers, detailing which protocol features and options their implementation supports.
- Ensures compatibility and interoperability among network devices in B-ISDN and B-PISN environments.
- Separated Call and Bearer Control:
- Addresses the complexities of managing call signalling and bearer (data transport) paths independently in broadband networks.
- Supports flexible network topologies and advanced services by clearly describing protocol capabilities.
- B-ISDN and B-PISN Signalling:
- DSS2, B-QSIG, and SS7: Standardizes broadband call signalling across public and private network environments.
- Focuses on call establishment, status reporting, clearing procedures, and bearer coordination.
- Vendor and System Identification:
- Standardized fields for naming the implementation under test, the system configuration, supplier details, and contact persons.
- Provides traceability and accountability in protocol claims and testing scenarios.
- Conformance and Capabilities:
- Clear distinction of mandatory, optional, and conditional protocol features.
- Support for major and subsidiary capabilities, including signalling procedures, parameter handling, and timer usage.
Applications
Implementing the PICS proforma as defined in SIST EN 302 092-2 V1.2.2:2005 delivers tangible benefits across various broadband network scenarios:
- Product Certification: Manufacturers can use the proforma to formally declare which features of DSS2, B-QSIG, and SS7 their equipment supports, enabling reliable product certification.
- Network Interoperability: Ensures that equipment from different vendors can interoperate seamlessly in B-ISDN and B-PISN networks, supporting efficient call control and bearer management.
- Procurement and Integration: Network operators and system integrators can use completed PICS documents to verify protocol support during product selection and system integration.
- Conformance Testing: Essential for conformity assessment against EN 302 092-1, helping ensure that new software releases or devices remain interoperable and standards-compliant.
- Regulatory Compliance: Facilitates compliance with European and international standards for broadband telecommunication systems, particularly in regulated markets.
Related Standards
- EN 302 092-1: Protocol specification for DSS2, B-QSIG, and SS7 call control in a separated call and bearer control environment.
- ISO/IEC 9646-7: Implementation conformance statements guideline for Open Systems Interconnection (OSI) protocols.
- ISO/IEC 9646-1: General concepts for OSI conformance testing methodology and framework.
- ETS 300 796-1: DSS2 protocol and generic functional protocol specification for B-ISDN.
- ECMA-254: B-PISN inter-exchange signalling protocol specification.
By enabling structured protocol conformance statements, SIST EN 302 092-2 V1.2.2:2005 helps organizations deliver interoperable, standards-compliant broadband network solutions for both public and enterprise environments.
Get Certified
Connect with accredited certification bodies for this standard
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
LNE (Laboratoire National de Métrologie et d'Essais)
French national laboratory for metrology and testing.
Sponsored listings
Frequently Asked Questions
SIST EN 302 092-2 V1.2.2:2005 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Broadband Integrated Services Digital Network (B-ISDN) and Broadband Private Integrated Services Network (B-PISN); Digital Subscriber Signalling System No. two (DSS2), Broadband Inter-Exchange Signalling (B-QSIG), and Signalling System No. 7 (SS7); Call control in a separated call and bearer control environment; Part 2: Protocol Implementation Conformance Statement (PICS) proforma specification". This standard covers: DSS2 & B-QSIG, separated call/bearer PICS to part 1
DSS2 & B-QSIG, separated call/bearer PICS to part 1
SIST EN 302 092-2 V1.2.2:2005 is classified under the following ICS (International Classification for Standards) categories: 33.040.35 - Telephone networks; 33.080 - Integrated Services Digital Network (ISDN). The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 302 092-2 V1.2.2:2005 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.VSHFLILNDFLMDBroadband Integrated Services Digital Network (B-ISDN) and Broadband Private Integrated Services Network (B-PISN); Digital Subscriber Signalling System No. two (DSS2), Broadband Inter-Exchange Signalling (B-QSIG), and Signalling System No. 7 (SS7); Call control in a separated call and bearer control environment; Part 2: Protocol Implementation Conformance Statement (PICS) proforma specification33.080Digitalno omrežje z integriranimi storitvami (ISDN)Integrated Services Digital Network (ISDN)33.040.35Telefonska omrežjaTelephone networksICS:Ta slovenski standard je istoveten z:EN 302 092-2 Version 1.2.2SIST EN 302 092-2 V1.2.2:2005en01-januar-2005SIST EN 302 092-2 V1.2.2:2005SLOVENSKI
STANDARD
ETSIEN302092-2V1.2.2(1999-11)EuropeanStandard(Telecommunicationsseries)BroadbandIntegratedServicesDigitalNetwork(B-ISDN)andBroadbandPrivateIntegratedServicesNetwork(B-PISN);DigitalSubscriberSignallingSystemNo.two(DSS2),BroadbandInter-ExchangeSignalling(B-QSIG),andSignallingSystemNo.7(SS7);Callcontrolinaseparatedcallandbearercontrolenvironment;Part2:ProtocolImplementationConformanceStatement(PICS)proformaspecificationSIST EN 302 092-2 V1.2.2:2005

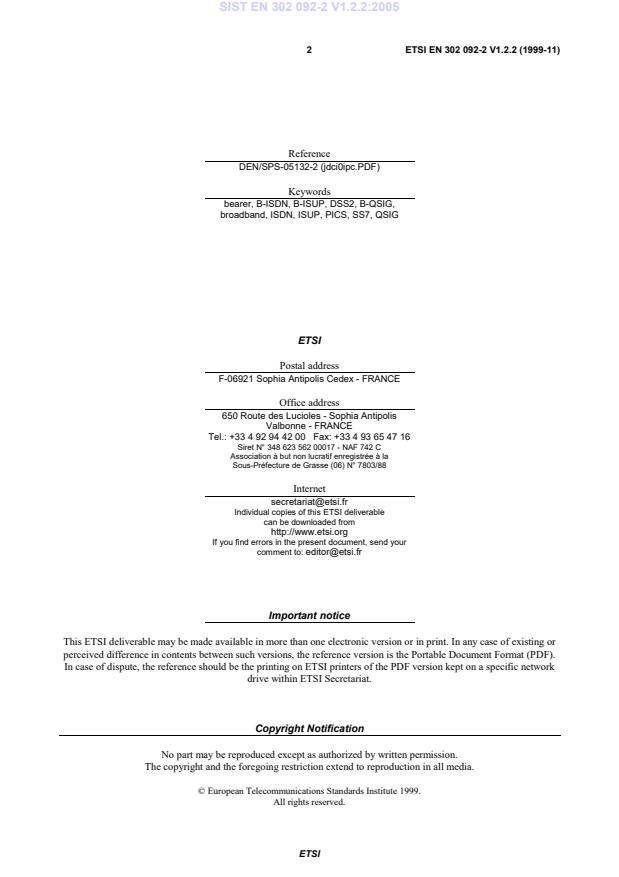

ETSIETSIEN302092-2V1.2.2(1999-11)2ReferenceDEN/SPS-05132-2(jdci0ipc.PDF)Keywordsbearer,B-ISDN,B-ISUP,DSS2,B-QSIG,broadband,ISDN,ISUP,PICS,SS7,QSIGETSIPostaladdressF-06921SophiaAntipolisCedex-FRANCEOfficeaddress650RoutedesLucioles-SophiaAntipolisValbonne-FRANCETel.:+33492944200Fax:+33493654716SiretN°34862356200017-NAF742CAssociationàbutnonlucratifenregistréeàlaSous-PréfecturedeGrasse(06)N°7803/88Internetsecretariat@etsi.frIndividualcopiesofthisETSIdeliverablecanbedownloadedfromhttp://www.etsi.orgIfyoufinderrorsinthepresentdocument,sendyourcommentto:editor@etsi.frImportantnoticeThisETSIdeliverablemaybemadeavailableinmorethanoneelectronicversionorinprint.Inanycaseofexistingorperceiveddifferenceincontentsbetweensuchversions,thereferenceversionisthePortableDocumentFormat(PDF).Incaseofdispute,thereferenceshouldbetheprintingonETSIprintersofthePDFversionkeptonaspecificnetworkdrivewithinETSISecretariat.CopyrightNotificationNopartmaybereproducedexceptasauthorizedbywrittenpermission.Thecopyrightandtheforegoingrestrictionextendtoreproductioninallmedia.©EuropeanTelecommunicationsStandardsInstitute1999.Allrightsreserved.SIST EN 302 092-2 V1.2.2:2005
