SIST EN 300 356-15 V3.2.2:2003
(Main)Integrated Services Digital Network (ISDN); Signalling System No.7; ISDN User Part (ISUP) version 3 for the international interface; Part 15: Diversion supplementary services [ITU-T Recommendation Q.732, clauses 2 to 5 (1997), modified]
General Information
- Abstract
Additional generic procedures to those in basic call for use in these supplementary services.
- Status
- Published
- Publication Date
- 30-Nov-2003
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Dec-2003
- Due Date
- 01-Dec-2003
- Completion Date
- 01-Dec-2003
Overview
SIST EN 300 356-15 V3.2.2:2003 defines the stage three protocol procedures for the support of diversion supplementary services in the Integrated Services Digital Network (ISDN). Based on modifications to ITU-T Recommendation Q.732 (clauses 2 to 5), this standard focuses on the implementation of these services over the international interface using Signalling System No.7 (SS7) and specifically the ISDN User Part (ISUP) version 3 protocol. The standard is aligned with the requirements of European public telecommunications operators and covers generic procedures that supplement those provided for basic call handling.
Key Topics
- ISDN Diversion Services: The document specifies generic protocol procedures supporting call diversion services such as Call Forwarding Busy (CFB), Call Deflection (CD), and similar features over international networks.
- ISUP Version 3: Emphasis on interoperability and signaling requirements using the ISDN User Part version 3 for international interfaces, ensuring seamless communication between different public networks.
- International Interface Focus: All definitions and procedures within the standard address international rather than national signaling needs. While some informative references to national use are included, the primary purpose is cross-border ISDN call management.
- Modified ITU-T Recommendations: Adjusts the baseline ITU-T Q.732 procedures to European and international interconnection needs.
- Supplementary Services Integration: Supplements basic call processing with additional signaling considerations for supplementary services, ensuring compatibility with other supplementary services like CLIP/CLIR and call completion functions.
Applications
Implementing SIST EN 300 356-15 V3.2.2:2003 is crucial for:
- International ISDN Gateways: Ensuring consistent treatment of diversion services (e.g., call forwarding) at international gateway exchanges, especially when calls are redirected across country borders.
- Public Telecommunications Operators: Providing pan-European ISDN networks with harmonized signaling behavior for supplementary services, reducing interoperability issues.
- Equipment Manufacturers: Guiding development and testing of ISDN products that must comply with European and global call diversion signaling procedures.
- Network Designers: Supporting the seamless integration of supplementary services into ISDN architectures, facilitating advanced call management across interconnected networks.
The standard applies to all circuit-switched telecommunication services supported by ISDN, especially when supplementary diversion features are required over international interfaces.
Related Standards
For comprehensive ISDN interoperability and supplementary service deployment, the following standards provide essential background and are referenced in or closely associated with SIST EN 300 356-15 V3.2.2:2003:
- EN 300 356-1 - Basic services for ISUP Version 3
- EN 300 356-2 - ISDN supplementary services overview for ISUP
- EN 300 356-3 - Calling Line Identification Presentation (CLIP)
- EN 300 356-4 - Calling Line Identification Restriction (CLIR)
- EN 300 356-18 - Completion of Calls to Busy Subscriber (CCBS)
- ETS 300 121 - ISUP for international ISDN interconnections (Version 1)
- ETS 300 199 and ETS 300 202 - Service descriptions for CFB and CD
- ETS 300 203 and ETS 300 206 - Functional capabilities for diversion services
Adoption of these harmonized European standards supports robust delivery of supplementary services within and beyond national ISDN networks, underpinning advanced telecommunication services and international voice connectivity.
Keywords: ISDN, ISUP, SS7, call diversion, call forwarding, call deflection, supplementary service, international signaling, telecommunications standard, public network, European ISDN, gateway exchange, protocol procedures.
Get Certified
Connect with accredited certification bodies for this standard
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
LNE (Laboratoire National de Métrologie et d'Essais)
French national laboratory for metrology and testing.
Sponsored listings
Frequently Asked Questions
SIST EN 300 356-15 V3.2.2:2003 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Integrated Services Digital Network (ISDN); Signalling System No.7; ISDN User Part (ISUP) version 3 for the international interface; Part 15: Diversion supplementary services [ITU-T Recommendation Q.732, clauses 2 to 5 (1997), modified]". This standard covers: Additional generic procedures to those in basic call for use in these supplementary services.
Additional generic procedures to those in basic call for use in these supplementary services.
SIST EN 300 356-15 V3.2.2:2003 is classified under the following ICS (International Classification for Standards) categories: 33.080 - Integrated Services Digital Network (ISDN). The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 300 356-15 V3.2.2:2003 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.VSUHPHQMHQR@Integrated Services Digital Network (ISDN); Signalling System No.7; ISDN User Part (ISUP) version 3 for the international interface; Part 15: Diversion supplementary services [ITU-T Recommendation Q.732, clauses 2 to 5 (1997), modified]33.080Digitalno omrežje z integriranimi storitvami (ISDN)Integrated Services Digital Network (ISDN)ICS:Ta slovenski standard je istoveten z:EN 300 356-15 Version 3.2.2SIST EN 300 356-15 V3.2.2:2003en01-december-2003SIST EN 300 356-15 V3.2.2:2003SLOVENSKI
STANDARD
EN 300 356-15 V3.2.2 (1998-08)European Standard (Telecommunications series)Integrated Services Digital Network (ISDN);Signalling System No.7;ISDN User Part (ISUP) version 3 for the international interface;Part 15: Diversion supplementary services[ITU-T Recommendation Q.732, clauses 2 to 5 (1996), modified]SIST EN 300 356-15 V3.2.2:2003

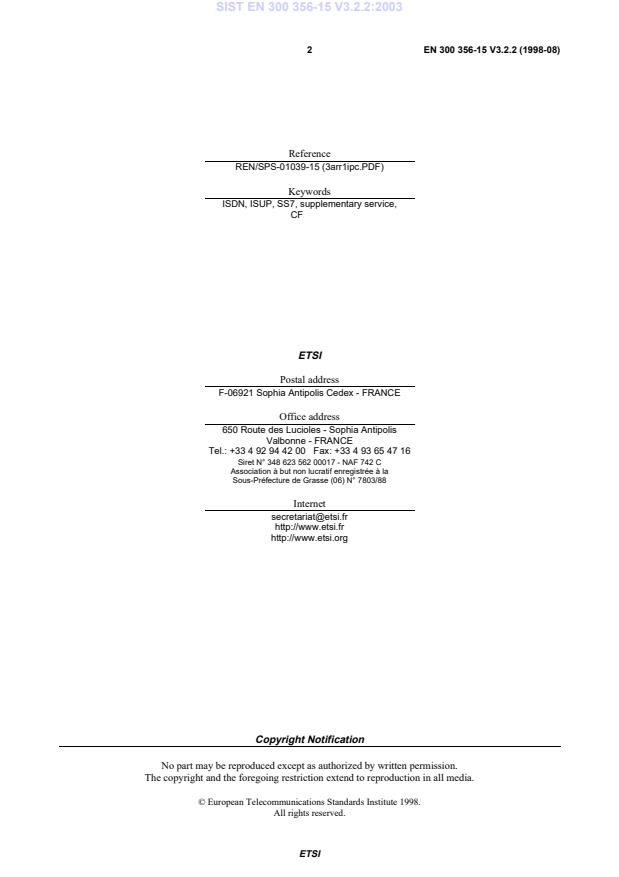

ETSIEN 300 356-15 V3.2.2 (1998-08)2ReferenceREN/SPS-01039-15 (3arr1ipc.PDF)KeywordsISDN, ISUP, SS7, supplementary service,CFETSIPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16Siret N° 348 623 562 00017 - NAF 742 CAssociation à but non lucratif enregistrée à laSous-Préfecture de Grasse (06) N° 7803/88Internetsecretariat@etsi.frhttp://www.etsi.frhttp://www.etsi.orgCopyright NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1998.All rights reserved.SIST EN 300 356-15 V3.2.2:2003
ETSIEN 300 356-15 V3.2.2 (1998-08)3Intellectual Property RightsIPRs essential or potentially essential to the present document may have been declared to ETSI. The informationpertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be foundin SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respectof ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on theETSI Web server (http://www.etsi.fr/ipr or http://www.etsi.org/ipr).Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guaranteecan be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)which are, or may be, or may become, essential to the present document.ForewordThis European Standard (Telecommunications series) has been produced by ETSI Technical Committee SignallingProtocols and Switching (SPS).The present document is part 15 of a multi-part EN covering the ISDN User Part (ISUP) version 3 for the internationalinterface, as identified below:Part 1:"Basic services";Part 2:"ISDN supplementary services";Part 3:"Calling Line Identification Presentation (CLIP) supplementary service";Part 4:"Calling Line Identification Restriction (CLIR) supplementary service";Part 5:"Connected Line Identification Presentation (COLP) supplementary service";Part 6:"Connected Line Identification Restriction (COLR) supplementary service";Part 7:"Terminal Portability (TP) supplementary service";Part 8:"User-to-User Signalling (UUS) supplementary service";Part 9:"Closed User Group (CUG) supplementary service";Part 10:"Subaddressing (SUB) supplementary service";Part 11:"Malicious Call Identification (MCID) supplementary service";Part 12:"Conference Call, add-on (CONF) supplementary service";Part 14:"Explicit Call Transfer (ECT) supplementary service";Part 15:"Diversion supplementary services";Part 16:"Call Hold (HOLD) supplementary service";Part 17:"Call Waiting (CW) supplementary service";Part 18:"Completion of Calls to Busy Subscriber (CCBS) supplementary service";Part 19:"Three party (3PTY) supplementary service".Part 20:"Completion of Calls on No Reply (CCNR) supplementary service";Part 31:"Protocol Implementation Conformance Statement (PICS) proforma specification for basic services"Part 32:"Test Suite Structure and Test Purposes (TSS&TP) specification for basic services"Part 33:"Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT)proforma specification for basic services"Part 34:"Protocol Implementation Conformance Statement (PICS) proforma specification for supplementaryservices"Part 35:"Test Suite Structure and Test Purposes (TSS&TP) specification for supplementary services"Part 36:"Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT)proforma specification for supplementary services"NOTE:Part 13 has not been issued.SIST EN 300 356-15 V3.2.2:2003
ETSIEN 300 356-15 V3.2.2 (1998-08)4In accordance with CCITT Recommendation I.130, the following three level structure is used to describe thesupplementary telecommunication services as provided by European public telecommunications operators under thepan-European Integrated Services Digital Network (ISDN):-Stage 1: is an overall service description, from the user's stand-point;-Stage 2: identifies the functional capabilities and information flows needed to support the service described instage 1; and-Stage 3: defines the signalling system protocols and switching functions needed to implement the servicedescribed in stage 1.This EN details the stage three aspects (signalling system protocols and switching functions) needed to support thediversion supplementary services. The stage 1 and stage 2 aspects are detailed in ETS 300 199 to ETS 300 202 andETS 300 203 to ETS 300 206, respectively.National transposition datesDate of adoption of this EN:31 August 1998Date of latest announcement of this EN (doa):30 November 1998Date of latest publication of new National Standardor endorsement of this EN (dop/e):31 May 1999Date of withdrawal of any conflicting National Standard (dow):31 May 1999Endorsement noticeThe text of ITU-T Recommendation Q.732, clauses 2 to 5 (1996), was approved by ETSI as an EN with agreedmodifications as given below.NOTE:New or modified text is indicated using sidebars. In addition, underlining and/or strike-out are used tohighlight detailed modifications where necessary.SIST EN 300 356-15 V3.2.2:2003
ETSIEN 300 356-15 V3.2.2 (1998-08)5Global modifications to ITU-T Recommendation Q.732,clauses 2 to 5Insert the following two clauses (Scope and Normative references) at the start of clause 2:ScopeThis fifteenth part of EN 300 356 specifies the stage three of the diversion supplementary services for the pan-EuropeanIntegrated Services Digital Network (ISDN) as provided by the European public telecommunications operators bymeans of the Signalling System No.7 protocol for the ISDN User Part (ISUP). Stage three identifies the protocolprocedures and switching functions needed to support a telecommunication service(see CCITT Recommendation I.130 [1]).The present document does not specify the additional protocol requirements where the service is provided to the user viaa telecommunications network that is not an ISDN.The present document does not specify the additional protocol requirements for the national signalling interface.Although the present document applies only to the international interconnection, the specification of functions, formatsand codes of messages and signals, and actions performed at originating and destination local exchanges are retained.Formats, codes and procedures marked for national use are included for informative purposes for the internationalinterface specification. If these items so marked are supported within a national network and operator's network, then itis proposed that they shall be supported in this manner.NOTE:In the case where a national signalling system behaves differently, the international gateway exchange isto support both the concerned national and international network.The diversion supplementary services are applicable to all circuit-switched telecommunication services.ReferencesThe following documents contain provisions which, through reference in this text, constitute provisions of the presentdocument.· References are either specific (identified by date of publication, edition number, version number, etc.) ornon-specific.· For a specific reference, subsequent revisions do not apply.· For a non-specific reference, subsequent revisions do apply.· A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the samenumber.[1]CCITT Recommendation I.130 (1988): "Method for the characterization of telecommunicationservices supported by an ISDN and network capabilities of an ISDN".[2]ETS 300 121 (1992): "Integrated Services Digital Network (ISDN); Application of the ISDN
...
