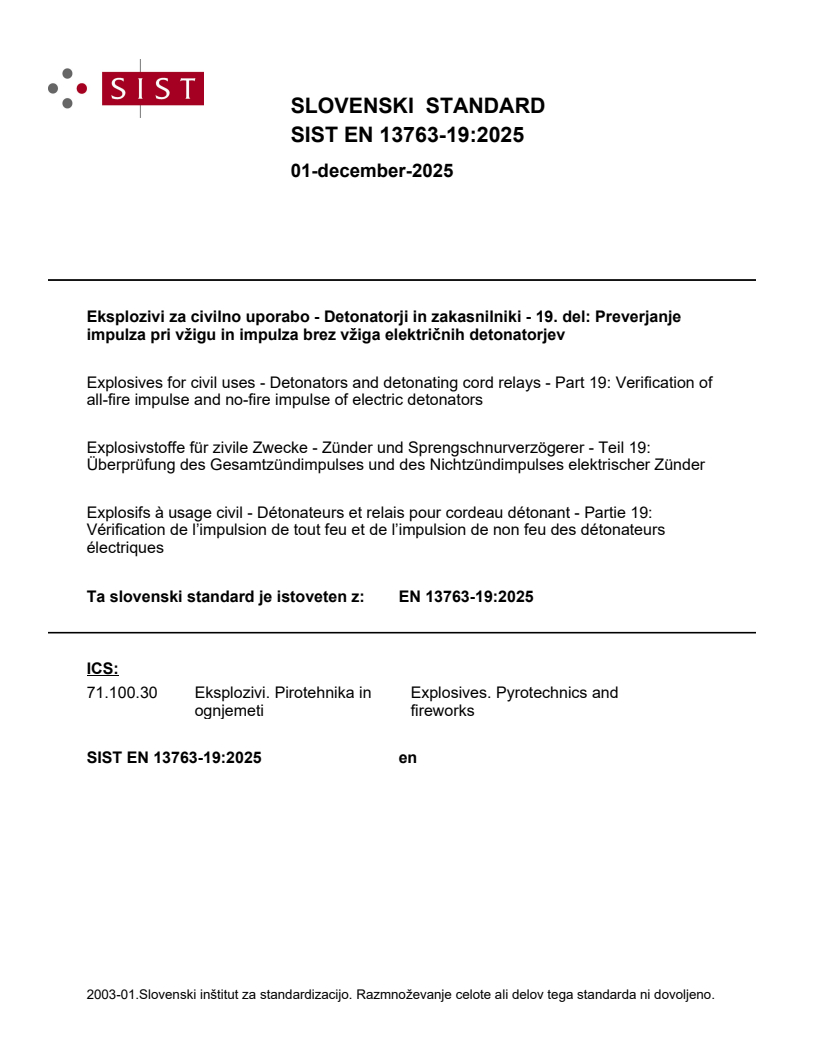

SIST EN 13763-19:2025

SLOVENSKI STANDARD
01-december-2025
Eksplozivi za civilno uporabo - Detonatorji in zakasnilniki - 19. del: Preverjanje
impulza pri vžigu in impulza brez vžiga električnih detonatorjev
Explosives for civil uses - Detonators and detonating cord relays - Part 19: Verification of
all-fire impulse and no-fire impulse of electric detonators
Explosivstoffe für zivile Zwecke - Zünder und Sprengschnurverzögerer - Teil 19:
Überprüfung des Gesamtzündimpulses und des Nichtzündimpulses elektrischer Zünder
Explosifs à usage civil - Détonateurs et relais pour cordeau détonant - Partie 19:
Vérification de l’impulsion de tout feu et de l’impulsion de non feu des détonateurs
électriques
Ta slovenski standard je istoveten z: EN 13763-19:2025
ICS:
71.100.30 Eksplozivi. Pirotehnika in Explosives. Pyrotechnics and
ognjemeti fireworks
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

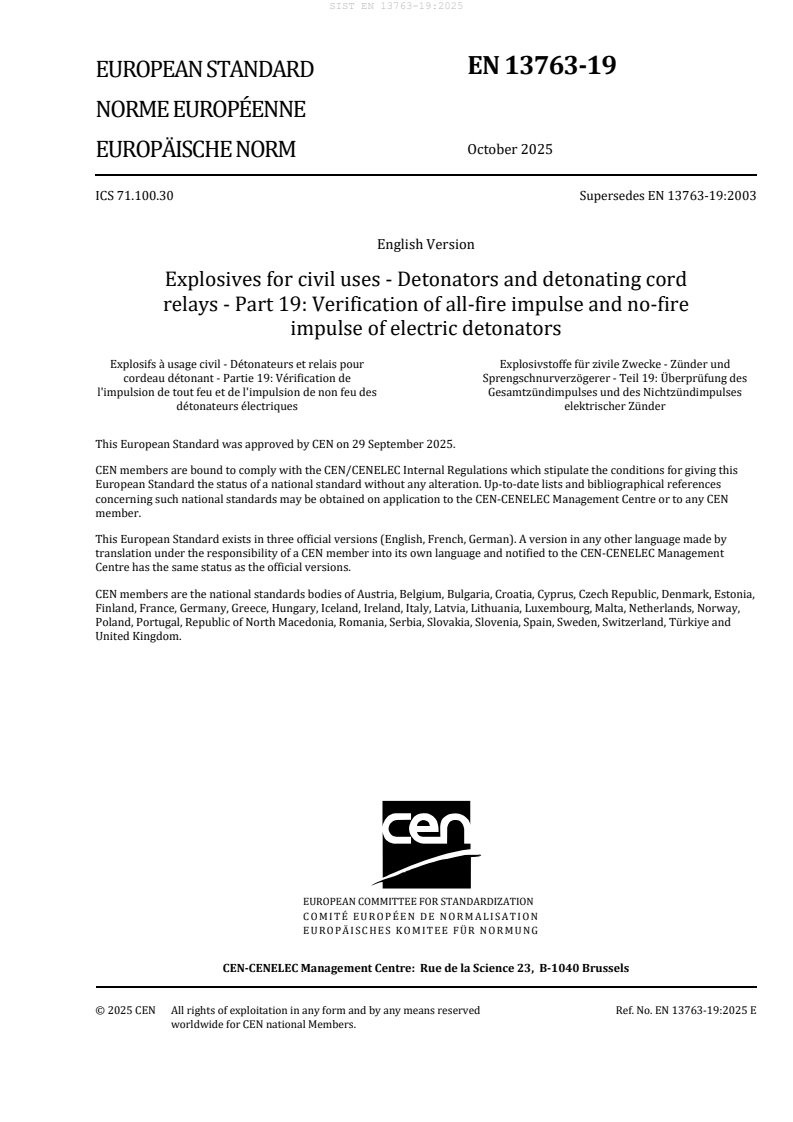

EN 13763-19
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2025
EUROPÄISCHE NORM
ICS 71.100.30 Supersedes EN 13763-19:2003
English Version
Explosives for civil uses - Detonators and detonating cord
relays - Part 19: Verification of all-fire impulse and no-fire
impulse of electric detonators
Explosifs à usage civil - Détonateurs et relais pour Explosivstoffe für zivile Zwecke - Zünder und
cordeau détonant - Partie 19: Vérification de Sprengschnurverzögerer - Teil 19: Überprüfung des
l'impulsion de tout feu et de l'impulsion de non feu des Gesamtzündimpulses und des Nichtzündimpulses
détonateurs électriques elektrischer Zünder
This European Standard was approved by CEN on 29 September 2025.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13763-19:2025 E
worldwide for CEN national Members.

Contents Page
European foreword . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 5
5 Apparatus . 5
)
6 Preparation of test sample . 6
7 Procedure . 6
7.1 General. 6
7.2 Determination of the pulse duration for 50 % firing . 6
7.3 Determination of the all-fire and no-fire impulse values . 6
8 Expression of results . 7
9 Test report . 7
Annex A (normative) Determination of the pulse duration for 50 %-firing using the Bruceton
method . 8
A.1 General. 8
A.2 Determination of the initial pulse duration . 8
A.3 Procedure . 9
A.4 Calculation of results . 9
A.5 Alternative calculation procedure . 10
Annex B (normative) Determination of the pulse duration for 50 %-firing using the
Langlie method . 12
B.1 General. 12
B.2 Determination of the initial pulse duration level . 12
B.3 Procedure . 13
B.4 Calculation of stimulus levels . 14
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/28/EU relating to the making available on the market and
supervision of explosives for civil uses aimed to be covered . 15
Bibliography . 16

European foreword
This document (EN 13763-19:2025) has been prepared by Technical Committee CEN/TC 321
“Explosives for civil uses”, the secretariat of which is held by UNE.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2026, and conflicting national standards shall be
withdrawn at the latest by April 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13763-19:2003.
In comparison with the previous edition, the following technical modifications have been made:
a) the document title has been changed from “Detonators and relays — Part 19: Determination of firing
impulse of electric detonators” to “Detonators and detonating cord relays — Part 19: Verification of
all-fire impulse and no-fire impulse of electric detonators”;
b) the Scope has been revised to clarify the covered and not covered explosives;
c) the normative references have been updated;
d) the terminology entries 3.1, 3.2, 3.3 and 3.4 have been removed;
e) Clause 4 “Principle” has been added;
f) in the clause “Apparatus”, the alternative apparatus, former subclause 5.2, has been removed;
g) the clause “Test pieces” is now called “Preparation of test sample”, has been revised to clarify the
number and kind of test pieces and the conditioning step has been moved there from the Clause
“Procedure”;
h) the clause “Procedure” has been restructured, revised and further detailed to adjust and clarify the
statistical procedure and electrical parameters and the former Clause 7 “Calculation of test results”
has been integrated;
i) Clause 8 “Expression of results” has been added;
j) the clause “Test report” does no longer require conformity with EN ISO/IEC 17025 and the
information to be provided has been revised;
k) former Annex A “Range of applicability of the test method” has been removed;
l) a new Annex A “Determination of the pulse duration for 50 %-firing using the Bruceton method” and
a new Annex B “Determination of the pulse duration for 50 %-firing using the Langlie method” have
been added;
m) Annex ZA has been updated;
n) the Bibliography has been added and lists, e.g. EN ISO/IEC 17025:2017.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
A list of all parts in the EN 13763 series, published under the general title Explosives for civil uses —
Detonators and detonating cord relays, can be found on the CEN website.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies a test method for the verification of the all-fire impulse and the no-fire impulse
of electric detonators.
This document does not apply to non-electric detonators, electronic detonators, plain detonators or semi-
finished detonators.
This document does also not apply to shock tubes, leading wires, surface connectors, detonating cord
relays, coupling accessories and electronic initiation systems.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 13857-1:2025, Explosives for civil uses — Part 1: Vocabulary
EN 13763-1:2025, Explosives for civil uses — Detonators and detonating cord relays — Part 1:
Requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13857-1:2025 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org
4 Principle
To ensure reliable initiation and to avoid inadvertent initiation of electric detonators, the specified all-
fire impulse and no-fire impulse are important.
For the verification of the all-fire impulse and no-fire impulse, test pieces are subjected to different
current pulse durations, and it is observed whether they explode. In a first step, the firing impulse is
determined at which the probability of an initiation of a given test piece is 50 %. This pulse duration level
then serves as a starting value for a series of initiating tests at different pulse duration levels. The results
1)
of these initiation tests are statistically evaluated using the PROBIT test with the no-fire impulse and
the all-fire impulse as results that are then compared with the specified values for the tested detonator.
5 Apparatus
5.1 Square pulse current supply, with the following characteristics:
a) a stabilized current with a tolerance on the output of ± 1 % of the current value chosen in 7.2;
b) a square pulse with a permissible uncertainty of ± 1 % of the pulse durations applied in 7.3 and
Annexes A and B;
1) The PROBIT test is a statistical method used to characterise the sensitivity to a physical stimulus. A detailed description of
the test is given in EN 13763-1:2025, Annex C.
c) a current overshoot of not more than 10 % of the set current and duration ≤ 50 μs (on pure resistive
load);
d) rise time for the current ≤ 50 μs (on pure resistive load).
5.2 Conditioning chamber, capable of maintaining a temperature (20 ± 2) °C for 1 h and ≤ 60 %
relative humidity.
2)
6 Preparation of test sample
210 test pieces from the electric detonator to be
...
