SIST ETS 300 119-2 E1:2006
(Main)Equipment Engineering (EE); European telecommunication standard for equipment practice; Part 2: Engineering requirements for racks and cabinets
General Information
- Abstract
This part of European Telecommunication Standard (ETS) 300 119 details requirements for racks/cabinets which are supplied fully equipped. The racks/cabinets shall be used for housing telecommunication equipment forming part of a public telecommunication network installed either on the public telecommunication operators' sites, or in the premises of operator's customers. Part 1 of this ETS (ETS 300 119-1 [3]) defines the meaning of rack or cabinet in the context of this ETS.
- Status
- Published
- Publication Date
- 31-Jan-2006
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Feb-2006
- Due Date
- 01-Feb-2006
- Completion Date
- 01-Feb-2006
Overview
SIST ETS 300 119-2 E1:2006 is a European Telecommunication Standard specifying the engineering requirements for racks and cabinets used in housing telecommunication equipment. Developed by the Slovenian Institute for Standardization (SIST) and aligned with ETSI guidelines, this standard details requirements for racks and cabinets that are supplied fully equipped and intended for use in public telecommunication networks, either on the operator’s sites or within customer premises. The standard ensures compatibility, safety, and efficient integration of equipment, facilitating reliable operation within the telecommunications infrastructure.
Key Topics
- Coordination Dimensions: Defines standardized heights (up to 2200 mm), widths (150, 300, 600, or 900 mm), and depths (300 or 600 mm) to simplify equipment integration and ensure racks/cabinets fit within typical telecommunication installations.
- Accessibility and Line-up: Specifies that racks and cabinets should be configured to allow easy access for installation and maintenance, and to enable neat alignment in both operator and customer settings.
- External Cable Access: Requires racks and cabinets to support flexible routing of cables from both the top and bottom, accommodating different site requirements and facilitating efficient cable management.
- Heat Dissipation: Establishes requirements for natural convection cooling as the default, with provision for assisted cooling when necessary. Temperature limits for components and touchable surfaces ensure safety and equipment reliability.
- Floor Loading and Structural Loads: Details permissible weight per unit area and point loading for fully equipped racks/cabinets, supporting safe and robust installation in a variety of building types.
- Electromagnetic Compatibility (EMC): Aligns with European directives to ensure equipment housed in racks/cabinets does not adversely affect or is not affected by electromagnetic phenomena.
- Safety and Environmental Considerations: Requirements for temperature rise, packaged dimensions, and compliance with safety and environment-related European norms.
Applications
This standard is crucial for:
- Telecommunications Operators: Provides clear criteria for selecting, installing, and maintaining racks and cabinets in central offices and network nodes, ensuring network integrity and service continuity.
- Service Providers and Installers: Ensures interoperability of equipment from multiple suppliers, simplifies installation planning, and supports safe handling, maintenance, and upgrade activities.
- Equipment Manufacturers: Offers guidance on rack and cabinet design consistent with European best practices, facilitating widespread acceptance and market compatibility.
- Corporate and Enterprise Networks: Supports proper integration of telecommunications hardware in customer data centers and technical rooms, ensuring that such installations meet industry requirements for safety, reliability, and scalability.
By adhering to SIST ETS 300 119-2 E1:2006, organizations ensure that racks and cabinets meet recognized European benchmarks, delivering operational reliability and reducing risks related to equipment damage, overheating, or electromagnetic interference.
Related Standards
- ETS 300 119-1: Introduction and terminology for equipment engineering in telecommunications.
- ETS 300 119-3: Engineering requirements for miscellaneous racks and cabinets.
- ETS 300 119-4: Engineering requirements for subracks in miscellaneous racks and cabinets.
- ETS 300 019: Environmental conditions and tests for telecommunications equipment.
- CEN/CENELEC EN 60 950: Safety of information technology equipment.
- Council Directive 89/336/EEC: Electromagnetic compatibility requirements.
- IEC 917-2: Modular coordination dimensions for equipment design.
Keywords: telecommunications racks and cabinets, equipment engineering, European Telecommunication Standard, rack dimensions, cooling requirements, cable access, EMC, equipment safety, public telecommunication network.
Get Certified
Connect with accredited certification bodies for this standard
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
LNE (Laboratoire National de Métrologie et d'Essais)
French national laboratory for metrology and testing.
Sponsored listings
Frequently Asked Questions
SIST ETS 300 119-2 E1:2006 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Equipment Engineering (EE); European telecommunication standard for equipment practice; Part 2: Engineering requirements for racks and cabinets". This standard covers: This part of European Telecommunication Standard (ETS) 300 119 details requirements for racks/cabinets which are supplied fully equipped. The racks/cabinets shall be used for housing telecommunication equipment forming part of a public telecommunication network installed either on the public telecommunication operators' sites, or in the premises of operator's customers. Part 1 of this ETS (ETS 300 119-1 [3]) defines the meaning of rack or cabinet in the context of this ETS.
This part of European Telecommunication Standard (ETS) 300 119 details requirements for racks/cabinets which are supplied fully equipped. The racks/cabinets shall be used for housing telecommunication equipment forming part of a public telecommunication network installed either on the public telecommunication operators' sites, or in the premises of operator's customers. Part 1 of this ETS (ETS 300 119-1 [3]) defines the meaning of rack or cabinet in the context of this ETS.
SIST ETS 300 119-2 E1:2006 is classified under the following ICS (International Classification for Standards) categories: 33.050.01 - Telecommunication terminal equipment in general. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST ETS 300 119-2 E1:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-februar-2006
,QåHQLULQJRSUHPH (( ±(YURSVNLWHOHNRPXQLNDFLMVNLVWDQGDUG]DSUDNVRSUL
RSUHPL±GHO 7HKQLþQH]DKWHYH]DRNYLUHLQRKLãMD
Equipment Engineering (EE); European telecommunication standard for equipment
practice; Part 2: Engineering requirements for racks and cabinets
Ta slovenski standard je istoveten z: ETS 300 119-2 Edition 1
ICS:
33.050.01 Telekomunikacijska Telecommunication terminal
terminalska oprema na equipment in general
splošno
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN ETS 300 119-2
TELECOMMUNICATION January 1994
STANDARD
Source: ETSI TC-EE Reference: DE/EE-3001.2
ICS: 33.080
Equipment, racks, cabinets
Key words:
Equipment Engineering (EE);
European telecommunication standard for equipment practice
Part 2: Engineering requirements for racks and cabinets
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - secretariat@etsi.fr
X.400: Internet:
Tel.: +33 92 94 42 00 - Fax: +33 93 65 47 16
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1994. All rights reserved.
New presentation - see History box
Page 2
ETS 300 119-2: January 1994

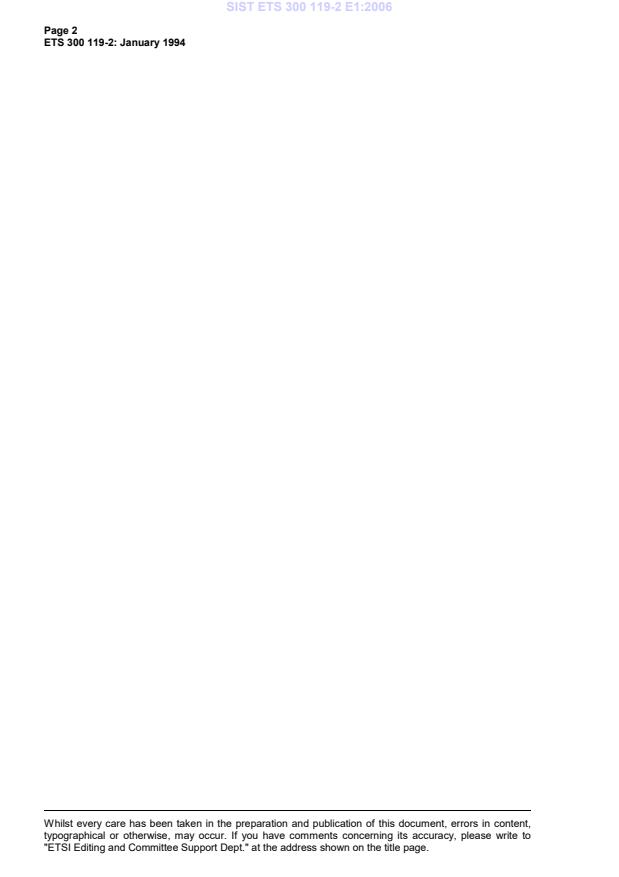

Whilst every care has been taken in the preparation and publication of this document, errors in content,
