EUROPEAN ETS 300 058-2
TELECOMMUNICATION September 1995
STANDARD
Source: ETSI TC-SPS Reference: DE/SPS-05028-F
ICS: 33.080
ISDN, supplementary service, PICS
Key words:
Integrated Services Digital Network (ISDN);
Call Waiting (CW) supplementary service;
Digital Subscriber Signalling System No. one (DSS1) protocol;
Part 2: Protocol Implementation Conformance Statement (PICS)
proforma specification
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - secretariat@etsi.fr
X.400: Internet:
Tel.: +33 92 94 42 00 - Fax: +33 93 65 47 16
*
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1995. All rights reserved.

PSIST ETS 300 058-2:1996
Page 2
ETS 300 058-2: September 1995

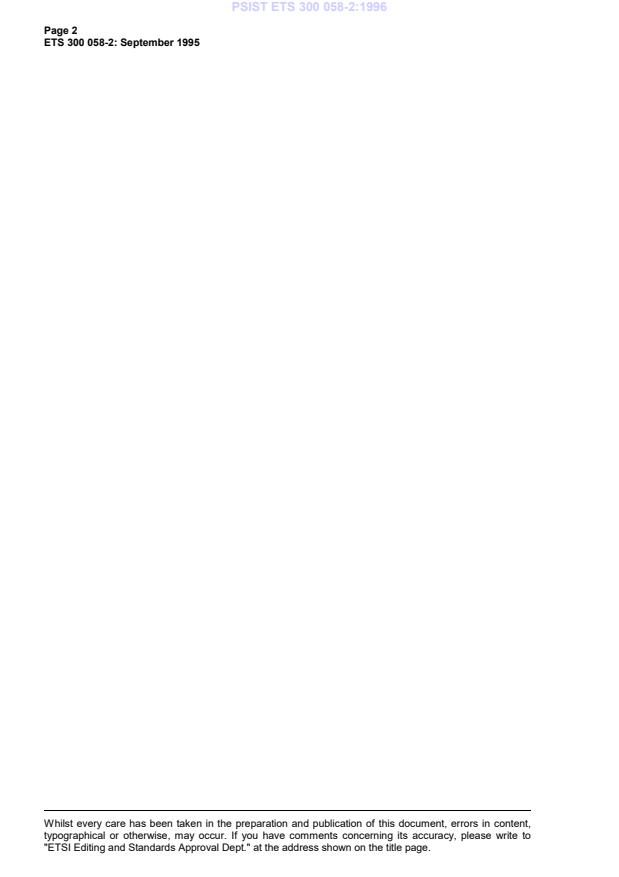

Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Standards Approval Dept." at the address shown on the title page.

PSIST ETS 300 058-2:1996
Page 3
ETS 300 058-2: September 1995
Contents
Foreword .5
1 Scope .7
2 Normative references.7
3 Definitions.8
4 Symbols and abbreviations .8
5 Conformance.9
Annex A (normative): PICS proforma.10
A.1 Instructions for completing the PICS proforma .10
A.1.1 Identification of the implementation .10
A.1.2 Global statement of conformance.10
A.1.3 Explanation of PICS proforma subclauses .10
A.1.4 Symbols, abbreviations and terms.11
A.2 Identification of the implementation.11
A.2.1 Implementation Under Test (IUT) identification .11
A.2.2 System Under Test (SUT) identification .11
A.2.3 Product supplier.12
A.2.4 Client.12
A.2.5 PICS contact person.13
A.3 PICS/System Conformance Statement (SCS).13
A.4 Identification of the protocol .13
A.5 Global statement of conformance .14
A.6 Roles .14
A.7 User.15
A.7.1 Major capabilities .15
A.7.2 Subsidiary capabilities.15
A.7.3 Protocol data units .15
A.7.4 Protocol data unit parameters.15
A.7.5 Timers.16
A.7.6 Call states .16
A.8 Network .16
A.8.1 Major capabilities .16
A.8.2 Subsidiary capabilities.16
A.8.3 Protocol data units .16
A.8.4 Protocol data unit parameters.17
A.8.5 Timers.17
A.8.6 Call states .17

PSIST ETS 300 058-2:1996
Page 4
ETS 300 058-2: September 1995
Annex B (normative): Requirements list . 18
B.1 User . 18
B.1.1 Requirements on items used in the basic call PICS . 18
B.1.2 Requirements on items used in the generic functional protocol PICS . 18
B.1.3 Requirements on items used in the supplementary service interactions PICS. 18
B.2 Network. 19
B.2.1 Requirements on items used in the basic call PICS . 19
B.2.2 Requirements on items used in the generic functional protocol PICS . 19
B.2.3 Requirements on items used in the supplementary service interactions PICS. 19
History. 20

PSIST ETS 300 058-2:1996
Page 5
ETS 300 058-2: September 1995
Foreword
This European Telecommunication Standard (ETS) has been produced by the Signalling Protocols and
Switching (SPS) Technical Committee of the European Telecommunications Standards Institute (ETSI).
This ETS is part 2 of a multi-part standard covering the Digital Subscriber Signalling System No. one
(DSS1) protocol specification for the Integrated Services Digital Network (ISDN) Call Waiting (CW)
supplementary service, as described below:
Part 1: "Protocol specification";
Part 2: "Protocol Implementation Conformance Statement (PICS) proforma specification";
Part 3: "Test Suite Structure and Test Purposes (TSS&TP) specification for the user";
Part 4: "Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing
(PIXIT) proforma specification for the user";
Part 5: "TSS&TP specification for the network";
Part 6: "ATS and partial PIXIT proforma specification for the network".
NOTE: The first part, ETS 300 058-1 (1991), containing the protocol specification, was initially
published as ETS 300 058 (1991) and has identical contents.
To evaluate conformance of a particular implementation, it is necessary to have a statement of which
capabilities and options have been implemented for a given Open Systems Interconnection (OSI)
protocol. Such a statement is called a Protocol Implementation Conformance Statement (PICS).
Transposition dates
Date of adoption of this ETS: 1 September 1995
Date of latest announcement of this ETS (doa): 31 December 1995
Date of latest publication of new National Standard
or endorsement of this ETS (dop/e): 30 June 1996
Date of withdrawal of any conflicting National Standard (dow): 30 June 1996

PSIST ETS 300 058-2:1996
Page 6
ETS 300 058-2: September 1995
Blank page
PSIST ETS 300 058-2:1996
Page 7
ETS 300 058-2: September 1995
1 Scope
This second part of ETS 300 058 is applicable to the stage three of the Call Waiting (CW) supplementary
service for the pan-European Integrated Services Digital Network (ISDN) as provided by European public
telecommunications operators at the T reference point or coincident S and T reference point (as defined in
ITU-T Recommendation I.411 [12]) by means of the Digital Subscriber Signalling System No. one (DSS1)
protocol. Stage three identifies the protocol procedures and switching functions needed to support a
telecommunications service (see CCITT Recommendation I.130 [11]).
This ETS provides the Protocol Implementation Conformance Statement (PICS) proforma for the ISDN
DSS1 CW supplementary service protocol as specified in ETS 300 058-1 [1] in compliance with the
relevant requirements and in accordance with the relevant guidance given in ISO/IEC 9646-7 [10].
The supplier of a protocol implementation which is claimed to conform to ETS 300 058-1 [1] is required to
complete a copy of the PICS proforma provided in annex A of this ETS and is required to provide the
information necessary to identify both the supplier and the implementation.
2 Normative references
This ETS incorporates by dated and undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this ETS only when incorporated in it by amendment or revision. For undated references the latest
edition of the publication referred to applies.
[1] ETS 300 058-1 (1991): "Integrated Services Digital Network (ISDN); Call
Waiting (CW) supplementary service; Digital Subscriber Signalling System No.
one (DSS1) protocol; Part 1: Protocol specification".
NOTE 1: ETS 300 058-1 (1991) was initially published as ETS 300 058 (1991).
[2] ETS 300 102-1: "Integrated Services Digital Network (ISDN); User-network
interface layer 3; Specifications for basic call control".
[3] ETS 300 195-1 (1995): "Integrated Services Digital Network (ISDN);
Supplementary service interactions; Digital Subscriber Signalling System No.
one (DSS1) protocol; Part 1: Protocol specification".
[4] ETS 300 195-2: "Integrated Services Digital Network (ISDN); Supplementary
service interactions; Digital Subscriber Signalling System No. one (DSS1)
protocol; Part 2: Protocol Implementation Conformance Statement (PICS)
proforma specification".
[5] ETS 300 196-1 (1993): "Integrated Services Digital Network (ISDN); Generic
functional protocol for the support of supplementary services; Digital Subscriber
Signalling System No. one (DSS1) protocol; Part 1 Protocol specification".
NOTE 2: ETS 300 196-1 (1993) was initially published as ETS 300 196 (1993).
[6] ETS 300 196-2: "Integrated Services Digital Network (ISDN); Generic functional
protocol for the support of supplementary services; Digital Subscriber Signalling
System No. one (DSS1) protocol; Part 2: Protocol Implementation Conformance
Statement (PICS) proforma specification".
[7] I-ETS 300 314 (1994): "Integrated Services Digital Network (ISDN); Digital
Subscriber Signalling System No. one (DSS1); Protocol Implementation
Conformance Statement (PICS) proforma specification for the network layer
signalling protocol for circuit-mode basic call control (basic access, user)".

PSIST ETS 300 058-2:1996
Page 8
ETS 300 058-2: September 1995
[8] I-ETS 300 315 (1994): "Integrated Services Digital Network (ISDN); Digital
Subscriber Signalling System No. one (DSS1); Protocol Implementation
Conformance Statement (PICS) proforma specification for the network layer
signalling protocol for circuit-mode basic call control (primary rate access,
user)".
[9] ISO/IEC 9646-1: "Information technology - Open systems interconnection -
Conformance testing methodology and framework - Part 1: General concepts".
[10] ISO/IEC 9646-7: "Information technology - Open systems interconnection -
Conformance testing methodology and framework - Part 7: Implementation
Conformance Statements".
[11] CCITT Recommendation I.130 (1988): "Method for the characterization of
telecommunication services supported by an ISDN and network capabilities of
an ISDN".
[12] ITU-T Recommendation I.411 (1993): "ISDN user-network interfaces -
Reference configurations".
3 Definitions
For the purposes of this ETS, the following definitions apply, in addition to those given in
ETS 300 058-1 [1]:
Protocol Implementation Conformance Statement (PICS): A statement made by the supplier of an
Open Systems Interconnection (OSI) implementation or system, stating which capabilities have been
implemented for a given OSI protocol (see ISO/IEC 9646-1 [9]).
PICS proforma: A document, in the form of a questionnaire, designed by the protocol specifier or
conformance test suite specifier, which, when completed for an OSI implementation or system, becomes
the PICS (see ISO/IEC 9646-1 [9]).
static conformance review: A review of the extent to which the static conformance requirements are met
by the IUT, accomplished by comparing the PICS with the static conformance requirements expressed in
the relevant standard(s) (see ISO/IEC 9646-1 [9]).
4 Symbols and abbreviations
For the purposes of this ETS, the following abbreviations apply:
AND Boolean "and"
C Conditional requirement (to be observed if the relevant conditions apply)
CW Call Waiting
DSS1 Digital Subscriber Signalling System No. one
ISDN Integrated Services Digital Network
IER Information Elements Received
IET Information Elements Transmitted
IUT Implementation Under Test
M Mandatory requirement (to be observed in all cases)
MC Major Capabilities
N/A Not applicable, not supported or the conditions for status are not met
No not supported
NOT Boolean "not"
O Option (may be selected to suit the implementation, provided that any
requirements applicable to the option are observed)
O.n Options, but support required for either at least one or only one of the options in
the group labelled with the same numeral "n"

PSIST ETS 300 058-2:1996
Page 9
ETS 300 058-2: September 1995
OR Boolean "or"
OSI Open Systems Interconnection
P Parameters
PICS Protocol Implementation Conformance Statement
R Roles
RL Requirements List
SCS System Conformance Statement
SS Supplementary Service
SUT System Under Test
TM Timers
Yes supported
5 Conformance
A PICS proforma which conforms to this PICS proforma specification shall be technically equivalent to
annex A, and shall preserve the numbering and ordering of the items in annex A.
A PICS which conforms to this PICS proforma specification shall:
a) describe an implementation which claims to conform to ETS 300 058-1 [1];
b) be a conforming ICS proforma which has been completed in accordance with the instructions for
completion given in clause A.1;
c) include the information necessary to uniquely identify both the supplier and the implementation.

PSIST ETS 300 058-2:1996
Page 10
ETS 300 058-2: September 1995
Annex A (normative): PICS proforma
Notwithstanding the provisions of the copyright clause related to the text of this ETS, ETSI grants that
users of this ETS may freely reproduce the PICS proforma in this annex so that it can be used for its
intended purposes and may further publish the completed PICS.
A.1 Instructions for completing the PICS proforma
A.1.1 Identification of the implementation
Identification of the Implementation Under Test (IUT) and the system in which it resides (the System
Under Test (SUT)) should be filled in so as to provide as much detail as possible regarding version
numbers and configuration options.
The product supplier information and client information should both be filled in if they are different.
A person who can answer queries regarding information supplied in the PICS should be named as the
contact person.
The SCS as defined in ISO/IEC 9646-1 [9] is a document supplied by the client or product supplier that
summarizes which OSI International Standards, ITU-T (CCITT) Recommendations, ETSs or other
standards are implemented and to which conformance is claimed. The PICS/SCS subclause should
describe the relationship of the PICS to the SCS.
A.1.2 Global statement of conformance
If the answer to the statement in this subclause is "Yes", all subsequent subclauses should be completed
to facilitate selection of test cases for optional functions.
If the answer to the statement in this subclause is "No", all subsequent subclauses should be completed,
and all non-supported mandatory capabilities should be identified and explained. Explanations may be
entered in the comments field at the bottom of each table or on attached sheets of paper.
A.1.3 Explanation of PICS proforma subclauses
The PICS proforma contains a Roles clause and thereafter is presented in two parts (for user and
network) with the following subclauses, as required:
- major capabilities;
- subsidiary capabilities;
- protocol data unit support;
- protocol data unit parameters;
- timers;
- call states.
The User clause shall only be completed
...
