SIST EN 301 084 V1.1.1:2005

SLOVENSKI STANDARD
01-april-2005
Digitalno omrežje z integriranimi storitvami (ISDN) – Dopolnilna storitev:
uporabniško krmiljena zapora odhodnega klica (OCB-UC) – Opis storitve
Integrated Services Digital Network (ISDN); Outgoing Call Barring-User Controlled (OCB
-UC) supplementary service; Service description
Ta slovenski standard je istoveten z: EN 301 084 Version 1.1.1
ICS:
33.080 Digitalno omrežje z Integrated Services Digital
integriranimi storitvami Network (ISDN)
(ISDN)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 301 084 V1.1.1 (1998-09)
European Standard (Telecommunications series)
Integrated Services Digital Network (ISDN);
Outgoing Call Barring-User Controlled (OCB-UC)
supplementary service;
Service description

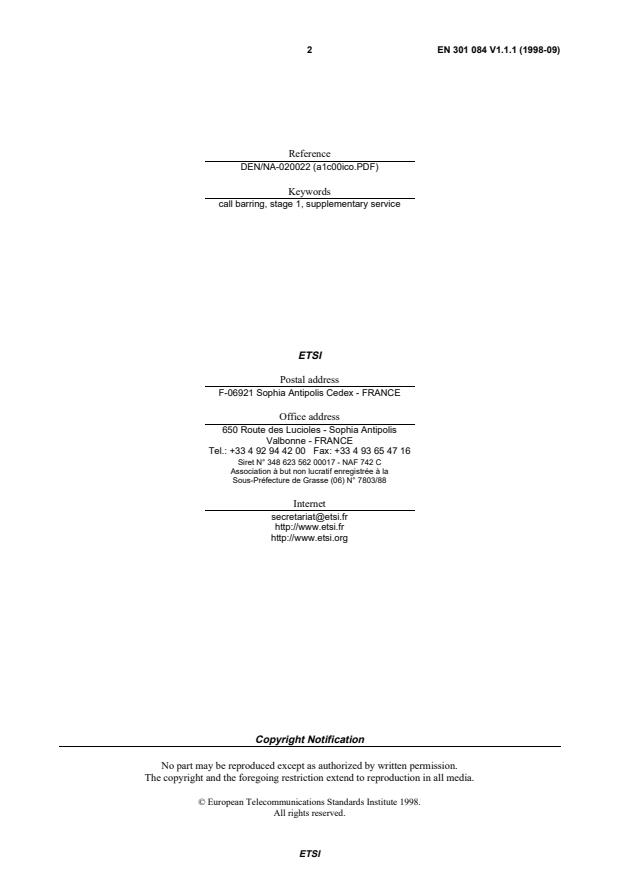

2 EN 301 084 V1.1.1 (1998-09)
Reference
DEN/NA-020022 (a1c00ico.PDF)
Keywords
call barring, stage 1, supplementary service
ETSI
Postal address
F-06921 Sophia Antipolis Cedex - FRANCE
Office address
650 Route des Lucioles - Sophia Antipolis
Valbonne - FRANCE
Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Internet
secretariat@etsi.fr
http://www.etsi.fr
http://www.etsi.org
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1998.
All rights reserved.
ETSI
3 EN 301 084 V1.1.1 (1998-09)
Contents
Intellectual Property Rights.5
Foreword .5
1 Scope.6
2 References.6
3 Definitions and abbreviations .7
3.1 Definitions . 7
3.2 Abbreviations. 7
4 Description.8
5 Procedures.8
5.1 Provision and withdrawal. 8
5.2 Normal procedures. 9
5.2.1 Registration and erasure . 9
5.2.2 Activation and deactivation. 9
5.2.2.1 Activation . 9
5.2.2.2 Deactivation. 10
5.2.3 Invocation and operation. 10
5.2.4 Disabling . 10
5.2.5 Interrogation. 11
5.3 Exceptional procedures. 11
5.3.1 Registration and erasure . 11
5.3.2 Activation and deactivation. 11
5.3.2.1 Activation . 11
5.3.2.2 Deactivation. 11
5.3.3 Invocation and operation. 11
5.3.4 Disabling . 12
5.3.5 Interrogation. 12
6 Interworking requirements.12
6.1 Interworking with non-ISDNs. 12
6.2 Interworking with private networks . 12
7 Interaction with ISDN supplementary services.12
7.1 Advice of charge. 12
7.1.1 Advice of charge at call set-up . 12
7.1.2 Advice of charge during the call . 12
7.1.3 Advice of charge at the end of a call . 12
7.2 Call waiting. 13
7.3 Call hold . 13
7.4 Explicit call transfer. 13
7.5 Number identification services . 13
7.5.1 Calling line identification presentation. 13
7.5.2 Calling line identification restriction. 13
7.5.3 Connected line identification presentation . 13
7.5.4 Connected line identification restriction. 13
7.6 Closed user group . 13
7.7 Call completion services . 13
7.7.1 Completion of calls to a busy subscriber. 13
7.7.2 Completion of calls on no reply . 13
7.8 Conference services . 14
7.8.1 Conference call, add-on. 14
7.8.2 Conference call, meet-me. 14
7.9 Direct dialling in . 14
7.10 Diversion services. 14
ETSI
4 EN 301 084 V1.1.1 (1998-09)
7.10.1 Call forwarding unconditional. 14
7.10.2 Call forwarding busy . 14
7.10.3 Call forwarding no reply . 14
7.10.4 Call deflection . 14
7.10.5 Selective call forwarding. 15
7.11 Freephone . 15
7.12 Malicious call identification. 15
7.13 Multiple subscriber number . 15
7.14 Subaddressing . 15
7.15 Terminal portability . 15
7.16 Three party. 15
7.17 User-to-user signalling. 15
7.18 Call barring services . 15
7.18.1 Outgoing call barring-fixed . 15
7.18.2 Outgoing call barring-user controlled. 16
8 Interactions with other services .16
8.1 Universal access number. 16
8.2 Virtual card calling . 16
8.3 Premium rate. 16
8.4 Televoting. 16
8.5 Remote control. 16
History.17
ETSI
5 EN 301 084 V1.1.1 (1998-09)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect
of ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (http://www.etsi.fr/ipr or http://www.etsi.org/ipr).
Pursuant to the ETSI Interim IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No
guarantee can be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Network
Aspects (NA).
National transposition dates
Date of adoption of this EN: 18 September 1998
Date of latest announcement of this EN (doa): 31 december 1998
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 June 1999
Date of withdrawal of any conflicting National Standard (dow): 30 June 1999
ETSI
6 EN 301 084 V1.1.1 (1998-09)
1 Scope
The present document defines the stage one of the OCB-UC supplementary service for the pan-European ISDN as
provided by European telecommunications operators. Stage one is an overall service description from the user's point of
view (see CCITT Recommendation I.130 [1]), but does not deal with the details of the human interface itself.
The present document defines the interworking requirements of private ISDNs with the public ISDN.
In addition the present document specifies the base functionality where the service is provided to the user via a private
ISDN.
The present document does not specify the additional requirements where the service is provided to the user via a
telecommunications network that is not an ISDN but does include interworking requirements of other networks with the
public ISDN.
Interactions with supplementary services not listed in clause 8 and other services not listed in clause 9 are outside the
scope of the present document.
Charging principles are outside the scope of the present document.
The OCB-UC supplementary service enables calls belonging to certain types to be rejected when they are originated by
the served user. The served user's ability to receive incoming calls is unaffected by the OCB-UC supplementary service.
The served user can select the barring program, activate and later deactivate it.
NOTE: Barring of certain types of calls by the network provider due to national legislations, regulations or for any
other reason, are out of the scope of this service.
The OCB-UC supplementary service is applicable to all circuit-switched telecommunications services.
The present document is applicable to the stage two and stage three standards for the ISDN OCB-UC supplementary
service. The terms "stage two" and "stage three" are also defined in CCITT Recommendation I.130 [1]. Where the text
indicates the status of a requirement (i.e. as strict command or prohibition, as authorization leaving freedom, or as a
capability or possibility), this shall be reflected in the text of the relevant stage two and stage three standards.
Furthermore, conformance to the present document is met by conforming to the stage three standards with the field of
application appropriate to the equipment being implemented. Therefore no method of testing is provided for the present
document.
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
• References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• For a non-specific reference, subsequent revisions do apply.
• A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the same
number.
[1] CCITT Recommendation I.130 (1988): "Method for the characterization of telecommunication
services supported by an ISDN and network capabilities of an ISDN".
[2] ITU-T Recommendation I.112 (1993): "Vocabulary of terms for ISDNs".
ETSI
7 EN 301 084 V1.1.1 (1998-09)
[3] ITU-T Recommendation E.164 (1997): "The international public telecommunication numbering
plan".
[4] ITU-T Recommendation I.210 (1993): "Principles of telecommunication services supported by an
ISDN and the means to describe them".
[5] ETS 300 345 (1994): "Integrated Services Digital Network (ISDN); Interworking between public
ISDNs and private ISDNs for the provision of telecommunication services; General aspects".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following definitions apply:
(basic) service; telecommunications service: see ITU-T Recommendation I.112 [2], section 2.2, definition 201.
barring program: a selection of type of calls, number ranges or prefixes to which the calls can be barred.
basic access: see ITU-T Recommendation I.112 [2], section 2.4, definition 425.
disabling: an action taken by the user per call to prevent invocation of the OCB-UC supplementary service.
integrated services digital network: see ITU-T Recommendation I.112 [2], section 2.3, definition 308.
ISDN number: a number conforming to the numbering plan and structure specified in
ITU-T Recommendation E.164 [3].
network operator: entity which provides the network operating elements and resources for the execution of the
OCB-UC supplementary service.
personal identification number: the PIN is the 4 to 12 position alphanumeric code or password the customer possesses
for authentication. This is used to provide authentication of the user with the access device.
primary rate access: see ITU-T Recommendation I.112 [2], section 2.4, definition 426.
served user: the user to whom the OCB-UC supplementary service is provided.
service provider: entity which offers the OCB-UC supplementary service subscription. The network operator may be
the service provider.
supplementary service: see ITU-T Recommendation I.210 [4], section 2.4.
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
CCBS Completion of Calls to Busy Subscriber
CCNR Completion of Calls on No Reply
ISDN Integrated Services Digital Network
OCB-F Outgoing Call Barring-Fixed
OCB-UC Outgoing Call Barring-User Controlled
PIN Personal Identification Number
ETSI
8 EN 301 084 V1.1.1 (1998-09)
4 Description
The OCB-UC supplementary service shall be available to users who are connected to the network via the basic access or
the primary rate access.
The OCB-UC supplementary service enables calls belonging to certain types to be rejected when they are originated by
the served user. The served user's ability to receive incoming calls is unaffected by the OCB-UC supplementary service.
Barring programs can contain one type of call, or a combination of different types of call. Examples of the different
types of call are:
- national calls;
- international calls;
- special services (e.g. Premium rate services).
NOTE: Service providers may permit calls to numbers h
...
