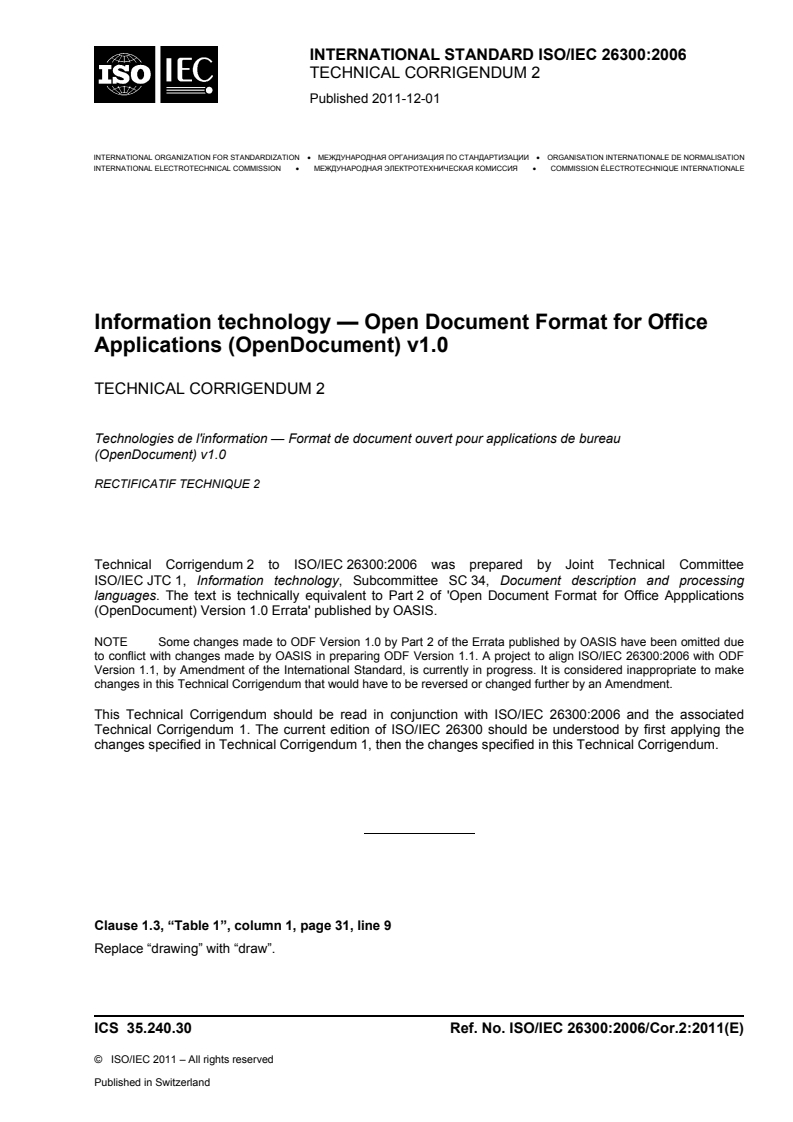

ISO/IEC 26300:2006/Cor 2:2011

INTERNATIONAL STANDARD ISO/IEC 26300:2006
TECHNICAL CORRIGENDUM 2
Published 2011-12-01
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION  МЕЖДУНАРОДНАЯ ОРГАНИЗАЦИЯ ПО СТАНДАРТИЗАЦИИ  ORGANISATION INTERNATIONALE DE NORMALISATION
INTERNATIONAL ELECTROTECHNICAL COMMISSION  МЕЖДУНАРОДНАЯ ЭЛЕКТРОТЕХНИЧЕСКАЯ КОМИССИЯ  COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE

Information technology — Open Document Format for Office
Applications (OpenDocument) v1.0
TECHNICAL CORRIGENDUM 2
Technologies de l'information — Format de document ouvert pour applications de bureau
(OpenDocument) v1.0
RECTIFICATIF TECHNIQUE 2
Technical Corrigendum 2 to ISO/IEC 26300:2006 was prepared by Joint Technical Committee
ISO/IEC JTC 1, Information technology, Subcommittee SC 34, Document description and processing
languages. The text is technically equivalent to Part 2 of 'Open Document Format for Office Appplications
(OpenDocument) Version 1.0 Errata' published by OASIS.
NOTE Some changes made to ODF Version 1.0 by Part 2 of the Errata published by OASIS have been omitted due
to conflict with changes made by OASIS in preparing ODF Version 1.1. A project to align ISO/IEC 26300:2006 with ODF
Version 1.1, by Amendment of the International Standard, is currently in progress. It is considered inappropriate to make
changes in this Technical Corrigendum that would have to be reversed or changed further by an Amendment.
This Technical Corrigendum should be read in conjunction with ISO/IEC 26300:2006 and the associated
Technical Corrigendum 1. The current edition of ISO/IEC 26300 should be understood by first applying the
changes specified in Technical Corrigendum 1, then the changes specified in this Technical Corrigendum.

Clause 1.3, “Table 1”, column 1, page 31, line 9
Replace “drawing” with “draw”.
ICS 35.240.30 Ref. No. ISO/IEC 26300:2006/Cor.2:2011(E)
©  ISO/IEC 2011 – All rights reserved
Published in Switzerland
ISO/IEC 26300:2006/Cor.2:2011(E)
Clause 1.6, page 34, line 12
Replace the entire text of Clause 1.6 with:
“1.6 White-Space Processing
ODF processing of whitespace characters is in conformance with the provisions of [XML 1.0].
In addition, ODF processors shall ignore all element children ([RNG] section 5, Data Model) of ODF-defined
elements that are strings consisting entirely of whitespace characters and which do not satisfy a pattern of the
ODF schema definition for the element.
Any special treatment of additional occurrences of whitespace characters depends on the specific definitions
of individual ODF elements, attributes, and their datatypes. See, in particular, section 5.1.1.”
Clause 2.1.2, “Version”, page 38, line 44
Delete:
“If the file has a version known to an XML processor, it may validate the document. Otherwise, it is optional to
validate the document, but the document must be well formed.”
Clause 3.1.15, page 61, line 32
Replace:
“The manner in which the language is represented is similar to the language tag described in [RFC3066]. It
consists of a two or three letter Language Code taken from the ISO 639 standard optionally followed by a
hyphen (-) and a two-letter Country Code taken from the ISO 3166 standard.”
with:
“The syntax and semantics of the language tag are specified in [RFC3066].”
Clause 4.4.1, “Protected Sections”, page 75, line 36
After:
“To avoid saving the password directly into the XML file, only a hash value of the password is stored.”
insert:
“The hashing is implementation-dependent.”
Clause 6.3, page 107, line 36
Replace:
“OpenDocument text documents can contain variables, which are processed or displayed using variable
fields.”
with:
“OpenDocument documents can contain variables, which are processed or displayed using variable fields.”
Clause 6.3, page 107, line 40
Delete:
"In the OpenDocument file format, a variable must be declared at the beginning of a document".
2 ©  ISO/IEC 2011 – All rights reserved

ISO/IEC 26300:2006/Cor.2:2011(E)
Clause 6.7.2, page 140, line 31
Replace:
“If the value of a field is fixed, the value of the field element to which this attribute is attached is preserved in
all future edits of the document. If the value of the field is not fixed, the value of the field may be replaced by a
new value when the document is edited.”
with:
“The defined values of the text:fixed attribute are:
 true: value of the field element where this attribute appears is preserved.
 false: value of the field element where this attribute appears may be changed.”
Clause 7.3.1, “Use Outline”, page 153, line 19
Delete:
“See section 7.1 for more information on index marks.”
Clause 7.3.1, “Index Scope”, page 154, line 6
Replace:
“The text:index-scope attribute determines whether the table-of-content is generated for the whole
document, or only for the current chapter.”
with:
“The text:index-scope attribute specifies whether index entries from an entire document or from the
chapter that contains the element are used to construct a table of contents.
The default value and the determination of the chapter are implementation-dependent.”
Clause 7.3.2, page 154, line 33
Delete:
“(See below.)”
Clause 7.4.1, “Use Caption”, page 157, line 4
Replace:
“Each object contained in a text document has a name. In addition, images also have a caption. The image
caption or the image name can be gathered for the index of illustrations.”
with:
“The text:use-caption attribute specifies whether the captions or names of illustrations are used for an
index.
The defined values of the text:use-caption attribute are:
 true: illustration captions are used for an index.
 false: illustration names are used for an index.”
Clause 7.7.1, “Copy Outline Levels”, page 163, line 15
Replace:
“This attribute can have a value of true or false.
If the value is true, the entries are gathered at the outline level of the source element to which they refer.
If the value is false, all index entries gathered are at the top outline level. For example, if an image appears in
©  ISO/IEC 2011 – All rights reserved 3

ISO/IEC 26300:2006/Cor.2:2011(E)
section 1.2.3, the entry for the image is located at outline level 3.”
with:
“The text:copy-outline-levels attribute specifies whether index entries are indented according to the
outline level of their source.
The defined values for the text:copy-outline-levels attribute are:
 false: no indentation is added.
 true: index entries are indented according to the outline level of their source.”
Clause 7.8.2, page 168, line 23
Insert before the schema fragment the following new paragraph:
“The format of an index mark file is implementation-dependent.”
Clause 7.12, page 171, line 37
Replace:
“There are eight types of index entries, as follows:”
with
“There are seven types of index entry, as follows:”
Clause 8.1.1, “Protected”, page 180, line 44
Replace:
“If a table is protected, all of the table elements and the cell elements with a style:cell-protect attribute
set to true are protected.”
with
“If a table is protected, all of the table's cell elements with a style:cell-protect attribute set to a different
value than none are protected.”
Clause 8.1.1, page 181, line 3
Insert before the schema fragment the following new paragraph:
“The hashing is implementation-dependent.”
Clause 8.1.2, “Visibility”, page 182, line 44
Replace the entire paragraph with the following text:
“The table:visibility attribute specifies the conditions under which the table row is visible. The values
of the attribute are:
 visible: the row is visible
 collapse: the row is not visible
 filter: the row is not visible as the result of applying a filter (see section 8.7)
The default is visible.”
Clause 8.1.3, “Value Type”, page 187, line 27
Replace:
“The table:value-type attribute specifies the type of value that can appear in a cell.”
4 ©  ISO/IEC 2011 – All rights reserved

ISO/IEC 26300:2006/Cor.2:2011(E)
with
“The office:value-type attribute specifies the type of value that can appear in a cell.”
Clause 8.1.3, “Cell Current Numeric Value”, page 187, line 40
Replace:
“This attribute is only evaluated for cells that contain the following data types:”
with
“This attribute is present only whenever there is an office:value-type attribute with one of the following
values:”
Clause 8.1.3, “Cell Current Currency”, page 188, line 4
Replace:
“The tableoffice:currency attribute specifies the current currency value of a cell. The value of this
attribute is usually currency information such as DEM or EUR. This attribute is only evaluated for cells whose
data type is currency.”
with
“The office:currency attribute specifies the currency system in which the value of the office:value
attribute is expressed. The value of this attribute is usually a currency identifier, such as “DEM” or “EUR”. This
attribute may be present only when the office:value-type attribute value is “currency”.”
Clause 8.1.3, “Cell Current Date Value”, page 188, line 8
Replace:
“This attribute is only evaluated for cells whose data type is date.”
with
“This attribute is present only whenever the office:value-type attribute value is “date”.”
Clause 8.1.3, “Cell Current Time Value”, page 188, line 12
Replace:
“This attribute is only evaluated for cells whose data type is time.”
with
“This attribute is present only whenever the office:value-type attribute is “time”.”
Clause 8.1.3, “Cell Current Boolean Value”, page 188, line 15
Replace:
“This attribute is only evaluated for cells whose data type is boolean.”
with
“This attribute is present only whenever the office:value-type attribute value is “boolean”.”
Clause 8.1.3, “Cell Current String Value”, page 188, line 18
Replace:
“This attribute is only evaluated for cells whose data type is string.”
with
“This attribute may be present only whenever the office:value-type attribute value is “string”.”
©  ISO/IEC 2011 – All rights reserved 5

ISO/IEC 26300:2006/Cor.2:2011(E)
Clause 8.1.3, “Table Cell Protection”, page 188, line 21
Replace:
“The table:protected attribute protects the table cells.”
with
“The table:protect attribute protects the table cells.”
Clause 8.1.3, “Table Cell Protection”, page 188, line 30
Replace:
"This attribute is not related to the table:protected attribute for table elements (see section 8.1.1) and the
table:cell-protect attribute for table cell styles (see section 15.11.14)."
with:
"This attribute is not related to the table:protected attribute for table elements (see section 8.1.1) and the
style:cell-protect attribute for table cell styles (see section 15.11.14)."
Clause 8.3.4, page 202, line 13
Replace:
“The element contains all graphic shapes with an anchor on the table this element is a
child of.”
with
“The element contains all the elements that represent graphic shapes (see section 9.2)
that are anchored on a table where this element occurs.”
Clause 8.4.3, page 203, line 25
Replace:
“The element has two purposes. One the one hand, it contains information about
relations that exist between table cells because of formulas and that should be highlighted in the UI. On the
other hand, the element contains information about cells that are highlighted currently in the UI either because
of the relations mentioned above or because of error conditions.”
with
“The element contains information about what relationships between the current cell
and other cells are revealed in the presentation of the table.”
Clause 8.4.4, page 204, line 2
Replace:
“The element specifies that certain relations that exist between the cell the element is
a child of and other cells should be made visible or invisible in the UI. One and the same detective operation
can be applied multiple times to the same cell. In this case, the second operation is applied to the resulting
cells of the first operation and so on. This means that an operation not necessarily is applied to the cell the
operation is defined in, but also to other cells, and that it therefor can interact with operations defined in other
cells. This especially applies to operations that make relations invisible. To get a determinate behavior,
operations have an index and are applied in the order of that index. The attributes associated with the
element are:”
with
“The element specifies both the type of detective operation that leads to the discovery
of relationships between cells (table:name attribute) and the order which those operations are applied
(table:index attribute). Once relationships between cells have been discovered, those cells are highlighted
6 ©  ISO/IEC 2011 – All rights reserved

ISO/IEC 26300:2006/Cor.2:2011(E)
to show those relationships. The attributes associated with the element are:”
Clause 8.4.4, “Name”, page 204, line 20
Replace
“The table:name attribute specifies the name of the detective operation. Possible names are trace-
dependents , remove-dependents, trace-precedents, remove-precedents and trace-errors.
trace-dependents and remove-dependents displays or hides cells that use the value of the current cell
in their formula. Trace-precedents and remove-precedents displays or hides cells whose value is used
in the formula of the current cell. Trace-errors displays cells that cause an error while calculating the result
of the current cell's formula.”
with
“The table:name attribute specifies the name of a detective operation.
The defined values for the table:name attribute are:
 remove-dependents: removes highlighting from cells that use the value of the current cell in their
formula.
 remove-precedents: removes highlighting from cells whose values are use in the formula of the
current cell.
 trace-dependents: highlights cells that use the value of the current cell in their formula.
 trace-errors: highlights cells that cause an error while calculating the result of the current cell's
formula.
 trace-precedents: highlights cells whose values are use in the formula of the current cell.
The nature of the highlighting imposed or removed from cells as the result of detective operations is
implementation dependent.”
Clause 8.5.1, page 206, line 24
At the end of the paragraph insert:
“The hashing is implementation-dependent.”
Clause 8.5.2, “Search Criteria Must Apply to Whole Cell”, page 207, line 39
Replace:
“The table:search-criteria-must-apply-to-whole-cell attribute specifies whether or
...
