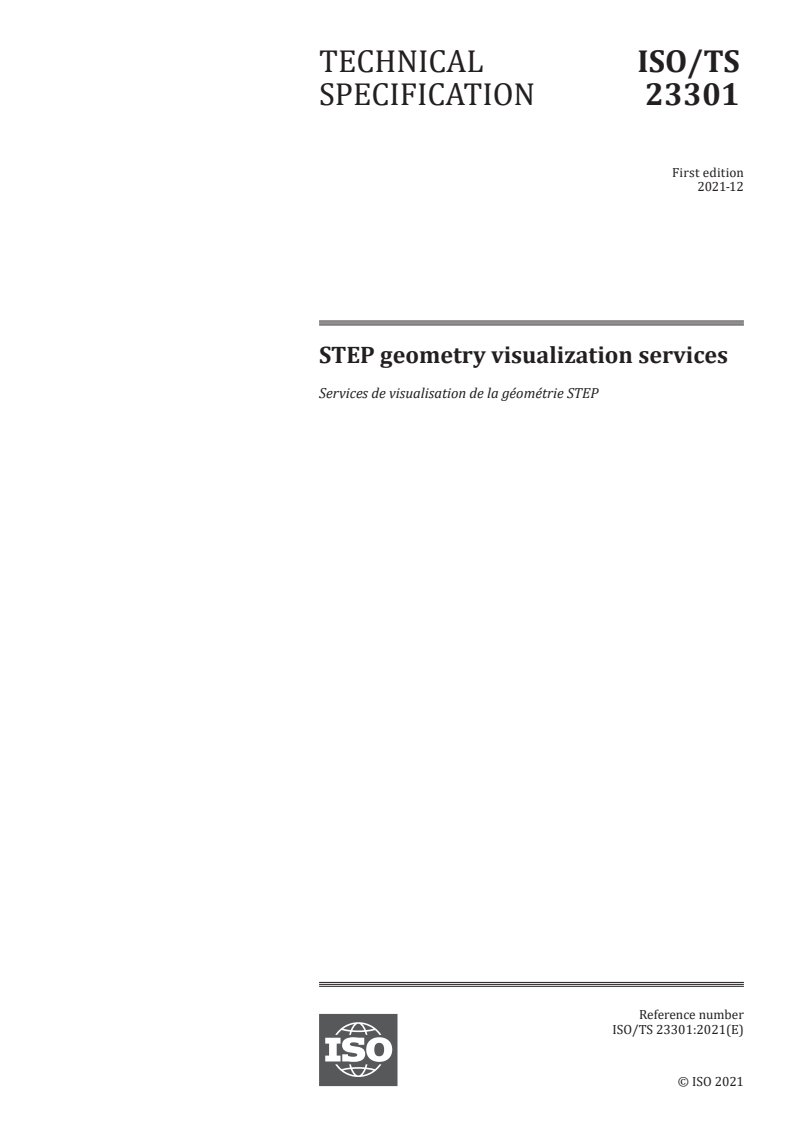

ISO/TS 23301:2021

TECHNICAL ISO/TS
SPECIFICATION 23301
First edition
2021-12
STEP geometry visualization services
Services de visualisation de la géométrie STEP
Reference number
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

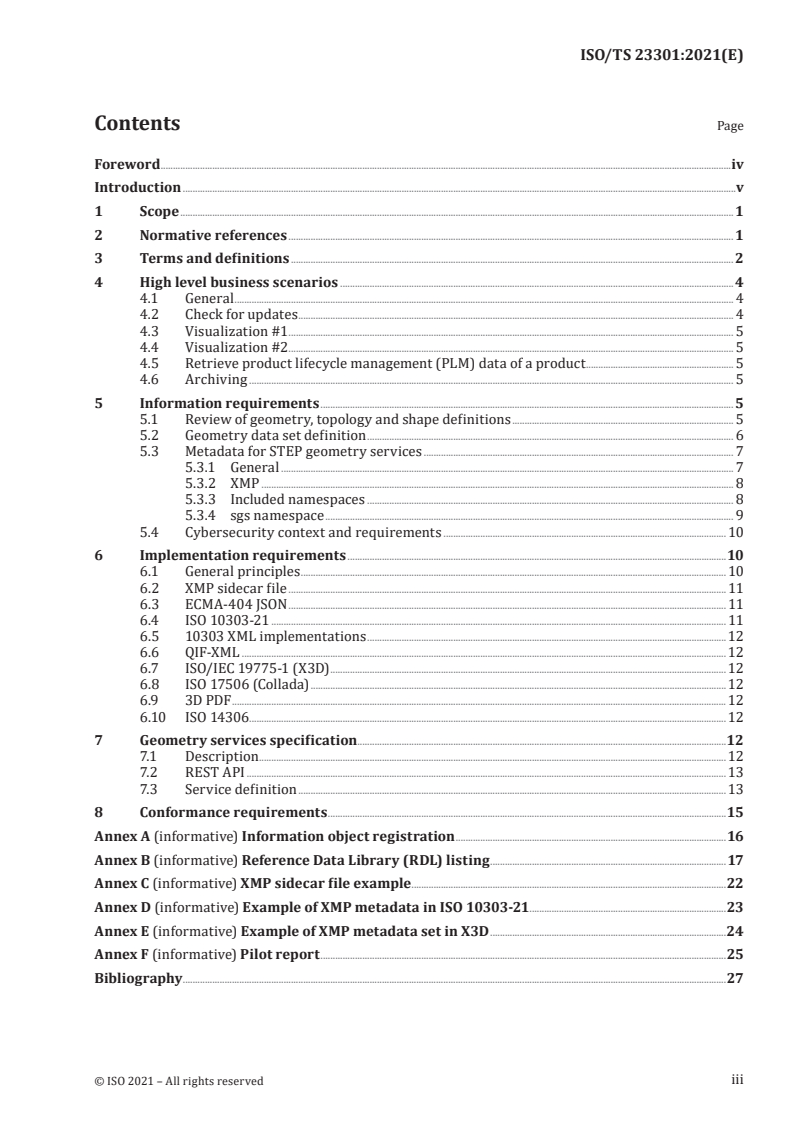

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 High level business scenarios .4
4.1 General . 4
4.2 Check for updates . 4
4.3 Visualization #1 . 5
4.4 Visualization #2 . 5
4.5 Retrieve product lifecycle management (PLM) data of a product . 5
4.6 Archiving . 5
5 Information requirements . 5
5.1 Review of geometry, topology and shape definitions . 5
5.2 Geometry data set definition . 6
5.3 Metadata for STEP geometry services . 7
5.3.1 General . 7
5.3.2 XMP . 8
5.3.3 Included namespaces . 8
5.3.4 sgs namespace . 9
5.4 Cybersecurity context and requirements . 10
6 Implementation requirements .10
6.1 General principles . 10
6.2 XMP sidecar file . 11
6.3 ECMA-404 JSON . 11
6.4 ISO 10303-21 . 11
6.5 10303 XML implementations .12
6.6 QIF-XML . 12
6.7 ISO/IEC 19775-1 (X3D) . 12
6.8 ISO 17506 (Collada) .12
6.9 3D PDF . 12
6.10 ISO 14306 . .12
7 Geometry services specification . .12
7.1 Description .12
7.2 REST API . 13
7.3 Service definition . 13
8 Conformance requirements .15
Annex A (informative) Information object registration .16
Annex B (informative) Reference Data Library (RDL) listing .17
Annex C (informative) XMP sidecar file example .22
Annex D (informative) Example of XMP metadata in ISO 10303-21.23
Annex E (informative) Example of XMP metadata set in X3D .24
Annex F (informative) Pilot report .25
Bibliography .27
iii
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 184, Automation systems and integration,
Subcommittee SC 4, Industrial data.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
There is a confirmed opportunity for industries to have a structured approach on 3D product
visualization and to enable integration of product data in visualization applications across the life cycle
of the product in all areas of a company.
The integrated standard for the exchange of product model data (STEP) in the enterprise processes has
great value to contribute to this goal.
Business scenarios exist related to the visualization of product data other than geometry (e.g. metadata,
production data, financial data).
The ability to trustfully share, distribute, collect, store, maintain, transfer, process and present product
data associated with its geometry to support business processes distributed in enterprise networks is
a key component of the digital transformation of our industries.
As long as data sets are managed by a single management system, we can ensure quality and traceability
of the data set. However, when data is shared with partners in a supply chain, the data sets are usually
copied and extracted from their initial management system and they lose all the traceability and links
with the other product data. This document provides a solution to this problem.
This document is the first of a series of documents to provide an integrated framework using the
ISO 10303 series to allow the consumption of product data in supply-chains and in companies
using geometries as human-computer interface to access these product data through visualization
applications. This is realized by using metadata to support the audit trail of the transformation of a
geometry definition, and web services based on the utilisation of these metadata. This framework can
also be used for automated product data consumption by software.
Annex A contains an identifier that unambiguously identifies this document in an open information
system.
v
TECHNICAL SPECIFICATION ISO/TS 23301:2021(E)
STEP geometry visualization services
1 Scope
This document defines a set of metadata to support the audit trail of the transformation of a geometry
definition, while it is distributed and shared in supply-chains, to ensure the traceability of geometric
model data. It also defines a set of web services based on the utilisation of these metadata.
The following are within the scope of this document:
— metadata definitions for geometry transformation audit trail:
— syntax for storing these metadata in geometry data sets in various formats;
— conformance level for implementers and business processes;
— definitions of web services to query the geometric model data set and its associated metadata.
The following are outside the scope of this document:
— service specifications for CAD operations;
— specifications of a cybersecurity infrastructure to enable web services;
— the technical implementation of a STEP geometry services client or server;
— any geometric model definition;
— any product and manufacturing information (PMI) definition;
— archiving.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 8601-1, Date and time — Representations for information interchange — Part 1: Basic rules
ISO 10303-21, Industrial automation systems and integration — Product data representation and exchange
— Part 21: Implementation methods: Clear text encoding of the exchange structure
ISO 14306, Industrial automation systems and integration — JT file format specification for 3D visualization
ISO 16684-1, Graphic technology — Extensible metadata platform (XMP) — Part 1: Data model,
serialization and core properties
ISO 16684-3, Graphic technology — Extensible metadata platform (XMP) specification — Part 3: JSON-LD
serialization of XMP
1)
ISO 17506:— , Industrial automation systems and integration — COLLADA digital asset schema
specification for 3D visualization of industrial data
ISO/IEC 19775-1, Information technology — Computer graphics, image processing and environmental data
representation — Extensible 3D (X3D) — Part 1: Architecture and base components
1) Under preparation. Stage at the time of publication: ISO/FDIS 17506:2021.
ECMA-404, The JSON data interchange syntax
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
boundary representation solid model
B-rep
type of geometric model in which the size and shape of a solid is defined in terms of the faces, edges and
vertices which make up its boundary
[SOURCE: ISO 10303-42:2019, 3.1.2.5]
3.2
constructive solid geometry
CSG
type of geometric modelling in which a solid is defined as the result of a sequence of regularized Boolean
operations operating on solid models
[SOURCE: ISO 10303-42:2019, 3.1.2.12]
3.3
derived geometry
geometric representation generated from another representation
Note 1 to entry: The derivation is realized by actions such as using another representation method, another
format, approximations, simplification
EXAMPLE A "6-face B-rep" (3.1) is derived from a CSG (3.2) "solid block".
3.4
converted geometry
result of changing the data format of a geometry
Note 1 to entry: The import and export operations in a CAD system produce converted geometry.
Note 2 to entry: Converted geometry is a kind of derived geometry (3.3).
3.5
design intent
intentions of the designer of a model with regard to how it may be instantiated or modified
Note 1 to entry: The aspects of design intent relevant to ISO 10303-108 are concerned with the information
represented in the parameters and constraints associated with a model. More generally, design intent also
includes the procedural or construction history of a model, which is the subject of ISO 10303-55. All aspects of
design intent influence the behaviour of a model under editing operations.
[SOURCE: ISO 10303-108, 3.7.10, modified — Changed "this part of ISO 10303" to "ISO 10303-108" in
Note 1 to entry].
3.6
geometry data set
serialized representation of geometry data which can be exchanged between two systems
Note 1 to entry: The geometry data set can be instantiated into a single file, a set of files, a web service payload or
the result of a database query.
3.7
geometry service
web-service supporting retrieval of geometry-related data
Note 1 to entry: Geometry related data can be:
— a geometry data set (3.6) or one of its subsets;
— geometric properties of a geometry data;
— metadata related to a geometry data set;
— non-geometric product data related to a geometry identifier.
3.8
level of detail
LOD
description of detail and extent of geometric model information
3.9
native geometry
native CAD
data format used to write to memory using the authoring CAD application's CAD kernel
Note 1 to entry: This capability is used in order to save the original geometry (3.10) model as data and to reuse it
without any loss with the original authoring tool.
Original geometry is often considered to be replicated only by reading the native geometry from memory into the
CAD / modelling application using the same system, version or installation, used to initially author the original
geometry, although even this is not guaranteed.
3.10
original geometry
geometry as defined by a modeler (human being) in a CAD tool using CAD authoring functions based on
mathematical constructs
Note 1 to entry: The original geometry is the first initial geometry construction that holds the design intent.
Note 2 to entry: This is also often referred to as native CAD (3.9). However, a native CAD is in fact referring to
the native CAD kernel and CAD format of the CAD tool manipulating the geometry. It therefore can also be any
geometry derived from another CAD format.
Note 3 to entry: Geometry as initially authored in a CAD / modelling application using that tool's geometric
modelling system, operations, and database. The author's design intent (3.5) as well as the characteristics and
artefacts of the application's implementation of geometric and solid modelling algorithms, are present in the
original geometry, thus distinguishing it from "exact geometry". Original geometry can take on many forms, e.g.
B-rep (3.1), CSG (3.2), hybrid, tessellated, and be modelled using many modelling paradigms, e.g. procedural,
explicit, dual, parametric features with construction history.
Note 4 to entry: While often misused and interchanged for each other, original geometry is distinguished from
native geometry (3.9).
3.11
procedural model
generative model
history-based model
model described in terms of the operation of a sequence of procedures (which may include the solution
of constraint sets), as opposed to an explicit or evaluated model which captures the end result of
applying those procedures
Note 1 to entry: Although procedural models are outside the scope of ISO 10303-108, they are defined here
to make an important distinction between two fundamentally different modelling approaches. The present
resource is intended to be compatible with ISO 10303-55, which provides representations for the exchange of
procedurally defined models.
[SOURCE: ISO 10303-108, 3.7.28, modified — Changed "this part of ISO 10303" to "ISO 10303-108"].
3.12
product and manufacturing information
PMI
non-geometric attributes in 3D CAD and Collaborative Product Development systems necessary for
manufacturing product components and assemblies
Note 1 to entry: PMI may include geometric dimensions and tolerances, symbols, notes, surface finish, and
material specifications.
[SOURCE: ISO 10303-62, 3.1.3.2]
3.13
tessellated geometry
geometry composed of a large number of planar tiles, usually of triangular shape
Note 1 to entry: Tessellated geometry is frequently used as an approximation to the exact shape of an object.
[SOURCE: ISO 10303-42, 3.1.2.47]
3.14
3D visualization
visual presentation on a screen or another media of graphical and textual three-dimensional
representations of a set of data representing an object, information or results of a computational
process in order to facilitate capture of the understanding of the object, for visual information sharing
with users and sometimes to promote decision process by a human looking at the data visualized in a
medium
[SOURCE: ISO 14306:2017, 3.1.1]
4 High level business scenarios
4.1 General
Geometry services can be deployed in a large variety of business scenarios. Some of them are presented
below.
4.2 Check for updates
A supplier receives, from an original equipment manufacturer (OEM), a 3D Model of a part that the
company has to manufacture.
During the development process, the supplier and the OEM can access the version information that the
supplier has and confirm that it is the appropriate version through web services.
The following metadata shall be available: creator, name, ID and URI of the 3D Model, from the 3D model
owner and from the 3D Model provider. It also needs the level of detail (LOD) of the data set to confirm
that it can execute its task with the available information.
4.3 Visualization #1
A user shall perform a review and receives a metadata file.
The user queries the repository with the product Id/version in the metadata file to get the data set to
load and visualize.
The query specifies the format and LOD to review.
The following metadata shall be available: ID and URI of the 3D Model from the 3D Model provider.
4.4 Visualization #2
From a large assembly data set already loaded for fast visualization, query the repository for a more
detailed representation of a part with special concern [exact boundary representation (B-rep) with
PMI].
The following metadata shall be available: ID and URI of the 3D Model from the 3D Model provider.
4.5 Retrieve product lifecycle management (PLM) data of a product
A user is viewing a part in visualizer software. The current data set contains only geometry.
Query the repository with the product Id/version to get PLM attributes of this product and display
them in the viewer.
The following metadata shall be available: ID and URI of the 3D Model from the 3D Model owner.
4.6 Archiving
Ensure traceability from the original geometry data set in a Product Data Management (PDM) system
and the geometry data set in an archiving system.
Following metadata shall be available: ID, URI, creation date, name, creator of the 3D Model from the 3D
Model owner
5 Information requirements
5.1 Review of geometry, topology and shape definitions
The concepts defined below are extracted from ISO 10303-41, ISO 10303-42, ISO 10303-43.
This document considers a geometry data set as a collection of geometric models as defined in
ISO 10303-42.
The geometric models in ISO 10303-42 provide data specifications describing the precise size and shape
of three-dimensional solid objects. The geometric shape models provide a complete representation of
the shape, which in many cases includes both geometric and topological data. Included here are the
two classical types of solid model, constructive solid geometry (CSG) and B-rep. Tesselation is another
common representation for geometry which provides light-weight data sets but is less accurate than the
two previous solid model types but which other entities, providing a rather less complete description of
the geometry of a product, and with less consistency constraints, are also included.
The geometric models are composed of geometric and topological data. Their primary application is for
explicit representation of the shape or geometric form of a product model. The shape representation
has been designed to facilitate stable and efficient communication when mapped to a physical file.
The geometry is exclusively the geometry of parametric curves and surfaces. It includes the point,
curve and surface entities and other entities, functions and data types necessary for their definition.
A common scheme has been used for the definition of both two-dimensional and three-dimensional
geometry. All geometry is defined in a coordinate system which is established as part of the context of
the item which it represents.
The topology is concerned with connectivity relationships between objects rather than with the
precise geometric form of objects. ISO 10303-42 defines the basic topological entities and specialized
subtypes of these. In some cases, the subtypes have geometric associations. Also included are functions,
particularly constraint functions, and data types necessary for the definitions of the topological entities.
In addition to the geometric models, other product related information can be instantiated in a geometry
data set, e.g. saved view and display attributes, e.g. colour, transparency, texture, PMI represented as
graphical geometry helpers or semantic metadata, links to product metadata.
5.2 Geometry data set definition
The geometry data set (3.6) is a collection of models as defined in ISO 10303-42 with or without
assembly structure. In addition to the geometric models, other product related information can be
instantiated in a geometry data set, e.g. PMI represented as graphical geometry helpers or semantic
metadata, links to product metadata.
The geometry data set can be instantiated into a single file, a set of files (see Figure 1), a web service
payload or by the result of a database query.
EXAMPLES Simple shape CSG, simple shape B-rep, complex part without PMI, complex part with PMI,
assembly of parts with tessellated shapes and PMI.
Key
product
reference to product or part
part (geometry)
STEP P21 file
STEP XML file
other file
data set
Figure 1 — Examples of geometry data set file organization
5.3 Metadata for STEP geometry services
5.3.1 General
Geometry data sets can be linked together as long as they are under the management of a single PLM
system. This allows audit trails and transformation processes to be controlled.
Once a geometry data set is taken out of a PLM system, the traceability to the evolution of this data
set is lost. There is a need for a mechanism that allows keeping track of the geometry data set origins
and evolutions. Figure 2 illustrates how the metadata are added when a geometry data set leaves the
management system of the original geometry data set owner and is modified by other actors before
arriving in a destination system.
Figure 2 — Updates of metadata
In addition to data traceability, information searching and big data analysis, especially in the web
environment, benefit from using semantic metadata to index information from geometry data sets in a
multiplicity of formats.
5.3.2 XMP
Metadata shall be represented in Extensible Markup Language (XML) and the grammar of the XML
representing the metadata shall be defined according to the extensible metadata platform (XMP)
specification ISO 16684-1. XMP is a technology for embedding metadata into documents and was first
published in ISO 16684-1 in 2012.
5.3.3 Included namespaces
XMP metadata is organized in namespaces (ISO 16684-1:2019, 6.2) and may include properties from
one or more namespace. There is no requirement that all properties from a namespace must be present.
The following namespaces definitions are included in this document:
Namespace Property
Dublin Core dc : c ont r ibu t or
dc: creator
dc: format
dc : t i t le
XMP basic xmp: CreateDate
xmp: CreatorTool
xmp: ModifyDate
XMP media management xmpMM: InstanceID
xmpMM: DocumentID
xmpMM: OriginalDocumentID
5.3.4 sgs namespace
This document describes the STEP geometry services namespace that contains the additional
characteristics needed to satisfy the audit trail requirement.
— The field namespace URI is https://standards.iso.org/iso/ts/23301/
— The preferred field namespace prefix is sgs
Namespace Property
STEP Geometry Services sgs: level -of -detail
sgs: modification- type
sgs: modification- comments
sgs: original -URI
s g s: S H A 3 -256
sg s: s ou r c e - U R I
Table 1 — Metadata name and description
23301 name XMP Description
created-by dc: creator Reference of the organization responsible for the
original geometry data set.
creation-date xmp: CreateDate Validation date of the original geometry data set.
format dc: format Reference to the standards serialization format
of the current data set, mime-type.
id xmpMM: InstanceID Uniquely identifies the current geometry data set
in the management system of the organisation
modifying the data set.
Different versions of geometry data set must
have different InstanceID but may have the same
DocumentID.
Level-of-detail sgs: level -of -detail Multi-valued enumeration describing the type
LOD of the geometry as defined in the geometry
descriptions of EN 17412-1 Reference Data Library
http:// standards/ iso .org/ iso/ 23301/ rdl/ 23301
.owl classes shall be used to specify this attribute.
Annex C describes the valid values, their identi-
fications and their definitions.
modification-type sgs: modification- type Multi-valued enumeration describing the type of
the modifications, transformations or additions
made to the data set. The valid values for this
enumeration are defined in the ISO 23301 (this
document) Reference Data Library in http://
standards/ iso .org/ iso/ 23301/ rdl/ 23301 .owl.
Annex B describes the valid values, their identi-
fications and their definitions.
modification-comments sgs: modification- comments Free text providing details on the modification.
modified-by dc : c ont r ibu t or Reference of the organization responsible for the
last modification of the geometry data set.
modified-date xmp: ModifyDate Last modification date of the geometry data set
as defined in the management system of the or-
ganization modifying the data set.
name dc : t i t le Name of the geometry data set.
Table 1 (continued)
23301 name XMP Description
original-id xmpMM: OriginalDocumentID Identifier of the geometry data set in the man-
agement system of the organisation issuing the
original geometry representing the design intent.
This value links a geometry data set to its orig-
inal source.
original-URI sgs: original -URI URI to the OriginalDocumentID
software xmp: CreatorTool Software used to generate the current data set.
source-id xmpMM: DocumentID Uniquely identifies the geometry data issued by
the management system of the organisation which
has provided the data set.
Different versions of a geometry data set may
have the same DocumentID.
source-URI sg s: s ou r c e - U R I URI of the DocumentID
SHA3-256 s g s: S H A 3 -256 Hash key of the geometry data set.
The data format for each metadata value is defined in Table 2.
In the metadata sets the URI elements have two specific purposes within a distributed services
architecture that operates on STEP defined geometry.
One purpose is to ensure integrity and validity of the product of the service, giving the user of the
service confidence that the correct and expected input was used to the service. A common use case
would be a product whose geometric definition changes with successive revisions. Each revision should
have a unique URI that both the producer of the original data and the user of the service can agree on;
the knowledge of this URI can be shared even if the service user does not have authority to view the
original data. The service user can examine the metadata packet, either embedded in the product or in
a sidecar file, to verify that the correct revision was used as original data.
An additional purpose of the metadata is to allow the service user to retrieve the original data. In this
case, the URI identifier, should also be a URL. As a global URL, it is irrelevant to the user whether the
URL is served by the same service provider or by another data provider. The use case for which this
purpose is applicable is a search application in which the service product is used to determine if the
original data should be retrieved. A specific case is a 3D visualization application that allows a user to
select a product part and retrieve the original geometry for further analysis.
5.4 Cybersecurity context and requirements
The specifications shall be implemented within the industry cybersecurity context and requirements
needed for a specific use case.
This document does not specify any cybersecurity requirements related to the implementation of this
document.
The specification of the web services in Clause 7 shall be associated with a cybersecurity infrastructure
6 Implementation requirements
6.1 General principles
The metadata shall be provided as a set of property-value pairs within the data set, either embedded in
the files forming the data set, using the geometry description format chosen for data serialization, or in
a separate file called sidecar file in XMP format.
The following clauses describe how to implement the metadata either in a sidecar file or embedded in
existing standards format.
6.2 XMP sidecar file
When the geometry description format cannot embed the metadata, an XMP “sidecar” file can be used
to store and transfer the metadata. This XMP file can also be used when the geometry files already exist
in the repository and cannot or should not be modified.
The sidecar file can include a SHA3-256 hash key of the geometry data set. This hash shall not be
computed on a set of files which includes the side car file. It shall only cover the geometry files.
An example of the sidecar file is available in Annex C.
Figure 3 — XMP sidecar files with fully shattered assembly
6.3 ECMA-404 JSON
For a geometry data set serialized as JSON format, the metadata shall conform to ISO 16684-3.
6.4 ISO 10303-21
For ISO 10303-42 and ISO 10303-242 geometries in ISO 10303-21 ASCII implementations, metadata
shall be defined either in:
— the ANCHOR section of the ISO 10303-21 file as simple type anchor items. An example is provided in
Annex D;
— or XMP sidecar file.
6.5 10303 XML implementations
Use XMP sidecar file.
6.6 QIF-XML
The following XML schema shall be referenced by the data that shall be provided as a set of property-
value pairs in the header part of the data set, using the geometry description format chosen for data
serialization.
Use XMP sidecar file.
6.7 ISO/IEC 19775-1 (X3D)
The metadata are contained in a MetadataSet element. This MetadataSet element shall be a child node
of the X3D CADAssembly node containing the converted geometry data set.
Each metadata is represented by a MetadataString element with a containerField attribute set to
“value”, the name attribute to the metadata name and the value attribute to the value of the metadata.
NOTE 1 The complete specification of the X3D Metadata Nodes is available at https:// www .web3d .org/
documents/ specifications/ 19775 -1/ V3 .3/ Part01/ components/ core .html #Metadata
NOTE 2 The complete specification of the X3D CADGeometry Component is available at https:// www .web3d
.org/ documents/ specifications/ 19775 -1/ V3 .3/ Part01/ components/ CADGeometry .html
An example of the metadata implementation in X3D is available in Annex E.
6.8 ISO 17506 (Collada)
Use XMP side car
6.9 3D PDF
XMP metadata format is used to store the metadata in a 3D PDF data set.
Provide the instantiation of the metadata using XMP.
6.10 ISO 14306
Use XMP side car.
7 Geometry services specification
7.1 Description
A service in conformance with this document provides access to the following resources:
— geometry data set or one of its subsets;
— geometric properties of a geometry data set;
— metadata related to a geometry data set;
— non-geometric product data related to a geometry identifier.
EXAMPLE
Give me the 3D visualization representation of this STEP part with this ID. Is the 3D visualization format
[AP242|X3D|JT|Colada]?
Tell me what the visualization formats are that you can deliver to me for this part?
Give information (quality metadata) about this geometry data set.
The pilot described in Annex F was used to demonstrate the applicability of the web services.
7.2 REST API
There are three types of responses:
— a single geometry file with ISO 23301 (this document) metadata and the mime-type of the file;
— an AP242 XML product data file without geometry;
— an AP242 XML product data file with external references to geometry file (with ISO/TS 23031
metadata).
The query can include the response mime-type for single geometry files.
7.3 Service definition
Service 1   : get_data_set (list of identifiers)
Purpose   : Get a set of parts of the identifiers specified
HTTP request : GET {base_url}/parts
Parameters  :  part-ids: List
with-geom-models: List
with-sub-parts: Boolean
with-meta-data: Boolean
start-index: integer
page-size: integer
Request Body : Filtering conditions (any): JSON
Response Body: ZIP file containing stpx and requested parts

Service 2   : get_dataset(http://mycompanyname/uuid)
Purpose   : Get a part of the identifier specified
HTTP request : GET {base_url}/parts/{part_id}
Parameters  :  with-geom-models: List
with-sub-parts: Boolean
sub-parts-depth: integer
with-meta-data: Boolean
Request Body : N/A
Response Body: ZIP file containing stpx and requested parts

Service 3   : get_data_set(http://mycompanyname/uuid/top1/child2/grandchild3)
Purpose   : Get a part that is located in the path as specified in      an
assembly of the identifier specified.
HTTP request : GET {base_url}/parts/{part_id}
Parameters  :  with-geom-models: List
with-sub-parts: Boolean
sub-parts-depth: integer
with-meta-data: Boolean
Request Body : Filtering conditions (Path in the assembly {part_id})
Response Body: ZIP file containing stpx and requested parts

Service 4   : get_data_set(http://mycompanyname/uuid/*)
Purpose   : Get all parts in an assembly of the identifier specified.
HTTP request : GET {base_url}/parts/{part_id}
Parameters  :  with-geom-models: List
with-sub-parts: boolean = TRUE
sub-parts-depth: integer
with-meta-data: Boolean
Request Body : N/A
Response Body: ZIP file containing stpx and requested parts

Service 5   : get_data_set(identifier, filter, format)
Purpose   : Get all parts filtered and of format as specified in an assembly of the
identifier specified.
HTTP request : GET {base_url}/parts/{part_id}
Parameters  :  with-geom-models: List
with-sub-parts: Boolean
sub-parts-depth: integer
with-meta-data: Boolean
Request Body : Filtering conditions (any): JSON
Response Body: ZIP file containing stpx and requested parts

Service 6   : get_data_set( identifier, in bouding box, format)
Purpose   : Get all parts in the bounding box and of format as specified in an
assembly of the identifier specified.
HTTP request : GET {base_url}/parts/{part_id}
Parameters  :  with-geom-models: List
with-sub-parts: Boolean
sub-parts-depth: integer
with-meta-data: Boolean
Request Body : Filtering conditions (Bounding box): JSON
Response Body: ZIP file containing stpx and requested parts

Service 7   : get_data_set(identifier, PDM query filter, format)
Purpose   : Get all parts filtered by "PDM query filter" and of format as specified
in an assembly of the identifier specified.
HTTP request : GET {base_url}/parts/{part_id}
Parameters  :  with-geom-models: List
with-sub-parts: Boolean
sub-parts-depth: integer
with-meta-data: Boolean
Request Body : Filtering conditions (PDM query filter): JSON
Response Body: ZIP file containing stpx and requested parts

Service 8   : get_child(identifier)
Purpose   : Get direct child parts of an assembly of the identifier specified.
HTTP request : GET {base_url}/parts/{part_id}
Parameters  :  with-geom-models: List
with-sub-parts: boolean = TRUE
sub-parts-depth: integer = 1
with-meta-data: Boolean
Request Body : Filtering conditions (PDM query filter): JSON
Response Body: ZIP file containing stpx and requested parts

Service 9   : get_geom_property(identifier)
Purpose   : Get geometry properties of the types specified of a part of the
identifier specified.
HTTP request : GET {base_url}/parts/{part_id}/geom-props
GET {base_url}/parts/{part_id}/geom-props/center-of-gravity
GET
...
