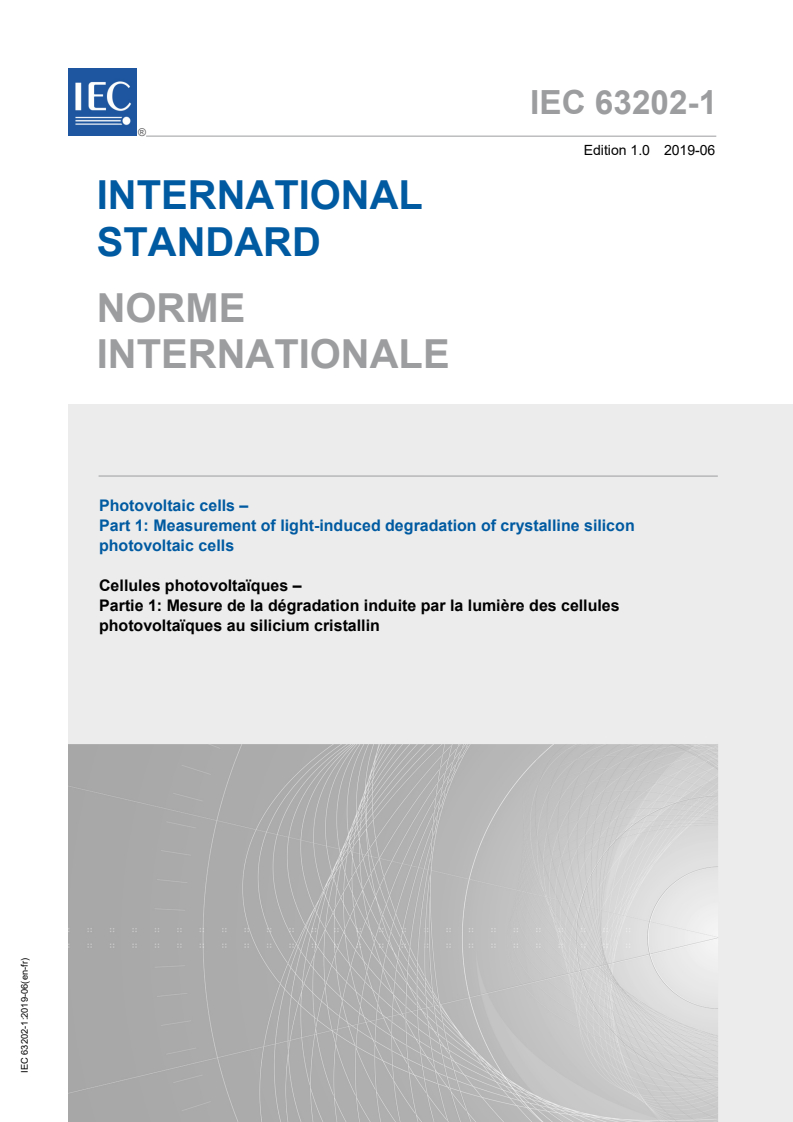

IEC 63202-1:2019

IEC 63202-1 ®
Edition 1.0 2019-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Photovoltaic cells –
Part 1: Measurement of light-induced degradation of crystalline silicon
photovoltaic cells
Cellules photovoltaïques –
Partie 1: Mesure de la dégradation induite par la lumière des cellules
photovoltaïques au silicium cristallin

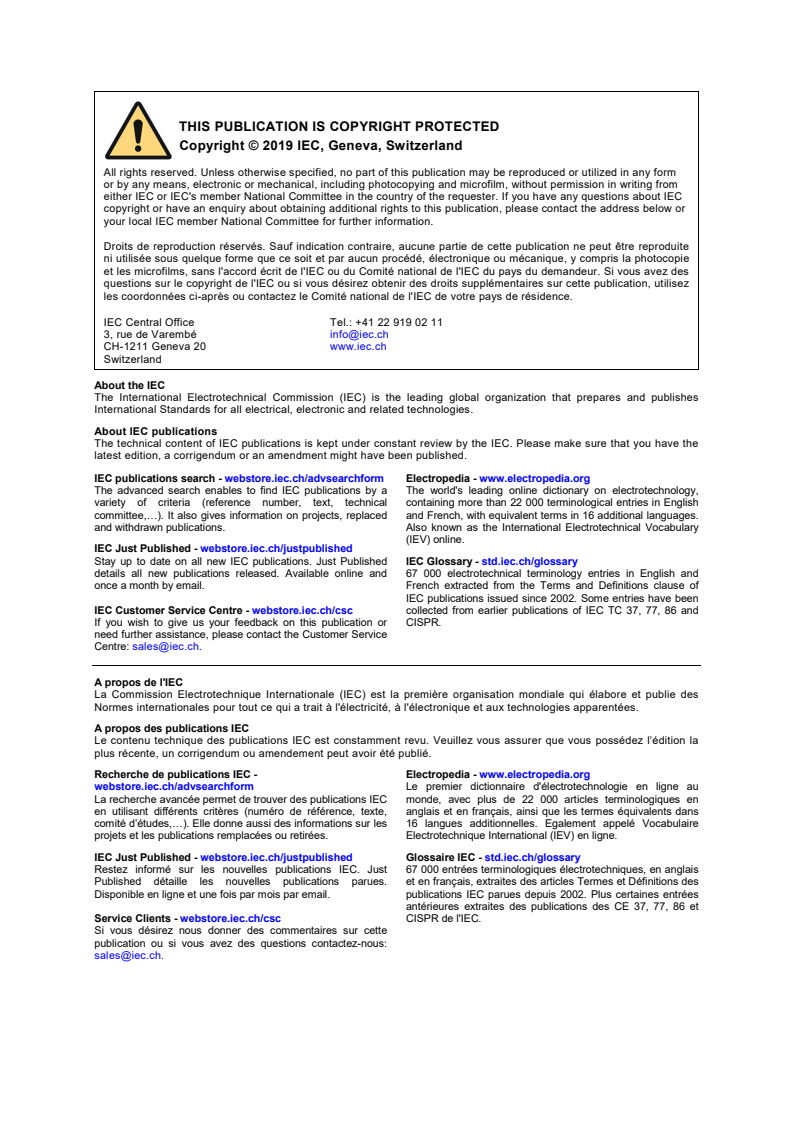

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

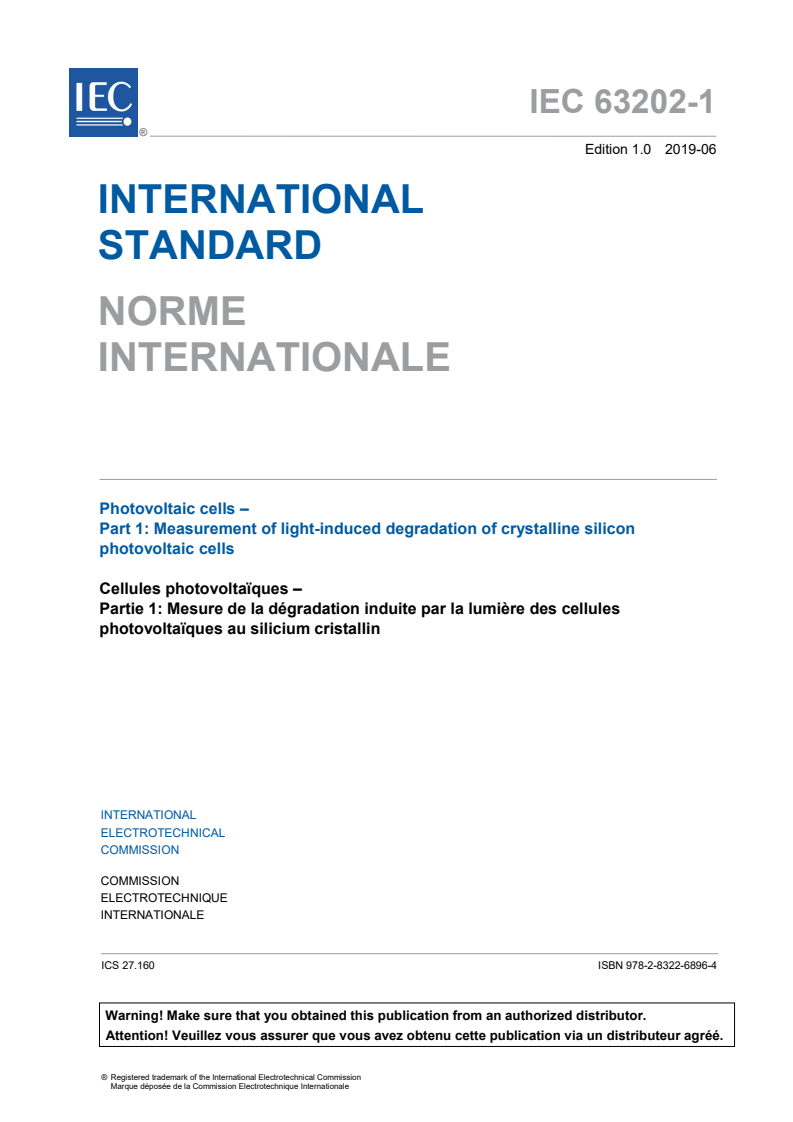

IEC 63202-1 ®
Edition 1.0 2019-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Photovoltaic cells –
Part 1: Measurement of light-induced degradation of crystalline silicon

photovoltaic cells
Cellules photovoltaïques –
Partie 1: Mesure de la dégradation induite par la lumière des cellules

photovoltaïques au silicium cristallin

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 27.160 ISBN 978-2-8322-6896-4

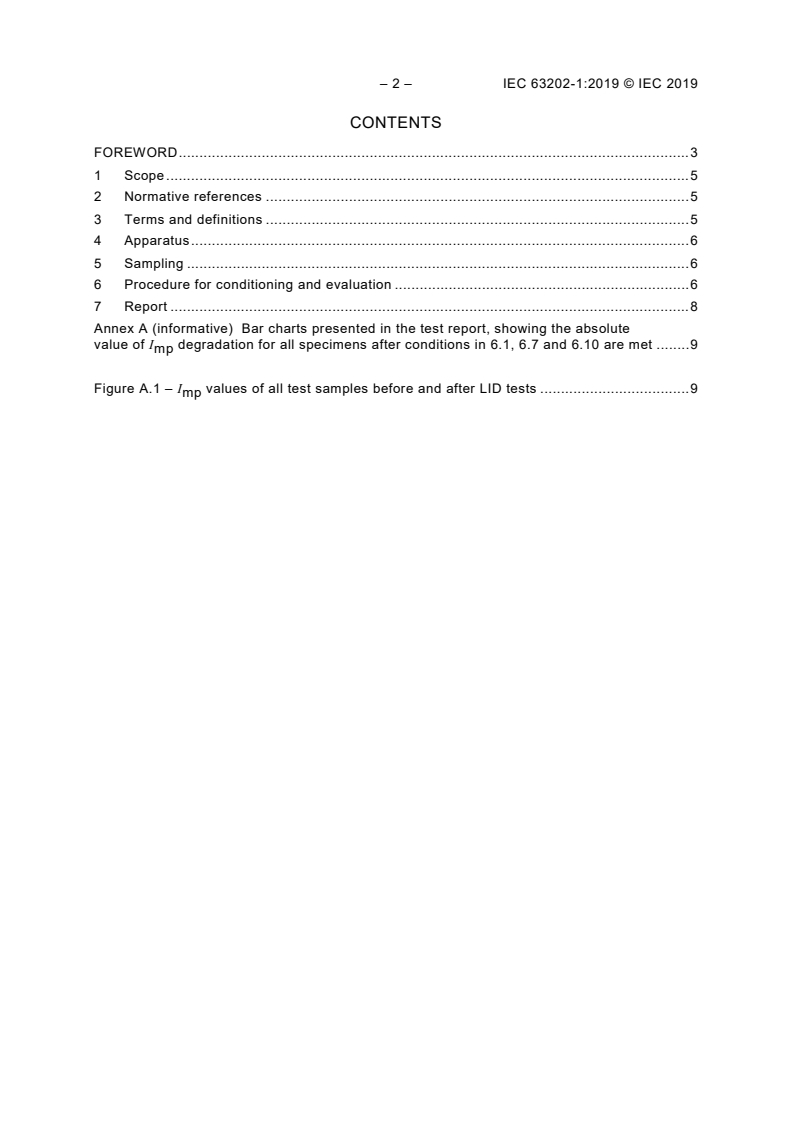

– 2 – IEC 63202-1:2019 © IEC 2019
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Apparatus . 6
5 Sampling . 6
6 Procedure for conditioning and evaluation . 6
7 Report . 8
Annex A (informative) Bar charts presented in the test report, showing the absolute
value of I degradation for all specimens after conditions in 6.1, 6.7 and 6.10 are met . 9
mp
Figure A.1 – I values of all test samples before and after LID tests . 9
mp
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PHOTOVOLTAIC CELLS –
Part 1: Measurement of light-induced degradation
of crystalline silicon photovoltaic cells

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 63202-1 has been prepared by IEC technical committee 82: Solar
photovoltaic energy systems.
The text of this International Standard is based on the following documents:
FDIS Report on voting
82/1565/FDIS 82/1583/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 63202 series, published under the general title Photovoltaic cells,
can be found on the IEC website.

– 4 – IEC 63202-1:2019 © IEC 2019
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
PHOTOVOLTAIC CELLS –
Part 1: Measurement of light-induced degradation
of crystalline silicon photovoltaic cells

1 Scope
This part of IEC 63202 describes procedures for measuring the light-induced degradation (LID)
of crystalline silicon photovoltaic (PV) cells in simulated sunlight. The magnitude of LID in a
crystalline silicon PV cell is determined by comparing maximum output power at Standard
Test Conditions (STC) before, and after, exposure to simulated sunlight at a specified
temperature and irradiance.
The purpose of this document is to provide standardized PV cell LID information to help PV
module manufacturers in minimizing the mismatch between cells within the same module,
thereby maximizing power yield.
When compared to PV module LID measurements described in the IEC 61215 series, several
extra experimental factors have been found to show significant impact on the PV cell LID test,
which were not considered by IEC 61215-2. This document provides a conditioning and
measurements procedure and parameter settings required for consistent PV cell LID
measurements.
LID magnitude is one important factor of cell quality. For cells from the same sorting bin, the
most important factor is the distribution of output power after LID.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60904-1, Photovoltaic devices – Part 1: Measurements of photovoltaic current-voltage
characteristics
IEC 60904-2, Photovoltaic devices – Part 2: Requirements for photovoltaic reference
devices
IEC 60904-9, Photovoltaic devices – Part 9: Solar simulator performance requirements
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp

– 6 – IEC 63202-1:2019 © IEC 2019
4 Apparatus
The following apparatus are required to perform the test procedures defined in this document:
a) Solar simulator 1: Solar simulator for I-V curve measurements in accordance with
±1 °C, and the
IEC 60904-9, with means to measure cell temperature accurately to within
means to simultaneously measure the current and voltage produced by the PV cell as
defined in IEC 60904-1.
b) An environmental chamber or a space that meets following requirements:
1) One or more irradiance sensors (meeting the requirements of IEC 60904-2) to monitor
the cumulative irradiance;
2) The means to mount test cells co-planar with the irradiance sensors;
3) The capability to control cell temperature in the range of (60 ± 5) °C during the light
exposure;
4) Relative humidity ≤ 50 %;
5) The internal air shall be free of corrosive or contaminating contents.
c) Solar simulator 2: Class BBB (or better) steady-state solar simulator in accordance with
IEC 60904-9, featuring a capability to provide irradiance of (1 000 ± 50) W/m on cells
mounted in an environmental chamber.
5 Sampling
A minimum of twenty PV cells is required for this test. Additional cells can be tested to make
up for any mechanical or handling damaged samples.
Under normal sampling criteria, test cells are randomly selected from the same sorting bin
and the same production batch. If cells are to be selected using a special sampling criterion,
the detailed sampling specification shall be included in the final report. All samples for this
test shall be assigned a unique identification number for tracking and reporting purpose.
Selected PV cells shall be stored in a sealed and dark container immediately after I-V
measurements to minimize the ambient light exposure.
6 Procedure for conditioning and evaluation
6.1 Following the procedures required in IEC 60904-1, measure the I-V curve of each cell
at STC. Each measurement shall be repeated three times. Calculate the intermittent power,
P (n=0,1,2…), as the average of the maximum power reading from the three I-V curves.
n
Between each measurement, the cell shall be rested for more than 3 s, to allow the cell
temperature to recover to its initial value. The contacting scheme for cell testing should not be
changed or disturbed during this test. The repeatability of these three readings shall be better
than 0,2 %.
6.2 Place the sampled cells in the test chamber (Clause 4b), and expose all the sampled
cells to solar simulator 2 with an irradiance of (1 000 ± 50) W/m . To compensate for spatial
non-uniformity, it is recommended to systematically rotate cells to different locations in the
chamber between exposure cycles. During light exposure, the temperature of all cells shall be
maintained within the range of (60 ± 5) °C.
6.3 After the exposure described in Step 6.2 is cumulated to 5 kWh/m , repeat Step 6.1.
To practically simplify the overall test, 5 kWh/m is recommended for the first cycle instead of
1kWh/m . This first cycle exposure may be adjusted based on cell technology or desired test
conditions.
6.4 Repeat Step 6.2 to a light exposure of 1 kWh/m , and then repeat Step 6.1.
6.5 For each sample cell, repeat Step 6.4 until it reaches the LID quasi-stabilization
condition, whereby the sample cell fulfils the following condition:
P − P
max min
<0,5%
P
average
where P , P and P are calculated from three consecutive output power
max min average
measurements P , P and P
n-2 n-1 n.
A similar formula and method are used for determining the magnitude of change of I .
mp
Where applicable, a similar formula and method can also be used for cell efficiency η and
other parameters.
When one particular test cell reaches the above mentioned LID quasi-stabilization condition,
its data for the last I-V measurements shall be properly recorded, and the cell shall be exempt
from further testing.
6.6 For samples that do not achieve quasi-stabilization, as defined in Step 6.5, repeat
Step 6.2 to a light exposure of 1 kWh/m , and the repeat Step 6.1.
6.7 A sample is exempt from further testing when either of the following conditions is met:
a) LID quasi-stabilization, as defined in Step 6.5, has been achieved, or
b) Cumulative exposure has reached 20 kWh/m .
6.8 The test terminates when all cells are exempt from further testing. All data shall be
recorded properly for the final report.
When the purpose of the test is to observe LID performance, the test may be continued
.
beyond 20 kWh/m
6.9 It is recommended to conduct the test without time delay between cycles; otherwise,
put the samples at room temperature (25 °C ± 5 °C) in a dark container, which is sealed or
with nitrogen gas purging.
6.10 Periodic electroluminescence (EL) testing of the samples is recommended to determine
whether or not cells are damaged due to repeated handling. If any damage is observed, by
either EL test or other ways, the data shall be specially marked in the final report.

– 8 – IEC 63202-1:2019 © IEC 2019
7 Report
Following completion of the procedure, a report of the test shall be prepared by the agency.
Additionally the following shall be included.
a) Description and identification of the item tested, including the specimen size, testing cells
details such as their origin and pedigree;
b) M
...
