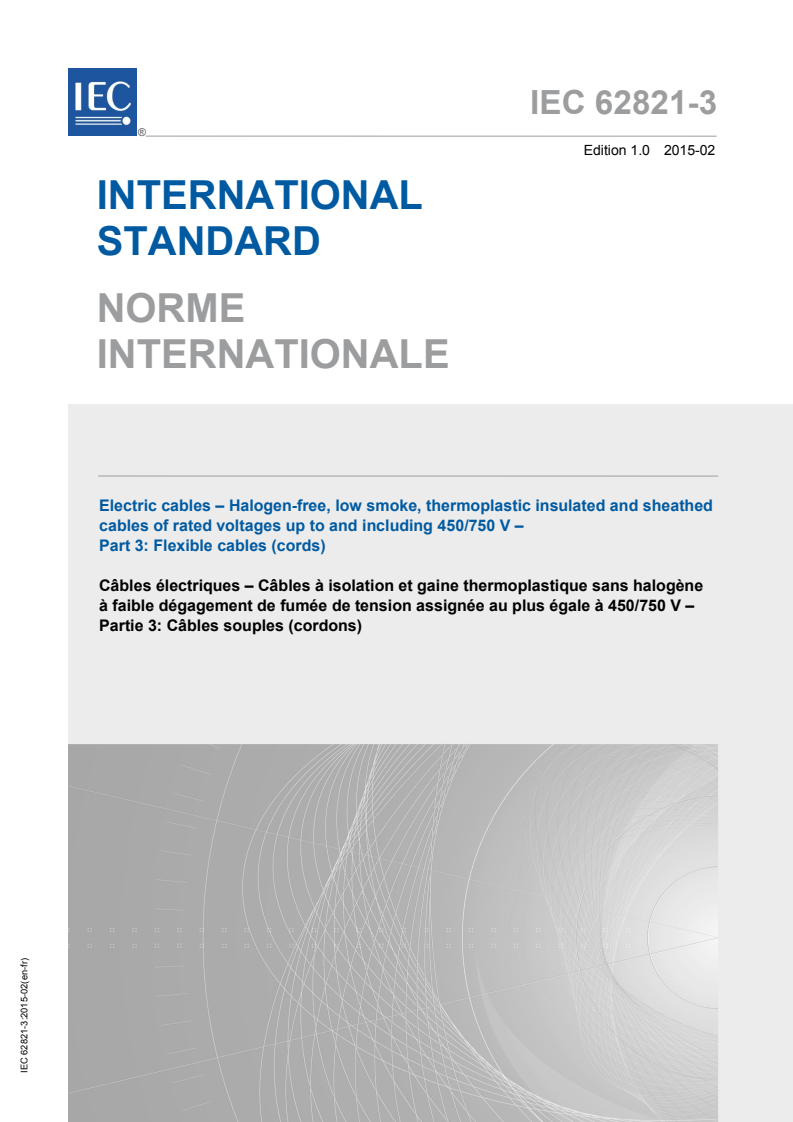

IEC 62821-3:2015

IEC 62821-3 ®
Edition 1.0 2015-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric cables – Halogen-free, low smoke, thermoplastic insulated and sheathed
cables of rated voltages up to and including 450/750 V –
Part 3: Flexible cables (cords)

Câbles électriques – Câbles à isolation et gaine thermoplastique sans halogène
à faible dégagement de fumée de tension assignée au plus égale à 450/750 V –
Partie 3: Câbles souples (cordons)

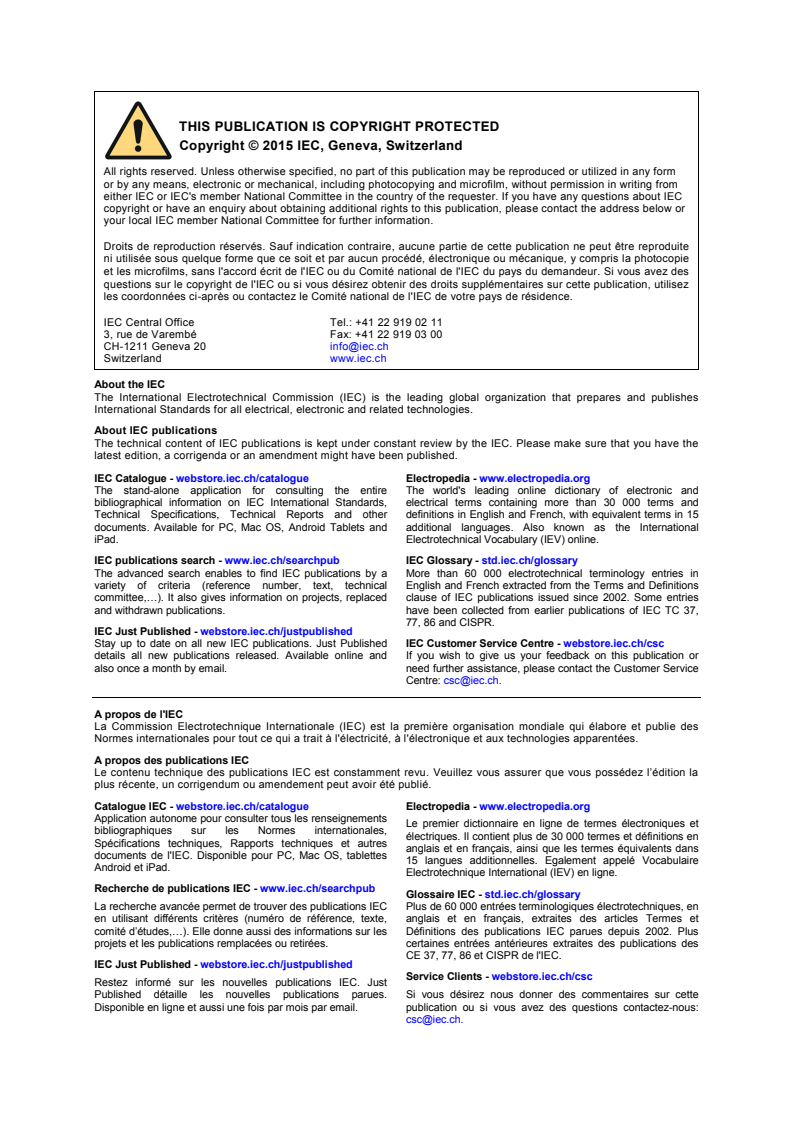

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

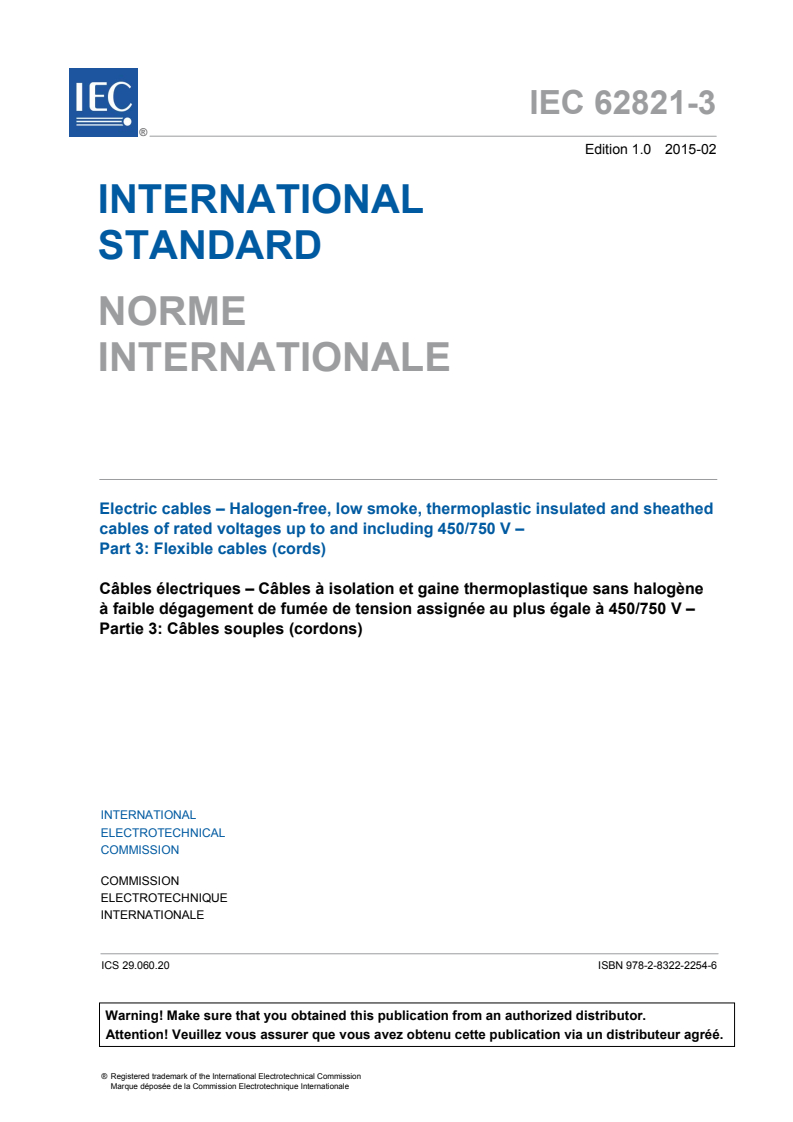

IEC 62821-3 ®
Edition 1.0 2015-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric cables – Halogen-free, low smoke, thermoplastic insulated and sheathed

cables of rated voltages up to and including 450/750 V –

Part 3: Flexible cables (cords)

Câbles électriques – Câbles à isolation et gaine thermoplastique sans halogène

à faible dégagement de fumée de tension assignée au plus égale à 450/750 V –

Partie 3: Câbles souples (cordons)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.20 ISBN 978-2-8322-2254-6

– 2 – IEC 62821-3:2015 © IEC 2015

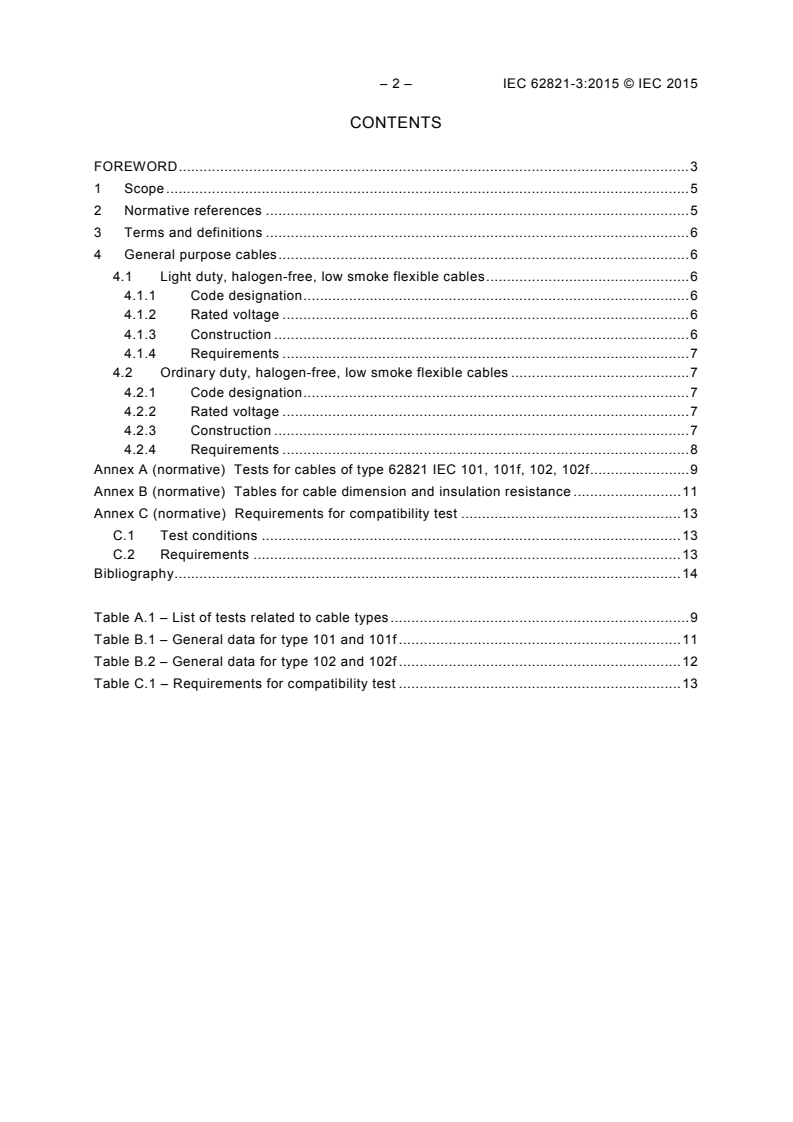

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 General purpose cables . 6
4.1 Light duty, halogen-free, low smoke flexible cables . 6
4.1.1 Code designation . 6
4.1.2 Rated voltage . 6
4.1.3 Construction . 6
4.1.4 Requirements . 7
4.2 Ordinary duty, halogen-free, low smoke flexible cables . 7
4.2.1 Code designation . 7
4.2.2 Rated voltage . 7
4.2.3 Construction . 7
4.2.4 Requirements . 8
Annex A (normative) Tests for cables of type 62821 IEC 101, 101f, 102, 102f. 9
Annex B (normative) Tables for cable dimension and insulation resistance . 11
Annex C (normative) Requirements for compatibility test . 13
C.1 Test conditions . 13
C.2 Requirements . 13
Bibliography . 14

Table A.1 – List of tests related to cable types . 9
Table B.1 – General data for type 101 and 101f . 11
Table B.2 – General data for type 102 and 102f . 12
Table C.1 – Requirements for compatibility test . 13

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRIC CABLES –HALOGEN-FREE, LOW SMOKE, THERMOPLASTIC
INSULATED AND SHEATHED CABLES OF RATED VOLTAGES
UP TO AND INCLUDING 450/750 V –

Part 3: Flexible cables (cords)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62821-3 has been prepared by IEC technical committee 20:
Electric cables. The text of this standard is based on the following documents:
FDIS Report on voting
20/1552A/FDIS 20/1565/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part of IEC 62821 should be read in conjunction with IEC 62821-1, which specifies
general requirements.
– 4 – IEC 62821-3:2015 © IEC 2015
A list of all parts in the IEC 62821 series, published under the general title, Electric cables –
Halogen-free, low smoke, thermoplastic insulated and sheathed cables of rated voltages up to
and including 450/750 V, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
ELECTRIC CABLES –HALOGEN-FREE, LOW SMOKE, THERMOPLASTIC
INSULATED AND SHEATHED CABLES OF RATED VOLTAGES
UP TO AND INCLUDING 450/750 V –

Part 3: Flexible cables (cords)

1 Scope
This part of IEC 62821 applies to flexible cables for connection to appliances, insulated and
sheathed with halogen-free thermoplastic compound and having low emission of smoke and
corrosive gases when exposed to fire.
NOTE For some types of flexible cables, the term "cord" is used.
Low emission of smoke is checked in accordance with IEC 61034-2. Low emission of
corrosive gases is checked as part of the check for absence of halogens (see Annex B of
IEC 62821-1:2015).
The cables are of rated voltages U /U up to and including 300/500 V.
Circular cables and flat cables are included.
The maximum conductor operating temperature for each of the cables in this standard is
70 °C.
IEC 62440 should be used as guidance on the safe use of cables in this standard.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60227-2, Polyvinyl chloride insulated cables of rated voltages up to and including
450/750 V – Part 2: Test methods
IEC 60228, Conductors of insulated cables
IEC 60332-1-2, Tests on electric and optical fibre cables under fire conditions – Part 1-2: Test
for vertical flame propagation for a single insulated wire or cable – Procedure for 1 kW pre-
mixed flame
IEC 60811-401, Electric and optical fibre cables – Test methods for non-metallic materials –
Part 401: Miscellaneous tests – Thermal ageing methods – Ageing in an air oven
IEC 60811-506, Electric and optical fibre cables – Test methods for non-metallic materials –
Part 506: Mechanical tests – Impact test at low temperature for insulations and sheaths
IEC 61034-2, Measurement of smoke density of cables burning under defined conditions –
Part 2: Test procedure and requirements

– 6 – IEC 62821-3:2015 © IEC 2015
IEC 62440, Electrical cables with a rated voltage not exceeding 450/750 V – Guide to use
IEC 62821-1:2015, Electric cables – Halogen-free low smoke thermoplastic insulated and
sheathed cables of rated voltage up to and including 450/750 V – Part 1: General
requirements
IEC 62821-2, Electric cables – Halogen-free low smoke thermoplastic insulated and sheathed
cables of rated voltage up to and including 450/750 V – Part 2: Test methods
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62821-1 apply.
4 General purpose cables
4.1 Light duty, halogen-free, low smoke flexible cables
4.1.1 Code designation
62821 IEC 101 for circular cable and 62821 IEC 101f for flat cable.
4.1.2 Rated voltage
• 300/300 V
4.1.3 Construction
4.1.3.1 Conductor
The conductor shall comply with Class 5, according to IEC 60228.
4.1.3.2 Sizes of cable
The sizes of cable shall be:
2 2
a) circular cable: 0,5 mm and 0,75 mm – 2, 3 and 4 core;
2 2
b) flat cable: 0,5 mm and 0,75 mm – 2 core only.
4.1.3.3 Insulation
The insulation shall be thermoplastic compound of LSHF/D to IEC 62821-1.
4.1.3.4 Assembly
The cores shall be assembled as follows:
a) circular cable: the cores shall be twisted together;
b) flat cable: the cores shall be laid parallel.
A halogen-free tape may be applied around the core assembly before application of the
sheath.
4.1.3.5 Sheath
The sheath shall be a thermoplastic compound of Type LSHF/ST1 to IEC 62821-1.
The sheath shall not adhere to the cores. The assembly of cores may be surrounded by a
separator which shall not adhere to the cores.

For circular cables, the application of the sheath shall give the finished cable a practically
circular shape.
4.1.3.6 Marking
The circular cable shall be marked with the code 62821 IEC 101, and the flat cable shall be
marked with the code 62821 IEC 101f.
The marking shall comply with Clause 5 of IEC 62821-1:2015.
4.1.4 Requirements
Each cable shall comply with the appropriate requirements given in IEC 62821-1 and the
particular requirements of this standard.
Testing shall be in accordance with Annex A, and the relevant tests indicated in Column 6 in
Table A.1.
a) The surface resistance of sheath shall comply with the minimum requirement of 10 Ω.
b) The dimensions of the cables shall conform to Table B.1 for type 101 and 101f.
c) The requirements to be met for the compatibility test shall be as given in Annex C.
d) When tested in accordance with the method and procedure given in IEC 61034-2, all sizes
of cable shall exceed 60 % light transmittance throughout the test.
4.2 Ordinary duty, halogen-free, low smoke flexible cables
4.2.1 Code designation
62821 IEC 102 for circular cable and 62821 IEC 102f for flat cable.
4.2.2 Rated voltage
• 300/500 V
4.2.3 Construction
4.2.3.1 Conductor
The conductor shall comply with Class 5, according to IEC 60228.
4.2.3.2 Sizes of cable
The sizes of cable shall be:
2 2
a) circular cable: 0,75 mm to 4 mm – 2, 3, 4 and 5 core
2 2
b) flat cable: 0,75 mm and 1,0 mm – 2 core only.
4.2.3.3 Insulation
The insulation shall be thermoplastic compound of Type LSHF/D to IEC 62821-1.
4.2.3.4 Assembly
The cores shall be assembled as follows:
a) circular cable: the cores, and the fillers if any, shall be twisted together.
b) flat cable: the cores shall be laid parallel.
For cable having two cores, the space between the cores shall be filled either by separate
halogen-free fillers or by the sheath filling the interstices.

– 8 – IEC 62821-3:2015 © IEC 2015
For circular cables with 3, 4 or 5 cores, a central halogen-free filler may be used.
A halogen-free tape may be applied around the core assembly before application of the
sheath.
4.2.3.5 Sheath
The sheath shall be thermoplastic compound of LSHF/ST1 to IEC 62821-1.
The sheath shall not adhere to the cores. The assembly of cores may be surrounded by a
separator which shall not adhere to the cores.
For circular cables, the application of the sheath shall give the finished cable a practically
circular shape.
4.2.3.6 Marking
The circular cable shall be marked with the code 62821 IEC 102, and the flat cable shall be
marked with the code 62821 IEC 102f.
The marking shall comply with Clause 5 of IEC 62821-1:2015.
4.2.4 Requirements
Each cable shall comply with the appropriate requirements given in IEC 62821-1, and the
particular requirements of this standard.
Testing shall be in accordance with Annex A, and the relevant tests indicated in Column 7 in
Table A.1.
a) The surface resistance of the sheath shall comply the minimum requirement of 10 Ω.
b) The dimensions of the cables shall conform to Table B.2 for Type 102 and 102f.
c) The requirements to be met for the compatibility test shall be as given in Annex C.
d) When tested in accordance with the method and procedure given in IEC 61034-2, a value
of 60 % cable light transmittance is adopted as a minimum for all sizes of cable
throughout the test.
Annex A
(normative)
Tests for cables of type 62821 IEC 101, 101f, 102, 102f
Table A.1 – List of tests related to cable types
1 2 3 4 5 6 7
a
Ref Tests Category Test method Applicability of test –
No. of test described in Subclause
IEC Clause/ 4.1 4.2
standard subclause
62821 62821
IEC 101 IEC 102
and and
IEC 101f IEC 102f
b
1 Electrical tests
1.1 Resistance of conductors T, S 60227-2 2.1 X X
1.2 Voltage test on completed cable at 2 000 V T, S 60227-2 2.2 X X
1.3 Voltage test on cores according to specified
T, S 60227-2 2.3
insulation thickness:
1.3.1 - at 1 500 V for insulation thickness up to
X X
and including 0,6 mm
1.3.2 - at 2 000 V for insulation thickness above
– X
0,6 mm
1.4 Insulation resistance at 70 °C T, S 60227-2 2.4 X X
1.5 Long term resistance of insulation to d.c. T 62821-2 5.1.1 X X

1.6 Absence of faults in insulation R 62821-2 5.1.2 X X
1.7 Surface resistance of sheath T 62821-2 5.1.3 X X
2 Constructional and dimensional tests
2.1 Checking of compliance with constructional
T, S 62821-1 X X
provisions
2.2 Measurement of thickness of insulation T, S 60227-2 1.9 X X
2.3 Measurement of thickness of sheath T, S 60227-2 1.10 X X
2.4 Measurement of overall dimensions
2.4.1 Mean value T, S 60227-2 1.10.2 X X
e e
2.4.2 Ovality T, S 60227-2 1.11 X X
c
3 Insulation material tests T 62821-1 LSHF/D X X
c
4 Sheath material tests
T 62821-1 LSHF/ST1 X X
5 Compatibility test T 60811-401 X X
6 Impact test at –15 °C T 60811-506 X X
d
7 Mechanical strength of completed cable
Flexing test followed, after immersion in 60227-2 3 X X
T
water, by a voltage test at 2 000 V on cores
62821-2 5.1.4 X X
8 Tests under fire conditions
8.1 Test on single vertical cable T 60332-1-2 – X X
8.2 Smoke emission T 61034-2 – X X

– 10 – IEC 62821-3:2015 © IEC 2015
Table A.1 – List of tests related to cable types (concluded)
1 2 3 4 5 6 7
a
Ref Tests Category Test method Applicability of test –
No. of test described in Subclause
IEC Clause/ 4.1 4.2
standard subclause
62821 62821
IEC 101 IEC 102
and and
IEC 101f IEC 102f
9 Assessment of halogens for all non-
T, S 62821-1 Annex B X X
metallic materials
a
The order given does not imply a sequence of testing.
b
Particular test conditions and requirements are given in Table 3 of IEC 62821-1:2015.
c
This standard includes all the test methods and requirements for the material. Material to be tested is taken from the
finished cable.
d 2
Not applicable to cables having conductors greater than 2,5 mm .
e
Not applicable for flat cables.

Annex B
(normative)
Tables for cable dimension and insulation resistance
NOTE The overall dimensions of cables have been calculated in accordance with IEC 60719.
Table B.1 – General data for type 101 and 101f
1 2 3 4 5 6
Number and Thickness of Thickness of Mean overall dimensions Minimum
nominal cross- insulation sheath insulation
Lower limit Upper limit
sectional area resistance at
Specified value Specified value
of conductors 70 °C
mm mm mm mm mm MΩ × km
4,6 5,9
or or
2 × 0,5 0,5 0,6 0,012
3,0 × 4,9 3,7 × 5,9
4,9 6,3
2 × 0,75 0,5 0,6 or or 0,010
3,2 × 5,2 3,8 × 6,3
3 × 0,5 0,5 0,6 4,9 6,3 0,011
3 × 0,75 0,5 0,6 5,2 6,7 0,010
0,5 0,6 5,4 6,9 0,011
4 × 0,5
4 × 0,75 0,5 0,6 5,7 7,3 0,010

– 12 – IEC 62821-3:2015 © IEC 2015
Table B.2 – General data for type 102 and 102f
