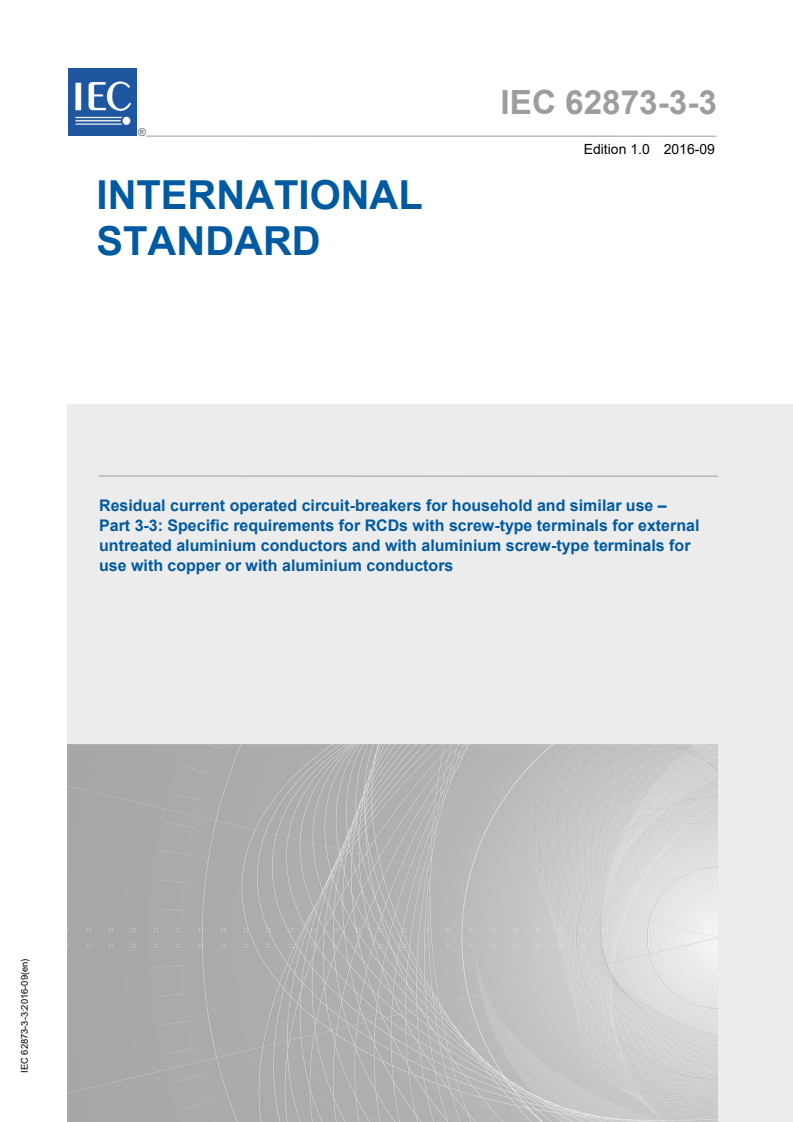

IEC 62873-3-3:2016

IEC 62873-3-3 ®
Edition 1.0 2016-09
INTERNATIONAL
STANDARD
Residual current operated circuit-breakers for household and similar use –
Part 3-3: Specific requirements for RCDs with screw-type terminals for external
untreated aluminium conductors and with aluminium screw-type terminals for
use with copper or with aluminium conductors

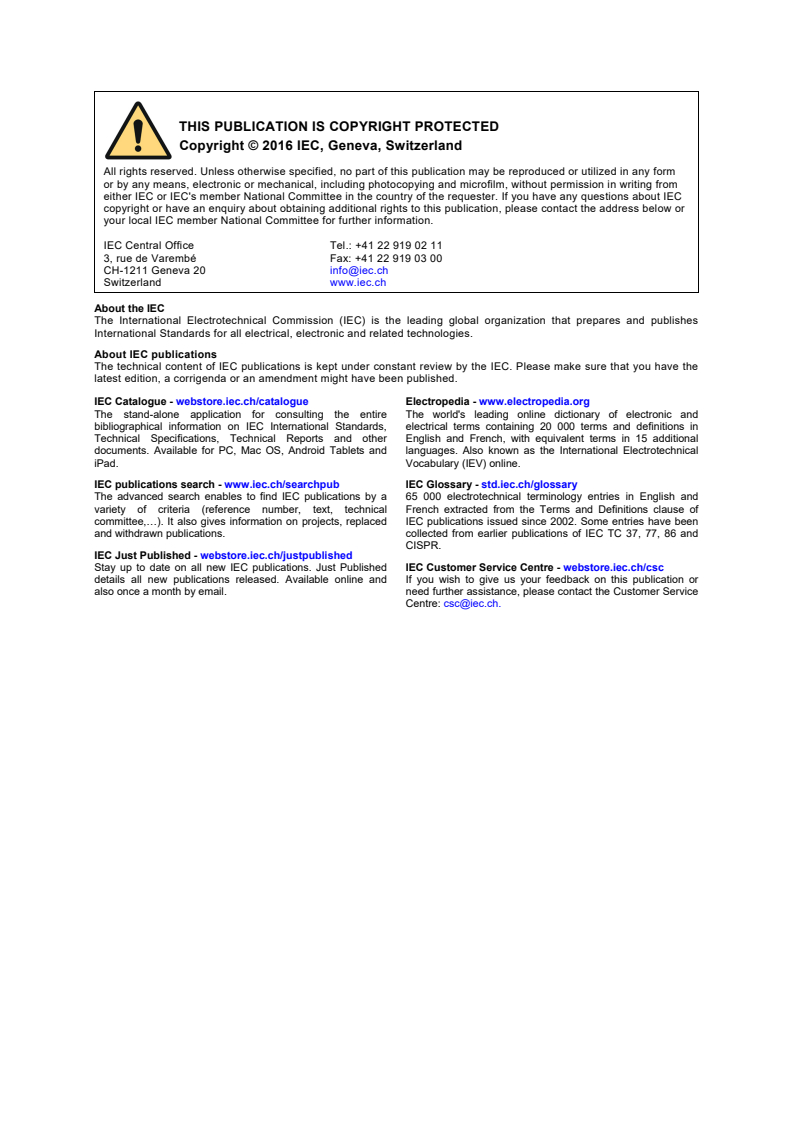

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.

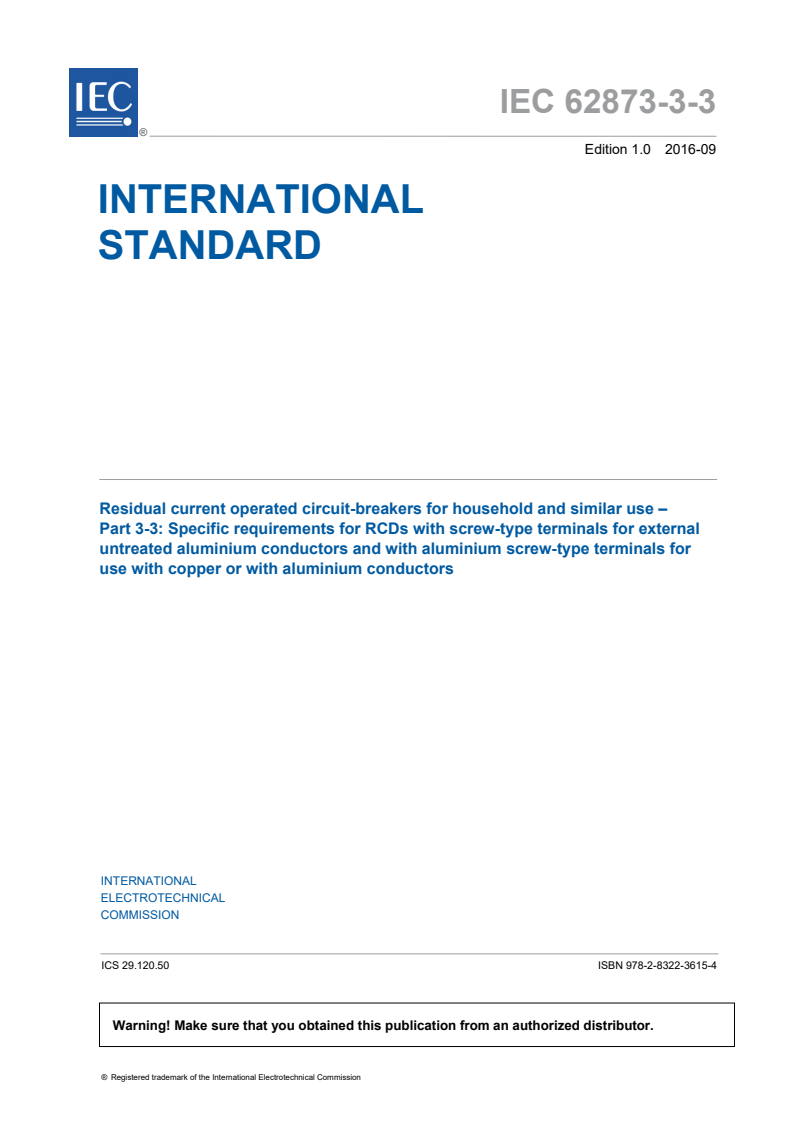

IEC 62873-3-3 ®
Edition 1.0 2016-09
INTERNATIONAL
STANDARD
Residual current operated circuit-breakers for household and similar use –

Part 3-3: Specific requirements for RCDs with screw-type terminals for external

untreated aluminium conductors and with aluminium screw-type terminals for

use with copper or with aluminium conductors

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.120.50 ISBN 978-2-8322-3615-4

– 2 – IEC 62873-3-3:2016 © IEC 2016

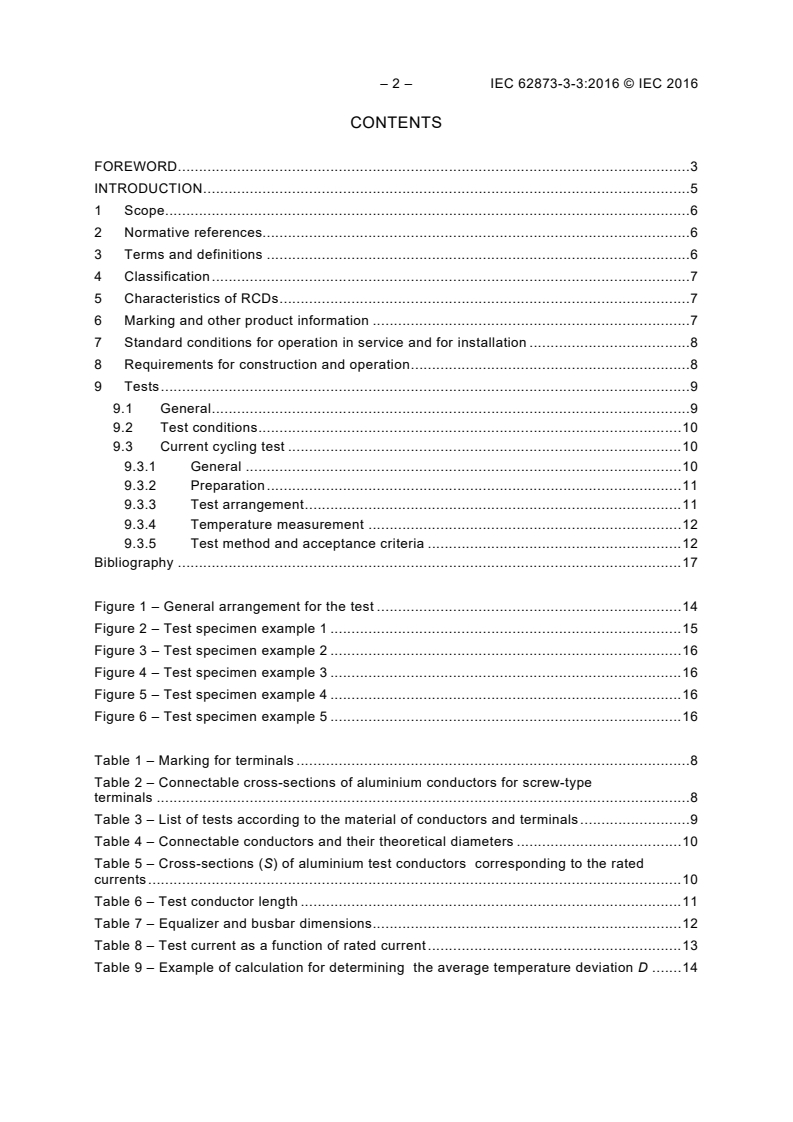

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references. 6
3 Terms and definitions . 6
4 Classification . 7
5 Characteristics of RCDs . 7
6 Marking and other product information . 7
7 Standard conditions for operation in service and for installation . 8
8 Requirements for construction and operation . 8
9 Tests . 9
9.1 General . 9
9.2 Test conditions . 10
9.3 Current cycling test . 10
9.3.1 General . 10
9.3.2 Preparation . 11
9.3.3 Test arrangement . 11
9.3.4 Temperature measurement . 12
9.3.5 Test method and acceptance criteria . 12
Bibliography . 17

Figure 1 – General arrangement for the test . 14
Figure 2 – Test specimen example 1 . 15
Figure 3 – Test specimen example 2 . 16
Figure 4 – Test specimen example 3 . 16
Figure 5 – Test specimen example 4 . 16
Figure 6 – Test specimen example 5 . 16

Table 1 – Marking for terminals . 8
Table 2 – Connectable cross-sections of aluminium conductors for screw-type
terminals . 8
Table 3 – List of tests according to the material of conductors and terminals . 9
Table 4 – Connectable conductors and their theoretical diameters . 10
Table 5 – Cross-sections (S) of aluminium test conductors corresponding to the rated
currents . 10
Table 6 – Test conductor length . 11
Table 7 – Equalizer and busbar dimensions . 12
Table 8 – Test current as a function of rated current . 13
Table 9 – Example of calculation for determining the average temperature deviation D . 14

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RESIDUAL CURRENT OPERATED CIRCUIT-BREAKERS
FOR HOUSEHOLD AND SIMILAR USE –

Part 3-3: Specific requirements for RCDs with screw-type terminals for
external untreated aluminium conductors and with aluminium screw-type
terminals for use with copper or with aluminium conductors

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62873-3-3 has been prepared by subcommittee 23E: Circuit
breakers and similar equipment for household use, of IEC technical committee 23: Electrical
accessories.
The text of this standard is based on the following documents:
FDIS Report on voting
23E/966/FDIS 23E/984/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – IEC 62873-3-3:2016 © IEC 2016
A list of all parts of the IEC 62873 series published under the general title Residual current
operated circuit-breakers for household and similar use can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

INTRODUCTION
This document is part of the series described in the outline document IEC 62873-1.

– 6 – IEC 62873-3-3:2016 © IEC 2016
RESIDUAL CURRENT OPERATED CIRCUIT-BREAKERS
FOR HOUSEHOLD AND SIMILAR USE –

Part 3-3: Specific requirements for RCDs with screw-type terminals for
external untreated aluminium conductors and with aluminium screw-type
terminals for use with copper or with aluminium conductors

1 Scope
This part of IEC 62873 applies to RCDs equipped with screw-type terminals of copper – or of
alloys containing at least 58 % of copper (if worked cold) or at least 50 % of copper (if worked
otherwise), or of other metal or suitably coated metal, no less resistant to corrosion than
copper and having mechanical properties no less suitable – for use with untreated aluminium
conductors, or with screw-type terminals of aluminium material for use with copper or
aluminium conductors.
This part of IEC 62873 cannot be used alone but it is intended to be applied together with an
RCD product standard (IEC 61008-1 or IEC 61009-1) if an RCD is equipped with screw-type
terminals for external untreated aluminium conductors and with aluminium screw-type
terminals for use with copper or with aluminium conductors.
In this part of IEC 62873, copper-clad and nickel-clad aluminium conductors are considered
as aluminium conductors.
NOTE In AT, AU and DE, the use of aluminium screw-type terminals for use with copper conductors is not
allowed.
– In AT and DE, terminals for aluminium conductors only are not allowed;
– In ES, the use of aluminium conductors is not allowed for final circuits in household and similar installations
e.g. offices, shops;
– In DK, the minimum cross-sectional area for aluminium conductors is 16 mm .
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61008-1, Residual current operated circuit-breakers without integral overcurrent
protection for household and similar uses (RCCBs) – Part 1: General rules
IEC 61009-1, Residual current operated circuit-breakers with integral overcurrent protection
for household and similar uses (RCBOs) – Part 1: General rules
IEC 62873-2, Residual current operated circuit-breakers for household and similar use –
Part 2: Residual current devices (RCDs) – Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62873-2 and the
following apply.
3.1
treated conductor
contact area of a conductor that has had its oxide layer on the outside strands scraped away
and/or has had a compound added to improve connectability and/or prevent corrosion
3.2
untreated conductor
unprepared conductor
conductor which has been cut and the insulation of which has been removed for insertion into
a terminal
Note 1 to entry: A conductor, the shape of which is arranged for introduction into a terminal or the strands of
which are twisted to consolidate the end, is considered to be an unprepared conductor.
[SOURCE: IEC 60050-442:1998, 442-01-26]
3.3
equalizer
arrangement used in the test loop to ensure an equipotentiality point and uniform current
density in a stranded conductor, without adversely affecting the temperature of the
conductor(s)
3.4
reference conductor
continuous length of the same type and size conductor as that used in the terminal unit under
test and connected in the same series circuit, which enables the reference temperature and,
if required, reference resistance to be determined
3.5
stability factor
Sf
measure of temperature stability of a terminal unit during the current cycling test
4 Classification
Clause 4 of the RCD product standard applies.
5 Characteristics of RCDs
Clause 5 of the RCD product standard applies.
6 Marking and other product information
In addition to Clause 6 of the RCD product standard, the following requirements apply.
The terminal marking defined in Table 1 shall be marked on the RCD, near the terminals.
The other information concerning the number of conductors, the screw torque values (if
different from Table 11 of the RCD product standard) and the cross-sections
...
