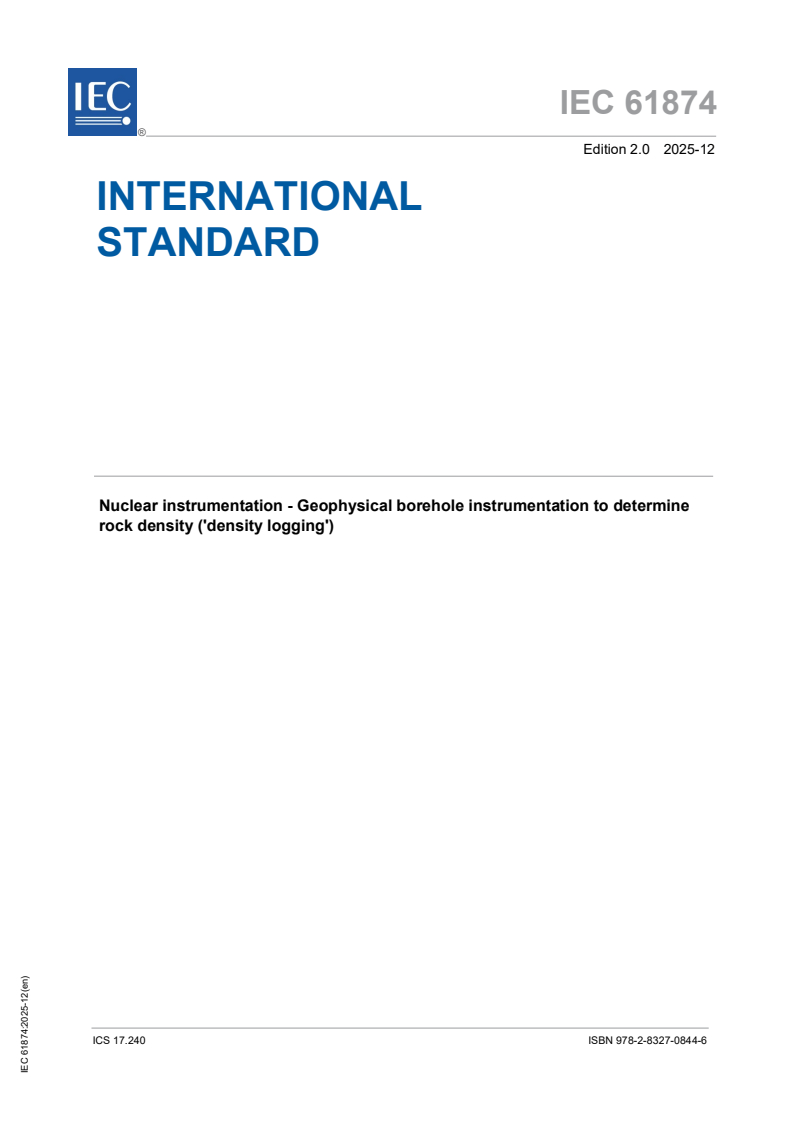

IEC 61874:2025

IEC 61874 ®
Edition 2.0 2025-12
INTERNATIONAL
STANDARD
Nuclear instrumentation - Geophysical borehole instrumentation to determine
rock density ('density logging')

ICS 17.240  ISBN 978-2-8327-0844-6

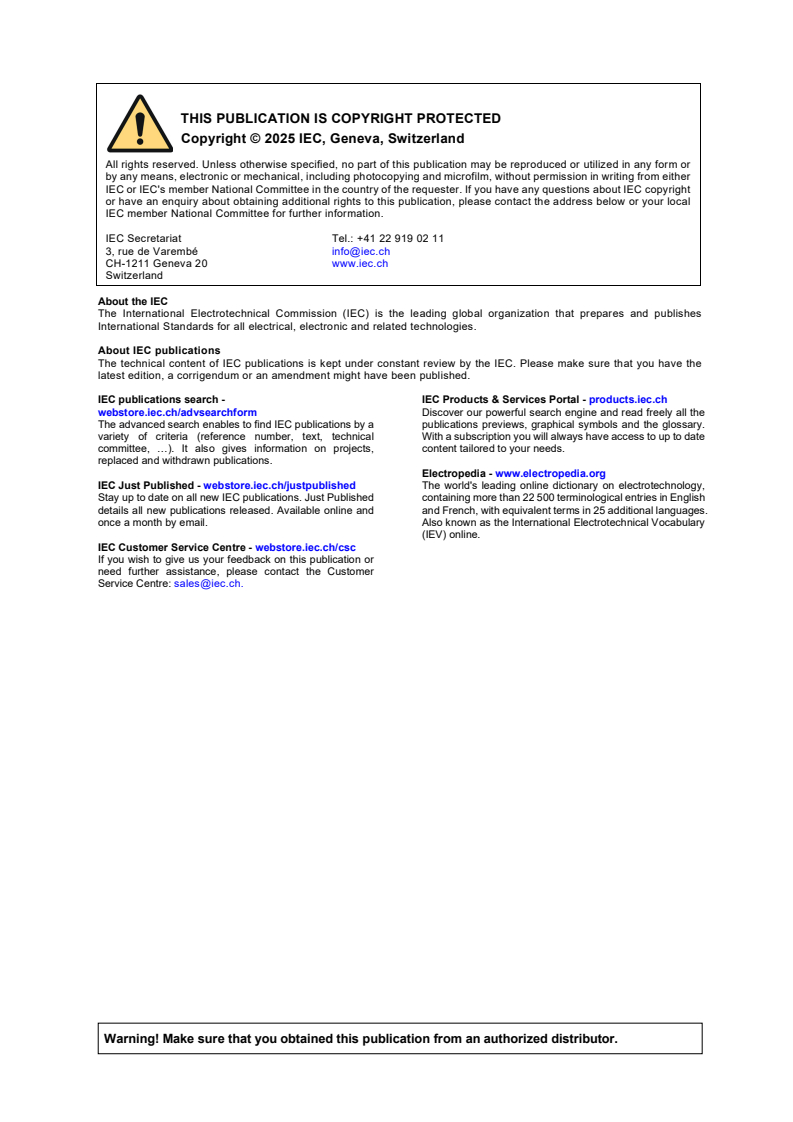

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a
publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: sales@iec.ch.
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Equipment . 7
4.1 General . 7
4.2 Logging probe . 8
4.2.1 General. 8
4.2.2 Density eccentric device . 8
4.2.3 Gamma ray source . 8
4.2.4 Gamma ray detector . 8
4.2.5 Shielding and collimator. 8
4.3 Hoisting system and depth measuring system . 8
4.3.1 Hoisting system . 8
4.3.2 Depth measuring system . 8
4.4 Surface assembly . 9
4.4.1 General. 9
4.4.2 Data acquisition . 9
4.4.3 Data display . 9
4.4.4 Power assembly . 9
5 General requirements. 9
5.1 Design requirements . 9
5.2 Operational requirements . 10
5.2.1 General. 10
5.2.2 Time constant . 10
τ
5.2.3 Logging speed . 10
6 Mechanical and environmental performance requirements . 10
7 Measurement errors . 11
8 Operating time requirements . 11
9 Power supply requirements . 12
10 Mechanical and environmental performance tests . 12
10.1 Temperature and pressure test . 12
10.2 Vibration test . 12
10.3 Continuous running time test . 13
11 Functional tests . 13
11.1 Calibration . 13
11.2 Pre- and post-logging operation checks . 13
11.2.1 Pre-logging checks. 13
11.2.2 Post-logging checks . 13
12 Safety requirements . 14
12.1 Electrical safety requirements . 14
12.2 Radiation safety requirements . 14
13 Characteristics to be specified in the operation and maintenance documentation
or certificate of the equipment . 14

Table 1 – Operating and test conditions . 10
Table 2 – Environmental conditions for surface assembly . 11

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Nuclear instrumentation -
Geophysical borehole instrumentation to determine rock density ("density
logging")
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 61874 has been prepared by IEC technical committee 45: Nuclear instrumentation. It is an
International Standard.
This second edition cancels and replaces the first edition published in 1998. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Clause 2: updating of reference documents;
b) Clause 3: revision of the terms and definitions;
c) Clause 4: revision of the composition of the equipment;
d) Subclause 5.1.2: addition of the outside diameters of borehole probes;
e) Subclause 5.2.1: revision of the time constant;
f) Subclauses 6.1, 6.2, 6.3, and 6.6: revision of the mechanical and environmental
performance requirements;
g) Subclause 8.2: revision of the operating time requirements;
h) Clause 10: addition of the mechanical and environmental performance test methods;
i) Subclause 11.2: addition of the pre- and post-logging operation checks;
j) Clause 12: revision of the safety requirements;
k) Clause 13: addition of the characteristics to be specified in the operation and maintenance
documentation or certificate of the equipment.
The text of this International Standard is based on the following documents:
Draft Report on voting
45/1004/CDV 45/1014/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
– reconfirmed,
– withdrawn, or
– revised.
1 Scope
This document applies to equipment consisting of:
– a borehole logging probe equipped with a collimated radioisotope (gamma) source (during
the actual measurements only) and a detector unit to measure scattered gamma radiation;
– a hoisting system and depth measuring system;
– other instruments and devices (power supply, pulse converter/amplifier, ratemeter, recorder,
signal processing and readout units).
This document defines the terminology, specifies the types of apparatus, design and general
technical requirements, specific radiation performance, electrical, mechanical, safe and
environmental performance requirements. It also defines test and calibration procedures and
covers electrical safety and radiation protection issues. Further, it gives recommendations
about items included in the manufacturer's operation and maintenance documentation (or
certificate).
The purpose of this document is to specify design requirements and performance
characteristics of nuclear instrumentation used in boreholes to determine bulk rock density in
situ. With suitable response charts the measurements can be equated to rock lithology and
porosity.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60050-395, International Electrotechnical Vocabulary (IEV) - Part 395: Nuclear
instrumentation - Physical phenomena, basic concepts, instruments, systems, equipment and
detectors
IEC 60359, Electrical and electronic measurement equipment - Expression of performance
IEC 61010-1, Safety requirements for electrical equipment for measurement, control, and
laboratory use - Part 1: General requirements
ISO 2919, Radiological protection - Sealed radioactive sources - General requirements and
classification
IAEA Safety Standards Series No.SSG-57, Radiation Safety in Well Logging
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-395,
IEC 60359 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
– IEC Electropedia: available at https://www.electropedia.org/
– ISO Online browsing platform: available at https://www.iso.org/obp
3.1
density logging
irradiation of the rock formations surrounding the borehole with a constant flux of medium
energy gamma rays from a sealed radioisotope source and counting the number and energy of
scattered gamma rays that reach detectors positioned at different distances
Note 1 to entry: The measurements are carried out by moving the source-detector assembly (i.e. logging probe)
along the borehole wall.
Note 2 to entry: Density logging generally includes single-detector density logging, compensated density logging
and litho-density logging.
Note 3 to entry: Single-detector density logging means that there is only one detector in the density logging.
Note 4 to entry: Compensated density logging means that there are two or more detectors in the density logging.
The data from two or more detectors can compensate for the influence of mud, mud cake and other wellbore
environmental factors on density measurements.
Note 5 to entry: Litho-density logging is an improvement and extension of density logging. In addition to recording
the density of the rock, it also measures the photoelectric absorption cross section index Pe of the formation, and
Pe is related to the lithology. During logging, the lower energy and higher energy parts of scattered gamma rays are
recorded by downhole instruments. The intensity of scattered gamma rays in the high-energy part depends on the
density; the low energy part is mainly related to lithology, but also related to density, and Pe can be obtained after
treatment.
3.2
working range
range of bulk density of rocks in which the measurements are carried out with specified
accuracy
3.3
rated operating conditions
set of working range operating characteristics for all influence quantities within which the
instrument specified errors are maintained
3.4
rated operating range
whole of working ranges for quantities to be measured within which the performance of the
apparatus is specified
3.5
basic error
error determined under test conditions
3.6
test conditions
set of influence quantity values and parameters with specified variation limits at which the
calibration is carried out
3.7
operating error
error of a performance characteristic which is obtained at any point within the rated operating
conditions
3.8
intrinsic error
error of a measuring instrume
...
