EN 61757-1:2012

SLOVENSKI STANDARD
01-oktober-2012
1DGRPHãþD
SIST EN 61757-1:2001
2SWLþQD]D]QDYDODGHO5RGRYQDVSHFLILNDFLMD,(&
Fibre optic sensors - Part 1: Generic specification (IEC 61757-1:2012)
LWL-Sensoren - Teil 1: Fachgrundspezifikation (IEC 61757-1:2012)
Capteurs a fibres optiques - Partie 1: Spécification générique (CEI 61757-1:2012)
Ta slovenski standard je istoveten z: EN 61757-1:2012
ICS:
33.180.99 'UXJDRSUHPD]DRSWLþQD Other fibre optic equipment
YODNQD
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61757-1
NORME EUROPÉENNE
July 2012
EUROPÄISCHE NORM
ICS 33.180.99 Supersedes EN 61757-1:1999

English version
Fibre optic sensors -
Part 1: Generic specification
(IEC 61757-1:2012)
Capteurs a fibres optiques -  LWL-Sensoren -
Partie 1: Spécification générique Teil 1: Fachgrundspezifikation
(CEI 61757-1:2012) (IEC 61757-1:2012)

This European Standard was approved by CENELEC on 2012-06-19. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61757-1:2012 E

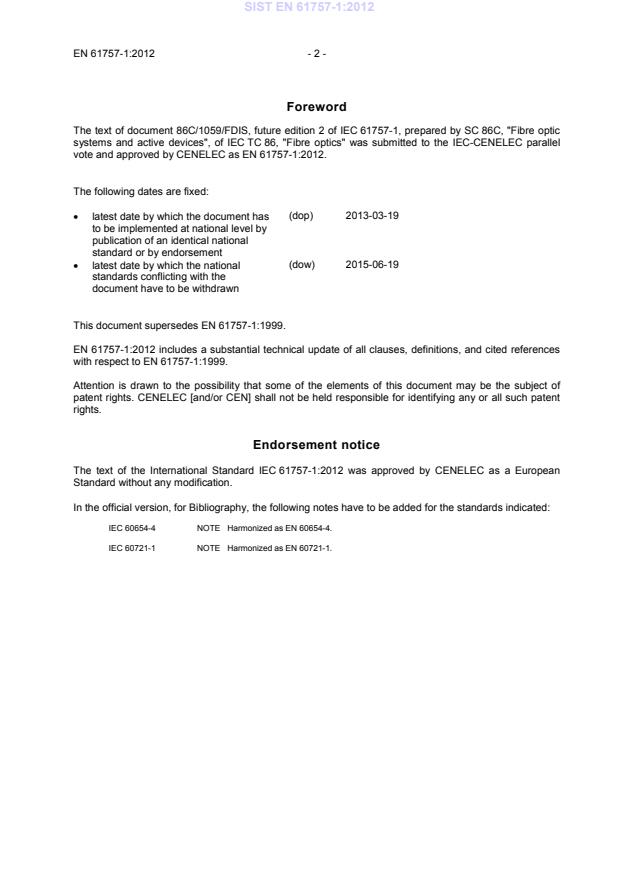

Foreword
The text of document 86C/1059/FDIS, future edition 2 of IEC 61757-1, prepared by SC 86C, "Fibre optic
systems and active devices", of IEC TC 86, "Fibre optics" was submitted to the IEC-CENELEC parallel
vote and approved by CENELEC as EN 61757-1:2012.

The following dates are fixed:
(dop) 2013-03-19
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2015-06-19

standards conflicting with the
document have to be withdrawn
This document supersedes EN 61757-1:1999.
with respect to EN 61757-1:1999.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
Endorsement notice
The text of the International Standard IEC 61757-1:2012 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60654-4 NOTE  Harmonized as EN 60654-4.
IEC 60721-1 NOTE  Harmonized as EN 60721-1.

- 3 - EN 61757-1:2012
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60050 - International Electrotechnical Vocabulary - -
(IEV)
IEC 60060-1 - High-voltage test techniques - EN 60060-1 -
Part 1: General definitions and test
requirements
IEC 60068-1 - Environmental testing - EN 60068-1 -
Part 1: General and guidance
IEC 60068-2-1 - Environmental testing - EN 60068-2-1 -
Part 2-1: Tests - Test A: Cold

IEC 60068-2-2 - Environmental testing - EN 60068-2-2 -
Part 2-2: Tests - Test B: Dry heat

IEC 60068-2-5 - Environmental testing - EN 60068-2-5 -
Part 2-5: Tests - Test Sa: Simulated solar
radiation at ground level and guidance for
solar radiation testing
IEC 60068-2-6 - Environmental testing - EN 60068-2-6 -
Part 2-6: Tests - Test Fc: Vibration
(sinusoidal)
IEC 60068-2-10 - Environmental testing - EN 60068-2-10 -
Part 2-10: Tests - Test J and guidance: Mould
growth
IEC 60068-2-11 - Basic Environmental testing procedures - EN 60068-2-11 -
Part 2: Tests - Test Ka: Salt mist

IEC 60068-2-13 - Basic Environmental testing procedures - EN 60068-2-13 -
Part 2: Tests - Test M: Low air pressure

IEC 60068-2-14 - Environmental testing - EN 60068-2-14 -
Part 2-14: Tests - Test N: Change of
temperature
IEC 60068-2-27 - Environmental testing - EN 60068-2-27 -
Part 2-27: Tests - Test Ea and guidance:
Shock
IEC 60068-2-30 - Environmental testing - EN 60068-2-30 -
Part 2-30: Tests - Test Db: Damp heat, cyclic
(12 h + 12 h cycle)
IEC 60068-2-42 - Environmental testing - EN 60068-2-42 -
Part 2-42: Tests - Test Kc: Sulphur dioxide
test for contacts and connections

IEC 60068-2-43 - Environmental testing - EN 60068-2-43 -
Part 2-43: Tests - Test Kd: Hydrogen sulphide
test for contacts and connections

Publication Year Title EN/HD Year
IEC 60068-2-78 - Environmental testing - EN 60068-2-78 -
Part 2-78: Tests - Test Cab: Damp heat,
steady state
IEC 60079-28 - Explosive atmospheres - EN 60079-28 -
Part 28: Protection of equipment and
transmission systems using optical radiation

IEC 60529 - Degrees of protection provided by enclosures EN 60529 -
(IP Code)
IEC 60695-11-5 - Fire hazard testing - EN 60695-11-5 -
Part 11-5: Test flames - Needle-flame test
method - Apparatus, confirmatory test
arrangement and guidance
IEC 60793-1-1 - Optical fibres - EN 60793-1-1 -
Part 1-1: Measurement methods and test
procedures - General and guidance

IEC 60793-1-54 - Optical fibres - EN 60793-1-54 -
Part 1-54: Measurement methods and test
procedures - Gamma irradiation

IEC 60793-2 - Optical fibres - EN 60793-2 -
Part 2: Product specifications - General

IEC 60794-1-1 - Optical fibre cables - EN 60794-1-1 -
Part 1-1: Generic specification - General

IEC 60794-1-2 - Optical fibre cables - EN 60794-1-2 -
Part 1-2: Generic specification - Basic optical
cable test procedures
IEC 60825-1 - Safety of laser products - EN 60825-1 -
Part 1: Equipment classification and
requirements
IEC 60874-1 - Fibre optic interconnecting devices and EN 60874-1 -
passive components - Connectors for optical
fibres and cables -
Part 1: Generic specification
IEC 61000-4-2 - Electromagnetic compatibility (EMC) - EN 61000-4-2 -
Part 4-2: Testing and measurement
techniques - Electrostatic discharge immunity
test
IEC 61000-4-3 - Electromagnetic compatibility (EMC) - EN 61000-4-3 -
Part 4-3: Testing and measurement
techniques - Radiated, radio-frequency,
electromagnetic field immunity test

IEC 61000-4-4 - Electromagnetic compatibility (EMC) - EN 61000-4-4 -
Part 4-4: Testing and measurement
techniques - Electrical fast transient/burst
immunity test
IEC 61000-4-5 - Electromagnetic compatibility (EMC) - EN 61000-4-5 -
Part 4-5: Testing and measurement
techniques - Surge immunity test

IEC 61300 Series Fibre optic interconnecting devices and EN 61300 Series
passive components - Basic test and
measurement procedures
- 5 - EN 61757-1:2012
Publication Year Title EN/HD Year
IEC 61300-2-18 - Fibre optic interconnecting devices and EN 61300-2-18 -
passive components - Basic test and
measurement procedures -
Part 2-18: Tests - Dry heat - High temperature
endurance
IEC 61300-2-22 - Fibre optic interconnecting devices and EN 61300-2-22 -
passive components - Basic test and
measurement procedures -
Part 2-22: Tests - Change of temperature

IEC 61300-2-34 - Fibre optic interconnecting devices and EN 61300-2-34 -
passive components - Basic test and
measurement procedures -
Part 2-34: Tests - Resistance to solvents and
contaminating fluids of interconnecting
components and closures
IEC 61300-2-46 - Fibre optic interconnecting devices and EN 61300-2-46 -
passive components - Basic test and
measurement procedures -
Part 2-46: Tests - Damp heat cyclic

IEC 61300-3-35 - Fibre optic interconnecting devices and EN 61300-3-35 -
passive components - Basic test and
measurement procedures -
Part 3-35: Examinations and measurements -
Fibre optic connector endface visual and
automated inspection
IEC 61753 Series Fibre optic interconnecting devices and EN 61753 Series
passive components performance standard

IEC/TR 61931 - Fibre optic - Terminology - -

IEC/TR 62222 - Fire performance of communication cables - -
installed in buildings
IEC/TR 62283 - Optical fibres - Guidance for nuclear radiation - -
tests
IEC/TR 62362 - Selection of optical fibre cable specifications - -
relative to mechanical, ingress, climatic or
electromagnetic characteristics - Guidance

IEC/TR 62627-01 - Fibre optic interconnecting devices and - -
passive components -
Part 01: Fibre optic connector cleaning
methods
ISO/IEC Guide 98-3 - Uncertainty of measurement - - -
Part 3: Guide to the expression of uncertainty
in measurement (GUM:1995)
ISO/IEC Guide 99 - International vocabulary of metrology - Basic - -
and general concepts and associated terms
(VIM)
IEC 61757-1 ®
Edition 2.0 2012-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Fibre optic sensors –
Part 1: Generic specification
Capteurs à fibres optiques –
Partie 1: Spécification générique

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX V
ICS 33.180.99 ISBN 978-2-83220-090-2

– 2 – 61757-1 © IEC:2012
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 8
4 Quality assurance . 15
5 Test and measurement procedures . 15
5.1 General . 15
5.2 Standard conditions for testing . 16
5.3 Test and measurement equipment requirements . 16
5.4 Visual inspection . 16
5.5 Dimensions . 16
5.6 Metrological properties . 16
5.6.1 General . 16
5.6.2 Metrological parameters . 17
5.7 Optical tests . 17
5.7.1 General . 17
5.7.2 Optical power . 17
5.7.3 Nominal wavelength and appropriate spectral characteristics . 17
5.7.4 State of polarization . 17
5.7.5 Fibre connector performance . 17
5.8 Electrical tests . 18
5.8.1 General . 18
5.8.2 Parameters and test procedures . 18
5.8.3 Voltage stress . 18
5.9 Mechanical tests . 18
5.9.1 General . 18
5.9.2 Parameters and test procedures . 19
5.10 Climatic and environmental tests . 19
5.10.1 General . 19
5.10.2 Parameters and test procedures . 19
5.11 Susceptibility to ambient light . 20
5.12 Resistance to solvents and contaminating fluids . 20
6 Classification . 20
6.1 General . 20
6.2 Measurand . 20
6.2.1 Presence/absence of objects or features . 20
6.2.2 Position . 21
6.2.3 Rate of positional change . 21
6.2.4 Flow . 21
6.2.5 Temperature . 21
6.2.6 Force x directional vector . 21
6.2.7 Force per area . 22
6.2.8 Strain . 22
6.2.9 Electromagnetic quantities . 22

61757-1 © IEC:2012 – 3 –
6.2.10 Ionizing and nuclear radiation . 22
6.2.11 Other physical properties of materials . 22
6.2.12 Composition and specific chemical quantities . 23
6.2.13 Particulates . 23
6.2.14 Imaging . 23
6.3 Transduction principle . 23
6.3.1 Active generation of light . 23
6.3.2 Atom-field interaction . 23
6.3.3 Coherence modulation . 23
6.3.4 Intensity modulation . 23
6.3.5 Optical spectrum modulation . 23
6.3.6 Phase modulation . 24
6.3.7 Polarization modulation . 24
6.4 Spatial distribution . 24
6.5 Interface level . 24
7 Marking, labelling, packaging . 24
7.1 Marking of component . 24
7.2 Marking of sealed package . 24
8 IEC type designation . 24
9 Safety aspects . 25
9.1 General . 25
9.2 Personal safety . 25
9.3 Safety in explosive environment . 25
10 Ordering information . 25
11 Drawings included in the sectional, family and detail specifications . 25
Annex A (informative) Examples of fibre optic sensors . 26
Bibliography . 34

Figure 1 – Fibre optic sensor configuration with a passive sensing element and
separate fibre leads for optical input and output . 14
Figure 2 – Fibre optic sensor configuration with an active sensing . 14
Figure 3 – Fibre optic sensor configuration with a passive sensing element and one
fibre lead for optical input and output; signal separation is realized by a Y-splitter . 15

– 4 – 61757-1 © IEC:2012
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC SENSORS –
Part 1: Generic specification
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61757-1 has been prepared by subcommittee 86C: Fibre optic
systems and active devices, of IEC technical committee 86: Fibre optics.
This second edition cancels and replaces the first edition published in 1998 and constitutes a
technical revision.
This edition includes a substantial technical update of all clauses, definitions, and cited
references with respect to the previous edition.
The text of this standard is based on the following documents:
FDIS Report on voting
86C/1059/FDIS 86C/1066/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

61757-1 © IEC:2012 – 5 –
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 61757 series, published under the general title Fibre optic
sensors, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
considered to be useful for the correct
that it contains colours which are
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – 61757-1 © IEC:2012
FIBRE OPTIC SENSORS –
Part 1: Generic specification
1 Scope
This part of IEC 61757 is a generic specification covering optical fibres, components and sub-
assemblies as they pertain specifically to fibre optic sensing applications. It has been
designed to be used as a common working and discussion tool by the vendor of components
and subassemblies intended to be integrated in fibre optic sensors, as well as by designers,
manufacturers and users of fibre optic sensors independent of any application or installation.
The objective of this generic specification is to define, classify and provide the framework for
specifying fibre optic sensors, and their specific components and subassemblies. The
requirements of this standard apply to all related sectional, family, and detail specifications.
Sectional specifications will contain requirements specific to sensors for particular quantities
subject to measurement. Within each sectional specification, family and detail specifications
contain requirements for a particular style or variant of a fibre optic sensor of that sectional
specification.
A fibre optic sensor contains an optical or optically powered sensing element in which the
information is created by reaction of light to a measurand. The sensing element can be the
fibre itself or an optically powered element inserted along the optical path. In a fibre optic
sensor, one or more light parameters are directly or indirectly modified by the measurand
somewhere in the optical path, contrary to an optical data link where the information is merely
transmitted from the transmitter to the receiver.
Generic tests or measurement methods are defined for specified attributes. Where possible,
these definitions are by reference to an IEC standard – otherwise the test or measurement
method is outlined in the relevant sectional, family and/or detail specification.
Annex A gives examples of fibre optic sensors to better illustrate the classification scheme.
The examples given are illustrative only and are not limitative, nor do they constitute a
recommendation or endorsement of a particular transduction principle.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60050, International Electrotechnical Vocabulary
IEC 60060-1, High-voltage test techniques – Part 1: General definitions and test requirements
IEC 60068-1 Environmental testing – Part 1: General and guidance
IEC 60068-2-1, Environmental testing – Part 2-1: Tests – Test A: Cold
IEC 60068-2-2, Environmental testing – Part 2-2: Tests – Test B: Dry heat

61757-1 © IEC:2012 – 7 –
IEC 60068-2-5, Environmental testing – Part 2-5: Tests – Test Sa: Simulated solar radiation at
ground level and guidance for solar radiation testing
IEC 60068-2-6, Environmental testing – Part 2-6: Tests – Test Fc: Vibration (sinusoidal)
IEC 60068-2-10, Environmental testing – Part 2-10: Tests – Test J and guidance: Mould
growth
IEC 60068-2-11, Basic environmental testing procedures – Part 2-11: Tests – Test Ka: Salt
mist
IEC 60068-2-13, Basic environmental testing procedures – Part 2-13: Tests – Test M: Low air
pressure
IEC 60068-2-14, Environmental testing – Part 2-14: Tests – Test N: Change of temperature
IEC 60068-2-27, Environmental testing – Part 2-27: Tests – Test Ea and guidance: Shock
IEC 60068-2-30, Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic (12 h +
12 h cycle)
IEC 60068-2-42, Environmental testing – Part 2-42: Tests – Test Kc: Sulphur dioxide test for
contacts and connections
IEC 60068-2-43, Environmental testing – Part 2-43: Tests – Test Kd: Hydrogen sulphide test
for contacts and connections
IEC 60068-2-78, Environmental testing – Part 2-78: Tests – Cab: Damp heat, steady state
IEC 60079-28, Explosive atmospheres – Part 28: Protection of equipment and transmission
systems using optical radiation
IEC 60529, Degrees of protection provided by enclosures (IP Code)
IEC 60695-11-5, Fire hazard testing – Part 11-5: Test flames – Needle-flame test method –
Apparatus, confirmatory test arrangement and guidance
IEC 60793-1-1, Optical fibres – Part 1-1: Measurement methods and test procedures –
General and guidance
IEC 60793-1-54, Optical fibres – Part 1-54: Measurement methods and test procedures -
Gamma irradiation
IEC 60793-2, Optical fibres – Part 2: Product specifications – General
IEC 60794-1-1, Optical fibre cables – Part 1: Generic specification – General
IEC 60794-1-2, Optical fibre cables – Part 1-2: Generic specification – Basic optical cable test
procedures
IEC 60825-1, Safety of laser products – Part 1: Equipment classification and requirements
IEC 60874-1, Fibre optic interconnecting devices and passive components – Connectors for
optical fibres and cables – Part 1: Generic specification
IEC 61000-4-2, Electromagnetic compatibility (EMC) – Part 4-2: Testing and measurement
techniques – Electrostatic discharge immunity test

– 8 – 61757-1 © IEC:2012
IEC 61000-4-3, Electromagnetic compatibility (EMC) – Part 4-3: Testing and measurement
techniques – Radiated, radio-frequency, electromagnetic field immunity test
IEC 61000-4-4, Electromagnetic compatibility (EMC) – Part 4-4: Testing and measurement
techniques – Electrical fast transient/burst immunity test
IEC 61000-4-5, Electromagnetic compatibility (EMC) – Part 4-5: Testing and measurement
techniques – Surge immunity test
IEC 61300 (all parts), Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures
IEC 61300-2-18, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-18: Tests – Dry heat – High temperature endurance
IEC 61300-2-22, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-22: Tests – Change of temperature
IEC 61300-2-34, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-34: Tests – Resistance to solvents and contaminating
fluids of interconnecting components and closures
IEC 61300-2-46, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-46: Tests – Damp heat, cyclic
IEC 61300-3-35, Fibre optic interconnecting devices and passive components –Basic test and
measurement procedures – Part 3-35: Examinations and measurements – Fibre optic
connector endface visual and automated inspection
IEC 61753 (all parts), Fibre optic interconnecting devices and passive components
performance standard
IEC/TR 61931, Fibre optic – Terminology
IEC/TR 62222, Fire performance of communication cables installed in buildings
IEC/TR 62283, Optical fibres – Guidance for nuclear radiation tests
IEC/TR 62362, Selection of optical fibre cable specifications relative to mechanical, ingress,
climatic or electromagnetic characteristics – Guidance
IEC/TR 62627-01, Fibre optic interconnecting devices and passive components – Part 01: Fibre
optic connector cleaning methods
ISO/IEC Guide 98-3, Uncertainty of measurement – Part 3: Guide to the expression of
uncertainty in measurement (GUM:1995)
ISO/IEC Guide 99, International vocabulary of metrology — Basic and general concepts and
associated terms (VIM)
3 Terms and definitions
For the purpose of this International Standard, the definitions of IEC 60050 (IEV),
IEC/TR 61931, ISO/IEC Guide 99 (VIM), and the following apply:

61757-1 © IEC:2012 – 9 –
3.1
accuracy
quality which characterizes the ability of a measuring instrument [of a fibre optic sensor] to
provide an indicated value close to a true value of the measurand
Note 1 to entry: This term is used in the "true value" approach. This is a value that would be obtained by a
perfect measurement.
Note 2 to entry: Accuracy is all the better when the indicated value is closer to the corresponding true value.
[SOURCE: IEC 60050-311:2001, 311-06-08, modified]
3.2
analogue signal interface
signal interface which provides analogue output signals in a form directly usable for control or
measurement purposes, and which is generally electrical
Note 1 to entry: Output schemes should preferably comply with existing interface standards such as those existing
for electrical analogue signals. Output schemes can be, for example, 4-20 mA, 0-20 mA, 0-5V, etc. A fibre optic
sensor with a photodetector or other square-law detector, or with integrated signal processing electronics is a
representative application example.
3.3
characteristic curve / calibration curve
expression of the relation between indication and corresponding measured quantity value
[SOURCE: ISO/IEC Guide 99]
Note 1 to entry: A characteristic curve / calibration curve expresses a one-to-one relation that does not supply a
complete measurement result as it bears no information about the measurement uncertainty.
3.4
communication interface
digital interface of a fibre optic sensor which provides digital output signals in a form directly
usable for control or measurement purposes, or which enables digital communication with
other digital divices (e.g. personal computer)
Note 1 to entry: It is usually designed to a specific standard (e.g. Universal Serial Interface Bus USB, RS-232) and
used for transmitting control and measurement data.
3.5
distributed fibre optic sensor
fibre optic sensor which provides a spatially resolved measurement of a measurand over an
extended region by means of a continuous sensing element
3.6
drift
change in the metrological characteristics of a measuring instrument [and /or fibre optic
sensor], generally slow, continuous, not necessarily in the same direction and not related to a
change in the measurand
3.7
durability
ability of a fibre optic sensor to perform a required function under defined conditions of use
and maintenance, until a limiting state is reached
Note 1 to entry: A limiting state of an item may be characterized by the end of the useful life, unsuitability for any
economic or technological reasons or other relevant factors.
3.8
extrinsic fibre optic sensor
fibre optic sensor in which the characteristics of the light are affected externally to the optical
fibre(s) by the measurand
– 10 – 61757-1 © IEC:2012
3.9
fibre optic sensor
part of a measuring instrument, or measuring chain, which is directly affected by the
measurand and which generates a change in the optical characteristics of an optical fibre
related to the value of the measurand. The optical fibre itself acts as the sensing element or it
includes an optical or optically powered sensing element and may include one or more of the
following (see Figures 1, 2, and 3):
– optical fibre lead;
– signal conditioning.
3.10
gauge length / measurement basis
length of the parallel portion of the measured object over which the fibre optic sensor gathers
information
[SOURCE: COST Guideline for Use of Fibre Optic Sensors]
Note 1 to entry: For example, if the sensor is only anchored at two fixed points L cm apart, then the gauge length is
L. On the other hand, if a sensor of length l is continuously-fixed in or to a measured object of length L, then the
actual gauge length depends on the method of attachment to the measured object and is a function of the
mechanical properties of both the sensor and its surrounding; it is generally longer than l but shorter than L.
Note 2 to entry: If a user wants to achieve a pre-determined gauge length, he must be very careful in selecting the
procedure by which the sensor is anchored/attached/embedded. In case of continuously-fixed sensors, the fixing
length must exceed the defined gauge length by a few tens of fibre diameter to avoid shear-lag problems at the
edges. In the specific case of fracture or cracks within the gauge length of the sample, the final gauge length must
be calculated then from the gauge length at fracture by subtracting from the latter the elastic portion of the
elongation.
3.11
influence quantity
quantity that, in a direct measurement, does not affect the quantity that is actually measured,
but affects the relation between the indication and the measurement result
[SOURCE: ISO/IEC Guide 99]
3.12
integrating fibre optic sensor
fibre optic sensor which provides a measurement result of a measurand over an extended
region by means of a continuous sensing element of a defined length. The measurand is not
spatially resolved but is integrated or summed over the length of the sensing element.
3.13
intrinsic fibre optic sensor
fibre optic sensor whose sensing element consists of one or more optical fibre(s) in which one
or more characteristics like intensity, phase, polarization, spectrum, wavelength or transit time
of light depend on the measurand
Note 1 to entry: There are a lot of fibre optic sensors where the sensing principle is based on a change in coating
characteristics only (e.g. chemical or RH sensors) or on an interaction between core and cladding (e.g. bending
sensor). They can be defined as indirect intrinsic fibre optic sensors. Direct intrinsic fibre optic sensors are defined
by a direct change of the fibre core characteristics (e.g. Brillouin, Raman or Rayleigh scattering based sensors).
3.14
instrumental measurement uncertainty
component of measurement uncertainty arising from a measuring instrument or measuring
system in use
Note 1 to entry: Instrumental measurement uncertainty is obtained through calibration of a measuring instrument
or measuring system, except for a primary measurement standard for which other means are used.

61757-1 © IEC:2012 – 11 –
Note 2 to entry: Instrumental uncertainty is used in a Type B evaluation of measurement uncertainty according to
ISO/IEC Guide 98-3, Uncertainty of measurement – Part 3: Guide to the expression of uncertainty in measurement
(GUM:1995).
3.15
limiting operating condition / limiting values for operation
extreme operating condition that a measuring instrument or measuring system or a sensing
element [or a fibre optic sensor] is required to withstand without damage, and without
degradation of specified metrological properties, when it is subsequently operated under its
rated operating conditions
[SOURCE: ISO/IEC Guide 99]
Note 1 to entry: Limiting conditions for storage, transport or operation can differ.
Note 2 to entry: Limiting conditions can include limiting values of a quantity being measured and of any influence
quantity.
Note 3 to entry: The limiting values can depend on the duration of their application.
3.16
measurement precision
closeness of agreement between indications or measured quantity values obtained by
replicate measurements on the same or similar objects under specified conditions
[SOURCE: ISO/IEC Guide 99]
Note 1 to entry: Measurement precision is usually expressed numerically by measures of imprecision, such as
standard deviation, variance, or coefficient of variation under the specified conditions of measurement.
Note 2 to entry: The ‘specified conditions’ can be, for example, repeatability conditions of measurement,
intermediate precision conditions of measurement or reproducibility conditions of measurement.
Note 3 to entry: Measurement precision is used to define measurement repeatability, intermediate measurement
precision, and measurement reproducibility.
Note 4 to entry: Sometimes “measurement precision” is erroneously used to mean measurement accuracy.
3.17
measuring interval / measuring range
set of values of quantities of the same kind that can be measured by a given measuring
instrument or measuring system [or fibre optic sensor] with specified instrumental uncertainty,
under defined conditions
[SOURCE: ISO/IEC Guide 99]
3.18
multiple point fibre optic sensor
fibre optic sensor consisting of a number of single point sensors which enables a spatially
resolved measurement of a measurand over an extended region at discrete locations
3.19
optical or optically powered sensing element
device which accepts information in the form of a physical quantity and converts it to
information in the form of an optical quantity, according to a definite law
3.20
optical fibre
filament-shaped waveguide made of dielectric materials for guiding optical waves
[SOURCE: IEC 60050-151:2001, 151-12-35]
For the purpose of this International Standard, the general specifications for optical fibres of
IEC 60793-2 apply.
– 12 – 61757-1 © IEC:2012
Note 1 to entry: Fibre optic sensors based on planar or micro-structured waveguides, or photonic crystal fibres or
multi-core fibres are under consideration and not yet part of this standard.
3.21
optical fibre lead(s)
optical fibre line(s) which connect the sensing element to the optical source and to the optical
receiver
3.22
optical interface
arbitrary point at which the effect of the measurand on the sensing element is optically
defined
Note 1 to enrty: The optical interface represents the raw optical signal for subsequent processing by the user.
Typical attributes for this type of interface would be the wavelength, state of polarization, optical power, and so on.
More detailed specifications would include fibre-optic connector style, optical fibre type, etc.
3.23
optical receiver
device which receives the light affected by the measurand and converts it into a quantity,
generally electric, according to a predetermined law. It may contain one or more photo
detectors, signal conditioners and communication interfaces
3.24
optical source
device which supplies the optical energy required to allow the interaction between the sensing
ele
...
