EN 61970-405:2007

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Schnittstelle für Anwendungsprogramme für Energiemanagementsysteme (EMS-API) -- Teil 405: Übermitteln von Ereignismeldungen (GES)Interface de programmation d'application pour système de gestion d'énergie (EMS-API) -- Partie 405: Evénements génériques et souscriptions (GES)Energy management system application program interface (EMS-API) -- Part 405: Generic Eventing and Subscription (GES)35.200Vmesniška in povezovalna opremaInterface and interconnection equipment29.240.30Krmilna oprema za elektroenergetske sistemeControl equipment for electric power systemsICS:Ta slovenski standard je istoveten z:EN 61970-405:2007SIST EN 61970-405:2008en,de01-januar-2008SIST EN 61970-405:2008SLOVENSKI
STANDARD
EUROPEAN STANDARD EN 61970-405 NORME EUROPÉENNE
EUROPÄISCHE NORM September 2007
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2007 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61970-405:2007 E
ICS 33.200
English version
Energy management system application program interface (EMS-API) -
Part 405: Generic Eventing and Subscription (GES) (IEC 61970-405:2007)
Interface de programmation d'application pour système de gestion d'énergie
(EMS-API) -
Partie 405: Evénements génériques
et souscriptions (GES) (CEI 61970-405:2007)
Schnittstelle für Anwendungsprogramme für Energiemanagementsysteme
(EMS-API) -
Teil 405: Übermitteln
von Ereignismeldungen (GES) (IEC 61970-405:2007)
This European Standard was approved by CENELEC on 2007-09-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

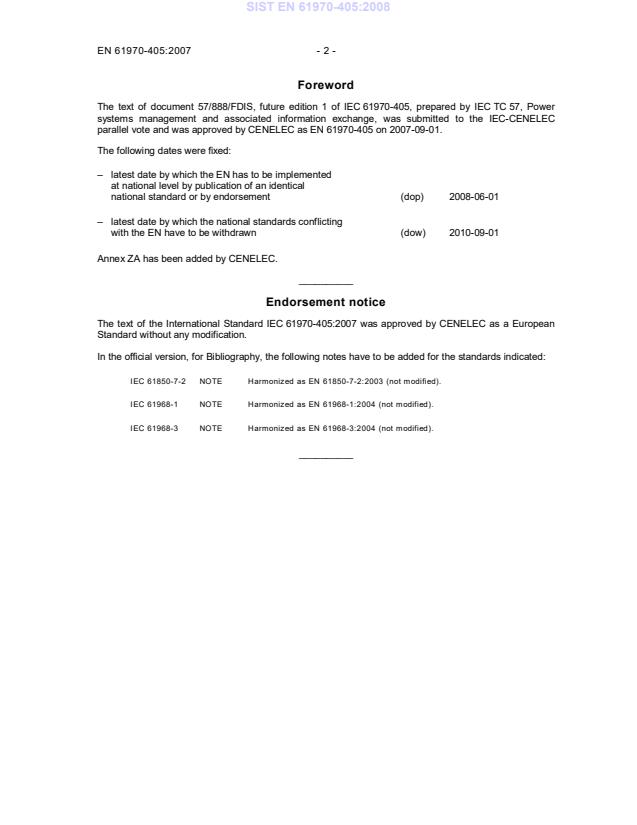

- 2 - Foreword The text of document 57/888/FDIS, future edition 1 of IEC 61970-405, prepared by IEC TC 57, Power systems management and associated information exchange, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 61970-405 on 2007-09-01. The following dates were fixed: – latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement
(dop)
2008-06-01 – latest date by which the national standards conflicting
with the EN have to be withdrawn
(dow)
2010-09-01 Annex ZA has been added by CENELEC. __________ Endorsement notice The text of the International Standard IEC 61970-405:2007 was approved by CENELEC as a European Standard without any modification. In the official version, for Bibliography, the following notes have to be added for the standards indicated: IEC 61850-7-2 NOTE Harmonized as EN 61850-7-2:2003 (not modified). IEC 61968-1 NOTE Harmonized as EN 61968-1:2004 (not modified). IEC 61968-3 NOTE Harmonized as EN 61968-3:2004 (not modified). __________ SIST EN 61970-405:2008

- 3 - EN 61970-405:2007
Annex ZA
(normative)
Normative references to international publications with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE
When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.
Publication Year Title EN/HD Year IEC 61970-1 2005
Energy management system application program interface (EMS-API) -
Part 1: Guidelines and general requirements EN 61970-1 2006
IEC/TS 61970-2 – 1) Energy management system application program interface (EMS-API) -
Part 2: Glossary CLC/TS 61970-2 2005 2)
IEC 61970-301 2003 Energy management system application program interface (EMS-API) -
Part 301: Common Information Model (CIM) Base EN 61970-301 2004
IEC/TS 61970-401 – 1) Energy management system application program interface (EMS-API) -
Part 401: Component interface specification (CIS) framework – –
IEC 61970-402 – 3) Energy management system application program interface (EMS-API) -
Part 402: Component Interface Specification (CIS) - Common services – –
OMG DAIS A&E 2005 Data Acquisition from Industrial Systems section Alarms and Events (DAIS A&E) – –
OMG DAF 2005 Utility Management System (UMS) Data Access Facility (DAF) – –
OPC A&E 2002 OPC Alarms and Events Specification – –
1) Undated reference. 2) Valid edition at date of issue. 3) At draft stage. SIST EN 61970-405:2008

IEC 61970-405Edition 1.0 2007-08INTERNATIONAL STANDARD
Energy management system application program interface (EMS-API) – Part 405: Generic Eventing and Subscription (GES)
INTERNATIONAL ELECTROTECHNICAL COMMISSION UICS 33.200 PRICE CODEISBN 2-8318-9252-XSIST EN 61970-405:2008

– 2 – 61970-405 © IEC:2007(E) CONTENTS FOREWORD.4 INTRODUCTION.6
1 Scope.7 2 Normative references.8 3 Terms and definitions.8 4 Generic Eventing and Subscription (Normative).8 4.1 Overview.8 4.1.1 General.8 4.1.2 Suitability of the GES to the integration of a variety of application categories.9 4.1.3 Suitability of the GES to the integration beyond the control center.9 4.1.4 Suitability of the GES to the integration of tightly coupled and loosely coupled applications (informative).10 4.2 Using GES A&E Simple Eventing for Generic Messaging.12 4.2.1 General.12 4.2.2 GES messages.12 4.2.3 Eventing and Subscription topic trees (informative).13 4.2.4 Subscription filtering.13 4.2.5 GES Publish/Subscribe wildcards.13 4.2.6 Browsing IECTC57 namespaces with GES.14 5 Generic Event Subscription Alarms and Events.16 5.1 Background (informative).16 5.2 SCADA use case (informative).16 5.3 Data model (normative).17 5.4 Messages (normative).19 5.5 Interface (normative).21 5.5.1 Objects and interfaces.21 5.5.2 Server and Session interfaces.24 5.5.3 Browse interfaces.24 5.5.4 Client interfaces.26 5.5.5 Mapping DAIS A&E to IEC 61970-3XX series.26
Annex A (informative)
Proxy Event Subscription sequence.27
Bibliography.30
Figure 1 – Data subscription.9 Figure 2 – Component architecture.11 Figure 3 – Populated namespace example for IECTC57PhysicalModel (informative).14 Figure 4 – Typical SCADA flows of DAIS alarms and events.16 Figure 5 – GES A&E data model.18 Figure 6 – Event messages.20 Figure 7 – GES A&E objects and interfaces.22 Figure 8 – Typical interaction between the DAIS A&E objects.24 SIST EN 61970-405:2008

61970-405 © IEC:2007(E) – 3 – Figure A.1 – Proxy subscription and callback sequence with multiple servers.27 Figure A.2 – Proxy subscription sequence with multiple clients.28 Figure A.3 – Proxy callback sequence with multiple servers.28 Figure A.4 – Proxy callback sequence with multiple clients.29
– 4 – 61970-405 © IEC:2007(E) INTERNATIONAL ELECTROTECHNICAL COMMISSION ______________
ENERGY MANAGEMENT SYSTEM
APPLICATION PROGRAM INTERFACE (EMS-API) –
Part 405: Generic Eventing and Subscription (GES)
FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any equipment declared to be in conformity with an IEC Publication. 6) All users should ensure that they have the latest edition of this publication. 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable for the correct application of this publication. 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard IEC 61970-405 has been prepared by IEC Technical Committee 57: Power systems management and associated information exchange. The text of this standard is based on the following documents: FDIS Report on voting 57/888/FDIS 57/907/RVD
Full information on the voting for the approval of this standard can be found in the report on voting indicated in the above table. A list of all parts of the IEC 61970 series, under the general title Energy Management System Application Program Interface (EMS-API), can be found on the IEC website. SIST EN 61970-405:2008

61970-405 © IEC:2007(E) – 5 – The committee has decided that the contents of this publication will remain unchanged until the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will be
• reconfirmed; • withdrawn; • replaced by a revised edition, or • amended. A bilingual version of this publication may be issued at a later date.
– 6 – 61970-405 © IEC:2007(E) INTRODUCTION This part of IEC 61970 is part of the IEC 61970 series that defines Application Program Interfaces (APIs) for an Energy Management System (EMS). The IEC 61970-4XX and IEC 61970-5XX series documents comprise Component Interface Specifications (CISs). The IEC 61970-4XX series CIS are specified as Platform Independent Models (PIMs), which means they are independent of the underlying technology used to implement them. PIM specifications are also referred to as Level 1 specifications. The IEC 61970-5XX series CIS, on the other hand, are specified as Platform Specific Models (PSMs). PSM specifications are also referred to as Level 2 specifications. IEC 61970-4XX CISs specify the functional requirements for interfaces that a component (or application) should implement to exchange information with other components (or applications) and/or to access publicly available data in a standard way. The component interfaces describe the specific event types and message contents that can be used by applications for this purpose. IEC 61970-405 specifies an interface for the efficient transfer of event messages and alarm acknowledge messages in a distributed environment. Small numbers of messages are transferred with short delay but also large amounts are transferred in short time but with possibly longer delay. This is a typical requirement for a SCADA system that acts as a real time data provider to other sub-systems. Other systems than SCADA may also benefit from the characteristics of Generic Eventing and Subscription (GES) interface. When short delay times as well as bulk message transfer is required, GES is a good fit. The component interface specifications refer to entity objects for the power system domain that is defined in the IEC 61970-3XX series, including IEC 61970-301.
61970-405 © IEC:2007(E) – 7 – ENERGY MANAGEMENT SYSTEM
APPLICATION PROGRAM INTERFACE (EMS-API) –
Part 405: Generic Eventing and Subscription (GES)
1 Scope The IEC 61970-405 Generic Eventing and Subscription (GES) specification specifies a generalized interface for efficient exchange of messages. The specification takes into account the latencies caused by a Local Area Network (LAN) providing efficient data exchange also over Local Area Networks. The Generic Eventing and Subscription (GES) API is expected to provide one of the primary means for accomplishing application integration. Beyond the scope of the GES API, other APIs address the high performance, real-time interactive needs of an application within a running system as well as request/reply oriented generic data access.
IEC 61970-405 is derived from the Object Management Group (OMG) Data Acquisition from Industrial Systems section Alarms and Events (DAIS A&E) specification. OMG DAIS A&E relies on the OMG Data Access Facility (DAF) and OPC Alarms and Events (A&E) specifications. OMG DAIS A&E is a Platform Specific Model (PSM) with CORBA as the platform and OPC A&E is a PSM with Microsoft COM as the platform. Implementers wanting an introduction to OMG DAIS A&E and OPC A&E shall read these documents. The GES interface is intended to interoperate with other IEC 61970 based interfaces. Hence it is possible to use information retrieved from other interface to access the same information using this interface, for example: • object identifiers, • attribute names or identifiers, • class names or identifiers. The way data is organized in a server implementing the GES interface can be seen by using the browse interfaces for data and meta data. It is also possible to use the data access interface directly without using the browse interfaces if the client has an a priori knowledge of object, class and attribute identifiers. Object identifiers may be retrieved using data from other interfaces, for example a CIMXML file or the IEC 61970-404 interface. Information on what classes and attributes are available will be described in IEC 61970-45X documents. IEC 61970-405 describes the functionality in a technology independent way, it is a Platform Independent Specification (PIM). Hence, it explains the functionality to a level that can be used to create PSMs or be an introduction to existing PSMs, i.e. DAIS A&E and OPC A&E. Implementers wanting an introduction to OMG DAIS A&E and OPC A&E should read these documents. IEC 61970-405 consists of two parts: • SCADA alarms and events that is the Platform Independent Specification (PIM) derived from DAIS A&E and OPC A&E. This part is called “Generic Eventing and Subscription Alarms and Events” (GES A&E). • Generic messaging that is a generalization of the SCADA alarms and events. This part is just called “Generic Eventing and Subscription” (GES). IEC 61970-1 provides the EMS-API reference model upon which this standard is based. In that reference model, the terminology used in this part of IEC 61970 is introduced and the role of the CIS is explained. SIST EN 61970-405:2008

– 8 – 61970-405 © IEC:2007(E) IEC 61970-401 provides an overview and framework for the CIS (IEC 61970-4XX) standards.IEC 61970-402 provides the base services to be used in conjunction with other IEC 61970-4XX documents. This specification extends the Common Services to provide an event subscription oriented mechanism for applications to exchange CIM data.
The mapping of IEC 61970-405 to implementation specific technologies or Platform Specific Models (PSMs) is further described in a separate series of documents, i.e. the future IEC 61970-5XX. For actual implementations, the future IEC 61970-5XX, OMG DAIS A&E, OMG DAF or OPC A&E are used. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. IEC 61970-1:2005, Energy management system application program interface (EMS-API) – Part 1: Guidelines and general requirements IEC/TS 61970-2, Energy management system application program interface (EMS-API) – Part 2: Glossary IEC 61970-301:2005, Energy management system application program interface (EMS-API) – Part 301: Common Information Model (CIM) base IEC 61970-401, Energy management system application program interface (EMS-API) – Part 401: Component Interface Specification (CIS) Framework IEC 61970-402, Energy management system application program interface (EMS-API) – Part 402: Component Interface Specification (CIS) – Common Services Data Acquisition from Industrial Systems section Alarms and Events (DAIS A&E), OMG Adopted Specification Version1.1, formal/2005-06-01 June 2005 (Referred herein as 'OMG DAIS A&E') Utility Management System (UMS) Data Access Facility (DAF), OMG Adopted Specification, Version 2.0.1, formal/05-06-03, July 2005
(Referred to herein as ‘OMG DAF’) OPC Alarms and Events Specification, Version 1.10, OPC Foundation, October 2002 (Referred to herein as ‘OPC A&E’) 3 Terms and definitions For the purposes of this document, the terms and definitions given in IEC/TS 61970-2 apply. NOTE Refer to International Electrotechnical Vocabulary, IEC 60050, for general glossary definitions. 4 Generic Eventing and Subscription (Normative) 4.1 Overview 4.1.1 General Figure 1 illustrates the interaction between a Generic Eventing and Subscription Alarms and Events (GES A&E) client and server. A subscription means that the server has no a priori SIST EN 61970-405:2008

61970-405 © IEC:2007(E) – 9 – knowledge of its clients. Once a connection is established, a server calls the clients back when data becomes available or updated.
Server ClientEstablish connection and subscribe Transfer of alarms and eventsIEC
1322/07
Figure 1 – Data subscription This Clause discusses Generic Eventing and Subscription (GES) that is a generalization of the Generic Eventing and Subscription Alarms and Events (GES A&E). GES A&E is described in Clause 5. The scope of GES A&E is intended for SCADA data exchange, as described in Clause 5. GES A&E Simple Events can be applied to a much broader scope and is the basis for GES. 4.1.2 Suitability of the GES to the integration of a variety of application categories The use of GES is not limited to SCADA oriented data. Application categories exchanging non SCADA data that GES can be applied to include: • Outage Management Systems • Network Applications • Generation Control • Geographic Information Systems • Energy Management Systems • Asset and Work Management Systems • Other application categories used in the operation of a power system as listed in IEC 61970-1 (2005) Annex B. 4.1.3 Suitability of the GES to the integration beyond the control center Though the target of this IEC standard is the control center technical domain, GES encompasses a general set of concepts that can be applied to many types of systems. Examples of these systems include: • Customer Information Systems • Substation Automation Systems. For integration with Substation Automation Systems, it shall be noted that several specifications related to communication already exists, for example the IEC 61850 series for substation communication and IEC 60870-5 for RTU communication. The intention of this part of IEC 61970 is to describe a service interface that may encapsulate such communication solutions. • Other types of technically oriented operational business systems. In recognition that the integration between applications in two or more of these systems is often necessary, the intent of this part of IEC 61970 is to meet general GES requirements to the extent that they are common to different types of systems while effectively addressing control center needs. SIST EN 61970-405:2008

– 10 – 61970-405 © IEC:2007(E) 4.1.4 Suitability of the GES to the integration of tightly coupled and loosely coupled applications (informative) Over the last couple of years, the software community has come to realize that different software architectures are required when integrating tightly coupled applications (for example transmission network applications deployed in a utility control center) versus loosely coupled applications (e.g. distribution network application applications deployed as Web Services). In the case of tightly coupled applications, the integrating architecture might be based on CORBA IIOP, Java RMI, Microsoft DCOM or even a centralized database. In the case of loosely coupled integration, however, it is generally accepted that an XML-based messaging architecture is preferred. One goal of the GES is to allow a component to be developed without prior knowledge of the deployment environment. Thus, for example, components with a GES interface may be tied together via a CORBA remote procedure call based or an XML message bus based infrastructure. In accordance with IEC 61970-1, the GES is a component interface and does not include access to middleware specific functionality such as messaging Quality of Service (QOS). Even though the GES does not provide a message broker-oriented interface, the GES can be used as an interface for a component adapter that in turn accesses a message broker-based interface such as JMS or OAMAS for example. GES specializations are possible for the following interface technologies, some of which are language-specific and some of which are middleware-specific: • C++ language. • C language. • CORBA. • COM. • Java.
• XML. The XML specialization will provide interoperability between independently developed components with a GES interface when XML based messaging is used as the integration technology. The exact format of this XML will be determined by the use of a specification such as the W3C’s XML Protocol. Figure 2 below illustrates how a component with a language or interface technology-specific specialization of the GES Interface can be adapted to run over a middleware-specific implementation. Thus, in cases where an application component has been developed using a particular language-specific specialization such as CORBA, the use of a component adapter would allow components to communicate using a particular middleware such as XML messaging. Thus, the GES is independent of what transport technology is used for example IIOP or XML Protocol.
61970-405 © IEC:2007(E) – 11 –
CORBA, Java, or .Net component Integration Bus (IIOP, DCOM, XML Protocol, proprietary)Component Adapter to Middleware Language or interface technology specific GES-based interface specialization. (e.g., C++, Java, .Net, Corba, etc.) Middleware interface for XML based messaging (e.g.
JMS, MSMQ, OAMAS, etc.)Component execution environment
(e.g.
Java, .Net, or CORBA container) IEC
1323/07
Figure 2 – Component architecture Deployment environment independence is a key facet of component interoperability as well as a way of lowering the cost of component development. For example, this specification provides a common way of subscribing to and filtering of small object (also called business object) events. COM does not provide any standard way of subscribing to events related to a particular small object (such as a particular breaker). Consequently, when running over a Microsoft-based infrastructure, it is often up to the system integrator to supply this functionality. Enabling subscribing component developers to add small object event filtering functionality “out of the box” (as is done in off-the-shelf OPC clients) lowers the time and effort required to integrate components.
Enabling small object filtering in the component does not in any way break the contract between components, component adapters, and component execution systems. The use of small object- based filtering does not define a middleware interface. Proof of this can be seen in that OPC and DAIS both provide small object-based event filtering. DAIS/OPC are not used as middleware interfaces. Rather they are used at the component interface. Middleware API’s, such as JMS and CORBA Notification, include transport semantics such as QOS (e.g. delivery characteristics such as reliability, priority, and expiration time) as well as administrative functionality (e.g. event channel load balancing). QOS and administrative functionality is specific to the middleware used. On the other hand, small object filtering is common to any middleware used. The use of publish/subscribe functionality exposed at a component interface means that event filtering code does not need to be rewritten for each different implementation scenario. Event filtering is done by a component and not by a component adapter; consequently, power system specific (CIM-based) event filtering tools can be used instead of generic event filtering tools. CIM-based event filtering provides for more familiar as well as more powerful and easy to use configuration management.
Furthermore, since the GES API can be deployed independent of any application category specific information model, GES component interfaces do not need to be recompiled when an information model changes. Thus, application category information model changes can be handled via declarative action rather than programmatic action. SIST EN 61970-405:2008

– 12 – 61970-405 © IEC:2007(E) 4.2 Using GES A&E Simple Eventing for Generic Messaging 4.2.1 General GES can be used to construct a document exchange system. While the High Speed Data Access (HSDA) interface as described in IEC 61970-404 supports subscribing to measurement, parameter and other simple data, GES A&E interface as described in Clause 5 allows components to publish and subscribe to non-measurement documents (e.g. work orders) as opposed to collections of measurement points. The eventing interface allows components to publish and subscribe to documents such as work orders without having to subscribe to each individual work order property.
More precisely, the use of “Simple Events” in the GES A&E interfaces is not limited to SCADA data. GES A&E Simple Events may contain a document-oriented payload that can be sent to or received by an arbitrary control center application. In this way, GES A&E Simple Events are useful for accessing the entire Common Information Model (CIM). The data transmitted through GES interfaces is independent of the GES Interface Definition Language (IDL). That is, the GES can be used to expose and transfer any information exchange model. The schema for GES A&E Simple Events is generic. GES A&E Simple Events have the following properties: • Source – a reference to the object that generated the event. This can be either an item such as a particular measurement or more generally the name of CIM class as well as an application category.
• Source pathname – the fully qualified IECTC57PhysicalModel pathname for the source.
• Time stamp – the time that the event occurred. • Message – an text string describing the event. • Main category – for Simple Events, this field contains the resource ID of Simple Event.
• Category – the resource ID for the event type. Every category corresponds to a specific event schema. • Category name – the name of the event type. • Severity – a hint from the server about the level of severity for this event. • Properties – a list of mapped and/or indexed properties. For example, the Source field could contain a reference to the Work Management System, the Message field could contain “New Work Order”, the Category could contain the resource ID for the “Transformer Installation Request” event type, the Category name field could contain “Transformer Installation Request”, and the properties would be that data associated with a Transformer Installation Request. As can be seen by this example, Simple Events are general purpose in nature – that is, they can be used by any application category to exchange information. 4.2.2 GES messages The Common Information Model described in IEC 61970-301 defines a normalized data model for use in integration of control center applications. Future IEC 61970-450 to IEC 61970-499 Component Interface Specifications will provide denormalized views of IEC 61970-301 data. For example, while IEC 61970-301 objects such as transformers and loads are distinct classes, IEC 61970-450 to IEC 61970-499 Component Interface Specifications will define document style interface classes that may amalgamate a few properties from multiple normalized classes such as transformers and loads. IEC 61970-450 to IEC 61970-499 CIS documents (event types) will provide application specific ways of grouping or viewing a collection of properties.
61970-405 © IEC:2007(E) – 13 – 4.2.3 Eventing and Subscription topic trees (informative) Events can contain documents that are delivered asynchronously. Messages can convey documents, but the use of the term “message” also implies a broker-oriented transport mechanism. Thus, the term event is more generic than message.
GES Eventing is similar to the Java Messaging Service (JMS) Interface with one important distinction; GES Eventing does not include access to messaging-specific functionality such as message broker service QOS. However, since GES Eventing is a component interface that is independent of what middleware is deployed between components, the lack of a messaging specific interface is appropriate.
The JMS Publish/Subscribe model defines how components use JMS to publish and subscribe to messages related to a well-known node in a content-based hierarchy. GES Eventing calls these nodes Areas and JMS calls these nodes topics. By relying on the area/topic as an intermediary, event/message publishers are kept independent of subscribers and vice versa. Many messaging service providers, such as MQSeries, group topics into hierarchies and provide various options for subscribing to parts of the hierarchy. GES Area strings consist of an array of area names (fully qualified pathnames) created as a result of navigating a hierarchical area map. Neither GES Eventing nor JMS places any restriction on what an area/topic object represents. It might be a leaf in a topic hierarchy or it might be a larger part of the hierarchy (for subscribing to a general class of information). Frequently, users like to see data organized in accordance with a well-known topic hierarchy. GES does not standardize the presentation of well-known (e.g. CIM based) hierarchical views. IECTC57 Namespaces as described in IEC 61970-402 Common Services specification is used with GES in the same way that OPC Batch is used with OPC Data Access and OPC Alarms and Events by providing a means by which servers can present well-known hierarchical views. The use of the IECTC57 Namespaces together with the IArea/ICategory/IType (refer to Figure 7) interfaces provide the base for CIM-oriented subscription. Thus, GES with Common Services provide a standard mechanism for describing how CIM objects are ordered in a hierarchy as well as a way for components to use those hierarchies when setting up event (document) subscriptions. 4.2.4 Subscription filtering GES subscription filtering provides the ability to specify property values that are used to qualify a subscription. In SQL terms, this addition to the GES Filtering is equivalent to adding a “where” clause. For example, a subscriber can indicate that it wishes to receive New Transformer Installation events as well as indicate that it only wants to receive New Transformer Installation events pertaining to transformers produced by a given manufacturer.
A GES Subscription object (refer to Figure 7) maintains a filter specification set up by a client. The filter is used to specify what notifications shall be sent to the client. A server may support various filter functions and a client can ask the Subscription Home object what filter functions are supported. The subscription home is also used to create any number of subscription manger objects. Each subscription manger is associated with a client that has implemented callback object so that the server can send alarm and event notifications to the client. 4.2.5 GES Publish/Subscribe wildcards 4.2.5.1 General GES Eventing does not support “wild card” functionality in topic subscription strings. For example, GES Eventing allows components to subscribe to events on the basis of event Category (e.g. “Transformer Installation Request”) or on the basis of topics (e.g. all work orders for breakers), but there is no facility to choose all areas at a given level. This specification extends GES Eventing with support for wildcards in topic based filtering. The GES Events interfaces are not changed in order to add support for wild cards in area paths. SIST EN 61970-405:2008

– 14 – 61970-405 © IEC:2007(E) This specification requires a well-known URI for the wildcard. The URI for the wildcard is: http://omg.org/schema/GES#WILDCARD 4.2.5.2 Example topic hierarchies (informative) To illustrate how subscription topic trees are used, consider a topic tree that consists of a CIM containment model hierarchy as shown in Figure 3. An example area string created by navigating the above tree might be “IECTC57PhysicalModel/NorthArea/AirportSubstation”. In this case, a subscriber could receive all events that pertain to this topic – including breaker, transformer, and load-related events. However, if one wants to subscribe to breaker related events from all substations, then the GES requires that the user specifically includes the name of each substation node one may be interested in. This specification includes the added capability to create an area string (array of area names) without having to manually navigate to every node on is interested in. Such a topic string may appear as “IECTC57 PhysicalModel/*/*/Breakers”.
North Area Airport Sub Industrial Blvd SubBreaker 12 Load 22 Breaker 13 Transformer 33 Transformer 32 IECTC57Physical Model IEC
1324/07
Figure 3 – Populated namespace example for IECTC57PhysicalModel (informative) 4.2.6 Browsing IECTC57 namespaces with GES 4.2.6.1 General IEC 61970-402 Common Services defines three trees or sub-trees used for topic based subscriptions:
• IECTC57PhysicalModel • IECTC57ClassModel • IECTC57ISModel IECTC57PhysicalModel contains subscription topic nodes representing the containment hierarchy of instances of CIM classes, for example control areas, substations, bays, breakers, etc. To browse this hierarchy, GES uses the IArea browse interface (refer to Figure 7). IECTC57ClassModel contains subscription topic nodes representing the class hierarchy of CIM classes, for example the Power System Resource class, AC Conducting Equipment class, Switch class, Breaker class, etc. To browse this hierarchy, GES uses the IType browse interface (refer to Figure 7).
IECTC57ISModel contains subscription topic nodes representing the hierarchy of events types. To browse this hierarchy, GES uses the ICategory interface (refer to Figure 7).
Using OPC with GES, clients browse all subscription topic nodes with Area browsing by putting them into the same tree. The single OPC namespace tree may be divided into the three sub trees: IECTC57PhysicalModel, IECTC57ClassModel, and IECTC57ISModel. As data SIST EN 61970-405:2008

61970-405 © IEC:2007(E) – 15 – describing the properties is different depending on the sub-tree in question, the GES approach is to have sub-tree specific browsers returning data specific for the sub-trees, i.e. IArea and IType and ICategory (refer to Figure 7) for the IECTC57PhysicalModel, IECTC57ClassModel, and IECTC57ISModel topic trees respectively. Therefore, GES browsing does not required three sub trees. Using GES, IECTC57PhysicalModel, IECTC57ClassModel, and IECTC57 ISModel are the roots of independent topic trees.
4.2.6.2 Mapping GES browsing to OPC browsing
4.2.6.2.1 General In order to compensate for the lack of native support for Resource ID’s and Type in OPC, special properties shall be introduced into a GES compliant OPC namespace. 4.2.6.2.2 Custom property required for Resource ID OPC differs from DAIS in that only names can be used to subscribe to events. In order to facilitate a consistent mapping from OPC to DAIS, every node in an OPC implementation of the IECTC57 Namespaces shall have a custom property defined named “Resource ID”. This property contains the value of the Resource ID for that object. The OPC Custom Property Index for this property shall be 10 000. The format of this property shall be an ASCII string representation of hex digits: {xxxxxxxx-xxxxxxxx-xxxxxxxx-xxxxxxxx}. 4.2.6.2.3 Custom property required for Resource Type
OPC differs from GES in that only names can be used to subscribe to events. In order to facilitate a consistent mapping from OPC to GES, every node in an OPC implementation of the IECTC57 Namespaces shall have a custom property defined named “Resource ID”. This property contains the value of the Resource ID for that object. The OPC Custom Property Index for this property shall be 10 001. The value of this custom property for items in the IECTC57PhysicalModel shall be the same as GES Type in the IECTC57ClassModel.
4.2.6.2.4 Custom property required for Type Resource ID
OPC differs from GES in that only names can be used to subscribe to events. In order to facilitate a consistent mapping from OPC to GES, every node in an OPC implementation of the IECTC57PhysicalModel Namespace shall have a custom property defined named “Type Resource ID”. This property contains the value of the Resource ID for the type of that object. The OPC Custom Property Index for this property shall be 10 002. The format of this property shall be an ASCII string representation of hex digits: {xxxxxxxx-xxxxxxxx-xxxxxxxx-xxxxxxxx}.
4.2.6.2.5 Custom property required for Generic Data Access Type
OPC differs from GES in that only names can be used to subscribe to events. In order to facilitate a consistent mapping from OPC to GES, every attribute node in an OPC implementation of the IECTC57 Namespaces shall have a custom property defined named “Generic Data Access Type”. This property identifies the GDA Simple Value data type of the attribute. The OPC Custom Property Index for this property shall be 10 003.
4.2.6.2.6 Custom property required for Modelled
OPC differs from GES in that only names can be used to subscribe to events. In order to facilitate a consistent mapping from OPC to GES, every attribute node in an OPC implementation of the IECTC57ISModel Namespace shall have a custom property defined named “Modelled”. This property indicates if the attributes can be mapped to a resource ID using the ResourceIDService. For attributes that can be mapped, the value of this property is the ASCII string “Mapped”. For attributes that cannot be mapped, the valued of this property is the ASCII string “Indexed”. The OPC Custom Property Index for this property shall be
10 004.
– 16 – 61970-405 © IEC:2007(E) 5 Generic Event Subscription Alarms and Events 5.1 Background (informative) For historical reasons, control systems for different industrial processes have evolved along different lines. Control systems for power systems have evolved on a UNIX base and control systems for most other industrial processes have evolved on a Windows base. For Windows based control systems, OPC has become the dominating standard. For UNIX based systems, the DAIS API defined in Common Object Request Broker Architecture (CORBA) Interface Definition Language (IDL) has been developed. DAIS is based on OPC to benefit from the success of OPC and enable easy bridging to OPC. Whith this intent, Object Management Group (OM
...
