EN 14198:2016
(Main)Railway applications - Braking - Requirements for the brake system of trains hauled by locomotives
Railway applications - Braking - Requirements for the brake system of trains hauled by locomotives
This European Standard specifies basic requirements for the braking of trains hauled by locomotives:
- For trains hauled by locomotives and intended for use in general operation each vehicle is fitted with the traditional brake system with a brake pipe compatible with the UIC brake system.
NOTE This ensures technical compatibility of the brake function between vehicles of various origins in a train (see 5.4).
- For trains hauled by locomotives and intended for use in fixed or predefined formation, the requirements on the vehicle and the train are necessary. In the case of a UIC brake system, this standard applies; if not, the EN 16185 series or the EN 15734 series applies.
If concerned, the UIC brake architecture described in this standard (see 5.4) can be used for brakes for multiple unit train and high speed trains and urban rail described in the EN 13452 series, the EN 16185 series and the EN 15734 series.
This European Standard also takes into account electrical and electronic control functions and additional brake systems like dynamic brakes and adhesion independent brakes.
The brake system requirements, which are specific for on-track machines are set out in EN 14033-1.
This European Standard does not apply to Urban Rail rolling stock braking system, which is specified by EN 13452-1.
Bahnanwendungen - Bremsen - Anforderungen an die Bremsausrüstung lokbespannter Züge
Diese Europäische Norm legt grundsätzliche Anforderungen an die Bremsung von lokbespannten Zügen fest:
— Für lokbespannte Züge zur Verwendung im allgemeinen Betrieb wird jedes Fahrzeug mit einem herkömmlichen Bremssystem mit Hauptluftleitung, das mit dem UIC-Bremssystem kompatibel ist, ausgestattet.
ANMERKUNG Dies stellt die technische Kompatibilität der Bremsfunktion zwischen Fahrzeugen verschiedener Herkünfte in einem Zugverband sicher (siehe 5.4).
— Für lokbespannte Züge zur Verwendung in festen oder vordefinierten Zugverbänden sind die Anforderungen bezüglich Fahrzeug und Zug notwendig. Im Falle eines UIC-Bremssystems ist diese Norm anwendbar, falls nicht, greift die EN 16185 oder EN 15734.
Im Zweifelsfall kann die UIC-Bremsenarchitektur, die in dieser Norm beschrieben wird (siehe 5.4), für Bremsen von Triebzügen und Hochgeschwindigkeitszügen sowie für städtische Eisenbahnen, wie in EN 13452, EN 16185 und EN 15734 beschrieben, verwendet werden.
Diese Europäische Norm berücksichtigt ebenfalls die elektrischen und elektronischen Steuerungs- und Regelungsfunktionen sowie zusätzliche Bremssysteme, wie dynamische Bremsen und kraftschluss-unabhängige Bremsen.
Die Anforderungen an das Bremssystem von schienengebundenen Maschinen sind in EN 14033 1 enthalten.
Diese Europäische Norm gilt nicht für Bremssysteme der Schienenfahrzeuge des öffentlichen Nahverkehrs nach EN 13452-1.
Applications ferroviaires - Freinage - Exigences concernant le système de freinage des trains tractés par locomotive
La présente Norme Européenne définit les exigences fondamentales pour le freinage de trains remorqués par locomotive :
- pour les trains remorqués par locomotive et destinés à l’utilisation pour exploitation conventionnelle, chaque véhicule est équipé d’une architecture classique de système de freinage avec une conduite générale, compatible avec un système de freinage UIC.
NOTE Cela permet d’assurer la compatibilité technique de la fonction de freinage entre différents véhicules d’origines différentes dans un train (voir 5.4).
- Pour les trains remorqués par locomotive et destinés à l’utilisation en composition fixe ou prédéfinie, les exigences sont applicables sur le véhicule et sur le train. Dans le cas d’un système de freinage UIC, la présente norme s’applique ; dans d’autres cas la série de normes EN 16185 ou la série de normes EN 15734 s’appliquent.
Le cas échéant, l’architecture du système de freinage UIC décrite dans la présente norme (voir 5.4) peut être utilisée pour les freins des trains à unités multiples, pour les trains à grande vitesse et pour le rail urbain, décrites dans la série de normes EN 13452, EN 16185 et EN 15734.
La présente Norme Européenne prend en compte les fonctions de commande électriques et électroniques et des systèmes de freinage supplémentaires, tels que les freins dynamiques et les freins qui ne dépendent pas de l’adhérence.
Les exigences relatives aux systèmes de freinage spécifiques aux machines de construction et de maintenance empruntant exclusivement les voies ferrés sont définies dans l’EN 14033-1.
La présente Norme Européenne ne s’applique pas aux systèmes de freinage du matériel roulant du Rail Urbain, qui sont spécifiés dans l’EN 13452-1.
Železniške naprave - Zavore - Zahteve za zavorne sisteme vlakov za splošno delovanje
Ta dokument določa osnovne zahteve za zavore vlakov, ki jih vlečejo lokomotive, vključno s posameznimi vozili, ki vozijo po evropskih železnicah in njihovih infrastrukturnih sistemih. Te minimalne zahteve se uporabljajo na 2 ravneh: – na ravni vlaka, ker so zavore odvisne od ukaza o zaviranju, ki se prenaša po celotnem vlaku; – na ravni vozila, da se zagotovi, da sta zavorni sistem in oprema vozila konfigurirana in dimenzionirana tako, da se razvije potrebna zavorna sila za vlak. Ta dokument obravnava: – vse nove zasnove vozil; – vse večje obnove, če vključujejo preoblikovanje ali večjo spremembo zavornega sistema zadevnega vozila; – vse nove modele obstoječih zasnov vozil. Ta dokument ne obravnava vozil, ki potrebujejo posebno operativno upravljanje (npr. stroji za polaganje tirnic). Ta dokument se uporablja zlasti za naslednje vrste vlakov, vozil in infrastruktur: a) vlaki: – sestavljeni so iz ene ali več lokomotiv in vozil, ki jih vleče lokomotiva (vključno s potisno-vlečnimi vlaki); – sestavo vlaka je mogoče med delovanjem spremeniti po potrebi (zmožnost priklapljanja); – maksimalna hitrost je večja ali enaka 80–200 km/h; – profil vozila in profil tirnice nista določena; – napajanje lokomotiv(e) ni določeno. b) vozila: – lokomotive; – potniška vozila (dnevna vozila, jedilna vozila, spalna vozila, vlečne prikolice, prtljažna vozila itd.); – tovorna vozila. c) infrastrukture: Za železnice veljajo pravila glede obratovanja, ki se uporabljajo za zavorno moč in so povezana z železniško infrastrukturo. V preglednicah A.1 in A.2 je podan povzetek o minimalnih zahtevah zavorne moči kot funkcije infrastrukture in maksimalni hitrosti vlakov.
General Information
- Status
- Withdrawn
- Publication Date
- 22-Nov-2016
- Withdrawal Date
- 20-Jan-2026
- Technical Committee
- CEN/TC 256 - Railway applications
- Drafting Committee
- CEN/TC 256/SC 3/WG 47 - Braking
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 05-Dec-2018
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 15-Aug-2012
- Effective Date
- 18-Jan-2023
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Refers
EN 854:2015 - Rubber hoses and hose assemblies - Textile reinforced hydraulic type - Specification - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Get Certified
Connect with accredited certification bodies for this standard
Bureau Veritas Railway Certification
Railway and transportation certification.
Deutsch Quality Systems (India) Pvt. Ltd. (DQS India)
Subsidiary of DQS Holding GmbH, founding member of IQNet. CDSCO Notified Body.
Excellence Ireland Quality Association (EIQA)
Irish national quality association.
Sponsored listings
Frequently Asked Questions
EN 14198:2016 is a standard published by the European Committee for Standardization (CEN). Its full title is "Railway applications - Braking - Requirements for the brake system of trains hauled by locomotives". This standard covers: This European Standard specifies basic requirements for the braking of trains hauled by locomotives: - For trains hauled by locomotives and intended for use in general operation each vehicle is fitted with the traditional brake system with a brake pipe compatible with the UIC brake system. NOTE This ensures technical compatibility of the brake function between vehicles of various origins in a train (see 5.4). - For trains hauled by locomotives and intended for use in fixed or predefined formation, the requirements on the vehicle and the train are necessary. In the case of a UIC brake system, this standard applies; if not, the EN 16185 series or the EN 15734 series applies. If concerned, the UIC brake architecture described in this standard (see 5.4) can be used for brakes for multiple unit train and high speed trains and urban rail described in the EN 13452 series, the EN 16185 series and the EN 15734 series. This European Standard also takes into account electrical and electronic control functions and additional brake systems like dynamic brakes and adhesion independent brakes. The brake system requirements, which are specific for on-track machines are set out in EN 14033-1. This European Standard does not apply to Urban Rail rolling stock braking system, which is specified by EN 13452-1.
This European Standard specifies basic requirements for the braking of trains hauled by locomotives: - For trains hauled by locomotives and intended for use in general operation each vehicle is fitted with the traditional brake system with a brake pipe compatible with the UIC brake system. NOTE This ensures technical compatibility of the brake function between vehicles of various origins in a train (see 5.4). - For trains hauled by locomotives and intended for use in fixed or predefined formation, the requirements on the vehicle and the train are necessary. In the case of a UIC brake system, this standard applies; if not, the EN 16185 series or the EN 15734 series applies. If concerned, the UIC brake architecture described in this standard (see 5.4) can be used for brakes for multiple unit train and high speed trains and urban rail described in the EN 13452 series, the EN 16185 series and the EN 15734 series. This European Standard also takes into account electrical and electronic control functions and additional brake systems like dynamic brakes and adhesion independent brakes. The brake system requirements, which are specific for on-track machines are set out in EN 14033-1. This European Standard does not apply to Urban Rail rolling stock braking system, which is specified by EN 13452-1.
EN 14198:2016 is classified under the following ICS (International Classification for Standards) categories: 45.040 - Materials and components for railway engineering; 45.060.01 - Railway rolling stock in general. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 14198:2016 has the following relationships with other standards: It is inter standard links to EN 14198:2004, EN 14198:2016+A1:2018, EN 15611:2020+A1:2022, EN 15355:2019+A1:2023, EN ISO 24478:2024, EN 16241:2014+A1:2016, EN 15595:2018+A1:2023, EN 286-3:1994, EN 837-1:1996, EN 10305-4:2016, EN 16451:2024, EN 15663:2017+A2:2024, EN 15220:2025, EN 854:2015, EN 14531-2:2015. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 14198:2016 is associated with the following European legislation: EU Directives/Regulations: 2008/57/EC; Standardization Mandates: M/483. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 14198:2016 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Železniške naprave - Zavore - Zahteve za zavorne sisteme vlakov za splošno delovanjeBahnanwendungen - Bremsen - Anforderungen für die Bremsausrüstung für den allgemeinen BetriebApplications ferroviaires - Freinage - Exigences concernant le système de freinage des trains pour fonctionnement généralRailway applications - Braking - Requirements for the brake system of trains for general operation45.040Materiali in deli za železniško tehnikoMaterials and components for railway engineeringICS:Ta slovenski standard je istoveten z:EN 14198:2016SIST EN 14198:2017en,fr,de01-januar-2017SIST EN 14198:2017SLOVENSKI
STANDARDSIST EN 14198:20051DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14198
November
t r s x ICS
v wä r v r Supersedes EN
s v s { zã t r r vEnglish Version
Railway applications æ Braking æ Requirements for the brake system of trains hauled by locomotives Applications ferroviaires æ Freinage æ Exigences concernant le système de freinage des trains tractés par locomotive
Bahnanwendungen æ Bremsen æ Anforderungen an die Bremsausrüstung lokbespannter Züge This European Standard was approved by CEN on
s x October
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s v s { zã t r s x ESIST EN 14198:2017

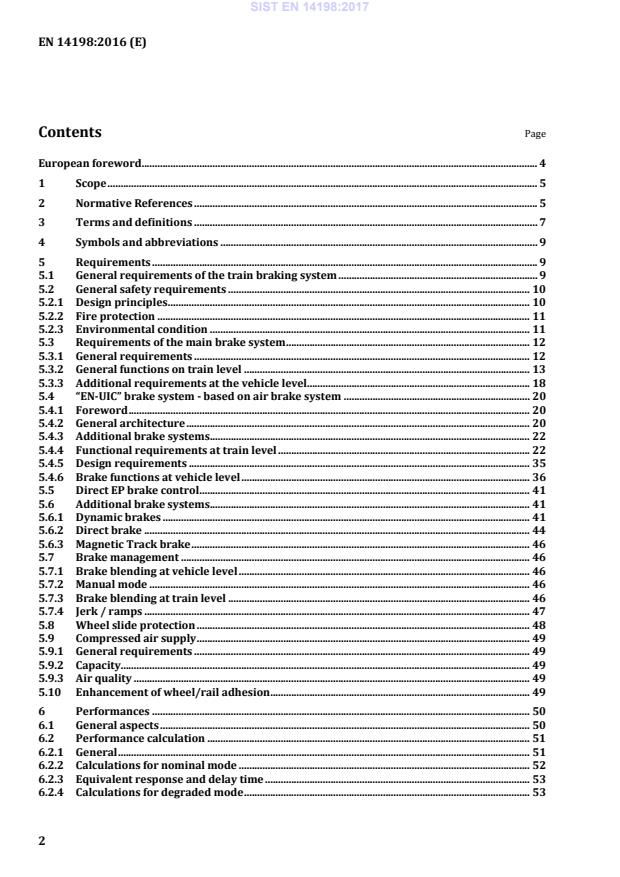

Vehicle requirements . 57 Annex B (informative)
Train related brake performance categories. 59 Annex C (informative)
Explanation of “proven design” concept . 63 Annex D (informative)
Corresponding standards EN – UIC . 64 Annex E (normative)
Brake pipe pressure control system . 66 E.1 General requirements . 66 E.2 Release position . 67 E.3 Service brake application . 68 E.4 Emergency brake application . 68 E.5 Overcharge function . 69 E.6 Quick release function . 70 Annex ZA (informative)
Relationship between this European
Standard and the Essential Requirements of EU Directive 2008/57/EC . 74 Bibliography . 78
1: Brake discs pressed or shrunk onto the axle or drive shaft, dimensions and quality requirements EN 14535-2, Railway applications - Brake discs for railway rolling stock - Part 2: Brake discs mounted onto the wheel, dimensions and quality requirements EN 14535-3, Railway applications - Brake discs for railway rolling stock - Part 3: Brake discs, performance of the disc and the friction couple, classification EN 14601, Railway applications — Straight and angled end cocks for brake pipe and main reservoir pipe EN 15220, Railway applications - Brake indicators EN 15273-2, Railway applications - Gauges - Part 2: Rolling stock gauge EN 15329, Railway applications - Braking - Brake block holder and brake shoe key for railway vehicles EN 15355, Railway applications — Braking — Distributor valves and distributor-isolating devices EN 15595, Railway applications — Braking — Wheel slide protection EN 15611, Railway applications — Braking — Relay valves EN 15612, Railway applications — Braking — Brake pipe accelerator valve EN 15663, Railway applications - Definition of vehicle reference masses EN 15734-1, Railway applications - Braking systems of high speed trains - Part 1: Requirements and definitions EN 15807, Railway applications - Pneumatic half couplings EN 16185-1, Railway applications - Braking systems of multiple unit trains - Part 1: Requirements and definitions prEN 16186-2, Railway applications - Driver's cab - Part 2: Integration of displays, controls and indicators EN 16207, Railway applications - Braking - Functional and performance criteria of Magnetic Track Brake systems for use in railway rolling stock EN 16241, Railway applications - Slack adjuster EN 16334, Railway applications - Passenger Alarm System - System requirements EN 16451, Railway applications - Braking - Brake pad holder EN 16452, Railway applications - Braking - Brake blocks SIST EN 14198:2017
1) EN 14478 is under revision and the next edition will include several of the definitions currently contained in this document. SIST EN 14198:2017
(lambda) brake performance in accordance with prEN 16834 3.14 braked weight weight which is obtained by multiplying the braked weight percentage by the total mass of the vehicle/train and dividing the result by 100 and is expressed in tonnes 3.15 build up time time to create an emergency brake application on a single vehicle starting from the beginning of the pressure rising until 95 % of the maximum brake cylinder pressure is reached 3.16 release time time for reducing the brake cylinder or the pre-control brake cylinder pressure on a single vehicle, starting from the beginning of the pressure drop down to 0,4 bar SIST EN 14198:2017
braked weight percentage AC Alternating Current BP Brake Pipe CCS Control Command and Signalling system CSM Common Safety Methods CW Marking for freight wagons depending on compliance with TSI WAG requirements, for application refer to Commission Regulation (EU) No 321/2013, Annex C, Clause 5 “Marking of units” DC Direct Current (“Berlin DC-Network” means network of the S-Bahn Berlin, Germany, which runs on DC) EMC Electromagnetic Compatibility ETCS European Train Control System GE Marking for freight wagons depending on compliance with TSI WAG requirements, for application refer to Commission Regulation (EU) No 321/2013, Annex C, Clause 5 “Marking of units” MRP Main Reservoir Pipe MTB Magnetic Track Brake RER Le Réseau Express Regional (Network of Express Train Lines in and around Paris, France) UIC International Union of Railways (Union internationale des chemins de fer) UK United Kingdom WSP Wheel Slide Protection system 5 Requirements 5.1 General requirements of the train braking system The purpose of the train braking system is to ensure that the train’s speed can be reduced or maintained on a slope, or that the train can be stopped within the maximum allowable braking distance. Braking also provides the immobilization of a train either for a certain period of time or permanently when it is not in operation or without any energy on board. Units designed and assessed to be operated in general operation (various formations of vehicles from different origins; train formation not defined at the design stage) shall be fitted with a technically compatible brake system to ensure the brake function in all vehicles of the train. SIST EN 14198:2017
Figure 1 — Basic structure of the main brake system (functions in dotted lines are optional) 5.3.2 General functions on train level 5.3.2.1 Brake control functions a) Each unit shall be equipped with a brake command line which is intended to transmit the brake command from the active driving cab to all other units in the train in a dedicated manner. b) The trainwide brake control, the continuous brake command line and the local control unit in each single vehicle of the train shall cooperate in a compatible way by using appropriate command signals. c) The brake command line shall be capable: 1) to receive a brake apply/release command from a trainwide brake control initiated from the active cab of the leading vehicle; 2) to receive an emergency brake application command from a trainwide brake control initiated from decentralized brake command devices if fitted. d) The brake command line shall be capable of transmitting the brake command information: 1) full release of the brakes; 2) emergency brake application; 3) gradual application or release for service braking. SIST EN 14198:2017
...
