EN ISO 3630-1:2008

SLOVENSKI STANDARD
01-julij-2008
1DGRPHãþD
SIST EN ISO 3630-1:2000
Zobozdravstvo - Instrumenti za zobni kanal - 1. del: Osnovne zahteve in preskusne
metode (ISO 3630-1:2008)
Dentistry - Root-canal instruments - Part 1: General requirements and test methods (ISO
3630-1:2008)
Zahnheilkunde - Wurzelkanalinstrumente - Teil 1 : Allgemeine Anforderungen und
Prüfverfahren (ISO 3630-1:2008)
Art dentaire - Instruments pour canaux radiculaires - Partie 1: Exigences générales et
méthodes d'essai (ISO 3630-1:2008)
Ta slovenski standard je istoveten z: EN ISO 3630-1:2008
ICS:
11.060.25 =RERWHKQLþQLLQVWUXPHQWL Dental instruments
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 3630-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2008
ICS 11.060.20 Supersedes EN ISO 3630-1:1994
English Version
Dentistry - Root-canal instruments - Part 1: General
requirements and test methods (ISO 3630-1:2008)
Art dentaire - Instruments pour canaux radiculaires - Partie Zahnheilkunde - Wurzelkanalinstrumente - Teil 1:
1: Exigences générales et méthodes d'essai (ISO 3630- Allgemeine Anforderungen und Prüfverfahren (ISO 3630-
1:2008) 1:2008)
This European Standard was approved by CEN on 7 January 2008.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2008 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 3630-1:2008: E
worldwide for CEN national Members.

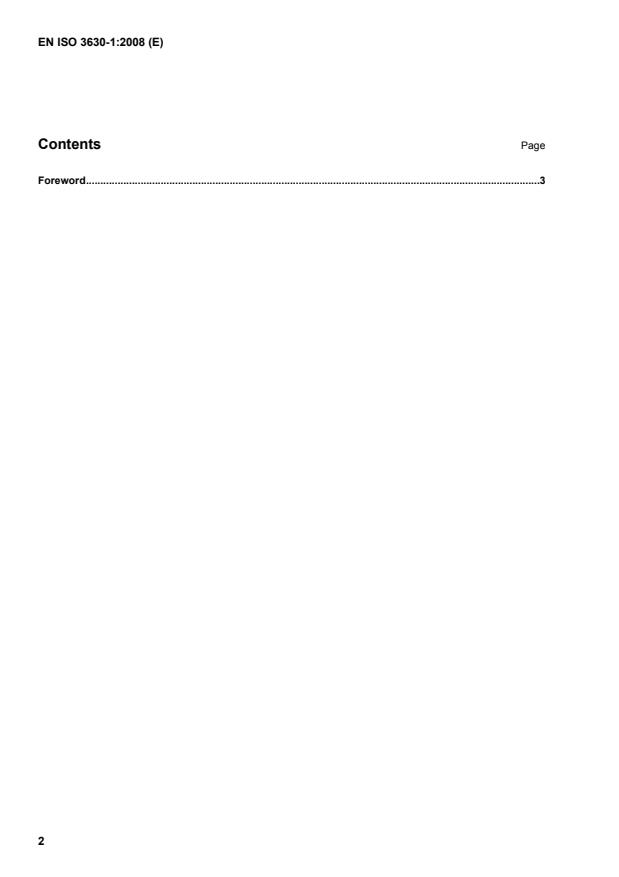

Contents Page
Foreword.3

Foreword
This document (EN ISO 3630-1:2008) has been prepared by Technical Committee ISO/TC 106 "Dentistry" in
collaboration with Technical Committee CEN/TC 55 "Dentistry", the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by August 2008, and conflicting national standards shall be withdrawn at
the latest by August 2008.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 3630-1:1994.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
Endorsement notice
The text of ISO 3630-1:2008 has been approved by CEN as a EN ISO 3630-1:2008 without any modification.

INTERNATIONAL ISO
STANDARD 3630-1
Second edition
2008-02-01
Dentistry — Root-canal instruments —
Part 1:
General requirements and test methods
Art dentaire — Instruments pour canaux radiculaires —
Partie 1: Exigences générales et méthodes d'essai

Reference number
ISO 3630-1:2008(E)
©
ISO 2008
ISO 3630-1:2008(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2008
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2008 – All rights reserved

ISO 3630-1:2008(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and symbols. 1
3.1 Terms and definitions. 1
3.2 Symbols . 3
4 Classification. 3
5 Requirements . 3
5.1 General. 3
5.2 Type 1: standard-sized instruments . 3
5.3 Type 2: taper-sized instruments. 5
5.4 Type 3: shape-sized instruments. 6
5.5 Type 4: non-taper-sized instruments. 7
5.6 Type 5: non-uniform taper-sized instruments . 8
5.7 Material . 9
5.8 Dimensions. 9
5.9 Mechanical requirements. 9
5.10 Chemical requirements . 10
6 Sampling. 10
7 Testing . 10
7.1 Visual inspection . 10
7.2 Test conditions . 10
7.3 Measurement of dimensions . 11
7.4 Resistance to fracture by twisting and angular deflection. 11
7.5 Stiffness. 13
7.6 Handle and shank security . 14
7.7 Corrosion test . 14
7.8 Heat effects of sterilization . 15
8 Designation, marking and identification . 16
8.1 General. 16
8.2 Identification symbols. 16
9 Packaging . 16
10 Manufacturer's instructions for use. 16
11 Labelling . 17
Bibliography . 18

ISO 3630-1:2008(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 3630-1 was prepared by Technical Committee ISO/TC 106, Dentistry, Subcommittee SC 4, Dental
instruments.
This second edition cancels and replaces the first edition (ISO 3630-1:1992), which has been technically
revised.
ISO 3630 consists of the following parts, under the general title Dentistry — Root-canal instruments:
⎯ Part 1: General requirements and test methods
⎯ Part 2: Enlargers
⎯ Part 3: Condensers, pluggers and spreaders
⎯ Part 4: Auxiliary instruments
iv © ISO 2008 – All rights reserved

ISO 3630-1:2008(E)
Introduction
The reorganization of ISO 3630 is intended to present the requirements and test methods for root-canal
instruments in an orderly manner. This part of ISO 3630 defines general requirements and test methods.
Subsequent parts provide the specific requirements and test methods, if applicable, for two areas of
endodontic procedures. These parts are enlargers, condensers and auxiliary instruments.
With current use of nickel-titanium (Ni-Ti) alloys for manufacture of root canal instruments a need for adequate
expertise in their safe use is recommended. Instruments made of Ni-Ti can be easily broken near the tip if
manufacturer's cautions are not understood and practiced. This part of ISO 3630 does not attempt to provide
information for proper use of any instruments.
[4]
The sizes of the root-canal obturating points (cones) specified in ISO 6877 have to be aligned with the
corresponding sizes for root-canal instruments specified in ISO 3630.

INTERNATIONAL STANDARD ISO 3630-1:2008(E)

Dentistry — Root-canal instruments —
Part 1:
General requirements and test methods
1 Scope
This part of ISO 3630 specifies general requirements and test methods for root-canal instruments used for
endodontic purposes, e.g. enlargers, shaping and cleaning instruments, condensers, and accessory
instruments. In addition it covers general size designations, colour coding, packaging and identification
symbols.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 554, Standard atmospheres for conditioning and/or testing — Specifications
ISO 1942, Dental vocabulary (all parts)
ISO 1797-1:1992, Dental rotary instruments — Shanks — Part 1: Shanks made of metals
ISO 1797-2:1992, Dental rotary instruments — Shanks — Part 2: Shanks made of plastics
ISO 3630-2:2000, Dental root-canal instruments — Part 2: Enlargers
ISO 3696:1987, Water for analytical laboratory use — Specification and test methods
ISO 6360-2, Dentistry — Number coding system for rotary instruments — Part 2: Shapes
ISO 8601, Data elements and interchange formats — Information interchange — Representation of dates and
times
ISO 13402, Surgical and dental hand instruments — Determination of resistance against autoclaving,
corrosion and thermal exposure
ISO 15223-1, Medical devices — Symbols to be used with medical device labels, labelling and information to
be supplied — Part 1: General requirements
3 Terms, definitions and symbols
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 1942 and the following apply.
ISO 3630-1:2008(E)
3.1.1
root-canal instrument
endodontic instrument
dental instrument designed to explore, shape, clean and fill root canal systems
3.1.2
standard-sized instrument
root-canal instrument throughout the range of sizes available having a uniform taper of 0,02 mm per millimetre
of length
NOTE The nominal size of the root-canal instrument is listed in Table 1.
3.1.3
non standard-sized instrument
root-canal instrument which has other tip sizes than the standard-sized instrument
NOTE The nominal size of the root-canal instrument is not listed in Table 1.
3.1.4
taper-sized instrument
root-canal instrument the sizes of which are determined by the tip sizes that have tapers other than 0,02 mm
per millimetre of length
3.1.5
shape-sized instrument
root-canal instrument having a contoured working part with continuously varying profile
3.1.6
non taper-sized instrument
root-canal instrument having a cylindrical form along the long axis
3.1.7
non-uniform taper-sized instrument
root-canal instrument having more than one taper along the working part
3.1.8
flexible instrument
root-canal instrument whose average test value when tested according to 7.5, shall be 65 %, or less, of the
value listed in the appropriate bending or stiffness table of referenced specifications
3.1.9
guided tip instrument
root-canal instrument having a tip which guides access within root canal systems
3.1.10
tip portion of the instrument
that part of the root-canal instrument which is intended as the point, the shape of which is at the discretion of
the manufacturer
3.1.11
working part
portion of the root-canal instrument with an active cutting surface
3.1.12
shank
part of the root-canal instrument to be connected to a handpiece
3.1.13
handle
part of the root-canal instrument to be manipulated by the user by hand
2 © ISO 2008 – All rights reserved

ISO 3630-1:2008(E)
3.1.14
operative part
portion of the root-canal instrument from the tip to the handle or shank
3.2 Symbols
For the purposes of this document, the following symbols apply.
d diameter of the projection of the working part at the tip end (reference size);
d diameter at length l ;
2 2
d diameter at the end of minimum length of working part, length l ;
3 3
l tip length;
l length for measuring point d ;
2 2
l length for measuring point d and minimum length of working part;
3 3
l length of operative part.
4 Classification
For the purposes of this document, root-canal instruments are classified according to the shape and taper of
the tip size (see Figure 1) as follows.
⎯ Type 1: standard-sized instruments (taper = 2 %);
⎯ Type 2: taper-sized instruments (taper other than 2 %);
⎯ Type 3: shape-sized instruments (arc shape);
⎯ Type 4: non-taper-sized instruments (zero taper);
⎯ Type 5: non-uniform taper-sized instruments (more than one taper).
5 Requirements
5.1 General
Specific root-canal instrument types, such as enlargers, have unique shapes which are not included here.
These cases are covered in ISO 3630-2 and ISO 3630-3.
5.2 Type 1: standard-sized instruments
5.2.1 Length
The length of the working part, l , shall be a minimum of 16 mm unless otherwise specified by the
manufacturer. The lengths of the working part, when specified, and of the operative part, l , shall be within
± 0,5 mm of the specified lengths.
Test in accordance with 7.3.
ISO 3630-1:2008(E)
Figure 1 — Dimensions and locations for Type 1
(standard-sized instruments; taper = 2 %)
5.2.2 Size designation and diameters
Table 1 gives the nominal sizes and dimensions for the working part to be used for Type 1 (standard-sized
instruments). Tip sizes (d ) other than those listed in Table 1 are permitted. Figure 1 shows the position of the
diameters and lengths for all Type 1 root-canal instruments. The nominal sizes shall correspond to the values
of the extended diameters at the tip of the working part in hundredths of a millimetre.
NOTE The designation (code number) with three digits is part of the 15-digit identification number specified in
ISO 6360-1 and ISO 6360-2.
5.2.3 Colour designation
Table 1 gives the colour designation for each size of Type 1 instrument. These colours are used on the handle
or shank and specify the size identification of the working part. Colours of sizes not included in Table 1 are at
the discretion of the manufacturer.
5.2.4 Tip shape
The shape of the tip is at the discretion of the manufacturer.
5.2.5 Tip length and angle
The tip length shall be within the limits specified by the minimum and maximum angle (l min. to l max.) as
1 1
shown in Figure 1.
4 © ISO 2008 – All rights reserved

ISO 3630-1:2008(E)
Table 1 — Dimensions, size designation, and colour designation for Type 1
(standard-sized instruments)
Dimensions in millimetres
Nominal d Colour
d Tolerance d Tolerance l l min.
2 3 2 3
size ref. designation
006 0,06 012 0,38 pink
± 0,01
008 0,08 014 0,40 grey
010 0,10 016 0,42 purple
015 0,15 0,21 0,47 white
020 0,20 0,26 0,52 yellow
025 0,25 0,31 0,57 red
± 0,02
030 0,30 0,36 0,62 blue
035 0,35 0,41 0,67 green
± 0,02
040 0,40 0,46 0,72 black
045 0,45 0,51 0,77 white
3 16
050 0,50 0,56 0,82 yellow
055 0,55 0,61 0,87 red
060 0,60 0,66 0,92 blue
070 0,70 0,76 1,02 green
080 0,80 0,86 1,12 black
090 0,90 0,96 1,22 white
100 1,00 1,06 1,32 yellow
± 0,04 ± 0,04
110 1,10 1,16 1,42 red
120 1,20 1,26 1,52 blue
130 1,30 1,36 1,62 green
140 1,40 1,46 1,72 black
5.3 Type 2: taper-sized instruments
5.3.1 Length
The lengths of the working part and of the operative part shall be specified by the manufacturer, and shall be
within ± 0,5 mm of the specified lengths. The length l shall be 3 mm. The length l shall be 16 mm unless
2 3
otherwise specified by the manufacturer.
Test in accordance with 7.3.
5.3.2 Tip length and angle
The tip length and angle shall be at the discretion of the manufacturer.
5.3.3 Size designation
The designated instrument size shall be presented as “xxx yy”, where “xxx” is the diameter identification
(5.3.4) and “yy” is taper identification (5.3.5).
NOTE This instrument size designation is part of the 15-digit identifi
...
