EN 13606-2:2007
(Main)Health informatics - Electronic health record communication - Part 2: Archetypes interchange specification
Health informatics - Electronic health record communication - Part 2: Archetypes interchange specification
This work item consists of the revision of the four part standard ENV 13606 to a full European standard (EN).
This standard specifies the information architecture required for interoperable communications between systems and services that need or provide EHR data. This standard is not intended to specify the internal architecture or database design of such systems.
The subject of the record or record extract to be communicated is an individual person, and the scope of the communication is predominantly with respect to that person’s care.
Uses of healthcare records for other purposes such as administration, management, research and epidemiology, which require aggregations of individual people’s records, are not the focus of this standard but such secondary uses could also find the standard useful.
Part 2 of this standard defines an Archetype Model to be used to represent Archetypes when communicated between repositories, and between archetype services. It defines an optional serialised representation, which may be used as an exchange format for communicating individual archetypes. Such communication might, for example, be between archetype libraries or between an archetype service and an EHR persistence or validation service.
Medizinische Informatik - Kommunikation von Patientendaten in elektronischer Form - Teil 2: Spezifikation für den Austausch von Archetypen
Le présent document constitue une révision de la prénorme ENV 13606 en quatre parties en vue d'établir une Norme européenne de plein statut (EN).
La présente norme spécifie l'architecture d'informations nécessaire aux communications interopérables entre des systèmes et des services utilisant ou fournissant des données de DIS. Elle n'a pas pour objet de spécifier l'architecture interne ou la conception des bases de données de tels systèmes.
Le sujet du dossier ou de l'extrait de dossier à communiquer est une personne individuelle et le domaine d'application de la communication porte principalement sur les soins qui lui sont apportés.
L'utilisation des dossiers de santé à d'autres fins (comme l'administration, la gestion, la recherche et l'épidémiologie, par exemple), qui nécessitent un regroupement (une agrégation) des dossiers de personnes individuelles, ne constituent pas le sujet central de la présente norme bien que celle-ci puisse s'avérer utile à de tels usages secondaires.
La partie 2 de la présente norme définit un modèle d'archétype à utiliser pour représenter les archétypes lorsqu'ils sont communiqués entre référentiels et entre services d'archétypes. Elle définit une représentation sérialisée facultative, qui peut être utilisée comme format d'échange pour la communication d'archétypes individuels. Ce type de communication peut, par exemple, survenir entre des bibliothèques d'archétypes ou un service d'archétypes et un service de conservation de DIS ou un service de validation.
Informatique de la santé - Communication des dossiers de santé informatisés - Partie 2 : Spécification d'échange d'archétypes
Zdravstvena informatika - Komunikacija z elektronskimi zapisi v zdravstvenem varstvu - 2. del: Arhetipi
General Information
- Status
- Withdrawn
- Publication Date
- 31-Jul-2007
- Withdrawal Date
- 20-Jan-2026
- Technical Committee
- CEN/TC 251 - Medical informatics
- Drafting Committee
- CEN/TC 251/WG 1 - Information models
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 03-Jul-2019
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 22-Dec-2008
- Effective Date
- 10-Jul-2019
- Refers
EN 1303:2005/AC:2008 - Building hardware - Cylinders for locks - Requirements and test methods - Effective Date
- 28-Jan-2026
- Refers
EN 1330-5:1998 - Non-destructive testing - Terminology - Part 5: Terms used in Eddy current testing - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Refers
EN 14822-2:2005 - Health informatics - General purpose information components - Part 2: Non-clinical - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Get Certified
Connect with accredited certification bodies for this standard

BSI Group
BSI (British Standards Institution) is the business standards company that helps organizations make excellence a habit.
Sponsored listings
Frequently Asked Questions
EN 13606-2:2007 is a standard published by the European Committee for Standardization (CEN). Its full title is "Health informatics - Electronic health record communication - Part 2: Archetypes interchange specification". This standard covers: This work item consists of the revision of the four part standard ENV 13606 to a full European standard (EN). This standard specifies the information architecture required for interoperable communications between systems and services that need or provide EHR data. This standard is not intended to specify the internal architecture or database design of such systems. The subject of the record or record extract to be communicated is an individual person, and the scope of the communication is predominantly with respect to that person’s care. Uses of healthcare records for other purposes such as administration, management, research and epidemiology, which require aggregations of individual people’s records, are not the focus of this standard but such secondary uses could also find the standard useful. Part 2 of this standard defines an Archetype Model to be used to represent Archetypes when communicated between repositories, and between archetype services. It defines an optional serialised representation, which may be used as an exchange format for communicating individual archetypes. Such communication might, for example, be between archetype libraries or between an archetype service and an EHR persistence or validation service.
This work item consists of the revision of the four part standard ENV 13606 to a full European standard (EN). This standard specifies the information architecture required for interoperable communications between systems and services that need or provide EHR data. This standard is not intended to specify the internal architecture or database design of such systems. The subject of the record or record extract to be communicated is an individual person, and the scope of the communication is predominantly with respect to that person’s care. Uses of healthcare records for other purposes such as administration, management, research and epidemiology, which require aggregations of individual people’s records, are not the focus of this standard but such secondary uses could also find the standard useful. Part 2 of this standard defines an Archetype Model to be used to represent Archetypes when communicated between repositories, and between archetype services. It defines an optional serialised representation, which may be used as an exchange format for communicating individual archetypes. Such communication might, for example, be between archetype libraries or between an archetype service and an EHR persistence or validation service.
EN 13606-2:2007 is classified under the following ICS (International Classification for Standards) categories: 35.240.80 - IT applications in health care technology. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13606-2:2007 has the following relationships with other standards: It is inter standard links to ENV 13606-2:2000, EN ISO 13606-2:2019, EN 1303:2005/AC:2008, EN 1330-5:1998, EN 1090-5:2017, prEN 54-26, EN 10224:2002, EN 14822-2:2005, EN 1949:2011+A1:2013. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 13606-2:2007 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

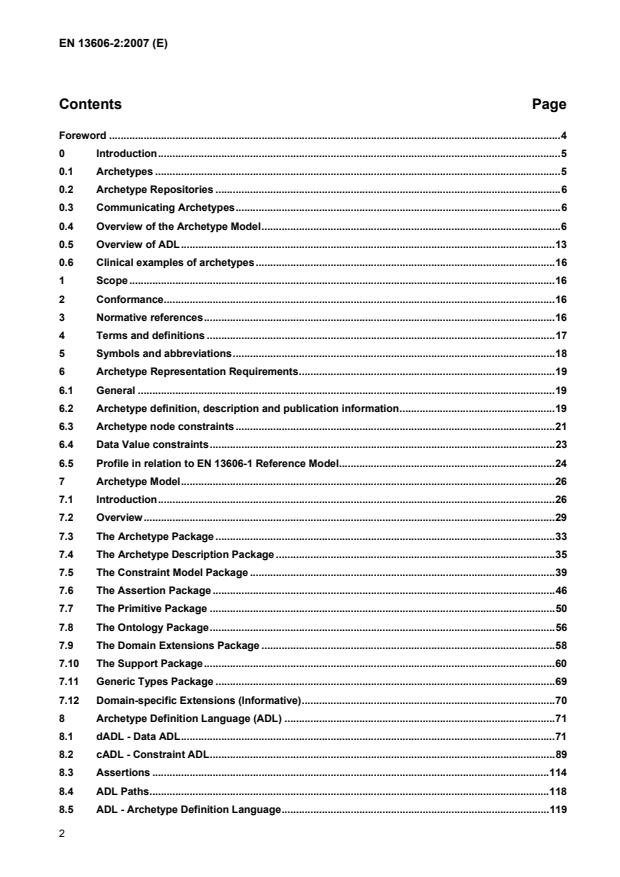

Standards Content (Sample)
