Aerospace series - Insert, MJ screw thread, helical coil, self-locking tanged insertion drive, in heat resisting nickel base alloy NI-PH2801 (Inconel X750), silver plated

This document specifies the characteristics of self-locking inserts, helical coil tanged insertion drives, MJ screw threads in NI-PH2801 and silver plated inserts for aerospace applications.
The maximum test temperature is 550 °C.

Luft- und Raumfahrt - Draht-Gewindeeinsätze, selbstsichernd, aus hochwarmfester Nickelbasislegierung NI-PH2801 (Inconel X750 - EN 3018), versilbert

Série aérospatiale - Filets rapportés, filetages MJ, à freinage interne, entraînement d'insertion à tenon, en alliage résistant à chaud base nickel NI-PH2801 (Inconel X750), argentés

Le présent document spécifie les caractéristiques des filets rapportés, à freinage interne, à enroulement hélicoïdal, avec entraînement d'insertion à tenon et filetages MJ en NI PH2801, argentés, pour les applications aérospatiales.
Température maximale d'essai : 550 °C.

Aeronavtika - Vložek s spiralnim navojem MJ, samozapiralni, za ročno vstavljanje, iz toplotno odporne zlitine na nikljevi osnovi NI-PH2801 (Inconel X750), posrebreni

General Information

Status
Not Published
Publication Date
27-Aug-2023
ICS
49.030.30 - Nuts
Technical Committee
ASD-STAN - Aerospace
Drafting Committee
ASD-STAN/D 3/S 2 - Fasteners
Current Stage
4060 - Closure of enquiry - Enquiry
Start Date
19-May-2022
Completion Date
19-May-2022
Ref Project
oSIST prEN 2942:2022 - Aerospace series - Insert, MJ screw thread, helical coil, self-locking tanged insertion drive, in heat resisting nickel base alloy NI-PH2801 (Inconel X750), silver plated

Relations

Revises
EN 2942:1998 - Aerospace series - Inserts, screw thread, helical coil, self-locking, in heat resisting nickel base alloy NI-PH2801 (Inconel X750), silver plated
Effective Date
19-Jan-2023

Overview

prEN 2942:2022 (CEN) defines the characteristics and requirements for aerospace series self‑locking inserts with MJ screw threads - specifically helical coil, tanged insertion drives fabricated from the heat‑resisting nickel‑base alloy NI‑PH2801 (Inconel X750) and silver plated. The draft standard covers configuration, dimensions, material, surface treatment and marking for inserts intended for aerospace use. The maximum test temperature for these inserts is 550 °C.

Key topics and technical requirements

  • Scope and purpose: Specifies self‑locking helical coil inserts (MJ thread series) with tanged insertion drives in NI‑PH2801, silver plated for aerospace applications.
  • Materials: Base material required by EN 3018 (NI‑PH2801 / Inconel X750, cold drawn wire).
  • Surface treatment: Electrolytic silver plating per EN 2786, with plating thickness 2–5 μm.
  • Dimensions and tolerances: Detailed configuration, dimensions, masses and tolerances are provided (metric, in millimetres) and apply after silver plating; roughness Ra values apply before plating. MJ thread limits reference ISO 5855‑2.
  • Design and installation: Layouts, lead‑in, coil counts and installation dimensions are provided; see referenced design standards EN 3044 for installation holes and EN 2945 for assembly procedures.
  • Marking and designation: Marking rules referenced to EN 2424 (style G, with optional style F); designation format and optional code I9005 described.
  • Technical specification & quality: Product technical specification per EN 2943. Manufacturers must operate approved aerospace production organizations and maintain an aerospace quality system (e.g., EN 9100 or equivalent). Qualification procedures (e.g., EN 9133) apply unless otherwise agreed.

Applications and users

  • Typical users: aerospace fastener manufacturers, design and mechanical engineers, procurement specialists, quality/inspection teams, and maintenance organizations.
  • Practical use cases: specifying and procuring high‑temperature resistant, self‑locking threaded inserts for aerospace assemblies where a combination of MJ screw thread, helical coil locking, and Inconel X750 heat resistance is required. Suitable for components exposed to elevated service or test temperatures (up to 550 °C).

Related standards

  • EN 3018 - NI‑PH2801 material (Inconel X750)
  • EN 2786 - Electrolytic silver plating of fasteners
  • EN 2943 - Inserts, MJ and M screw threads - Technical specification
  • EN 3044 / EN 2945 - Design and assembly procedures for helical coil inserts
  • ISO 5855‑2 - MJ threads (limit dimensions)
  • EN 2424, EN 9100, EN 9133

This summary helps engineers and procurement teams quickly identify compliance, material and surface requirements, and quality expectations when specifying self‑locking, silver‑plated MJ helical coil inserts in Inconel X750 (NI‑PH2801) under prEN 2942:2022.

Get Certified

Connect with accredited certification bodies for this standard

DEKRA North America

DEKRA certification services in North America.

ANAB United States Verified
Visit Website

Eagle Registrations Inc.

American certification body for aerospace and defense.

ANAB United States Verified
Visit Website

Element Materials Technology

Materials testing and product certification.

UKAS United Kingdom Verified
Visit Website

Sponsored listings

Frequently Asked Questions

prEN 2942:2022 is a draft published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Insert, MJ screw thread, helical coil, self-locking tanged insertion drive, in heat resisting nickel base alloy NI-PH2801 (Inconel X750), silver plated". This standard covers: This document specifies the characteristics of self-locking inserts, helical coil tanged insertion drives, MJ screw threads in NI-PH2801 and silver plated inserts for aerospace applications. The maximum test temperature is 550 °C.

This document specifies the characteristics of self-locking inserts, helical coil tanged insertion drives, MJ screw threads in NI-PH2801 and silver plated inserts for aerospace applications. The maximum test temperature is 550 °C.

prEN 2942:2022 is classified under the following ICS (International Classification for Standards) categories: 49.030.30 - Nuts. The ICS classification helps identify the subject area and facilitates finding related standards.

prEN 2942:2022 has the following relationships with other standards: It is inter standard links to EN 2942:1998. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

prEN 2942:2022 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)


SLOVENSKI STANDARD
01-april-2022
Aeronavtika - Vložek s spiralnim navojem MJ, samozapiralni, za ročno vstavljanje,
iz toplotno odporne zlitine na nikljevi osnovi NI-PH2801 (Inconel X750), posrebreni
Aerospace series - Insert, MJ screw thread, helical coil, self-locking tanged insertion
drive, in heat resisting nickel base alloy NI-PH2801 (Inconel X750), silver plated
Luft- und Raumfahrt - Draht-Gewindeeinsätze, selbstsichernd, aus hochwarmfester
Nickelbasislegierung NI-PH2801 (Inconel X750 - EN 3018), versilbert
Série aérospatiale - Filet rapportés, à freinage interne, en alliage résistant à chaud à
base de nickel NI-PH2801 (Inconel X750), argentés
Ta slovenski standard je istoveten z: prEN 2942:2022
ICS:
49.030.20 Sorniki, vijaki, stebelni vijaki Bolts, screws, studs
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT
EUROPEAN STANDARD
prEN 2942
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2022
ICS Will supersede EN 2942:1998
English Version
Aerospace series - Insert, MJ screw thread, helical coil, self-
locking tanged insertion drive, in heat resisting nickel base
alloy NI-PH2801 (Inconel X750), silver plated
Série aérospatiale - Filet rapportés, à freinage interne, Luft- und Raumfahrt - Draht-Gewindeeinsätze,
en alliage résistant à chaud à base de nickel NI-PH2801 selbstsichernd, aus hochwarmfester
(Inconel X750), argentés Nickelbasislegierung NI-PH2801 (Inconel X750 - EN
3018), versilbert
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee ASD-
STAN.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 2942:2022:2022 E
worldwide for CEN national Members.

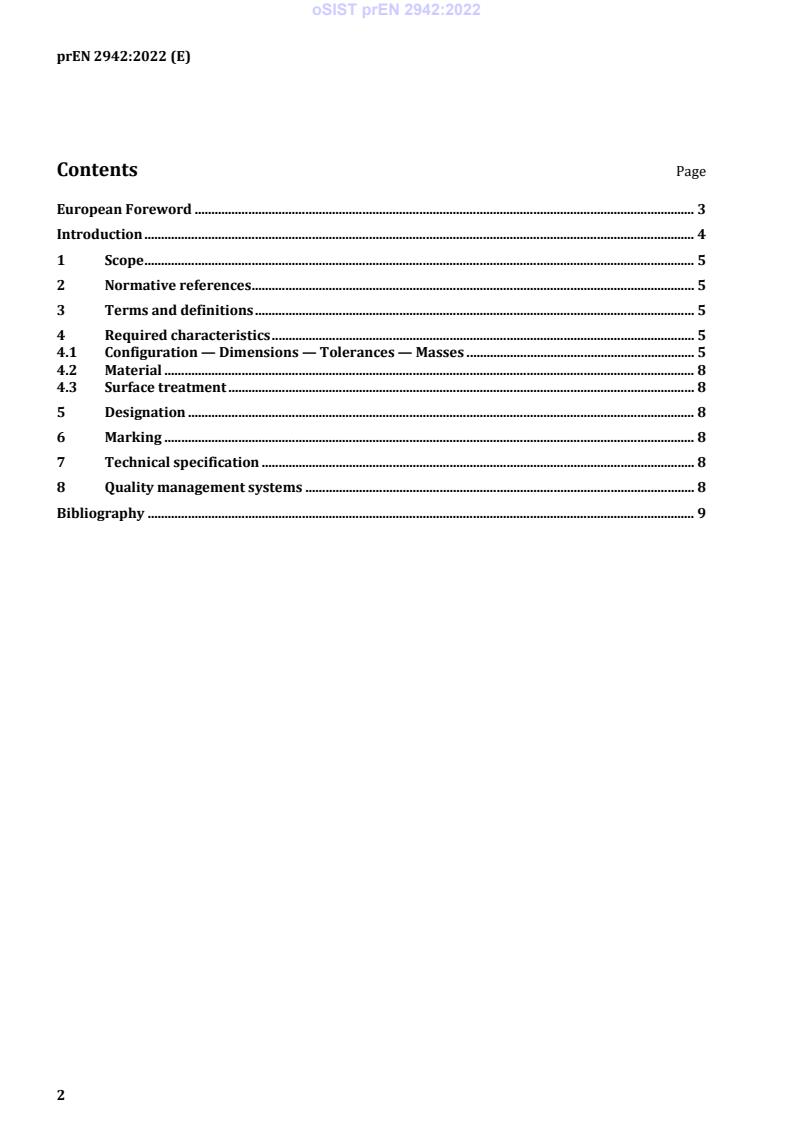

Contents Page
