EN 4528:2009
(Main)Aerospace series - Steel FE-PA3903 (X10CrNi18-8) - Cold rolled - Strip for springs - a ≤ 3 mm - 1 250 MPa ≤ Rm ≤ 1 640 MPa
Aerospace series - Steel FE-PA3903 (X10CrNi18-8) - Cold rolled - Strip for springs - a ≤ 3 mm - 1 250 MPa ≤ Rm ≤ 1 640 MPa
This standard specifies the requirements relating to:
Steel FE-PA3903 (X10CrNi18-8)
Cold rolled
Strip for springs
a < or = 3 mm
1 250 MPa < or = Rm < or = 1 640 MPa
for aerospace applications.
Luft- und Raumfahrt - Stahl FE-PA3903 (X10CrNi18-8) - Kaltgewalzt - Bänder für Federn - a ≤ 3 mm - 1 250 MPa ≤ Rm ≤ 1 640 MPa
Diese Norm legt die Anforderungen an
Stahl FE-PA3903 (X10CrNi18-8)
Kaltgewalzt
Bänder für Federn
a 3 mm
1 250 MPa Rm 1 640 MPa
für Anwendungen in der Luft- und Raumfahrt fest.
Série aérospatiale - Acier FE-PA3903 (X10CrNi18-8) - Laminé à froid - Bandes pour ressort - a ≤ 3 mm - 1 250 MPa ≤ Rm ≤ 1 640 MPa
Aeronavtika - Jeklo FE-PA3903 (X10CrNi18-8) - Hladno valjano - Trak za vzmeti - a ≤ 3 mm - 1250 MPa ≤ Rm ≤ 1 640 MPa
General Information
- Status
- Published
- Publication Date
- 17-Feb-2009
- Withdrawal Date
- 30-Aug-2009
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 4 - Metallic
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 21-Jan-2025
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 4528:2009 is a European aerospace material standard that specifies requirements for Steel FE-PA3903 (X10CrNi18-8) supplied as cold‑rolled strip for springs. The standard applies to strips with nominal thickness a ≤ 3 mm intended for aerospace use and defines mechanical, chemical and inspection criteria for high‑strength spring strip material with tensile strength in the range 1 250 MPa ≤ Rm ≤ 1 640 MPa.
Key topics and technical requirements
- Material designation: FE-PA3903 (X10CrNi18-8) - a chromium‑nickel stainless steel for spring applications.
- Form & production: Cold‑rolled strip, thickness a ≤ 3 mm. Method of melting: air melted. Delivery condition: temper rolled (code U).
- Mechanical properties:
- Tensile strength Rm: 1 250–1 640 MPa
- Proof stress Rp0.2: ≥ 950 MPa
- Elongation A: ≥ 4%
- Hardness: 380–480 HV
- Direction of test piece: longitudinal (L); test temperature: ambient.
- Chemical composition: Specified minimums and maximums for C, Si, Mn, P, S, Cr, Mo, Ni, Cu, N (as listed in the standard).
- Cleanliness / inclusions: Micro‑cleanness requirements per EN 2951; category 2.
- Inspection & delivery: Dimensional and marking inspections as referenced to EN 4700‑1. Product qualification and specific inspection programs are to be agreed between manufacturer and purchaser.
Applications and practical value
EN 4528:2009 is intended for specification and procurement of high‑strength spring strip for aerospace components. Typical practical uses include:
- Design and manufacture of springs and elastic elements in aerospace assemblies where high tensile strength, corrosion resistance and repeatable mechanical performance are required.
- Supplier quality specification, incoming material inspection and certification for aerospace manufacturers and tier‑1 suppliers.
- Material selection by design engineers, procurement teams and testing laboratories to ensure conformity with aerospace industry mechanical and micro‑cleanliness expectations.
Using EN 4528:2009 helps ensure traceable, repeatable material performance, reduces risk in safety‑critical spring applications, and provides a common technical language between buyers and suppliers.
Related standards
- EN 4700‑1 - technical specification for wrought steel plate, sheet and strip (referenced for tests and delivery).
- EN 2951 - micrographic test method for non‑metallic inclusions.
- EN 4258 - organization of aerospace metallic material standards.
- EN 4500‑5 - rules for drafting/presentation of steel material standards.
Keywords: EN 4528:2009, FE-PA3903, X10CrNi18-8, cold rolled strip, spring strip, aerospace steel, 1250 MPa, 1640 MPa, proof stress, hardness HV, EN 4700-1.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 4528:2009 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Steel FE-PA3903 (X10CrNi18-8) - Cold rolled - Strip for springs - a ≤ 3 mm - 1 250 MPa ≤ Rm ≤ 1 640 MPa". This standard covers: This standard specifies the requirements relating to: Steel FE-PA3903 (X10CrNi18-8) Cold rolled Strip for springs a < or = 3 mm 1 250 MPa < or = Rm < or = 1 640 MPa for aerospace applications.
This standard specifies the requirements relating to: Steel FE-PA3903 (X10CrNi18-8) Cold rolled Strip for springs a < or = 3 mm 1 250 MPa < or = Rm < or = 1 640 MPa for aerospace applications.
EN 4528:2009 is classified under the following ICS (International Classification for Standards) categories: 49.025.10 - Steels. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4528:2009 has the following relationships with other standards: It is inter standard links to EN 4258:2024, EN 4700-001:2025, EN 4420:2003. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4528:2009 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

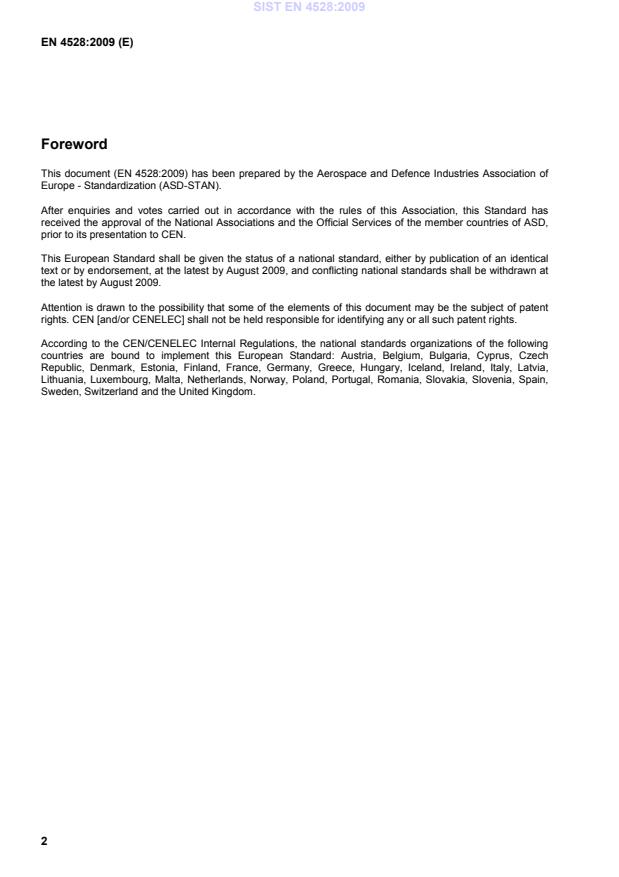

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.49.025.10JeklaSteelsICS:Ta slovenski standard je istoveten z:EN 4528:2009SIST EN 4528:2009en01-maj-2009SIST EN 4528:2009SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4528
February 2009 ICS 49.025.10 English Version
Aerospace series - Steel FE-PA3903 (X10CrNi18-8) - Cold rolled - Strip for springs - a ≤ 3 mm - 1 250 MPa ≤ Rm ≤ 1 640 MPa
Série aérospatiale - Acier FE-PA3903 (X10CrNi18-8) - Laminé à froid - Bandes pour ressort - a ≤ 3 mm - 1 250 MPa ≤ Rm ≤ 1 640 MPa
Luft- und Raumfahrt - Stahl FE-PA3903 (X10CrNi18-8) - Kaltgewalzt - Bänder für Federn - a ≤ 3 mm - 1 250 MPa ≤ Rm ≤ 1 640 MPa This European Standard was approved by CEN on 11 July 2008.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2009 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 4528:2009: ESIST EN 4528:2009
...
