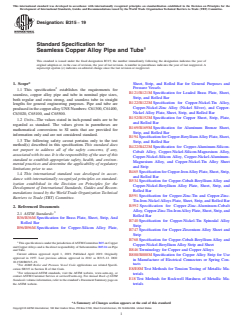

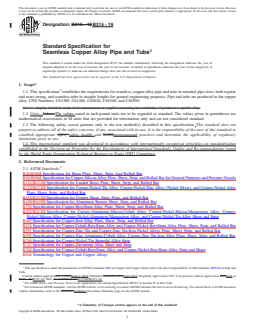

Designation: B315 − 12 B315 − 19
Standard Specification for
Seamless Copper Alloy Pipe and Tube
This standard is issued under the fixed designation B315; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope*
1.1 This specification establishes the requirements for seamless, copper alloy pipe and tube in nominal pipe sizes, both regular
and extra strong, and seamless tube in straight lengths for general engineering purposes. Pipe and tube are produced in the copper
alloy UNS Numbers: C61300, C61400, C63020, C65100, and C65500.
NOTE 1—Inquiry should be made of the manufacturer or supplier concerning the availability of product in a specific alloy.
1.2 Units—Values The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are
mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 The following safety caveat pertains only to the test method(s) described in this specification. This standard does not
purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to
establish appropriate safety safety, health, and healthenvironmental practices and determine the applicability of regulatory
limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
B36/B36M Specification for Brass Plate, Sheet, Strip, And Rolled Bar
B96/B96M Specification for Copper-Silicon Alloy Plate, Sheet, Strip, and Rolled Bar for General Purposes and Pressure Vessels
B121/B121M Specification for Leaded Brass Plate, Sheet, Strip, and Rolled Bar
B122/B122M Specification for Copper-Nickel-Tin Alloy, Copper-Nickel-Zinc Alloy (Nickel Silver), and Copper-Nickel Alloy
Plate, Sheet, Strip, and Rolled Bar
B152/B152M Specification for Copper Sheet, Strip, Plate, and Rolled Bar
B169/B169M Specification for Aluminum Bronze Sheet, Strip, and Rolled Bar
B194 Specification for Copper-Beryllium Alloy Plate, Sheet, Strip, and Rolled Bar
B422/B422M Specification for Copper-Aluminum-Silicon-Cobalt Alloy, Copper-Nickel-Silicon-Magnesium Alloy, Copper-
Nickel-Silicon Alloy, Copper-Nickel-Aluminum-Magnesium Alloy, and Copper-Nickel-Tin Alloy Sheet and Strip
B465 Specification for Copper-Iron Alloy Plate, Sheet, Strip, and Rolled Bar
B534 Specification for Copper-Cobalt-Beryllium Alloy and Copper-Nickel-Beryllium Alloy Plate, Sheet, Strip, and Rolled Bar
B591 Specification for Copper-Zinc-Tin and Copper-Zinc-Tin-Iron-Nickel Alloys Plate, Sheet, Strip, and Rolled Bar
B592 Specification for Copper-Zinc-Aluminum-Cobalt Alloy, Copper-Zinc-Tin-Iron Alloy Plate, Sheet, Strip, and Rolled Bar
B740 Specification for Copper-Nickel-Tin Spinodal Alloy Strip
B747 Specification for Copper-Zirconium Alloy Sheet and Strip
B768 Specification for Copper-Cobalt-Beryllium Alloy and Copper-Nickel-Beryllium Alloy Strip and Sheet
B846 Terminology for Copper and Copper Alloys
This specification is under the jurisdiction of ASTM Committee B05 on Copper and Copper Alloys and is the direct responsibility of Subcommittee B05.04 on Pipe and
Tube.
Current edition approved Oct. 1, 2012April 1, 2019. Published November 2012April 2019. Originally approved in 1957. Last previous edition approved in 20062012 as
B315 – 06.B315–12. DOI: 10.1520/B0315-12.10.1520/B0315–19.
For ASME Boiler and Pressure Vessel Code applications see related Specification SB315 in Section II of that Code.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’sstandard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
B315 − 19

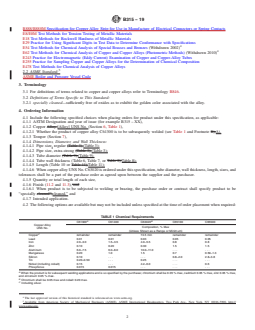

B888/B888M Specification for Copper Alloy Strip for Use in Manufacture of Electrical Connectors or Spring Contacts
E8/E8M Test Methods for Tension Testing of Metallic Materials
E18 Test Methods for Rockwell Hardness of Metallic Materials

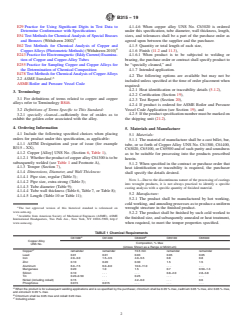

E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
E54 Test Methods for Chemical Analysis of Special Brasses and Bronzes (Withdrawn 2002)
E62 Test Methods for Chemical Analysis of Copper and Copper Alloys (Photometric Methods) (Withdrawn 2010)
E243 Practice for Electromagnetic (Eddy Current) Examination of Copper and Copper-Alloy Tubes
E255 Practice for Sampling Copper and Copper Alloys for the Determination of Chemical Composition
E478 Test Methods for Chemical Analysis of Copper Alloys
2.2 ASME Standard:
ASME Boiler and Pressure Vessel Code
3. Terminology
3.1 For definitions of terms related to copper and copper alloys refer to Terminology B846.
3.2 Definitions of Terms Specific to This Standard:
3.2.1 specially cleaned—sufficiently free of oxides as to exhibit the golden color associated with the alloy.
4. Ordering Information
4.1 Include the following specified choices when placing orders for product under this specification, as applicable:
4.1.1 ASTM Designation and year of issue (for example B315 – XX),
4.1.2 Copper Alloy [Alloy] UNS No. (Section 6, Table 1),
4.1.2.1 Whether the product of copper alloy C61300 is to be subsequently welded (see Table 1 and Footnote B),A),
4.1.3 Temper (Section 7),
4.1.4 Dimensions, Diameter, and Wall Thickness:
4.1.4.1 Pipe size, regular (Table 3),(Table 3);
4.1.4.2 Pipe size, extra-strong (Table 3),(Table 3);
4.1.4.3 Tube diameter (Table 9),(Table 9);
4.1.4.4 Tube wall thickness (Table 6, Table 7, or Table 8),Table 8);
4.1.4.5 Length (Table 10 or Table 11),Table 11);
4.1.4.6 When copper alloy UNS No. C63020 is ordered under this specification, tube diameter, wall thickness, length, sizes, and
tolerances shall be a part of the purchase order as agreed upon between the supplier and the purchaser.
4.1.5 Quantity or total length of each size,
4.1.6 Finish (11.2 and 11.3), and
4.1.6.1 When product is to be subjected to welding or brazing, the purchase order or contract shall specify product to be
“specially cleaned”,cleaned,” and
4.1.7 Intended application.
4.2 The following options are available but may not be included unless specified at the time of order placement when required:
TABLE 1 Chemical Requirements
A B
C61300 C61400 C63020 C65100 C65500
Copper Alloy
Composition, % Max
UNS No.
(Unless Shown as a Range or Minimum)
C
Copper remainder remainder 74.5 min remainder remainder
Lead 0.01 0.01 0.03 0.05 0.05
Iron 2.0–3.0 1.5–3.5 4.0–5.5 0.8 0.8
Zinc 0.10 0.20 0.30 1.5 1.5
Aluminum 6.0–7.5 6.0–8.0 10.0–11.0 . . . . . .
Manganese 0.20 1.0 1.5 0.7 0.50–1.3
Silicon 0.10 . . . . . . 0.8–2.0 2.8–3.8
Tin 0.20–0.50 . . . 0.25 . . . . . .
Nickel (including cobalt) 0.15 . . . 4.2–6.0 . . . 0.6
Phosphorus 0.015 0.015 . . . . . . . . .
A
When the product is for subsequent welding applications and is so specified by the purchaser, chromium shall be 0.05 % max, cadmium 0.05 % max, zinc 0.05 % max,
and zirconium 0.05 % max.
B
Chromium shall be 0.05 max and cobalt 0.20 max.
C
Including silver.
The last approved version of this historical standard is referenced on www.astm.org.
Available from American Society of Mechanical Engineers (ASME), ASME International Headquarters, Two Park Ave., New York, NY 10016-5990, http://
www.asme.org.
B315 − 19

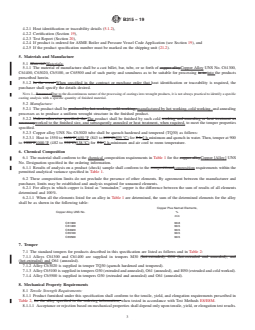

4.2.1 Heat identification or traceability details (5.1.2),
4.2.2 Certification (Section 19),
4.2.3 Test Report (Section 20),
4.2.4 If product is ordered for ASME Boiler and Pressure Vessel Code Application (see Section 19), and
4.2.5 If the product specification number must be marked on the shipping unit (21.2).
5. Materials and Manufacture
5.1 Material:Materials:
5.1.1 The material of manufacture shall be a cast billet, bar, tube, or so forth of copper alloyCopper Alloy UNS No. C61300,
C61400, C63020, C65100, or C65500 and of such purity and soundness as to be suitable for processing in to into the products
prescribed herein.
5.1.2 In the event When specified in the contract or purchase order that heat identification or traceability is required, the
purchaser shall specify the details desired.
NOTE 1—Because ofDue to the discontinuous nature of the processing of castings into wrought products, it is not always practical to identify a specific
casting analysis with a specific quantity of finished material.
5.2 Manufacture:
5.2.1 The product shall be produced by hot-working, cold-working, manufactured by hot working, cold working, and annealing
processes as to produce a uniform wrought structure in the finished product.
5.2.2 Unless otherwise specified, the The product shall be finished by such cold working and annealing or heat treatment as
necessaryworked to the finished size, and subsequently annealed or heat treatment, when required, to meet the temper properties
specified.

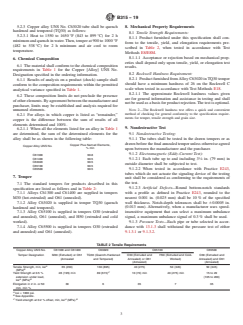

5.2.3 Copper alloy UNS No. C63020 tube shall be quench hardened and tempered (TQ30) as follows:
5.2.3.1 Heat to 1550 to 1650°F1650 °F (843 to 899°C)899 °C) for 2-h 2 h minimum and quench in water. Then, temper at 900
to 1000°F1000 °F (482 to 538°C)538 °C) for 2-h 2 h minimum and air cool to room temperature.
6. Chemical Composition
6.1 The material shall conform to the chemical composition requirements in Table 1 for the copper alloyCopper [Alloy] UNS
No. Designation specified in the ordering information.
6.1.1 Results of analysis on a product (check) sample shall conform to the compositionalcomposition requirements within the
permitted analytical variance specified in Table 1.
6.2 These composition limits do not preclude the presence of other elements. By agreement between the manufacturer and
purchaser, limits may be established and analysis required for unnamed elements.
6.2.1 For alloys in which copper is listed as “remainder,” copper is the difference between the sum of results of all elements
determined and 100%.
6.2.1.1 When all the elements listed for an alloy in Table 1 are determined, the sum of the determined elements for the alloy
shall be as shown in the following table:
Copper Plus Named Elements,
Copper Alloy UNS No. %
min
C61300 99.8
C61400 99.5
C63020 99.5
C65100 99.5
C65500 99.5
7. Temper
7.1 The standard tempers for products described in this specification are listed as follows and in Table 2:
7.1.1 Alloys C61300 and C61400 are supplied in tempers M30 (hot-extruded), O30 (hot-extruded and annealed), and
(hot-extruded) and O61 (annealed).
7.1.2 Alloy C63020 is supplied in temper TQ30 (quench hardened and tempered).
7.1.3 Alloy C65100 is supplied in tempers O30 (extruded and annealed), O61 (annealed), and H50 (extruded and cold worked).
7.1.4 Alloy C65500 is supplied in tempers O30 (extruded and annealed) and O61 (annealed).
8. Mechanical Property Requirements
8.1 Tensile Strength Requirements:
8.1.1 Product furnished under this specification shall conform to the tensile, yield, and elongation requirements prescribed in
Table 2, for the alloy specified in the ordering information, when tested in accordance with Test Methods E8/E8M.
8.1.1.1 Acceptance or rejection based on mechanical properties shall depend only upon tensile, yield, or elongation test results.
B315 − 19

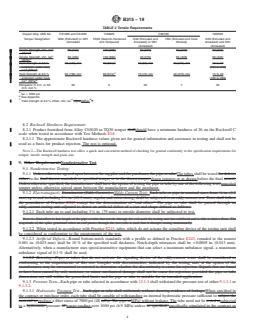

TABLE 2 Tensile Requirements
Copper Alloy UNS No. C61300 and C61400 C63020 C65100 C65500
Temper Designation M30 (Extruded) or O61 TQ30 (Quench-Hardened O30 (Extruded and H50 (Extruded and Cold- O30 (Extruded and
(Annealed and Tempered) Annealed) or O61 Worked) Annealed) and O61
(Annealed) (Annealed)
A
Tensile Strength, min, ksi 65 (447) 130 (896) 40 (275) 50 (345) 50 (345)
B
(Mpa)
A
Tensile Strength, min, ksi 65 (450) 130 (895) 40 (275) 50 (345) 50 (345)
B
(MPa)
C
Yield Strength at 0.5 % 28 (193) min 89 (621) 10 (69) min 40 (275) min 15 to 29
extension under load, (103 to 200)
A B
ksi (MPa)
C
Yield Strength at 0.5 % 28 (195) min 89 (615) 10 (70) min 40 (275) min 15 to 29
extension under load, (105 to 200)
A B
ksi (MPa)
Elongation in 2 in. or 50 30 6 35 7 35
mm, min %
A
ksi = 1000 psi.
B
See Appendix.
C A B
Yield strength at 0.2 % offset, min, ksi (Mpa)(MPa). .
8.2 Rockwell Hardness Requirement:
8.2.1 Product furnished from Alloy C63020 in TQ30 temper shallshould have a minimum hardness of 26 on the Rockwell C
scale when tested in accordance with Test Methods E18.
8.2.1.1 The approximate Rockwell hardness values given are for general information and assistance in testing and shall not be
used as a basis for product rejection. The test is optional.
NOTE 2—The Rockwell hardness test offers a quick and convenient method of checking for general conformity to the specification requirements for
temper, tensile strength and grain size.
9. Other RequirementsNondestructive Test
9.1 Nondestructive Testing:
9.1.1 Unless otherwise agreed upon between the supplier and the purchaser, the pipe or tube The tubes shall be tested for defects
either in the final drawn, annealed, or specified temper or in the drawn temper drawn tempers or as drawn before the final anneal.
Unless otherwise specified, the manufacturer shall have the option of testing the pipe or tube by one of the following tests:annealed
temper unless otherwise agreed upon between the manufacturer and the purchaser.
9.1.2 Electromagnetic Examination (Eddy Current)—(Eddy-Current Test): Each tube or pipe in nominal sizes from ⁄8 in. (3.2
mm) up to and including 2 ⁄2 in. (63.5 mm), regular and extra-strong, shall be subjected to an eddy-current test. Tests shall follow
the procedures of Practice E243 except for the determination of “end effect.” The pipe or tube shall be passed through an
eddy-current testing unit adjusted to detect an artificial defect of a size and shape defined as follows:
9.1.2.1 Each tube up to and including 3 ⁄8 in. (79 mm) in outside diameter shall be subjected to test.
NOTE 4—End effect is that length of the pipe or tube that travels through the coil until the testing unit has stabilized and is able to detect flaws. The
magnitude of the spike generated when an end passes through the test coils is such that it disrupts testing momentarily.
9.1.2.2 When tested in accordance with Practice E243, tubes which do not actuate the signaling device of the testing unit shall
be considered as conforming to the requirements of the test.
9.1.2.3 Artificial Defects—Round bottom-notch standards with a profile as defined in Practice E243, rounded to the nearest
0.001 in. (0.025 mm) shall be 10 % of the specified wall thickness. Notch-depth tolerances shall be 60.0005 in. (0.013 mm).
Alternatively, when a manufacturer uses speed-insensitive equipment that can select a maximum unbalance signal, a maximum
unbalance signal of 0.3 % shall be used.
9.1.2.2 Retesting—Pipes or tubes that do not activate the signaling device of the eddy-current tester shall be considered as
conforming to the requirements of this test. Lengths with discontinuities, indicated by the testing unit, at the option of the
manufacturer, may be reexamined or retested to determine whether the discontinuity is cause for rejection. Signals that are found
to have been caused by soil, moisture, or minor mechanical damage shall not be cause for rejection, provided the pipe or tube
dimensions are still within the prescribed limits and the pipe or tube is suitable for its intended application.
9.1.3 Pressure Tests—Each pipe or tube selected in accordance with 13.1.3 shall withstand the pressure test of either 9.1.3.1 or
9.1.3.2.

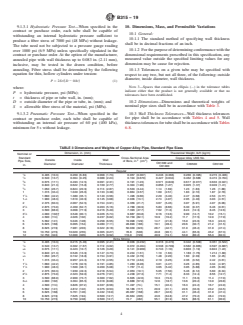

9.1.3.1 Hydrostatic Pressure Test—Each pipe or tube shall withstand, without showing evidence of leakage,When specified in
the contract or purchase order, each tube shall be capable of withstanding an internal hydrostatic pressure sufficient to subject the
material to produce a fiber stress of 7000 psi (48 mPa). The pipe orMPa) without leakage. The tube need not be tested atsubjected
to a hydrostatic pressure of gauge reading over 1000 psi (6.9 MPa) unless so specified. specifically stipulated in the contract or
B315 − 19
purchase order. At the option of the manufacturer, annealed pipe with wall thickness up to 0.083 in. (2.11 mm), inclusive, may be
tested in the drawn condition, before annealing. Fiber stress shall be determined by the following equation for thin, hollow
cylinders under tension:
P 5 2St/~D 2 0.8t! (1)
where:
P = hydrostatic pressure, psi (MPa);
t = thickness of pipe or tube wall, in. (mm);
D = outside diameter of the pipe or tube, in. (mm); and
S = allowable fiber stress of the material, psi (MPa).
9.1.3.2 Pneumatic Pressure Test—Each pipe or When specified in the contract or purchase order, each tube shall be pressurized
to a minimum of 60 psi (415 kPa), air for 5 s, without showing evidence of leakage. The test method used shall permit easy visual
detection of any leakage, such as by submerging the tube under water or by pressure differential method.capable of withstanding
an internal air pressure of 60 psi (400 kPa), minimum for 5 s without leakage.
10. Dimensions, Mass, and Permissible Variations
10.1 General:
10.1.1 The standard method of specifying wall thickness shall be in decimal fractions of an inch.
10.1.2 For the purpose of determining conformance with the dimensional requirements prescribed in this specification, any
measured value outside the specified limiting values for any dimension may be cause for rejection.
10.1.3 Tolerances on a given tube may be specified with respect to any two, but not all three, of the following: outside diameter,
inside diameter, wall thickness.
NOTE 3—Blank spaces Spaces that contain an ellipsis (.) in the tolerance tables indicate either that the product is not generally available or that no
tolerances have been established.
10.2 Dimensions—Dimensions and theoretical weights of nominal pipe sizes shall be in accordance with Table 3.
10.3 Wall Thickness Tolerances—Wall thickness tolerances for pipe shall be in accordance with Tables 4 and 5. Wall thickness
tolerances for tube shall be in accordance with Tables 6-8.
10.4 Diameter Tolerances—Diameter tolerances for pipe and tube shall be as follows:
10.4.1 Diameter Tolerances for Pipe:
Nominal Pipe Size, in. (mm) Diameter Tolerance, in. (mm)
1 ⁄2 (38.1) and under +0.016 – 0.031 (+0.40 –
0.79)
1 ⁄2 (38.1) and under +0.016 –0.031 (+0.40 –0.79)
Over 1 ⁄2 (38.1) ±1 % of specified diameter
10.4.2 The dimensional limits of nominal pipe sizes are shown in Tables 4 and 5.
10.4.3 Diameter tolerances for tube shall be in accordance with Table 9.
B315 − 19
TABLE 3 Dimensions and Weights of Copper Alloy Pipe, Standard Pipe Sizes
Dimension, in. (mm) Theoretical Weight, lb/ft (kg/m)
Nominal or
Standard Cross-Sectional Area Copper Alloy UNS No.
Outside Inside Wall 2 2
Pipe Size, of Bore, in. (cm )
C61300 and
Diameter Diameter Thickness
C65500 C65100
in.
C61400
Regular
⁄8 0.405 (10.3) 0.269 (6.83) 0.068 (1.73) 0.057 (0.367) 0.246 (0.366) 0.266 (0.395) 0.273 (0.406)
⁄4 0.540 (13.7) 0.364 (9.25) 0.088 (2.24) 0.104 (0.670) 0.427 (0.634) 0.462 (0.686 0.474 (0.704)
⁄8 0.675 (17.1) 0.493 (12.5) 0.091 (2.31) 0.191 (1.23) 0.571 (0.849) 0.617 (0.917) 0.633 (0.941)
⁄2 0.840 (21.3) 0.622 (15.8) 0.109 (2.77) 0.304 (1.96) 0.856 (1.27) 0.925 (1.37) 0.949 (1.41)
⁄4 1.050 (26.7) 0.824 (20.9) 0.113 (2.87) 0.533 (3.44) 1.14 (1.69) 1.23 (1.83) 1.26 (1.88)
1 1.315 (33.4) 1.049 (26.6) 0.133 (3.38) 0.864 (3.57) 1.69 (2.51) 1.83 (2.72) 1.87 (2.79)
1 ⁄4 1.660 (42.2) 1.380 (35.1) 0.140 (3.56) 1.496 (9.66) 2.29 (3.40) 2.47 (3.68) 2.53 (3.77)
1 ⁄2 1.900 (48.3) 1.610 (40.9) 0.145 (3.68) 2.036 (13.1) 2.74 (4.07) 2.95 (4.40) 3.03 (4.51)
2 2.375 (60.3) 2.067 (52.5) 0.154 (3.91) 3.356 (21.7) 3.67 (5.45) 3.97 (5.91) 4.07 (6.06)
2 ⁄2 2.875 (73.0) 2.469 (62.7) 0.203 (5.16) 4.788 (30.9) 5.83 (8.66) 6.30 (9.37) 6.46 (9.61)
3 3.500 (88.9) 3.068 (77.9) 0.216 (5.49) 7.393 (47.7) 7.62 (11.3) 8.24 (12.3) 8.45 (12.6)
3 ⁄2 4.000 (102)† 3.548 (90.1) 0.226 (5.74) 9.887 (63.8) 9.16 (13.6) 9.90 (14.7) 10.2 (15.1)
4 4.500 (114) 4.026 (102) 0.237 (6.02) 12.730 (82.1) 10.9 (16.2) 11.7 (17.5) 12.0 (17.9)
5 5.562 (141) 5.046 (128) 0.258 (6.55) 19.998 (129) 14.7 (21.8) 15.9 (23.6) 16.3 (24.3)
6 6.625 (168) 6.065 (154) 0.280 (7.11) 28.890 (186) 19.1 (28.4) 20.6 (30.7) 21.2 (31.5)
8 8.625 (219) 7.981 (203) 0.322 (8.18) 50.030 (323) 28.7 (42.7) 31.0 (46.2) 31.9 (47.4)
10 10.750 (273) 10.020 (255) 0.365 (9.27) 78.8 (508) 40.8 (90.1) 44.1 (65.6) 45.2 (67.3)
12 12.750 (324) 12.000 (305) 0.375 (9.52) 113.0 (729) 49.9 (74.1) 53.9 (80.2) 55.3 (82.3)
Extra Strong
⁄8 0.405 (10.3) 0.215 (5.46) 0.095 (2.41) 0.036 (0.232) 0.316 (0.470) 0.342 (0.508) 0.351 (0.522)
⁄4 0.540 (13.7) 0.302 (7.67) 0.119 (3.02) 0.072 (0.464) 0.538 (0.799) 0.582 (0.865) 0.597 (0.887)
⁄8 0.675 (17.1) 0.423 (10.7) 0.126 (3.20) 0.141 (0.909) 0.743 (1.10) 0.803 (1.19) 0.824 (1.22)
⁄2 0.840 (21.3) 0.546 (13.9) 0.147 (3.73) 0.234 (1.51) 1.10 (1.63) 1.183 (1.76) 1.214 (1.80)
⁄4 1.050 (26.7) 0.742 (18.8) 0.154 (3.91) 0.432 (2.79) 1.48 (2.20) 1.60 (2.39) 1.65 (2.45)
1 1.315 (33.4) 0.957 (24.3) 0.179 (4.55) 0.719 (4.64) 2.19 (3.25) 2.36 (3.52) 2.42 (3.61)
1 ⁄4 1.660 (42.2) 1.278 (32.5) 0.191 (4.85) 1.283 (8.28) 3.01 (4.47) 3.26 (4.85) 3.34 (4.97)
1 ⁄2 1.900 (48.3) 1.500 (38.1) 0.200 (5.08) 1.767 (11.4) 3.65 (5.42) 3.95 (5.88) 4.05 (6.03)
2 2.375 (60.3) 1.939 (49.3) 0.218 (5.54) 2.953 (19.1) 5.05 (7.50) 5.46 (8.12) 5.60 (8.34)
2 ⁄2 2.875 (73.0) 2.323 (59.0) 0.276 (7.01) 4.238 (27.3) 7.71 (11.4) 8.33 (12.4) 8.55 (12.7)
3 3.500 (88.9) 2.900 (73.7) 0.300 (7.62) 6.605 (42.6) 10.3 (15.3) 11.1 (16.6) 11.4 (17.0)
3 ⁄2 4.000 (102) 3.364 (85.5) 0.318 (8.08) 8.888 (57.3) 12.6 (18.7) 13.6 (20.2) 13.9 (20.8)
4 4.500 (114) 3.826 (97.2) 0.337 (8.56) 11.497 (74.) 15.1 (22.4) 16.3 (24.2) 16.7 (24.9)
5 5.562 (141) 4.812 (122) 0.375 (9.53) 18.186 (117) 20.9 (31.1) 22.6 (33.6) 23.2 (34.5)
6 6.625 (168) 5.761 (146) 0.432 (10.9) 26.067 (168) 28.7 (42.6) 31.1 (46.2) 31.9 (47.4)
8 8.625 (219) 7.625 (194) 0.500 (12.7) 45.664 (295) 43.6 (64.8) 47.2 (70.2) 48.4 (72.0)
10 10.750 (273) 9.750 (248) 0.500 (12.7) 74.7 (482) 55.1 (81.9) 59.5 (88.5) 61.1 (90.9)
TABLE 4 Dimensional Limits for Standard Pipe Sizes
Copper Alloy UNS No. C61300 and C61400
Regular Extra Strong
Nominal or Outside
Standard Pipe Diameter, Min Max
Wall Thickness, Wall Thickness,
Min Max Min Max
Size in. (mm)
in. (mm) in. (mm)
⁄8 0.405 (10.3) 0.374 (9.50) 0.421 (10.7) 0.068 (1.73) 0.061 (1.55) 0.075 (1.91) 0.095 (2.41) 0.086 (2.18) 0.105 (2.67)
⁄4 0.540 (13.7) 0.509 (12.9) 0.556 (14.1) 0.088 (2.24) 0.079 (2.01) 0.097 (2.46) 0.119 (3.02) 0.107 (2.72) 0.131 (3.33)
⁄8 0.675 (17.1) 0.644 (16.4) 0.691 (17.6) 0.091 (2.31) 0.082 (2.08) 0.100 (2.54) 0.126 (3.20) 0.113 (2.87) 0.139 (3.53)
⁄2 0.840 (21.3) 0.809 (20.5) 0.856 (21.7) 0.109 (2.77) 0.098 (2.49) 0.120 (3.05) 0.147 (3.73) 0.132 (3.35) 0.162 (4.11)
⁄4 1.050 (26.7) 1.019 (25.9) 1.066 (27.1) 0.113 (2.87) 0.102 (2.59) 0.124 (3.15) 0.154 (3.91) 0.139 (3.53) 0.169 (4.29)
1 1.315 (33.4) 1.284 (32.6) 1.331 (33.8) 0.133 (3.38) 0.120 (3.05) 0.146 (3.71) 0.179 (4.55) 0.161 (4.09) 0.197 (5.00)
1 ⁄4 1.660 (42.2) 1.629 (41.4) 1.676 (42.6) 0.140 (3.56) 0.126 (3.20) 0.154 (3.91) 0.191 (4.85) 0.172 (4.37) 0.210 (5.33)
1 ⁄2 1.900 (48.3) 1.869 (47.5) 1.916 (48.7) 0.145 (3.68) 0.131 (3.33) 0.160 (4.06) 0.200 (5.08) 0.180 (4.57) 0.220 (5.59)
2 2.375 (60.3) 2.351 (59.7) 2.399 (60.9) 0.154 (3.91) 0.139 (3.53) 0.169 (4.29) 0.218 (5.54) 0.196 (4.98) 0.240 (6.10)
2 ⁄2 2.875 (73.0) 2.846 (72.3) 2.904 (73.8) 0.203 (5.16) 0.183 (4.65) 0.223 (5.66) 0.276 (7.01) 0.248 (6.30) 0.304 (7.72)
3 3.500 (88.9) 3.465 (88.0) 3.535 (89.8) 0.216 (5.49) 0.194 (4.93) 0.238 (6.05) 0.300 (7.62) 0.270 (6.86) 0.330 (8.38)
3 ⁄2 4.000 (102) 3.960 (101) 4.040 (103) 0.226 (5.74) 0.203 (5.16) 0.249 (6.32) 0.318 (8.08) 0.286 (7.26) 0.350 (8.89)
4 4.500 (114) 4.455 (113) 4.545 (115) 0.237 (6.02) 0.213 (5.41) 0.261 (6.63) 0.337 (8.56) 0.303 (7.70) 0.371 (9.42)
5 5.562 (141) 5.506 (140) 5.618 (143) 0.258 (6.55) 0.232 (5.89) 0.284 (7.21) 0.375 (9.53) 0.338 (8.59) 0.413 (10.5)
6 6.625 (168) 6.559 (167) 6.691 (170) 0.280 (7.11) 0.252 (6.40) 0.308 (7.82) 0.432 (11.0) 0.389 (9.88) 0.475 (12.1)
8 8.625 (219) 8.539 (217) 8.711 (221) 0.322 (8.18) 0.290 (7.37) 0.354 (8.99) 0.500 (12.7) 0.450 (11.4) 0.550 (14.0)
10 10.750 (273) 10.643 (270) 10.858 (276) 0.365 (9.27) 0.329 (8.36) 0.402 (10.2) 0.500 (12.7) 0.450 (11.4) 0.550 (14.0)
12 12.750 (324) 12.623 (321) 12.878 (327) 0.375 (9.53) 0.338 (8.59) 0.413 (10.5) . . . . . . . . .
10.5 Length Tolerances:
10.5.1 Length tolerances shall be in accordance with Table 10.
10.5.2 Schedule of Tube Lengths—Specific and stock lengths with ends shall be in accordance with Table 11.
B315 − 19
TABLE 5 Dimensional Limits for Standard Pipe Sizes
Copper Alloy UNS No. C65100 and C65500
Regular Extra Strong
Nominal or Outside
Standard Pipe Diameter, Min Max
Wall Thickness, Wall Thickness,
Min Max Min Max
Size in. (mm)
in. (mm) in. (mm)
⁄8 0.405 (10.3) 0.374 (9.50) 0.421 (10.7) 0.068 (1.73) 0.065 (1.65) 0.083 (2.11) 0.095 (2.41) 0.090 (2.29) 0.123 (3.12)
⁄4 0.540 (13.7) 0.509 (12.9) 0.556 (14.1) 0.088 (2.24) 0.084 (2.13) 0.102 (2.59) 0.119 (3.02) 0.107 (2.72) 0.144 (3.66)
⁄8 0.675 (17.1) 0.644 (16.4) 0.691 (17.6) 0.091 (2.31) 0.086 (2.18) 0.103 (2.62) 0.126 (3.20) 0.120 (3.05) 0.146 (3.71)
⁄2 0.840 (21.3) 0.809 (20.5) 0.856 (21.7) 0.109 (2.77) 0.104 (2.64) 0.122 (3.10) 0.147 (3.73) 0.140 (3.56) 0.166 (4.22)
⁄4 1.050 (26.7) 1.019 (25.9) 1.066 (27.1) 0.113 (2.87) 0.107 (2.72) 0.124 (3.15) 0.154 (3.91) 0.146 (3.71) 0.171 (4.34)
1 1.315 (33.4) 1.284 (32.6) 1.331 (33.8) 0.133 (3.38) 0.126 (3.20) 0.145 (3.68) 0.179 (4.55) 0.170 (4.32) 0.196 (4.98)
1 ⁄4 1.660 (42.2) 1.629 (41.4) 1.676 (42.6) 0.140 (3.56) 0.133 (3.38) 0.151 (3.84) 0.191 (4.85) 0.181 (4.60) 0.207 (5.26)
1 ⁄2 1.900 (48.3) 1.869 (47.5) 1.916 (48.7) 0.145 (3.68) 0.138 (3.51) 0.156 (3.96) 0.200 (5.08) 0.190 (4.83) 0.216 (5.49)
2 2.375 (60.3) 2.351 (59.7) 2.399 (60.9) 0.154 (3.91) 0.146 (3.71) 0.164 (4.17) 0.218 (5.54) 0.207 (5.26) 0.233 (5.92)
2 ⁄2 2.875 (73.0) 2.846 (72.3) 2.904 (73.8) 0.203 (5.16) 0.193 (4.90) 0.217 (5.51) 0.276 (7.01) 0.262 (6.65) 0.295 (7.49)
3 3.500 (88.9) 3.465 (88.0) 3.535 (89.8) 0.216 (5.49) 0.205 (5.21) 0.230 (5.84) 0.300 (7.62) 0.285 (7.24) 0.321 (8.15)
3 ⁄2 4.000 (102) 3.960 (101) 4.040 (103) 0.226 (5.74) 0.215 (5.46) 0.240 (6.10) 0.318 (8.08) 0.302 (7.67) 0.340 (8.64)
4 4.500 (114) 4.455 (113) 4.545 (115) 0.237 (6.02) 0.225 (5.72) 0.252 (6.40) 0.337 (8.56) 0.320 (8.13) 0.360 (9.14)
5 5.562 (141) 5.506 (140) 5.618 (143) 0.258 (6.55) 0.245 (6.22) 0.275 (6.99) 0.375 (9.53) 0.356 (9.04) 0.400 (10.2)
6 6.625 (168) 6.559 (167) 6.691 (170) 0.280 (7.11) 0.266 (6.76) 0.298 (7.57) 0.432 (11.0) 0.410 (10.4) 0.461 (11.7)
8 8.625 (219) 8.539 (217) 8.711 (221) 0.322 (8.18) 0.299 (7.59) 0.349 (8.86) 0.500 (12.7) 0.465 (11.8) 0.554 (13.8)
10 10.750 (273) 10.643 (270) 10.858 (276) 0.365 (9.27) 0.336 (8.53) 0.400 (10.2) 0.500 (12.7) 0.460 (11.7) 0.548 (13.9)
12 12.750 (324) 12.623 (321) 12.878 (327) 0.375 (9.53) 0.345 (8.76) 0.410 (10.4) . . . . . . . . .
TABLE 6 Wall Thickness Tolerances for Copper Alloy UNS No. C61300 and C61400 Tube (Not Applicable to Pipe)
NOTE 1—Maximum deviation at any point—the following tolerances are plus and minus; if tolerances all plus or all minus are desired, double the
values given.
Outside Diameter, in. (mm)
Over ⁄8 to 1 Over 1 to 2 Over 2 to 4
Wall Thickness, in. (mm)
(15.9 to 25.4) (25.4 to 50.8) (50.8 to 102)
incl incl incl
Over 0.024 (0.610) to 0.034 (0.864), incl 0.003 (0.076) 0.004 (0.10) 0.004 (0.10)
Over 0.034 (0.864) to 0.057 (1.45), incl 0.0045 (0.11) 0.005 (0.13) 0.006 (0.15)
Over 0.057 (1.45) to 0.082 (2.08), incl 0.005 (0.13) 0.006 (0.15) 0.008 (0.20)
Over 0.082 (2.08) to 0.119 (3.02), incl 0.007 (0.18) 0.008 (0.20) 0.009 (0.23)
Over 0.119 (3.02) to 0.164 (4.17), incl 0.009 (0.23) 0.010 (0.25) 0.012 (0.30)
TABLE 6 Wall Thickness Tolerances for Copper Alloy UNS No. C61300 and C61400 Tube (Not Applicable to Pipe)
NOTE 1—Maximum deviation at any point—the following tolerances are plus and minus; if tolerances all plus or all minus are desired, double the
values given.
Outside Diameter, in. (mm)
Over ⁄8 to 1 Over 1 to 2 Over 2 to 4
Wall Thickness, in. (mm)
(15.9 to 25.4) (25.4 to 50.8) (50.8 to 102)
incl. incl. incl.
Over 0.0
...
