ASTM F1083-18(2022)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

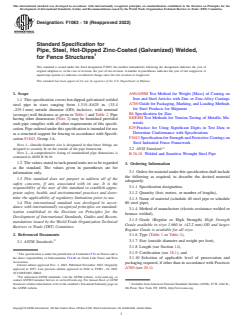

Designation:F1083 −18 (Reapproved 2022)
Standard Specification for
Pipe, Steel, Hot-Dipped Zinc-Coated (Galvanized) Welded,
for Fence Structures
This standard is issued under the fixed designation F1083; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope A90/A90M Test Method for Weight [Mass] of Coating on
Iron and Steel Articles with Zinc or Zinc-Alloy Coatings
1.1 This specification covers hot-dipped galvanized welded
A700 Guide for Packaging, Marking, and Loading Methods
steel pipe in sizes ranging from 1.315–8.625 in. (33.4
for Steel Products for Shipment
–219.1 mm) outside diameter (OD) inclusive, with nominal
B6 Specification for Zinc
(average) wall thickness as given in Table 1 and Table 2. Pipe
E8/E8M Test Methods for Tension Testing of Metallic Ma-
having other dimensions (Note 2) may be furnished provided
terials
such pipe complies with all other requirements of this specifi-
E29 Practice for Using Significant Digits in Test Data to
cation. Pipe ordered under this specification is intended for use
Determine Conformance with Specifications
as a structural support for fencing in accordance with Specifi-
F1043 Specification for Strength and Protective Coatings on
cation F1043, Group 1A.
Steel Industrial Fence Framework
NOTE 1—Outside diameter size is designated in that fence fittings are
designed to securely fit on the outside of the pipe framework. 2.2 ANSI Standard:
NOTE 2—A comprehensive listing of standardized pipe dimensions is
B 36.10 Welded and Seamless Wrought Steel Pipe
contained in ANSI B 36.10.
1.2 The values stated in inch-pound units are to be regarded
3. Ordering Information
as the standard. The values given in parentheses are for
3.1 Orders for material under this specification shall include
information only.
the following as required, to describe the desired material
1.3 This standard does not purport to address all of the
adequately:
safety concerns, if any, associated with its use. It is the
3.1.1 Specification designation,
responsibility of the user of this standard to establish appro-
priate safety, health, and environmental practices and deter- 3.1.2 Quantity (feet, metres, or number of lengths),
mine the applicability of regulatory limitations prior to use.
3.1.3 Name of material (schedule 40 steel pipe or schedule
1.4 This international standard was developed in accor-
80 steel pipe),
dance with internationally recognized principles on standard-
3.1.4 Method of manufacture (electric-resistance welded or
ization established in the Decision on Principles for the
furnace welded),
Development of International Standards, Guides and Recom-
3.1.5 Grade (Regular or High Strength) High Strength
mendations issued by the World Trade Organization Technical
Grade available in sizes 1.660 in. (42.2 mm) OD and larger.
Barriers to Trade (TBT) Committee.
Regular Grade is available for all sizes.
2. Referenced Documents
3.1.6 Type (Table 1 or Table 2),
3.1.7 Size (outside diameter and weight per foot),
2.1 ASTM Standards:
3.1.8 Length (see Section 14),
3.1.9 Certification (see 18.1), and
This specification is under the jurisdiction of Committee F14 on Fences and is
the direct responsibility of Subcommittee F14.40 on Chain Link Fence and Wire
3.1.10 Selection of applicable level of preservation and
Accessories.
packaging required, if other than in accordance with Practices
Current edition approved Nov. 1, 2022. Published November 2022. Originally
A700 (see 20.1).
approved in 1987. Last previous edition approved in 2018 as F1083 – 18. DOI:
10.1520/F1083-18R22.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on Available from American National Standards Institute (ANSI), 25 W. 43rd St.,
the ASTM website. 4th Floor, New York, NY 10036, http://www.ansi.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F1083−18 (2022)

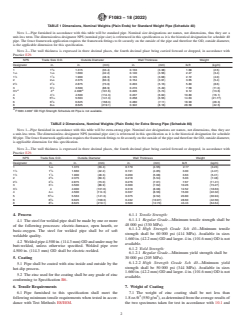

TABLE 1 Dimensions, Nominal Weights (Plain Ends) for Standard Weight Pipe (Schedule 40)
NOTE 1—Pipe furnished in accordance with this table will be standard pipe. Nominal size designations are names, not dimensions, thus they are a
unit-less term. The dimensionless designator NPS (nominal pipe size) is referenced in this specification as it is the historical designation for schedule 40
pipe. The fence framework application requires the framework fittings to fit securely on the outside of the pipe and therefore the OD, outside diameter,
is the applicable dimension for this specification.
NOTE 2—The wall thickness is expressed in three decimal places, the fourth decimal place being carried forward or dropped, in accordance with
Practice E29.
NPS Trade Size O.D. Outside Diameter Wall Thickness Weight
Designator in. in. (mm) in. (mm) lb/ft (kg/m)
11 ⁄8 1.315 (33.4) 0.133 (3.38) 1.68 (2.5)
1 5
1 ⁄4 1 ⁄8 1.660 (42.2) 0.140 (3.56) 2.27 (3.4)
1 7
1 ⁄2 1 ⁄8 1.900 (48.3) 0.145 (3.68) 2.72 (4.0)
22 ⁄8 2.375 (60.3) 0.154 (3.91) 3.65 (5.4)
1 7
2 ⁄2 2 ⁄8 2.875 (73.0) 0.203 (5.16) 5.80 (8.6)
33 ⁄2 3.500 (88.9) 0.216 (5.49) 7.58 (11.3)
A A A
3½ 4 4.000 (101.6) 0.226 (5.74) 9.12 (13.6)
44 ⁄2 4.500 (114.3) 0.237 (6.02) 10.80 (16.1)
55 ⁄16 5.563 (141.3) 0.258 (6.55) 14.63 (21.77)
66 ⁄8 6.625 (168.3) 0.280 (7.11) 18.99 (28.3)
88 ⁄8 8.625 (219.1) 0.322 (8.18) 28.58 (42.5)
A
F1083 4.000” OD High Strength Schedule 40 Pipe is not available.
TABLE 2 Dimensions, Nominal Weights (Plain Ends) for Extra Strong Pipe (Schedule 80)
NOTE 1—Pipe furnished in accordance with this table will be extra-strong pipe. Nominal size designations are names, not dimensions, thus they are
a unit-less term. The dimensionless designator NPS (nominal pipe size) is referenced in this specification as it is the historical designation for schedule
80 pipe.The fence framework application requires the framework fittings to fit securely on the outside of the pipe and therefore the OD, outside diameter,
is applicable dimension for this specification.
NOTE 2—The wall thickness is expressed in three decimal places, the fourth decimal place being carried forward or dropped, in accordance with
Practice E29.
NPS Trade Size O.D. Outside Diameter Wall Thickness Weight
Designator in. in. (mm) in. (mm) lb/ft (kg/m)
11 ⁄8 1.315 (33.4) 0.179 (4.55) 2.17 (3.23)
1 5
1 ⁄4 1 ⁄8 1.660 (42.2) 0.191 (4.85) 3.00 (4.47)
1 7
1 ⁄2 1 ⁄8 1.900 (48.3) 0.200 (5.08) 3.63 (5.41)
22 ⁄8 2.375 (60.3) 0.218 (5.54) 5.03 (7.48)
1 7
2 ⁄2 2 ⁄8 2.875 (73.0) 0.276 (7.01) 7.67 (11.41)
33 ⁄2 3.500 (88.9) 0.300 (7.62) 10.26 (15.27)
3 ⁄2 4 4.000 (101.6) 0.318 (8.08) 12.52 (18.63)
44 ⁄2 4.500 (114.3) 0.337 (8.56) 15.00 (22.32)
55 ⁄16 5.563 (141.3) 0.375 (9.52) 20.80 (30.94)
66 ⁄8 6.625 (168.3) 0.432 (10.97) 28.60 (42.56)
88 ⁄8 8.625 (219.1) 0.500 (12.70) 43.43 (64.64)
4. Process 6.1.1 Tensile Strength:
6.1.1.1 Regular Grade—Minimum tensile strength shall be
4.1 The steel for welded pipe shall be made by one or more
48 000 psi (330 MPa).
of the following processes: electric-furnace, open hearth, or
6.1.1.2 High Strength Grade Sch 40—Minimum tensile
basic-oxygen. The steel for welded pipe shall be of soft
strength shall be 60 000 psi (414 MPa). Available in sizes
weldable quality.
1.660 in. (42.2 mm) OD and larger. 4 in. (101.6 mm) OD is not
4.2 Weldedpipe4.500in.(114.3mm)ODandundermaybe
available.
butt-welded, unless otherwise specified. Welded pipe over
6.1.2 Yield Strength:
4.500 in. (114.3 mm) OD shall be electric-welded.
6.1.2.1 Regular Grade—Minimum yield strength shall be
5. Coating 30 000 psi (205 MPa).
6.1.2.2 High Strength Grade Sch 40—Minimum yield
5.1 Pipe shall be coated with zinc inside and outside by the
strength shall be 50 000 psi (344 MPa). Available in sizes
hot-dip process.
1.660 in. (42.2 mm) OD and larger. 4 in. (101.6 mm) OD is not
5.2 The zinc used for the coating shall be any grade of zinc
available.
conforming to Specification B6.
7. Weight of Coating
6. Tensile Requirements
6.1 Pipe furnished to this specification shall meet the 7.1 The weight of zinc coating shall be not less than
2 2
following minimum tensile requirements when tested in accor- 1.8 oz⁄ft (550g/m ),asdeterminedfromtheaverageresultsof
dance with Test Methods E8/E8M. the two specimens taken for test in accordance with 10.1 and

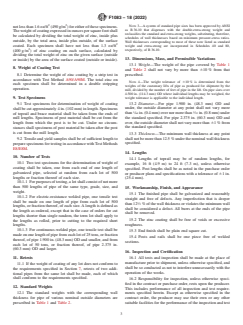

F1083−18 (2022)
2 2
NOTE 3—A system of standard pipe sizes has been approved by ANSI
notlessthan1.6oz/ft (490g/m )foreitherofthesespecimens.
as B 36.10 that dispenses with the double-extra-strong weight and
Theweightofcoatingexpressedinouncespersquarefootshall
reclassifies the standard and extra-strong weights, substituting, therefore,
be calculated by dividing the total weight of zinc, inside plus
schedules of wall thicknesses based on minimum pressure-stress ratios.
outside, by the total area, inside plus outside, of the surface
Wall thicknesses corresponding to most of these now listed as standard
coated. Each specimen shall have not less than 1.3 oz/ft
weight and extra-strong are incorporated in Schedules 40 and 80,
respectively, of B 36.10.
(400 g⁄m ) of zinc coating on each surface, calculated by
dividing the total weight of zinc on the given surface (outside
13. Dimensions, Ma
...
