ASTM D6298/D6298M-16(2023)
(Specification)Standard Specification for Fiberglass Reinforced Styrene-Butadiene-Styrene (SBS) Modified Bituminous Sheets with a Factory Applied Metal Surface
Standard Specification for Fiberglass Reinforced Styrene-Butadiene-Styrene (SBS) Modified Bituminous Sheets with a Factory Applied Metal Surface
ABSTRACT
This specification covers fiberglass reinforced bituminous sheet materials modified by styrene-butadiene-styrene (SBS) thermoplastic elastomer, and are surfaced with a factory applied continuous metal foil. These materials are intended for use in the fabrication of multiple ply roofing and waterproofing membranes and flashings. This is intended as a material specification only, and does not address specific roof constructions or application techniques. The specified tests and property limits are intended to establish minimum properties. Roof system design criteria such as fire resistance, field strength, impact/puncture resistance, material compatibility, uplift resistance, and others are factors beyond the scope of this specification. The properties for which the materials shall be tested on and consequently conform to are thickness, net mass per unit, back surface coating thickness, peak load value, elongation at peak load, ultimate elongation, tensile-tear strength, low-temperature flexibility, dimensional stability, compound stability, cyclic thermal shock, water absorption, and moisture content.
SCOPE
1.1 This specification covers fiberglass reinforced modified bituminous sheet materials that use styrene-butadiene-styrene (SBS) thermoplastic elastomer as the primary modifier and are surfaced with a factory applied continuous metal foil. These materials are intended for use in the fabrication of multiple ply roofing and waterproofing membranes and flashings.
1.2 This specification is intended as a material specification only. Questions regarding the suitability of the specific roof constructions or application techniques are beyond the scope of this specification.
1.3 The specified tests and property limits are intended to establish minimum properties. In place roof system design criteria such as fire resistance, field strength, impact/puncture resistance, material compatibility, uplift resistance, and others, are factors beyond the scope of this specification.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
1.5 The following precautionary statement pertains to the test method portion only, Section 8 of this Specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Jan-2023
- Technical Committee
- D08 - Roofing and Waterproofing
- Drafting Committee
- D08.04 - Felts, Fabrics and Bituminous Sheet Materials
Relations
- Effective Date
- 01-May-2020
- Effective Date
- 15-Dec-2018
- Effective Date
- 15-Dec-2018
- Effective Date
- 01-Jul-2018
- Effective Date
- 01-Feb-2016
- Effective Date
- 01-Jan-2014
- Effective Date
- 01-Mar-2013
- Effective Date
- 01-Mar-2013
- Effective Date
- 01-May-2011
- Effective Date
- 01-Jan-2011
- Effective Date
- 01-Sep-2010
- Effective Date
- 01-Jul-2009
- Effective Date
- 01-Feb-2008
- Effective Date
- 01-Jan-2008
- Effective Date
- 01-Jun-2007
Overview
ASTM D6298/D6298M-16(2023) is the international standard specification set by ASTM International for fiberglass reinforced bituminous sheet materials modified with styrene-butadiene-styrene (SBS) thermoplastic elastomer. These sheets are characterized by a factory applied continuous metal foil surface and are predominantly used in the fabrication of multi-ply roofing and waterproofing membranes and flashings. This standard focuses solely on defining the minimum physical properties and requirements for the material itself, not on specific roof system designs or application methods.
Key Topics
Material Composition
- Fiberglass reinforcement for added strength and durability
- SBS-modified bituminous coating for enhanced elasticity and weather resistance
- Factory applied metal foil surface for improved reflectivity and protection
Physical Properties and Test Methods
- Required conformity to minimum specifications for properties such as thickness, coating thickness, net mass per unit area, and metal foil quality
- Properties tested include peak load, elongation, tensile tear strength, low-temperature flexibility, dimensional stability, compound stability, cyclical thermal shock, water absorption, and moisture content
- Use of referenced ASTM test methods such as D5147/D5147M and D7051 for property validation
Workmanship and Quality Assurance
- Finished product must be free from defects such as holes, cracks, tears, or delaminations
- Criteria for uniformity of the metal surface and proper selvage width
- Inspection protocols as per the standard, including rejection and resubmittal processes
Packaging and Marking
- Rolls must be securely wrapped for protection and easy handling
- Product branding and mandatory marking with essential compliance information
Applications
The ASTM D6298/D6298M-16(2023) standard is vital for professionals engaged in:
Multi-ply Roofing Systems
- Used as durable waterproofing sheets in layered roofing assemblies, leveraging the SBS-modified bitumen for flexibility and the metal foil for additional weatherproofing and reflectivity
Waterproofing Membranes and Flashings
- Essential for the construction of reliable and long-lasting barriers against moisture infiltration, including building foundations, decks, and other critical areas
Industrial and Commercial Building Projects
- Suitable for environments requiring high performance against thermal cycling, moisture, and mechanical stresses
Material Procurement and Specification
- Provides architects, engineers, and contractors with a reliable base specification for selecting fiberglass reinforced, SBS modified bituminous sheet materials with metal foil surfaces
This standard specification ensures material quality which enables durable, high-performance building envelope systems that require both flexibility and protection from weather elements.
Related Standards
For full compliance and enhanced roofing and waterproofing system design, reference to related ASTM standards and documents is recommended:
- ASTM D1079 - Terminology Relating to Roofing and Waterproofing
- ASTM D5147/D5147M - Test Methods for Sampling and Testing Modified Bituminous Sheet Material
- ASTM D7051 - Test Method for Cyclic Thermal Shock of SBS-Modified Bituminous Roofing Sheets with Factory-Applied Metal Surface
Examining these related standards can help ensure appropriate terminology, thorough performance testing, and complete material validation throughout the lifecycle of the roofing or waterproofing project.
Keywords: fiberglass reinforced, SBS modified bituminous sheet, metal foil surface, waterproofing membranes, roofing standard, ASTM D6298, thermoplastic elastomer, building materials specification.
Get Certified
Connect with accredited certification bodies for this standard
ICC Evaluation Service
Building products evaluation and certification.
QAI Laboratories
Building and construction product testing and certification.
Aboma Certification B.V.
Specialized in construction, metal, and transport sectors.
Sponsored listings
Frequently Asked Questions
ASTM D6298/D6298M-16(2023) is a technical specification published by ASTM International. Its full title is "Standard Specification for Fiberglass Reinforced Styrene-Butadiene-Styrene (SBS) Modified Bituminous Sheets with a Factory Applied Metal Surface". This standard covers: ABSTRACT This specification covers fiberglass reinforced bituminous sheet materials modified by styrene-butadiene-styrene (SBS) thermoplastic elastomer, and are surfaced with a factory applied continuous metal foil. These materials are intended for use in the fabrication of multiple ply roofing and waterproofing membranes and flashings. This is intended as a material specification only, and does not address specific roof constructions or application techniques. The specified tests and property limits are intended to establish minimum properties. Roof system design criteria such as fire resistance, field strength, impact/puncture resistance, material compatibility, uplift resistance, and others are factors beyond the scope of this specification. The properties for which the materials shall be tested on and consequently conform to are thickness, net mass per unit, back surface coating thickness, peak load value, elongation at peak load, ultimate elongation, tensile-tear strength, low-temperature flexibility, dimensional stability, compound stability, cyclic thermal shock, water absorption, and moisture content. SCOPE 1.1 This specification covers fiberglass reinforced modified bituminous sheet materials that use styrene-butadiene-styrene (SBS) thermoplastic elastomer as the primary modifier and are surfaced with a factory applied continuous metal foil. These materials are intended for use in the fabrication of multiple ply roofing and waterproofing membranes and flashings. 1.2 This specification is intended as a material specification only. Questions regarding the suitability of the specific roof constructions or application techniques are beyond the scope of this specification. 1.3 The specified tests and property limits are intended to establish minimum properties. In place roof system design criteria such as fire resistance, field strength, impact/puncture resistance, material compatibility, uplift resistance, and others, are factors beyond the scope of this specification. 1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. 1.5 The following precautionary statement pertains to the test method portion only, Section 8 of this Specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This specification covers fiberglass reinforced bituminous sheet materials modified by styrene-butadiene-styrene (SBS) thermoplastic elastomer, and are surfaced with a factory applied continuous metal foil. These materials are intended for use in the fabrication of multiple ply roofing and waterproofing membranes and flashings. This is intended as a material specification only, and does not address specific roof constructions or application techniques. The specified tests and property limits are intended to establish minimum properties. Roof system design criteria such as fire resistance, field strength, impact/puncture resistance, material compatibility, uplift resistance, and others are factors beyond the scope of this specification. The properties for which the materials shall be tested on and consequently conform to are thickness, net mass per unit, back surface coating thickness, peak load value, elongation at peak load, ultimate elongation, tensile-tear strength, low-temperature flexibility, dimensional stability, compound stability, cyclic thermal shock, water absorption, and moisture content. SCOPE 1.1 This specification covers fiberglass reinforced modified bituminous sheet materials that use styrene-butadiene-styrene (SBS) thermoplastic elastomer as the primary modifier and are surfaced with a factory applied continuous metal foil. These materials are intended for use in the fabrication of multiple ply roofing and waterproofing membranes and flashings. 1.2 This specification is intended as a material specification only. Questions regarding the suitability of the specific roof constructions or application techniques are beyond the scope of this specification. 1.3 The specified tests and property limits are intended to establish minimum properties. In place roof system design criteria such as fire resistance, field strength, impact/puncture resistance, material compatibility, uplift resistance, and others, are factors beyond the scope of this specification. 1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. 1.5 The following precautionary statement pertains to the test method portion only, Section 8 of this Specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM D6298/D6298M-16(2023) is classified under the following ICS (International Classification for Standards) categories: 91.100.50 - Binders. Sealing materials. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM D6298/D6298M-16(2023) has the following relationships with other standards: It is inter standard links to ASTM D1079-20, ASTM D1079-18e1, ASTM D1079-18, ASTM D5147/D5147M-18, ASTM D1079-16, ASTM D5147/D5147M-14, ASTM D1079-13e1, ASTM D1079-13, ASTM D5147/D5147M-11a, ASTM D5147/D5147M-11, ASTM D1079-10, ASTM D1079-09, ASTM D1079-08a, ASTM D1079-08, ASTM D1079-07a. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM D6298/D6298M-16(2023) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

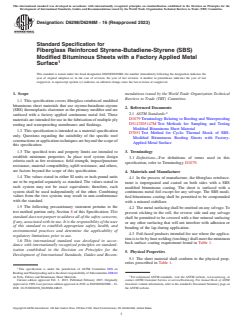

Designation: D6298/D6298M − 16 (Reapproved 2023)
Standard Specification for
Fiberglass Reinforced Styrene-Butadiene-Styrene (SBS)
Modified Bituminous Sheets with a Factory Applied Metal
Surface
This standard is issued under the fixed designation D6298/D6298M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
1.1 This specification covers fiberglass reinforced modified
bituminous sheet materials that use styrene-butadiene-styrene
2. Referenced Documents
(SBS) thermoplastic elastomer as the primary modifier and are
2.1 ASTM Standards:
surfaced with a factory applied continuous metal foil. These
D1079 Terminology Relating to Roofing and Waterproofing
materials are intended for use in the fabrication of multiple ply
D5147/D5147M Test Methods for Sampling and Testing
roofing and waterproofing membranes and flashings.
Modified Bituminous Sheet Material
1.2 This specification is intended as a material specification
D7051 Test Method for Cyclic Thermal Shock of SBS-
only. Questions regarding the suitability of the specific roof
Modified Bituminous Roofing Sheets with Factory-
constructions or application techniques are beyond the scope of
Applied Metal Surface
this specification.
1.3 The specified tests and property limits are intended to 3. Terminology
establish minimum properties. In place roof system design
3.1 Definitions—For definitions of terms used in this
criteria such as fire resistance, field strength, impact/puncture
specification, refer to Terminology D1079.
resistance, material compatibility, uplift resistance, and others,
are factors beyond the scope of this specification.
4. Materials and Manufacture
1.4 The values stated in either SI units or inch-pound units
4.1 In the process of manufacture, the fiberglass reinforce-
are to be regarded separately as standard. The values stated in
ment is impregnated and coated on both sides with a SBS
each system may not be exact equivalents; therefore, each
modified bituminous coating. The sheet is surfaced with a
system shall be used independently of the other. Combining
continuous metal foil except for any selvage. The SBS modi-
values from the two systems may result in non-conformance
fied bituminous coating shall be permitted to be compounded
with the standard.
with a mineral stabilizer.
1.5 The following precautionary statement pertains to the
4.2 The metal surfacing shall be omitted on any selvage. To
test method portion only, Section 8 of this Specification: This
prevent sticking in the roll, the reverse side and any selvage
standard does not purport to address all of the safety concerns,
shall be permitted to be covered with a fine mineral surfacing
if any, associated with its use. It is the responsibility of the user
or any other surfacing that will not interfere with adhesion or
of this standard to establish appropriate safety, health, and
bonding of the lap during application.
environmental practices and determine the applicability of
4.3 Foil-faced products intended for use where the applica-
regulatory limitations prior to use.
tion is to be by heat welding (torching) shall meet the minimum
1.6 This international standard was developed in accor-
back surface coating requirement found in Table 1.
dance with internationally recognized principles on standard-
ization established in the Decision on Principles for the
5. Physical Properties
Development of International Standards, Guides and Recom-
5.1 The sheet material shall conform to the physical prop-
erties prescribed in Table 1.
This specification is under the jurisdiction of ASTM Committee D08 on
Roofing and Waterproofing and is the direct responsibility of Subcommittee D08.04
on Felts, Fabrics and Bituminous Sheet Materials. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved Feb. 1, 2023. Published February 2023. Originally contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
approved in 1998. Last previous edition approved in 2016 as D6298/D6298M – 16. Standards volume information, refer to the standard’s Document Summary page on
DOI: 10.1520/D6298_D6298M-16R23. the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

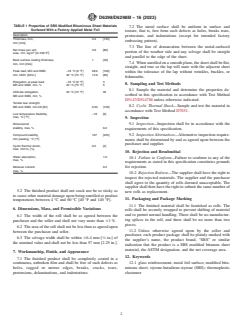

D6298/D6298M − 16 (2023)
TABLE 1 Properties of SBS Modified Bituminous Sheet Materials
7.2 The metal surface shall be uniform in surface and
Surfaced With a Factory Applied Metal Foil
texture, that is, free from such defects as holes, breaks tears,
Description
protrusions, and indentation
...
