ASTM B532-85(2021)
(Specification)Standard Specification for Appearance of Electroplated Plastic Surfaces
General Information
- Abstract
ABSTRACT
This specification limits the amounts and types of visual defects that can be tolerated on decoratively electroplated surfaces of plastic products. The appearance of surfaces will be separately evaluated depending on the prominence of the surface under conditions of ordinary use. The classifications are: surface A; surface B; and surface C. The part under test shall be evaluated in the same relative position as it will normally be viewed under usual conditions of use.
SIGNIFICANCE AND USE
5.1 Where electroplated plastics are used for decorative purposes, the appearance after plating is important. This standard provides a means of evaluating the appearance of the substrate and the coating.
SCOPE
1.1 This specification limits the amounts and types of visual defects that can be tolerated on decoratively electroplated surfaces of plastic products. The quantity of defects permitted shall be specified by the purchaser.
1.2 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
- Status
- Published
- Publication Date
- 31-Mar-2021
- Technical Committee
- B08 - Metallic and Inorganic Coatings
- Drafting Committee
- B08.05 - Decorative Coatings
Overview
ASTM B532-85(2021): Standard Specification for Appearance of Electroplated Plastic Surfaces establishes requirements for the visual quality of decoratively electroplated plastic parts. Developed by ASTM International and endorsed by key industry organizations, this standard defines permissible visual defects and provides a basis for evaluating substrate and coating appearance. The specification ensures that electroplated plastic components used for decorative or functional applications meet consistent appearance criteria, supporting manufacturing quality and customer satisfaction.
Key Topics
- Visual Defect Limitations: Specifies permissible types and amounts of visual defects (such as sink marks, scratches, pits, blisters, and more) on the surfaces of electroplated plastics.
- Surface Classifications: Surfaces are segmented into classifications based on their prominence in final use:
- Surface A: Most noticeable areas, evaluated rigorously for defects.
- Surface B: Adjacent and somewhat less noticeable areas, with moderate tolerance.
- Surface C: Areas not readily seen except by close or angled inspection, with greater tolerance.
- Surface D: Areas not visible during normal use; generally excluded from strict requirements.
- Evaluation Procedures:
- Surfaces are inspected under standard lighting conditions at a distance of 600-900 mm.
- Evaluation occurs with the part in its usual orientation as experienced in actual use.
- Observers conducting the inspection must have 20/20 vision, with correction if needed.
- Purchaser-Specified Criteria: Quantity and size of allowable defects are typically specified by the purchaser, ensuring the standard's flexibility to fit diverse industry requirements.
Applications
This standard is broadly applicable where decorative electroplated plastics are used, ensuring a uniform and market-appropriate appearance for products such as:
- Automotive trim and interior components
- Consumer electronics and appliances
- Sanitary fittings and plumbing products
- Furniture and decorative fixtures
- Ornamental and display items
Manufacturers, quality control teams, designers, and suppliers rely on ASTM B532 to ensure that electroplated plastic surfaces meet agreed-upon appearance criteria, reducing disputes and supporting product consistency. Compliance with this specification can enhance brand reputation, reduce returns, and safeguard end-user satisfaction.
Related Standards
To provide a robust framework for evaluating electroplated plastic surfaces, ASTM B532 references several related standards, including:
- ASTM B374: Terminology Relating to Electroplating - Provides essential definitions and terms to ensure clarity and consistency in usage.
- ASTM D883: Terminology Relating to Plastics - Clarifies terms specific to plastics, supporting accurate communication across industries.
Other related standards and guides in the field of metallic and inorganic coatings or decorative finishes may also be applicable based on end-use requirements and industry best practices.
Keywords: electroplated plastic surfaces, appearance inspection, visual defects, ASTM B532, decorative coatings, quality control, surface classifications, automotive finishing, product standards, plastic coatings.
Relations
- Effective Date
- 01-Feb-2024
- Effective Date
- 01-Nov-2023
- Effective Date
- 01-Jan-2020
- Effective Date
- 01-Aug-2019
- Effective Date
- 15-Apr-2019
- Effective Date
- 01-Feb-2019
- Effective Date
- 01-Dec-2018
- Effective Date
- 01-Nov-2018
- Effective Date
- 15-Aug-2017
- Effective Date
- 15-Nov-2012
- Effective Date
- 15-May-2011
- Effective Date
- 01-Apr-2011
- Effective Date
- 01-Mar-2008
- Effective Date
- 01-May-2007
- Effective Date
- 15-May-2006
Get Certified
Connect with accredited certification bodies for this standard
DVS-ZERT GmbH
German welding certification society.
CARES (UK Certification Authority for Reinforcing Steels)
UK certification for reinforcing steels and construction.
EWF/IIW (European/International Welding Federation)
International welding personnel certification.
Sponsored listings
Frequently Asked Questions
ASTM B532-85(2021) is a technical specification published by ASTM International. Its full title is "Standard Specification for Appearance of Electroplated Plastic Surfaces". This standard covers: ABSTRACT This specification limits the amounts and types of visual defects that can be tolerated on decoratively electroplated surfaces of plastic products. The appearance of surfaces will be separately evaluated depending on the prominence of the surface under conditions of ordinary use. The classifications are: surface A; surface B; and surface C. The part under test shall be evaluated in the same relative position as it will normally be viewed under usual conditions of use. SIGNIFICANCE AND USE 5.1 Where electroplated plastics are used for decorative purposes, the appearance after plating is important. This standard provides a means of evaluating the appearance of the substrate and the coating. SCOPE 1.1 This specification limits the amounts and types of visual defects that can be tolerated on decoratively electroplated surfaces of plastic products. The quantity of defects permitted shall be specified by the purchaser. 1.2 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This specification limits the amounts and types of visual defects that can be tolerated on decoratively electroplated surfaces of plastic products. The appearance of surfaces will be separately evaluated depending on the prominence of the surface under conditions of ordinary use. The classifications are: surface A; surface B; and surface C. The part under test shall be evaluated in the same relative position as it will normally be viewed under usual conditions of use. SIGNIFICANCE AND USE 5.1 Where electroplated plastics are used for decorative purposes, the appearance after plating is important. This standard provides a means of evaluating the appearance of the substrate and the coating. SCOPE 1.1 This specification limits the amounts and types of visual defects that can be tolerated on decoratively electroplated surfaces of plastic products. The quantity of defects permitted shall be specified by the purchaser. 1.2 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM B532-85(2021) is classified under the following ICS (International Classification for Standards) categories: 25.220.40 - Metallic coatings. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM B532-85(2021) has the following relationships with other standards: It is inter standard links to ASTM D883-24, ASTM D883-23, ASTM D883-20, ASTM D883-19c, ASTM D883-19a, ASTM D883-19, ASTM D883-18a, ASTM D883-18, ASTM D883-17, ASTM D883-12e1, ASTM D883-11, ASTM B374-06(2011), ASTM D883-08, ASTM D883-07, ASTM B374-06. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM B532-85(2021) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

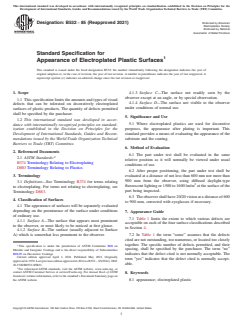

Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: B532 −85 (Reapproved 2021) Endorsed by American
Electroplaters Society
Endorsed by National
Association of Metal Finishers
Standard Specification for
Appearance of Electroplated Plastic Surfaces
This standard is issued under the fixed designation B532; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 4.1.3 Surface C—The surface not readily seen by the
observer except at an angle, or by special observation.
1.1 This specification limits the amounts and types of visual
4.1.4 Surface D—The surface not visible to the observer
defects that can be tolerated on decoratively electroplated
under conditions of normal use.
surfaces of plastic products. The quantity of defects permitted
shall be specified by the purchaser.
5. Significance and Use
1.2 This international standard was developed in accor-
5.1 Where electroplated plastics are used for decorative
dance with internationally recognized principles on standard-
purposes, the appearance after plating is important. This
ization established in the Decision on Principles for the
standard provides a means of evaluating the appearance of the
Development of International Standards, Guides and Recom-
substrate and the coating.
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
6. Method of Evaluation
2. Referenced Documents
6.1 The part under test shall be evaluated in the same
2.1 ASTM Standards:
relative position as it will normally be viewed under usual
B374 Terminology Relating to Electroplating
conditions of use.
D883 Terminology Relating to Plastics
6.2 After proper positioning, the part under test shall be
3. Terminology
evaluated at a distance of not less than 600 mm nor more than
900 mm from the observer, using diffused daylight-type
3.1 Definitions—See Terminology B374 for terms relating
fluorescent lighting or 1500 to 1600 lm/m at the surface of the
to electroplating. For terms not relating to electroplating, see
part being inspected.
Terminology D883.
6.3 Theobservershallhave20/20visionatadistanceof600
4. Classification of Surfaces
to 900 mm, corrected with eyeglasses if necessary.
4.1 The appearance of surfaces will be separately evaluated
depending on the prominence of the surface under conditions
7. Appearance Guide
of ordinary use.
7.1 Table 1 limits the extent to which various defects are
4.1.1 Surface A—The surface that appears most prominent
acceptable on each of the four surface classifications described
to the observer, or most likely to be noticed at first glance.
in Section 4.
4.1.2 Surface B—The surface (usually adjacent to Surface
A) which is somewhat less prominent to the observer. 7.2 In Table 1 the term “some” assumes that the defects
cited are not outstanding, too numerous, or located too closely
together. The specific number of defects permitted, and their
This specification is under the jurisdiction of ASTM Committee B08 on
spacing, shall be specified by the purchaser. The term “no”
Metallic and Inorganic Coatings and is the direct responsibility of Subcommittee
B08.05 on Decorative
...
