ASTM F382-17

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

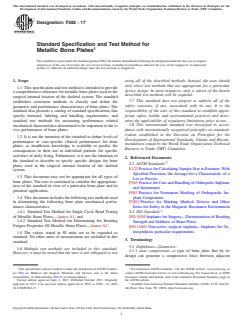

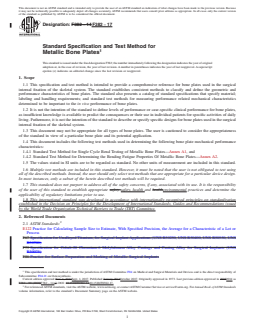

Designation: F382 − 14 F382 − 17
Standard Specification and Test Method for
Metallic Bone Plates
This standard is issued under the fixed designation F382; the number immediately following the designation indicates the year of original
adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This specification and test method is intended to provide a comprehensive reference for bone plates used in the surgical
internal fixation of the skeletal system. The standard establishes consistent methods to classify and define the geometric and
performance characteristics of bone plates. The standard also presents a catalog of standard specifications that specify material;
labeling and handling requirements; and standard test methods for measuring performance related mechanical characteristics
determined to be important to the in vivo performance of bone plates.
1.2 It is not the intention of the standard to define levels of performance or case-specific clinical performance for bone plates,
as insufficient knowledge is available to predict the consequences or their use in individual patients for specific activities of daily
living. Futhermore, it is not the intention of the standard to describe or specify specific designs for bone plates used in the surgical
internal fixation of the skeletal system.
1.3 This document may not be appropriate for all types of bone plates. The user is cautioned to consider the appropriateness
of the standard in view of a particular bone plate and its potential application.
1.4 This document includes the following test methods used in determining the following bone plate mechanical performance
characteristics:
1.4.1 Standard Test Method for Single Cycle Bend Testing of Metallic Bone Plates—Annex A1, and
1.4.2 Standard Test Method for Determining the Bending Fatigue Properties Of Metallic Bone Plates—Annex A2.
1.5 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.6 Multiple test methods are included in this standard. However, it must be noted that the user is not obligated to test using
all of the described methods. Instead, the user should only select test methods that are appropriate for a particular device design.
In most instances, only a subset of the herein described test methods will be required.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
E122 Practice for Calculating Sample Size to Estimate, With Specified Precision, the Average for a Characteristic of a Lot or
Process
F67 Specification for Unalloyed Titanium, for Surgical Implant Applications (UNS R50250, UNS R50400, UNS R50550, UNS
R50700)
F75 Specification for Cobalt-28 Chromium-6 Molybdenum Alloy Castings and Casting Alloy for Surgical Implants (UNS
R30075)
F86 Practice for Surface Preparation and Marking of Metallic Surgical Implants
This specification and test method is under the jurisdiction of ASTM Committee F04 on Medical and Surgical Materials and Devices and is the direct responsibility of
Subcommittee F04.21 on Osteosynthesis.
Current edition approved Nov. 1, 2014Sept. 1, 2017. Published January 2014October 2017. Originally approved in 1973. Last previous edition approved in 20082014 as
ε1
F382 – 99 (2008)F382 – 14. . DOI: 10.1520/F0382-14.10.1520/F0382-17.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F382 − 17

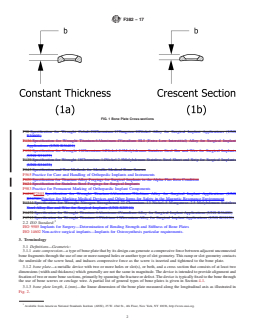

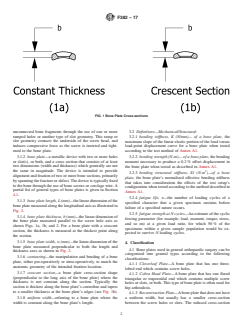

FIG. 1 Bone Plate Cross-sections
F90 Specification for Wrought Cobalt-20Chromium-15Tungsten-10Nickel Alloy for Surgical Implant Applications (UNS
R30605)
F136 Specification for Wrought Titanium-6Aluminum-4Vanadium ELI (Extra Low Interstitial) Alloy for Surgical Implant
Applications (UNS R56401)
F138 Specification for Wrought 18Chromium-14Nickel-2.5Molybdenum Stainless Steel Bar and Wire for Surgical Implants
(UNS S31673)
F139 Specification for Wrought 18Chromium-14Nickel-2.5Molybdenum Stainless Steel Sheet and Strip for Surgical Implants
(UNS S31673)
F543 Specification and Test Methods for Metallic Medical Bone Screws
F565 Practice for Care and Handling of Orthopedic Implants and Instruments
F620 Specification for Titanium Alloy Forgings for Surgical Implants in the Alpha Plus Beta Condition
F621 Specification for Stainless Steel Forgings for Surgical Implants
F983 Practice for Permanent Marking of Orthopaedic Implant Components
F1295F2503 Specification for Wrought Titanium-6Aluminum-7Niobium Alloy for Surgical Implant Applications (UNS
R56700)Practice for Marking Medical Devices and Other Items for Safety in the Magnetic Resonance Environment
F1314 Specification for Wrought Nitrogen Strengthened 22 Chromium–13 Nickel–5 Manganese–2.5 Molybdenum Stainless
Steel Alloy Bar and Wire for Surgical Implants (UNS S20910)
F1472 Specification for Wrought Titanium-6Aluminum-4Vanadium Alloy for Surgical Implant Applications (UNS R56400)
F1713 Specification for Wrought Titanium-13Niobium-13Zirconium Alloy for Surgical Implant Applications (UNS R58130)
2.2 ISO Standard:
ISO 9585 Implants for Surgery—Determination of Bending Strength and Stiffness of Bone Plates
ISO 14602 Non-active surgical implants—Implants for Osteosynthesis particular requirements.
3. Terminology
3.1 Definitions—Geometric:
3.1.1 auto compression—a type of bone plate that by its design can generate a compressive force between adjacent unconnected
bone fragments through the use of one or more ramped holes or another type of slot geometry. This ramp or slot geometry contacts
the underside of the screw head, and induces compressive force as the screw is inserted and tightened to the bone plate.
3.1.2 bone plate—a metallic device with two or more holes or slot(s), or both, and a cross section that consists of at least two
dimensions (width and thickness) which generally are not the same in magnitude. The device is intended to provide alignment and
fixation of two or more bone sections, primarily by spanning the fracture or defect. The device is typically fixed to the bone through
the use of bone screws or cerclage wire. A partial list of general types of bone plates is given in Section 4.1.
3.1.3 bone plate length, L (mm)—the linear dimension of the bone plate measured along the longitudinal axis as illustrated in
Fig. 2.
Available from American National Standards Institute (ANSI), 25 W. 43rd St., 4th Floor, New York, NY 10036, http://www.ansi.org.
F382 − 17

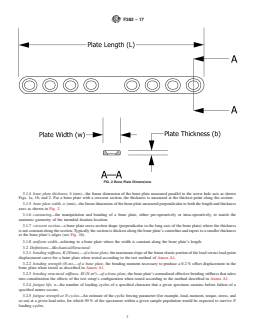

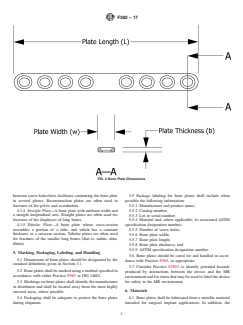

FIG. 2 Bone Plate Dimensions
3.1.4 bone plate thickness, b (mm)—the linear dimension of the bone plate measured parallel to the screw hole axis as shown
Figs. 1a, 1b, and 2. For a bone plate with a crescent section, the thickness is measured at the thickest point along the section.
3.1.5 bone plate width, w (mm)—the linear dimension of the bone plate measured perpendicular to both the length and thickness
axes as shown in Fig. 2.
3.1.6 contouring—the manipulation and bending of a bone plate, either pre-operatively or intra-operatively, to match the
anatomic geometry of the intended fixation location.
3.1.7 crescent section—a bone plate cross-section shape (perpendicular to the long axis of the bone plate) where the thickness
is not constant along the section. Typically the section is thickest along the bone plate’s centerline and tapers to a smaller thickness
at the bone plate’s edges (see Fig. 1b).
3.1.8 uniform width—referring to a bone plate where the width is constant along the bone plate’s length.
3.2 Definitions—Mechanical/Structural:
3.2.1 bending stiffness, K (N/mm)— of a bone plate, the maximum slope of the linear elastic portion of the load versus load-point
displacement curve for a bone plate when tested according to the test method of Annex A1.
3.2.2 bending strength (N-m)— of a bone plate, the bending moment necessary to produce a 0.2 % offset displacement in the
bone plate when tested as described in Annex A1.
3.2.3 bending structural stiffness, El (N-m )—of a bone plate, the bone plate’s normalized effective bending stiffness that takes
into consideration the effects of the test setup’s configuration when tested according to the method described in Annex A1.
3.2.4 fatigue life, n—the number of loading cycles of a specified character that a given specimen sustains before failure of a
specified nature occurs.
3.2.5 fatigue strength at N cycles—An estimate of the cyclic forcing parameter (for example, load, moment, torque, stress, and
so on) at a given load ratio, for which 50 % of the specimens within a given sample population would be expected to survive N
loading cycles.
F382 − 17

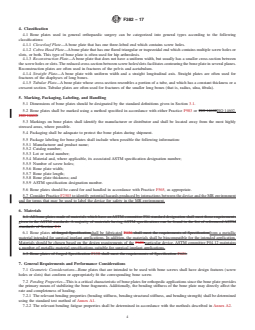

4. Classification
4.1 Bone plates used in general orthopaedic surgery can be categorized into general types according to the following
classifications:
4.1.1 Cloverleaf Plate—A bone plate that has one three-lobed end which contains screw holes.
4.1.2 Cobra Head Plate—A bone plate that has one flared triangular or trapezoidal end which contains multiple screw holes or
slots, or both. This type of bone plate is often used for hip arthrodesis.
4.1.3 Reconstruction Plate—A bone plate that does not have a uniform width, but usually has a smaller cross-section between
the screw holes or slots. The reduced cross-section between screw holes/slots facilitates contouring the bone plate in several planes.
Reconstruction plates are often used in fractures of the pelvis and acetabulum.
4.1.4 Straight Plate—A bone plate with uniform width and a straight longitudinal axis. Straight plates are often used for
fractures of the diaphyses of long bones.
4.1.5 Tubular Plate—A bone plate whose cross-section resembles a portion of a tube, and which has a constant thickness or a
crescent section. Tubular plates are often used for fractures of the smaller long bones (that is, radius, ulna, fibula).
5. Marking, Packaging, Labeling, and Handling
5.1 Dimensions of bone plates should be designated by the standard definitions given in Section 3.1.
5.2 Bone plates shall be marked using a method specified in accordance with either Practice F983 or ISO 14602ISO 14602.
ISO 14602.
5.3 Markings on bone plates shall identify the manufacturer or distributor and shall be located away from the most highly
stressed areas, where possible.
5.4 Packaging shall be adequate to protect the bone plates during shipment.
5.5 Package labeling for bone plates shall include when possible the following information:
5.5.1 Manufacturer and product name;
5.5.2 Catalog number;
5.5.3 Lot or serial number;
5.5.4 Material and, where applicable, its associated ASTM specification designation number;
5.5.5 Number of screw holes;
5.5.6 Bone plate width;
5.5.7 Bone plate length;
5.5.8 Bone plate thickness; and
5.5.9 ASTM specification designation number.
5.6 Bone plates should be cared for and handled in accordance with Practice F565, as appropriate.
5.7 Consider Practice F2503 to identify potential hazards produced by interactions between the device and the MR environment
and for terms that may be used to label the device for safety in the MR environment.
6. Materials
6.1 All bone plates made of materials which have an ASTM committee F04 standard designation shall meet those requirements
given in the ASTM standards. A majority of materials having ASTM specifications can be found in the list of referenced ASTM
standards of Section 2.1.
6.1 Bone plates of forged Specificationshall be fabricated F136 shall meet the requirements of Specificationfrom a metallic
material intended for surgical implant applications. In addition, the materials shall be biocompatible for the intended application.
Materials should be chosen based on the design requirements of the F620.particular device. ASTM committee F04.12 maintains
a number of metallic material specifications suitable for surgical implant applications.
6.3 Bone plates of forged Specification F138 shall meet the requirements of Specification F621.
7. General Requirements and Performance Considerations
7.1 Geometric Considerations—Bone plates that are intended to be used with bone screws shall have design features (screw
holes or slots) that conform or appropriately fit the corresponding bone screw.
7.2 Pending Properties—This is a critical characteristic of bone plates for orthopedic applications since the bone plate provides
the primary means of stabilizing the bone fragments. Additionally, the bending stiffness of the bone plate may directly affect the
rate and completeness of healing.
7.2.1 The relevant bending properties (bending stiffness, bending structural stiffness, and bending strength) shall be determined
using the standard test method of Annex A1.
7.2.2 The relevant bending fatigue properties shall be determined in accordance with the methods described in Annex A2.
F382 − 17
8. Keywords
8.1 bend testing—surgical implants; fatigue test; bone plate; orthopedic medical devices—bone plates; surgical devices; test
methods—surgical implants
ANNEXES

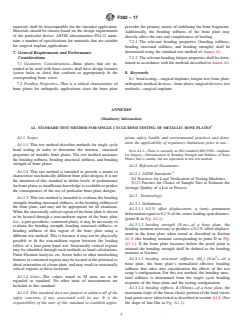

A1. STANDARD TEST METHOD FOR SINGLE CYCLE BEND TESTING OF METALLIC BONE PLATES
A1.1 Scope:
A1.1.1 This test method describes methods for single cycle bend testing in order to determine the intrinsic, structural properties
of metallic bone plates. The test method measures the bending stiffness, bending structural stiffness, and bending strength of bone
plates.
A1.1.2 This test method is intended to provide a means to characterize mechanically different bone plate designs. It is not the
intention of this standard to define levels of performance for bone plates as insufficient knowledge is available to predict the
consequences of the use of particular bone plate designs.
A1.1.3 This test method is intended to evaluate the bending strength, bending structural stiffness, or the bending stiffness of the
bone plate, and may not be appropriate for all situations. When the structurally critical region of the bone plate is shown to be
located through a non-uniform region of the bone plate (i.e., a peri-prosthetic, contoured plate), it may be necessary to evaluate
the bending strength, bending structural stiffness, or bending stiffness of this region of the bone plate using a different test method.
This is because it may not be physically possible to fit the non-uniform region between the loading rollers of a four-point bend
test. Structurally critical regions may be identified through such methods as hand calculations, Finite Element Analysis, etc. Screw
holes or other interlocking features or contoured regions may be located at the proximal or distal extremities of a bone plate, and
may result in structurally critical regions at these locations.
A1.1.4 Units—The values stated in SI units are to be regarded as standard. No other units of measurement are included in this
standard.
A1.1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.use.
NOTE A1.1—There is currently an ISO standard (ISO 9585—Implants for Surgery—Determination of Bending Strength and Stiffness of Bone Plates) that
is similar, but not equivalent to this test method.
A1.2 Referenced Documents:
A1.2.1 ASTM Standards:
E4 Practices for Load Verification of Testing Machines
E122 Practice for Choice of Sample Size to Estimate the Average Quality of a Lot or Process
A1.3 Terminology:
A1.3.1 Definitions:
A1.3.1.1 0.2 % offset displacement, q (mm)—permanent deformation equal to 0.2 % of the center loading span distance. (point B
in Fig. A1.1).
F382 − 17
FIG. A1.1 Diagram Illustrating Methods for Determining the Bending Properties of Bone Plates
A1.3.1.2 bending strength (N-m)—of a bone plate, the bending moment necessary to produce a 0.2 % offset displacement in the
bone plate when tested as described in Section A1.8 (the bending moment corresponding to point D in Fig. A1.1.). If the bone plate
fractures before the proof point is attained the bending strength shall be defined as the bending moment at fracture.
A1.3.1.3 bending structural stiffness, (EI ) (N-m )—of a bone plate, the bone plate’s normalized effective bending stiffness that
e
takes into consideration the effects of the test setup’s configuration. For this test method, the bending structural stiffness is
determined from the single cycle bending response of the bone plate and the testing configuration.
A1.3.1.4 bending stiffness, K (N/mm)—of a bone plate, the maximum slope of the linear elastic portion of the load versus
load-point curve when tested as described in section A1.8. (See the slope of line Om in Fig. A1.1).
FIG. A1.2 Test Configuration
F382 − 17
A1.3.1.5 bone plate width, w (mm)—the width of the bone plate as shown in Fig. A1.3.
A1.3.1.6 center span, a (mm)—the distance between the two loading rollers as shown in Fig. A1.2.
A1.3.1.7 fracture load, F (N)—the applied load at the time when the bone plate fractures.
max
A1.3.1.8 loading span, h (mm)—the distance between the loading roller and the nearest support as shown in Fig. A1.2.
A1.3.1.9 permanent deformation (mm)—the vertical displacement of the point of load application remaining after the applied load
has been removed.
A1.3.1.10 proof load, P (N)—the applied load at the intersection point of line. BC with the load versus load-point displacement
curve (see Fig. A1.1).
A1.3.1.11 proof point displacement (mm)—the load-point displacement associated with the bone plate’s bending strength (see
point A in Fig. A1.1).
A1.3.1.12 total deformation (mm)—the vertical displacement of the point of application of the load when specified load is applied.
A1.4 Summary of Test Method:
A1.4.1 Bone plates are subjected to a single cycle four-point bending load. The bending stiffness, bending structural stiffness, and
bending strength of the bone plate are then derived from the test record generated during the test and the testing configuration.
A1.5 Significance and Use:
A1.5.1 This bend test is used to determine values for the mechanical response of bone plates to a specific type of bending load.
The information resulting from this test method can give the surgeon some insight into the mechanical response of a given bone
plate.
A1.5.2 Since the loading on the bone plate in situ will, in general differ from the loading configuration used in this method, the
results obtained from this test method cannot be used directly to predict in vivo performance of the bone plate being tested. Such
mechanical property data can be used to conduct relative comparisons of different bone plates designs.
A1.5.3 The bending strength of the bone plate, as defined in Section A1.3.1.2, identifies the bending moment that shall be applied
to the bone plate in order to produce a specific amount of permanent deformation.
A1.5.4 The bending structural stiffness of the bone plate, as defined in Section A1.3.1.3, is an indicator of the bone plate’s stiffness
that is independent of the test configuration. Bending structural stiffness is simply related to the bone plate’s geometry and the
material used in manufacturing the bone plate.
FIG. A1.3 Roller Profiling Requirements
F382 − 17
A1.5.5 This test method assumes that linear-elastic material behavior will be observed and therefore, the method is not applicable
for the testing of materials that exhibit non-linear elastic behavior.
A1.6 Apparatus:
A1.6.1 The typical test configuration is illustrated in Fig. A1.2.
A1.6.1.1 All loads shall be applied through rollers of equal diameters within the range of 6 to 12 mm. The selected roller diameter
should not be greater than the distance between two adjacent screw holes in the bone plate to be tested.
A1.6.1.2 Cylindrical rollers shall be used to test flat bone plates and bone plates of curved cross-section, in which the deviation
from flatness at the center of the bone plate does not exceed w/6. Test other bone plates using rollers of profiled form corresponding
to the cross-section of the bone plate to be tested (see Fig. A1.3).
A1.6.1.3 The loading and support rollers shall be positioned as follows:
A1.6.1.3.1 The loading rollers shall be positioned so that two screw holes will be located between the loading rollers. Record the
center span distance.
A1.6.1.3.2 The support rollers shall be located equal distances away from the adjacent loading roller so that two screw holes will
be located between the adjacent loading and support rollers. Record the distance between the loading roller and nearest support
roller.
A1.6.1.3.3 The recommended testing configuration locates the two loading rollers at approximately the one-third points between
the supporting rollers.
A1.6.1.3.4 The applied load shall be shared equally by both loading rollers.
A1.6.1.4 Machines used for the bending test shall conform to the requirements of Practice E4.
A1.6.2 The user is strongly encouraged to obtain bone plate test specimens of sufficient length that can be tested using the methods
described in A1.6.1. However, alternative test configurations can be used to determine the single cycle bending properties of bone
plates that do not lend themselves to the configuration of Sections A1.6.1 and A1.8.1. The user should bear in mind that the results
obtained using the alternative method described below are not directly comparable to those obtained using the preferred method.
A1.6.2.1 Bone plates that do not have a sufficiently long section of symmetry or do not have a section of symmetry can be attached
to rigid extension segments. The rigid extension segments can be used to effectively lengthen the bone plate so that the bone plate
can be tested with the four-point bend test method (see Fig. A1.4 for an illustration). For these tests, the following requirements
apply.
FIG. A1.4 Bone Plate with Rigid Extension Segments
F382 − 17
A1.6.2.1.1 The rigid extension segments shall be designed so that they do not interfere with the bone plate’s deformation during
the single cycle bend test.
A1.6.2.1.2 The loading rollers shall contact the rigid extension segments of the test setup during the test.
A1.6.2.1.3 At the completion of the single cycle bend test, the bone plate anchor shall be examined in order to determine if the
indicated permanent deformation can be related to the mechanical performance of the anchoring system.
A1.6.2.2 Alternative test configurations utilized in determining the single cycle bending properties of bone plates shall be
described in the test report.
A1.7 Sampling:
A1.7.1 Determine sample size using the methods outlined in Practice E122.
A1.7.2 Bone plates of different lengths but nominally identical cross sections, and made of the same material, may be used to
constitute a sample.
A1.8 Procedure:
A1.8.1 Place the bone plate in the testing fixture and position it in accordance with the following:
A1.8.1.1 Place the bone plate so that the loading rollers are in contact with the surface of the bone plate intended to be in contact
with the bone.
A1.8.1.2 If the bone plate is symmetrical, place it symmetrically with the two innermost screw holes between the loading rollers.
A1.8.1.3 If the bone plate has a central screw hole, place it with the central screw hole and one other screw hole symmetrically
between the loading rollers.
A1.8.1.4 If the bone plate is asymmetrical, place it with two screw holes between the loading rollers so that the position of the
fracture for which it is intended to be used is between the loading rollers.
A1.8.1.5 Ensure that the loading rollers are not in contact with parts of the bone plate where there is a screw hole. Wherever
possible, the support rollers should not be in contact with parts of the bone plate which include a screw hole.
A1.8.1.6 Align the long axis of the bone plate so that it is perpendicular to the axes of the rollers.
A1.8.2 Apply loads of increasing magnitude, and generate a load versus load-point displacement diagram either auto-graphically
or from numeric data acquired during the test.
NOTE A1.2—Displacement-controlled testing is strongly preferred over load-controlled testing. The measured deformation behavior past the yield point
can be different for load-controlled testing due to non-linear displacement rates.
A1.8.3 Determine the bending stiffness, bending structural stiffness, and bending strength for each tested bone plate according to
the method that follows:
A1.8.3.1 A load versus load-point displacement curve (see Fig. A1.1) is produced either autographically or from numerical data
acquired during the test.
A1.8.3.1.1 On the load versus load-point displacement diagram generated for the test, draw a best fit straight line (Om) through
the initial (linear) portion of the load versus load-point displacement curve.
A1.8.3.1.2 Determine the bone plate’s bending stiffness by calculating the slope of the line, Om, drawn in Section 8.3.1.1.
F382 − 17
A1.8.3.1.3 Determine the bone plate’s bending structural stiffness with the following expression:
2h13a Kh
~ !
EI 5 (A1.1)
e
where:
K = the bending stiffness,
a = the center span distance, and
h = the loading span distance.
NOTE A1.3—Since the test method requires the inclusion of screw holes in the center span region, the bending structural stiffness of the bone plate really
represents an average of the EI over the center span region.
e
A1.8.3.1.4 Calculate the 0.2 % offset displacement from the expression:
q5 0.002 3a (A1.2)
where:
a = the center span distance.
A1.8.3.1.5 On the load versus load-point displacement diagram mark OB equal to q. Then draw line BC parallel to Om.
A1.8.3.1.6 Locate
...
