ASTM F3596-22
(Specification)Standard Specification for Wakeboards-Binding Mounting Area: Requirements for Locations for Thread Inserts and Thread Size for Non-Track Systems (Withdrawn 2023)
Standard Specification for Wakeboards-Binding Mounting Area: Requirements for Locations for Thread Inserts and Thread Size for Non-Track Systems (Withdrawn 2023)
SCOPE
1.1 This specification covers requirements for wakeboard threaded insert spacing, thread specifications, threaded insert diameter and thread engagement for non-track wakeboard binding systems.
1.2 Units-The values stated in inch-pound units are to be regarded as the standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
WITHDRAWN RATIONALE
This specification covers requirements for wakeboard threaded insert spacing, thread specifications, threaded insert diameter and thread engagement for non-track wakeboard binding systems.
Formerly under the jurisdiction of Committee F27 on Snow and Water Sports, this specification was withdrawn in June 2023. This standard is being withdrawn without replacement due to its limited use by industry.
General Information
Frequently Asked Questions
ASTM F3596-22 is a technical specification published by ASTM International. Its full title is "Standard Specification for Wakeboards-Binding Mounting Area: Requirements for Locations for Thread Inserts and Thread Size for Non-Track Systems (Withdrawn 2023)". This standard covers: SCOPE 1.1 This specification covers requirements for wakeboard threaded insert spacing, thread specifications, threaded insert diameter and thread engagement for non-track wakeboard binding systems. 1.2 Units-The values stated in inch-pound units are to be regarded as the standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee. WITHDRAWN RATIONALE This specification covers requirements for wakeboard threaded insert spacing, thread specifications, threaded insert diameter and thread engagement for non-track wakeboard binding systems. Formerly under the jurisdiction of Committee F27 on Snow and Water Sports, this specification was withdrawn in June 2023. This standard is being withdrawn without replacement due to its limited use by industry.
SCOPE 1.1 This specification covers requirements for wakeboard threaded insert spacing, thread specifications, threaded insert diameter and thread engagement for non-track wakeboard binding systems. 1.2 Units-The values stated in inch-pound units are to be regarded as the standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee. WITHDRAWN RATIONALE This specification covers requirements for wakeboard threaded insert spacing, thread specifications, threaded insert diameter and thread engagement for non-track wakeboard binding systems. Formerly under the jurisdiction of Committee F27 on Snow and Water Sports, this specification was withdrawn in June 2023. This standard is being withdrawn without replacement due to its limited use by industry.
ASTM F3596-22 is classified under the following ICS (International Classification for Standards) categories: 97.220.40 - Outdoor and water sports equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase ASTM F3596-22 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ASTM standards.
Standards Content (Sample)
NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

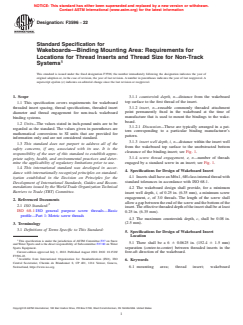

Designation: F3596 − 22
Standard Specification for
Wakeboards—Binding Mounting Area: Requirements for
Locations for Thread Inserts and Thread Size for Non-Track
Systems
This standard is issued under the fixed designation F3596; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 3.1.1 countersink depth, n—distance from the wakeboard
top surface to the first thread of the insert.
1.1 This specification covers requirements for wakeboard
3.1.2 insert, n—reusable commonly threaded attachment
threaded insert spacing, thread specifications, threaded insert
point permanently fixed in the wakeboard at the time of
diameter and thread engagement for non-track wakeboard
manufacture that is used to mount the bindings to the wake-
binding systems.
board.
1.2 Units—The values stated in inch-pound units are to be
3.1.2.1 Discussion—These are typically arranged in a pat-
regarded as the standard. The values given in parentheses are
tern corresponding to a particular binding manufacturer’s
mathematical conversions to SI units that are provided for
pattern.
information only and are not considered standard.
3.1.3 insert well depth, i, n—distance within the insert well
1.3 This standard does not purport to address all of the
from the wakeboard top surface to the unobstructed bottom
safety concerns, if any, associated with its use. It is the
clearance of the binding-insert; see Fig. 1.
responsibility of the user of this standard to establish appro-
3.1.4 screw thread engagement, e, n—number of threads
priate safety, health, and environmental practices and deter-
engaged by a standard screw in an insert; see Fig. 1.
mine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accor-
4. Specifications for Design of Wakeboard Insert
dance with internationally recognized principles on standard-
4.1 Inserts shall have an M6x1, 6H class internal thread with
ization established in the Decision on Principles for the
standard tolerances in accordance with ISO 68-1.
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical
4.2 The wakeboard design shall provide, for a minimum
Barriers to Trade (TBT) Committee.
insert well depth, i, of 0.25 in. (6.35 mm), a minimum screw
engagement, e, of 3.0 threads. The length of the screw shall
2. Referenced Documents
allow a gap between the end of the screw and the bottom of the
2.1 ISO Standa
...
