ASTM D7517-19

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D7517 − 09 (Reapproved 2014) D7517 − 19
Standard Specification for
Fully-Formulated 1,3 Propanediol (PDO) Base Engine
Coolant for Heavy-Duty Engines
This standard is issued under the fixed designation D7517; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope Scope*
1.1 This specification covers the requirements for fully-formulated glycol base coolants for cooling systems of heavy-duty
engines. When concentrates are used at 40 to 60 % PDO concentration by volume in water of suitable quality, (see Appendix X1),
or when prediluted PDO base engine coolants (50 volume % minimum) are used without further dilution, they will function
effectively during both winter and summer to provide protection against corrosion, cavitation, freezing, and boiling.
1.2 The coolants governed by this specification are categorized as follows:
Coolant Type Description
I-FF 1,3 Propanediol base concentrate
II-FF 1,3 Propanediol predilute (50 vol %)
1.3 Coolant concentrates meeting this specification do not require any addition of Supplemental Coolant Additive (SCA) until
the first maintenance interval when a maintenance dose of SCA is required to continue protection in certain heavy-duty engine
cooling systems, particularly those of the wet cylinder liner-in-block design. The SCA additions are defined by and are the primary
responsibility of the engine manufacturer or vehicle manufacturer. If they provide no instructions, follow the SCA
supplier’ssupplier’s instructions.
1.4 The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only.
after SI units are provided for information only and are not considered standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D512 Test Methods for Chloride Ion In Water
D516 Test Method for Sulfate Ion in Water
D1126 Test Method for Hardness in Water
D1287 Test Method for pH of Engine Coolants and Antirusts
D1293 Test Methods for pH of Water
D4327 Test Method for Anions in Water by Suppressed Ion Chromatography
D4725 Terminology for Engine Coolants and Related Fluids
D5827 Test Method for Analysis of Engine Coolant for Chloride and Other Anions by Ion Chromatography
D5828 Test Method for Compatibility of Supplemental Coolant Additives (SCAs) and Engine Coolant Concentrates
This specification is under the jurisdiction of ASTM Committee D15 on Engine Coolants and Related Fluids and is the direct responsibility of Subcommittee D15.07
on Specifications.
Current edition approved Feb. 1, 2014April 1, 2019. Published March 2014April 2019. Originally approved in 2009. Last previous edition approved in 20092014 as
D7517-09. –09 (2014). DOI: 10.1520/D7517-09R14.10.1520/D7517–19.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’sstandard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D7517 − 19
D6130 Test Method for Determination of Silicon and Other Elements in Engine Coolant by Inductively Coupled Plasma-Atomic
Emission Spectroscopy
D7518 Specification for 1,3 Propanediol (PDO) Base Engine Coolant for Automobile and Light-Duty Service
D7583 Test Method for John Deere Coolant Cavitation Test
E394 Test Method for Iron in Trace Quantities Using the 1,10-Phenanthroline Method
2.2 Other DocumentsDocument:
Federal Method 2540B Total Dissolved Solids Dried at 103-105°C
Standard MethodMethods for the Examination of Water and Wastewater,Wastewater. American Public Health Association, et al, 1015 15th800 I Street, N.W.NW,
Washington, DC 20005. 20001, http://www.apha.org.
D7517 − 19
3. Terminology
3.1 Definitions:
3.1.1 supplemental coolant additive (SCA), n—an additive used in conventionally inhibited heavy-duty engine coolants required
to maintain protection against general corrosion, cylinder liner pitting, and scaling in heavy-duty engines.
3.1.2 For other definitions used in this specification, refer to Terminology D4725.
4. General Requirements
4.1 Concentrated and prediluted coolants shall meet all of the respective requirements of Specification D7518.
4.2 The coolant concentrate mixed with water or the prediluted coolant, when maintained with maintenance doesdoses of SCA
in accordance with the engine manufacturer’smanufacturer’s recommendations, and those on the product label, shall be suitable
for use in a properly maintained cooling system in normal service for a minimum of two years (See(see Appendix X1).
5. Additional Requirements
5.1 The coolant concentrate or prediluted coolant additionally shall provide protection in operating engines against cavitation
corrosion (also termed liner pitting) and against scaling of internal engine hot surfaces. Hot surfaces typically are within the engine
head, head spacer, upper cylinder liner, or liquid cooled exhaust manifold. ASTMAnnex A1 has test methods under development
for both cavitation corrosion and hot surface scaling. Until these procedures are approved as ASTM standards, the mandatory
requirements of details requirements that Annex A1shall apply.be met.
5.2 Lack of compatibility between the coolant and SCA product’s chemistry may cause the solute to precipitate out of solution,
with potential adverse effects in the vehicle or engine cooling system. A test procedure for compatibility (Test Method D5828) has
been developed and approved. The compatibility of SCA and coolant concentrate solutions meeting this specification shall be
determined using Test Method D5828 and the results reported. ASTM Committee D15 has not determined a pass/fail limit for this
test. Limits are to be agreed upon between customer and supplier.
5.3 Both the concentrated and prediluted coolants shall contain less than 50 μg/g sulfate ion.
6. Keywords
6.1 1,3-propanediol; cavitation; fully-formulated heavy-duty engine coolant; maintenance dose; PDO; supplemental coolant
additive
ANNEX
(Mandatory Information)
A1. CHEMICAL REQUIREMENTS FOR FULLY FORMULATED HEAVY-DUTY ENGINE COOLANT
A1.1 Laboratory data or in-service experience demonstrating a positive influence on reducing cavitation corrosion in an operating
engine is required.
A1.1.1 In-service qualification tests may consist of single- or multiple-cylinder engine tests. At the option of the engine or vehicle
manufacturer, such testing may be conducted in “loose engines (that is, engines modified to induce liner cavitation)” or in engines
fully integrated into an application, such as a vehicle, a powerboat, or a stationary power source. One such test has been
developed.
A1.1 Several chemical compositions have been tested extensively by producers and users and satisfactorily minimize cylinder
liner cavitation in actual test engines. Coolants meeting either ofLaboratory data or in-service experience demonstrating a positive
influence on reducing cavitation corrosion in an operating engine is required. See Table A1.1 the following compositions are
regarded as passing the requirements of A1.1.
−
A1.1.1 A minimum concentration of nitrite (as NOIn-service qualification tests may consist of single- or multiple-cylinder ) of
D7517 − 19

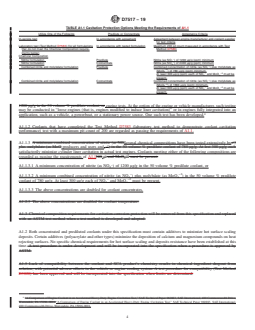

TABLE A1.1 Cavitation Protection Options Meeting the Requirements of A1.1
Utilize One of the Following Predilute or Concentrate Acceptance Criteria
In-service test In accordance with agreement Agreement between engine manufacturer and coolant supplier
for test criteria
Laboratory test (Test Method D7583) (for all formulations In accordance with tested formulation Maximum 200 pit count measured in accordance with Test
that do not meet the Chemical Composition require- Method D7583)
ments below)
Chemical Composition
–
Nitrite formulation Predilute Nitrite (as NO ) of 1200 μg/g (ppm) minimum
–
Nitrite formulation Concentrate Nitrite (as NO ) of 2400 μg/g (ppm) minimum
–
Combined nitrite and molybdate formulation Predilute Combined concentration of nitrite (as NO ) plus molybdate as
–2
(MoO ) of 780 μg/g (ppm) minimum.
– –2
At least 300 μg/g (ppm) each of NO and MoO must be
2 4
present.
–
Combined nitrite and molybdate formulation Concentrate Combined concentration of nitrite (as NO ) plus molybdate as
–2
(MoO ) of 1560 μg/g (ppm) minimum.
– –2
At least 600 μg/g (ppm) each of NO and MoO must be
2 4
present.
1200 μg/g in the 50 volume % predilute coolant, or engine tests. At the option of the engine or vehicle manufacturer, such testing
may be conducted in “loose engines (that is, engines modified to induce liner cavitation)” or in engines fully integrated into an
application, such as a vehicle, a powerboat, or a stationary power source. One such test has been developed.
A1.1.2 Coolants that have completed the Test Method D7583 (laboratory test method to demonstrate coolant cavitation
perfo
...
