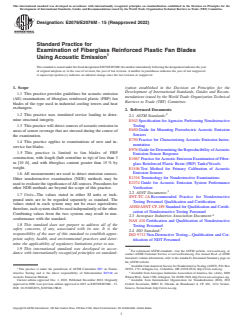

ASTM E2076/E2076M-15(2022)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: E2076/E2076M − 15 (Reapproved 2022)
Standard Practice for
Examination of Fiberglass Reinforced Plastic Fan Blades
Using Acoustic Emission
ThisstandardisissuedunderthefixeddesignationE2076/E2076M;thenumberimmediatelyfollowingthedesignationindicatestheyear
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
1.1 This practice provides guidelines for acoustic emission
mendations issued by the World Trade Organization Technical
(AE) examinations of fiberglass reinforced plastic (FRP) fan
Barriers to Trade (TBT) Committee.
blades of the type used in industrial cooling towers and heat
exchangers.
2. Referenced Documents
1.2 This practice uses simulated service loading to deter-
2.1 ASTM Standards:
mine structural integrity.
E543 Specification for Agencies Performing Nondestructive
Testing
1.3 This practice will detect sources of acoustic emission in
E650 Guide for Mounting Piezoelectric Acoustic Emission
areas of sensor coverage that are stressed during the course of
Sensors
the examination.
E750 Practice for Characterizing Acoustic Emission Instru-
1.4 This practice applies to examinations of new and in-
mentation
service fan blades.
E976 GuideforDeterminingtheReproducibilityofAcoustic
1.5 This practice is limited to fan blades of FRP
Emission Sensor Response
construction, with length (hub centerline to tip) of less than 3
E1067 PracticeforAcousticEmissionExaminationofFiber-
m [10 ft], and with fiberglass content greater than 15 % by
glass Reinforced Plastic Resin (FRP) Tanks/Vessels
weight.
E1106 Test Method for Primary Calibration of Acoustic
Emission Sensors
1.6 AE measurements are used to detect emission sources.
E1316 Terminology for Nondestructive Examinations
Other nondestructive examination (NDE) methods may be
E2374 Guide for Acoustic Emission System Performance
used to evaluate the significance ofAE sources. Procedures for
Verification
other NDE methods are beyond the scope of this practice.
2.2 ASNT Documents:
1.7 Units—The values stated in either SI units or inch-
SNT-TC-1A Recommended Practice for Nondestructive
pound units are to be regarded separately as standard. The
Testing Personnel Qualification and Certification
values stated in each system may not be exact equivalents;
ANSI/ASNT CP-189 Standard for Qualification and Certifi-
therefore,eachsystemshallbeusedindependentlyoftheother.
cation of Nondestructive Testing Personnel
Combining values from the two systems may result in non-
2.3 Aerospace Industries Association Document:
conformance with the standard.
NAS 410 Certification and Qualification of Nondestructive
1.8 This standard does not purport to address all of the
Testing Personnel
safety concerns, if any, associated with its use. It is the
2.4 ISO Standard:
responsibility of the user of this standard to establish appro-
ISO 9712 Non-Destructive Testing—Qualification and Cer-
priate safety, health, and environmental practices and deter-
tification of NDT Personnel
mine the applicability of regulatory limitations prior to use.
1.9 This international standard was developed in accor-
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
dance with internationally recognized principles on standard-
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website.
AvailablefromAmericanSocietyforNondestructiveTesting(ASNT),P.O.Box
This practice is under the jurisdiction of ASTM Committee E07 on Nonde- 28518, 1711 Arlingate Ln., Columbus, OH 43228-0518, http://www.asnt.org.
structive Testing and is the direct responsibility of Subcommittee E07.04 on Available fromAerospace IndustriesAssociation ofAmerica, Inc. (AIA), 1000
Acoustic Emission Method. WilsonBlvd.,Suite1700,Arlington,VA22209-3928,http://www.aia-aerospace.org.
Current edition approved Dec. 1, 2022. Published December 2022. Originally Available from International Organization for Standardization (ISO), ISO
approved in 2000. Last previous edition approved in 2015 as E2076/E2076M – 15. Central Secretariat, BIBC II, Chemin de Blandonnet 8, CP 401, 1214 Vernier,
DOI: 10.1520/E2076_E2076M-15R22. Geneva, Switzerland, http://www.iso.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

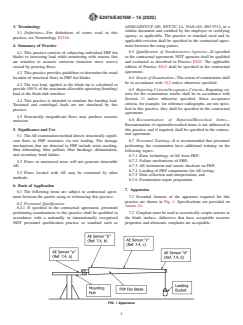

E2076/E2076M − 15 (2022)
3. Terminology ANSI/ASNT-CP-189, SNT-TC-1A, NAS-410, ISO 9712, or a
similar document and certified by the employer or certifying
3.1 Definitions—For definitions of terms used in this
agency, as applicable. The practice or standard used and its
practice, see Terminology E1316.
applicable revision shall be specified in the contractual agree-
ment between the using parties.
4. Summary of Practice
6.3 Qualification of Nondestructive Agencies—If specified
4.1 This practice consists of subjecting individual FRP fan
blades to increasing load while monitoring with sensors that in the contractual agreement, NDT agencies shall be qualified
and evaluated as described in Practice E543. The applicable
are sensitive to acoustic emission (transient stress waves)
caused by growing flaws. edition of Practice E543 shall be specified in the contractual
agreement.
4.2 This practice provides guidelines to determine the zonal
location of structural flaws in FRP fan blades. 6.4 Extent of Examination—The extent of examination shall
be in accordance with 10.2 unless otherwise specified.
4.3 The test load, applied at the blade tip is calculated to
provide 100 % of the maximum allowable operating (bending) 6.5 Reporting Criteria/Acceptance Criteria—Reporting cri-
load at the blade-hub interface.
teria for the examination results shall be in accordance with
Section 12 unless otherwise specified. Since acceptance
4.4 This practice is intended to simulate the bending load.
criteria, for example, for reference radiographs, are not speci-
Torsional and centrifugal loads are not simulated by this
fied in this practice, they shall be specified in the contractual
practice.
agreement.
4.5 Structurally insignificant flaws may produce acoustic
6.6 Reexamination of Repaired/Reworked Items—
emission.
Reexamination of repaired/reworked items is not addressed in
5. Significance and Use this practice, and if required, shall be specified in the contrac-
tual agreement.
5.1 TheAE examination method detects structurally signifi-
cant flaws in FRP structures via test loading. The damage 6.7 Personnel Training—It is recommended that personnel
mechanisms that are detected in FRP include resin cracking,
performing the examination have additional training on the
fiber debonding, fiber pullout, fiber breakage, delamination, following topics:
and secondary bond failure.
6.7.1 Basic technology of AE from FRP;
6.7.2 Failure mechanisms of FRP;
5.2 Flaws in unstressed areas will not generate detectable
6.7.3 AE instrument and sensor checkout on FRP;
AE.
6.7.4 Loading of FRP components for AE testing;
5.3 Flaws located with AE may be examined by other
6.7.5 Data collection and interpretation; and
methods.
6.7.6 Examination report preparation.
6. Basis of Application
7. Apparatus
6.1 The following items are subject to contractual agree-
7.1 Essential features of the apparatus required for this
ment between the parties using or referencing this practice.
practice are shown in Fig. 1. Specifications are provided on
6.2 Personnel Qualification
Annex A1.
6.2.1 If specified in the contractual agreement, personnel
performing examinations to this practice shall be qualified in 7.2 Couplant must be used to acoustically couple sensors to
accordance with a nationally or internationally recognized the blade surface. Adhesives that have acceptable acoustic
NDT personnel qualification practice or standard such as properties and ultrasonic couplants are acceptable.
FIG. 1 Apparatus

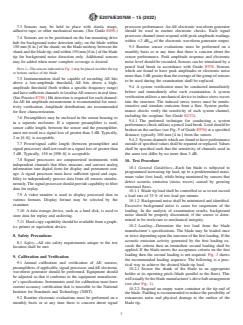

E2076/E2076M − 15 (2022)
7.3 Sensors may be held in place with elastic straps, processor performance. An AE electronic waveform generator
adhesive tape, or other mechanical means. (See Guide E650.) should be used in routine electronic checks. Each signal
processor channel must respond with peak amplitude readings
7.4 Sensors are to be positioned on the fan mounting drive
within 62dB of the electronic waveform generator output.
AE
hub for background noise detection only; on the blade within
150 mm [6 in.] of the shank; on the blade midway between the 9.3 Routine sensor evaluations must be performed on a
shank and the blade tip; and within 150 mm [6 in.] of the blade monthly basis or at any time that there is concern about the
tip for background noise detection only. Additional sensors sensor performance. Peak amplitude response and electronic
may be added when more complete coverage is desired. noise level should be recorded. Sensors can be stimulated by a
pencil lead break in accordance with Guide E976. Sensors
NOTE1—ThesensorsindicatedinFig.1maybeplacedoneitherthetop
which are found to have peak amplitudes or electronic noise
or bottom surface of the blade.
morethan3dBgreaterthantheaverageofthegroupofsensors
7.5 Instrumentation shall be capable of recording AE hits
to be used during the examination shall be replaced.
above a low-amplitude threshold, AE hits above a high-
9.4 A system verification must be conducted immediately
amplitude threshold (both within a specific frequency range)
before and immediately after each examination. A system
andhavesufficientchannelstolocalizeAEsourcesinrealtime.
verification utilizes a mechanical device to induce stress waves
(See Practice E750.) Hit detection is required for each channel.
into the structure. The induced stress waves must be nonde-
An AE hit amplitude measurement is recommended for sensi-
structive and simulate emission from a flaw. System perfor-
tivity verification. Amplitude distributions are recommended
mance checks verify the sensitivity of each system channel,
for flaw characterization.
including the couplant. See Guide E2374.
7.6 Preamplifiers may be enclosed in the sensor housing or
9.4.1 The preferred technique for conducting a system
in a separate enclosure. If a separate preamplifier is used,
performance check utilizes a pencil lead break. Lead should be
sensor cable length, between the sensor and the preamplifier,
broken on the surface (see Fig. 5 of Guide E976) at a specified
must not result in a signal loss of greater than 3 dB. Typically,
distance, typically 100 mm [4 in.] from the sensor.
2 m [6 ft], is acceptable.
9.4.2 Systemchannelswhicharefoundtohaveperformance
7.7 Power/signal cable length (between preamplifier and
outside of specified values shall be repaired or replaced.Values
signal processor) shall not result in a signal loss of greater than
shall be specified such that the sensitivity of channels used in
3 dB. Typically, 150 m [500 ft] is acceptable.
the same test differ by no more than 3 dB.
7.8 Signal processors are computerized instruments with
10. Test Procedure
independent channels that filter, measure, and convert analog
10.1 General Guidelines—Each fan blade is subjected to
information into digital form for display and permanent stor-
programmed increasing tip load, up to a predetermined maxi-
age. A signal processor must have suf
...
