ASTM D2466-23

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D2466 − 21 D2466 − 23 An American National Standard
Standard Specification for
Poly(Vinyl Chloride) (PVC) Plastic Pipe Fittings, Schedule
This standard is issued under the fixed designation D2466; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope*
1.1 This specification covers poly(vinyl chloride) (PVC) Schedule 40 pipe fittings. Included are requirements for materials,
workmanship, dimensions, and burst pressure.
NOTE 1—Socket-type CPVC plastic pipe fittings, Schedule 40, which were formerly included in this standard, are now covered by Specification F438.
1.2 The products covered by this specification are intended for use with the distribution of pressurized liquids only, which are
chemically compatible with the piping materials. Due to inherent hazards associated with testing components and systems with
compressed air or other compressed gases, some manufacturers do not allow pneumatic testing of their products. Consult with
specific product/component manufacturers for their specific testing procedures prior to pneumatic testing.
NOTE 2—Pressurized (compressed) air or other compressed gases contain large amounts of stored energy which present serious safteysafety hazards
should a system fail for any reason.
1.3 Fitting such as unions, flanges, special plastic-to-metal transitions and appurtenances intended for use with PVC piping are
covered under specificationSpecification F1970.
1.4 The text of this specification references notes, footnotes, and appendixes which provide explanatory material. These notes and
footnotes (excluding those in tables and figures) shall not be considered as requirements of the specification.
1.5 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.6 The following safety hazards caveat pertains only to the test method portion, Section 7, of this specification. This standard
does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this
standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory
limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
This specification is under the jurisdiction of ASTM Committee F17 on Plastic Piping Systems and is the direct responsibility of Subcommittee F17.10 on Fittings.
Current edition approved April 1, 2021July 1, 2023. Published April 2021August 2023. Originally approved in 1965. Last previous edition approved in 20172021 as
D2466 – 17.D2466 – 21. DOI: 10.1520/D2466-21.10.1520/D2466-23.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D2466 − 23
2. Referenced Documents
2.1 ASTM Standards:
D618 Practice for Conditioning Plastics for Testing
D1599 Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings
D1600 Terminology for Abbreviated Terms Relating to Plastics
D1784 Classification System and Basis for Specification for Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlorinated
Poly(Vinyl Chloride) (CPVC) Compounds
D2122 Test Method for Determining Dimensions of Thermoplastic Pipe and Fittings
D2749 Symbols for Dimensions of Plastic Pipe Fittings
F412 Terminology Relating to Plastic Piping Systems
F438 Specification for Socket-Type Chlorinated Poly(Vinyl Chloride) (CPVC) Plastic Pipe Fittings, Schedule 40
F1498 Specification for Taper Pipe Threads 60° for Thermoplastic Pipe and Fittings
F1970 Specification for Special Engineered Fittings, Appurtenances or Valves for use in Poly (Vinyl Chloride) (PVC) or
Chlorinated Poly (Vinyl Chloride) (CPVC) Systems
2.2 NSF/ANSI Standards:
NSF/ANSI Standard No. 14 for Plastic Piping Components and Related Materials
NSF/ANSI Standard No. 61 Drinking Water Systems Components—Health Effects
3. Terminology
3.1 General—Definitions are in accordance with Terminology F412, and abbreviations are in accordance with Terminology
D1600, unless otherwise indicated. The abbreviation for poly(vinyl chloride) plastic is PVC.
4. Classification
4.1 General—This specification covers Schedule 40 PVC pipe fittings, made from four PVC plastic compounds and intended for
use with Iron Pipe Size (IPS) outside-diameter plastic pipe.
4.1.1 Fittings covered by this specification are normally molded. In-line fittings, such as couplings, bushings, caps, nipples, etc.,
shall be molded or machined from extruded stock.
4.1.2 Fittings fabricated by welding are not included in this specification.
5. Materials
5.1 This specification covers PVC pipe fittings made from five PVC plastics as classified in Specification D1784. These are PVC
12454, 12454, 13354, 11443, and 14333.
5.2 Compound—The PVC plastic compound shall meet the requirements of PVC 12454, 12454, 11443, or 14333, as described in
Specification D1784.
NOTE 3—Mechanical strength, heat resistance, flammability, and chemical resistance requirements are covered in Specification D1784.
5.3 Rework Material—The manufacturers shall use only their own clean rework fitting material and the fittings produced shall
meet all the requirements of this specification.
6. Requirements
6.1 Dimensions and Tolerances:
6.1.1 Fitting sockets inside diameters (waterways), minimum wall thicknesses, and dimensions shall be as shown in Table 1, Table
2, and Table 3 when measured in accordance with Test Method D2122.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Available from NSF International, P.O. Box 130140, 789 N. Dixboro Rd., Ann Arbor, MI 48113-0140, http://www.nsf.org.
D2466 − 23
A

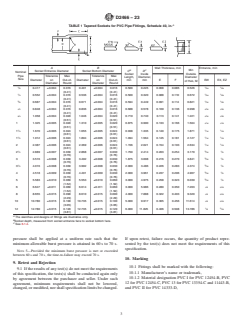

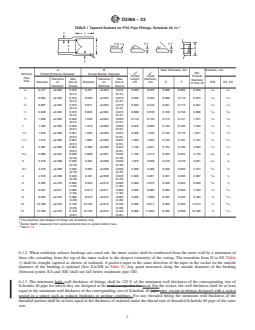

TABLE 1 Tapered Sockets for PVC Pipe Fittings, Schedule 40, in.
A B Wall Thickness, min Entrance, min
B C Min
C D
Socket Entrance Diameter Socket Bottom Diameter
Nominal
Socket Inside Outside
Pipe
Tolerance Max Tolerance Max
Length, Diameter,
Diameter
Size
Diameter on Out-of- Diameter on Out-of- min min E F EW EX, EZ
of Hub, M
Diameter Round Diameter Round
1 1 1
⁄8 0.417 ±0.004 0.016 0.401 ±0.004 0.016 0.500 0.225 0.068 0.085 0.526 ⁄64 ⁄64
(0.41) (0.41)
1 1 1
⁄4 0.552 ±0.004 0.016 0.536 ±0.004 0.016 0.500 0.320 0.088 0.110 0.672 ⁄64 ⁄64
(0.41) (0.41)
3 1 1
⁄8 0.687 ±0.004 0.016 0.671 ±0.004 0.016 0.594 0.449 0.091 0.114 0.821 ⁄32 ⁄32
(0.41) (0.41)
1 1 1
⁄2 0.848 ±0.004 0.016 0.836 ±0.004 0.016 0.688 0.578 0.109 0.136 0.998 ⁄32 ⁄32
(0.41) (0.41)
3 1 1
⁄4 1.058 ±0.004 0.020 1.046 ±0.004 0.020 0.719 0.740 0.113 0.141 1.221 ⁄32 ⁄32
(0.51) (0.51)
1 1
1 1.325 ±0.005 0.020 1.310 ±0.005 0.020 0.875 0.990 0.133 0.166 1.504 ⁄16 ⁄16
(0.51) (0.51)
1 1 1
1 ⁄4 1.670 ±0.005 0.024 1.655 ±0.005 0.024 0.938 1.335 0.140 0.175 1.871 ⁄16 ⁄16
(0.61) (0.61)
1 1 1
1 ⁄2 1.912 ±0.006 0.024 1.894 ±0.006 0.024 1.094 1.564 0.145 0.181 2.127 ⁄16 ⁄16
(0.61) (0.61)
1 1
2 2.387 ±0.006 0.024 2.369 ±0.006 0.024 1.156 2.021 0.154 0.193 2.634 ⁄16 ⁄16
(0.61) (0.61)
1 3 1
2 ⁄2 2.889 ±0.007 0.030 2.868 ±0.007 0.030 1.750 2.414 0.203 0.254 3.170 ⁄32 ⁄8
(0.76) (0.76)
3 1
3 3.516 ±0.008 0.030 3.492 ±0.008 0.030 1.875 3.008 0.216 0.270 3.841 ⁄32 ⁄8
(0.76) (0.76)
1 3 1
3 ⁄2 4.016 ±0.008 0.030 3.992 ±0.008 0.030 2.000 3.486 0.226 0.283 4.374 ⁄32 ⁄8
(0.76) (0.76)
3 1
4 4.518 ±0.009 0.030 4.491 ±0.009 0.030 2.000 3.961 0.237 0.296 4.907 ⁄32 ⁄8
(0.76) (0.76)
3 1
5 5.583 ±0.010 0.060 5.553 ±0.010 0.060 3.000 4.975 0.258 0.323 6.039 ⁄32 ⁄8
(1.52) (1.52)
1 3
6 6.647 ±0.011 0.060 6.614 ±0.011 0.060 3.000 5.986 0.280 0.350 7.203 ⁄8 ⁄16
(1.52) (1.52)
1 3
8 8.655 ±0.015 0.090 8.610 ±0.015 0.090 4.000 7.888 0.322 0.403 9.320 ⁄8 ⁄16
(2.29) (2.29)
1 3
10 10.780 ±0.015 0.100 10.735 ±0.015 0.100 5.000 9.917 0.365 0.456 11.614 ⁄8 ⁄16
(3.05) (3.05)
1 3
12 12.780 ±0.015 0.120 12.735 ±0.015 0.120 6.000 11.825 0.406 0.508 13.786 ⁄8 ⁄16
(3.81) (3.81)
A
The sketches and designs of fittings are illustrative only.
B
Socket depth, measured from socket entrance face to socket bottom face.
C
See 6.1.4.
6.1.2 When multistep reducer bushings are cored out, the inner socket shall be reinforced from the outer wall by a minimum of
three ribs extending from the top of the inner socket to the deepest extremity of the coring. The transition from D to DJ (Table
3) shall be straight, tapered as shown, or radiused. A positive taper in the same direction of the taper in the socket on the outside
diameter of the bushing is optional (See XA/XB in Table 3). Any point measured along the outside diameter of the bushing
(between points XA and XB) shall not fall below minimum pipe OD.
6.1.3 The minimum body wall thickness of fittings shall be 125 % of the minimum wall thickness of the corresponding size of
Schedule 40 pipe for which they are designed to be used, except that for used. For the socket, the wall thickness shall be at least
equal to the minimum wall thickness of the corresponding size of Schedule 40 pipe. pipe, except in fittings designed with a socket
nested in a spigot such as reducer bushings or nesting couplings. For any threaded fitting the minimum wall thickness of the
threaded portion shall be at least equal to the thickness of material under the thread root of threaded Schedule 80 pipe of the same
size.
D2466 − 23

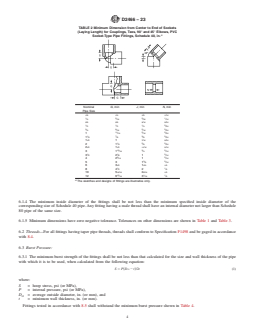

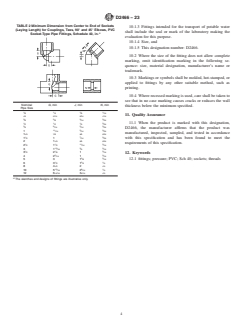

TABLE 2 Minimum Dimension from Center to End of Sockets
(Laying Length) for Couplings, Tees, 90° and 45° Elbows, PVC
A
Socket-Type Pipe Fitting
...
